Description

Brief Product Description

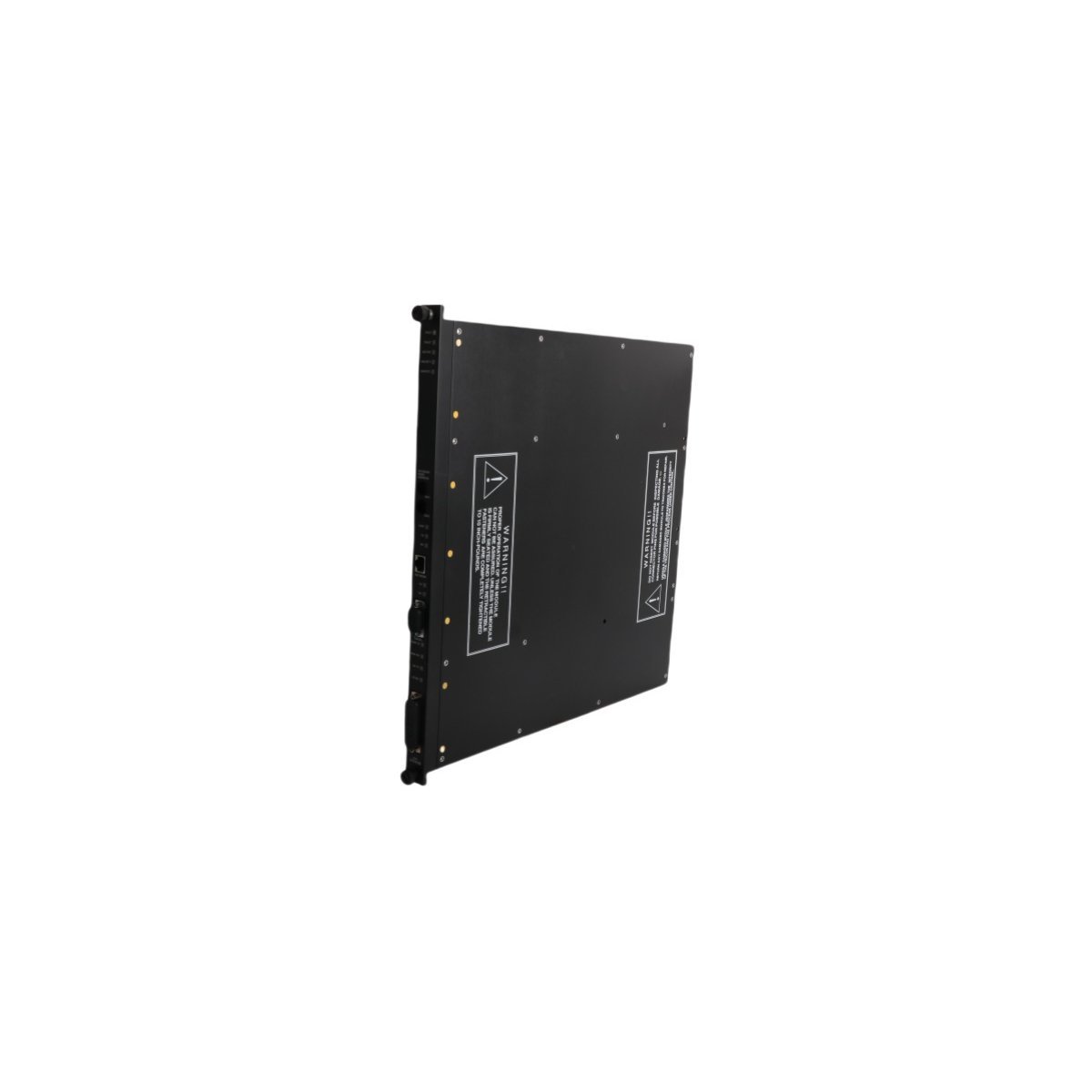

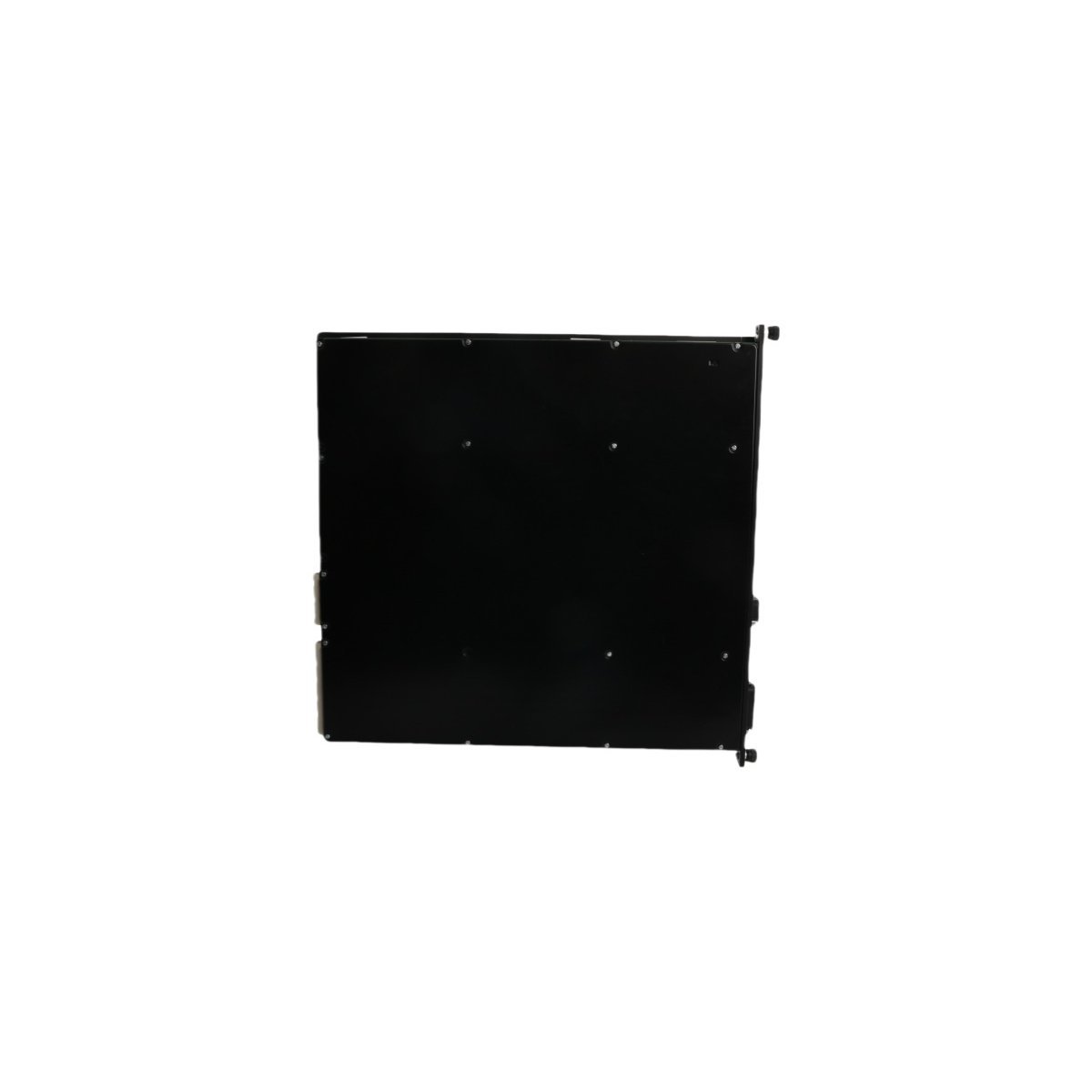

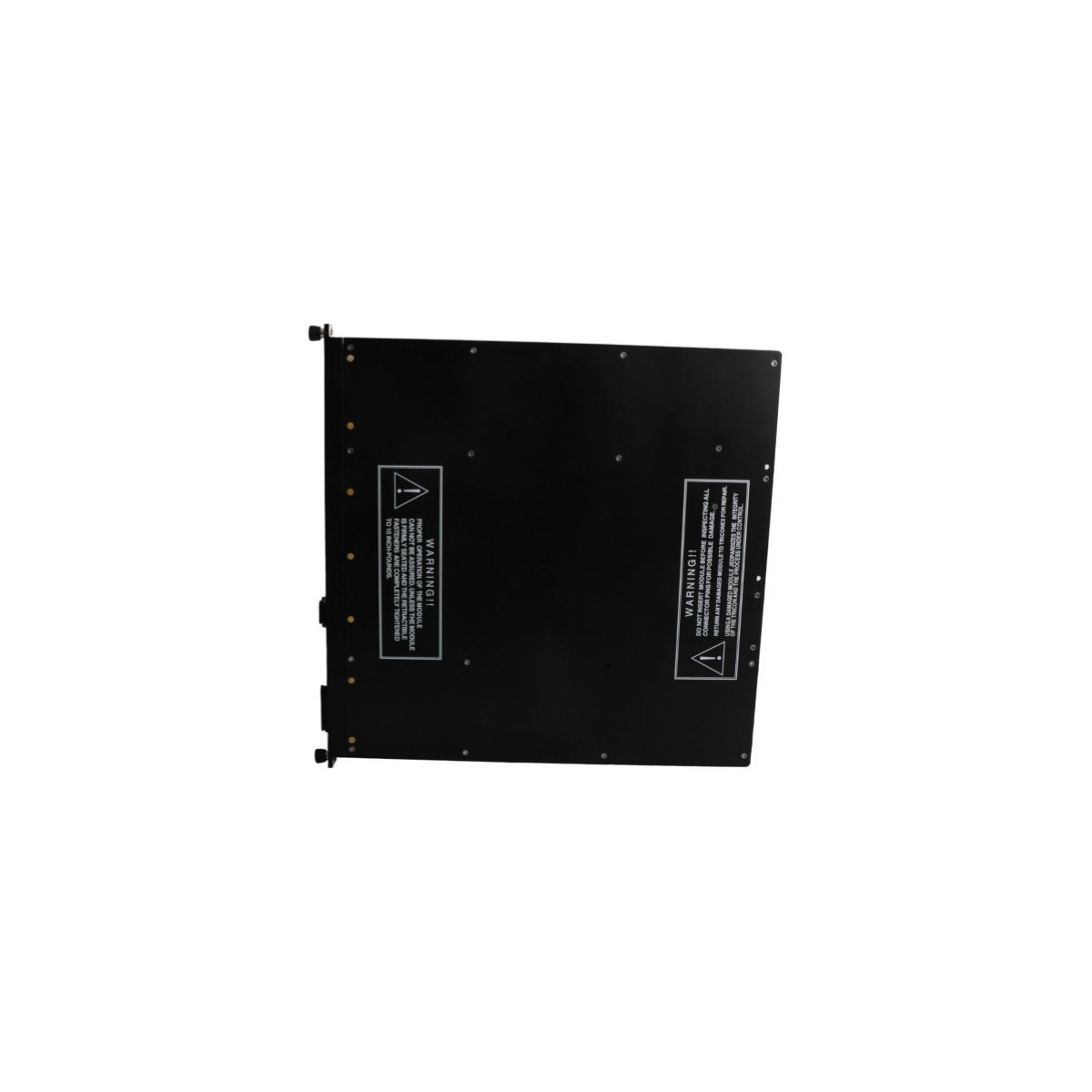

The Triconex 3008 is a high-availability main processor designed for the Tricon Triple Modular Redundant (TMR) safety system.³ It executes complex control logic and system diagnostics across three isolated legislative channels to ensure uninterrupted operation in safety-critical industrial environments.⁴

Product Description

Triple Modular Redundant (TMR) Processing

The Triconex 3008 Main Processor serves as the primary intelligence for the Tricon safety system, utilizing a patented TMR architecture to provide unparalleled fault tolerance.⁵ By operating three independent processing channels simultaneously, the module identifies and out-votes any single-point failure through a hardware-based “2-out-of-3” voting mechanism. This design allows the module to maintain continuous control of the process even during a hardware malfunction. Consequently, the 3008 processor eliminates the risk of nuisance trips while providing a SIL 3-certified safety solution for high-risk industrial facilities.⁶

High-Performance Logic Execution

Inside each 3008 Main Processor, a robust 32-bit microprocessor executes the application program while concurrently managing extensive system-wide diagnostics.⁷ The module handles high-speed logic solving and coordinates all I/O bus communications across the main and expansion chassis. Furthermore, it supports sophisticated control algorithms required by Emergency Shutdown (ESD) systems and Burner Management Systems (BMS). By managing the synchronization of all three channels, the processor ensures that every safety decision is validated across the entire system before execution, maintaining the highest levels of operational precision.

Seamless Industrial Integration

Triconex designed the 3008 to interface effortlessly with modern industrial infrastructure, including Distributed Control Systems (DCS) and Human-Machine Interfaces (HMI). The module manages the flow of information to communication cards, ensuring that real-time data remains available for plant operators. Its modular “hot-swappable” design allows maintenance teams to replace a faulty processor without shutting down the system, significantly improving plant uptime.⁸ Because the 3008 module meets stringent international standards for functional safety, it remains a preferred choice for the global oil, gas, and power generation industries.

Technical Specification Table
