Description

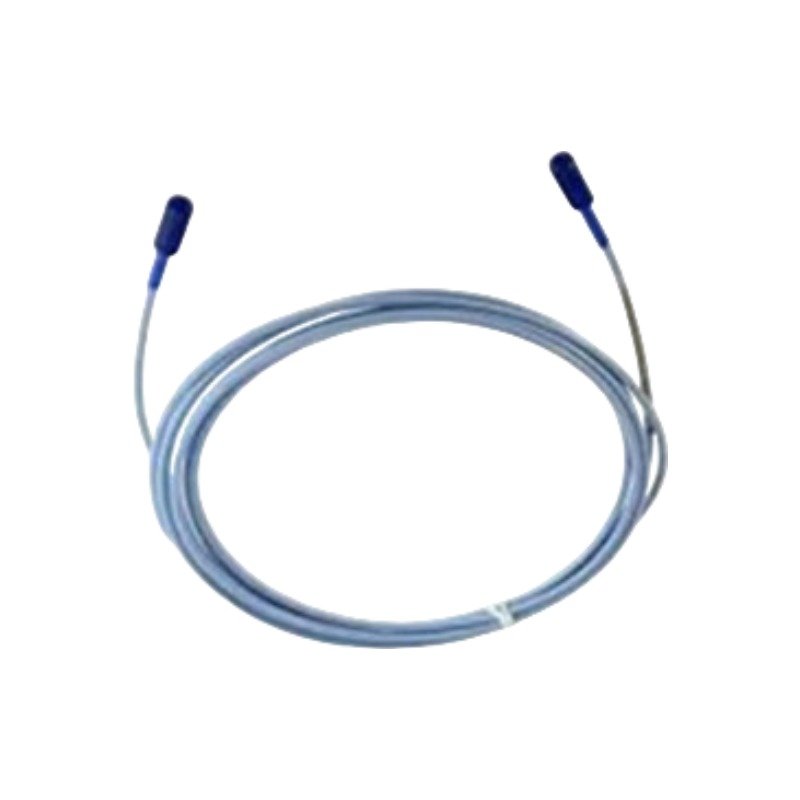

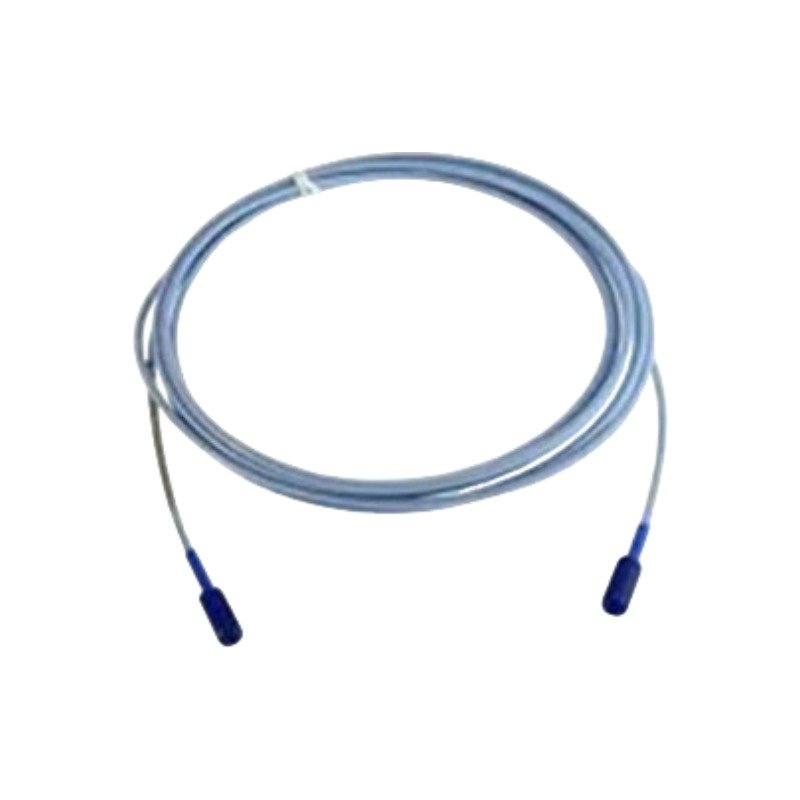

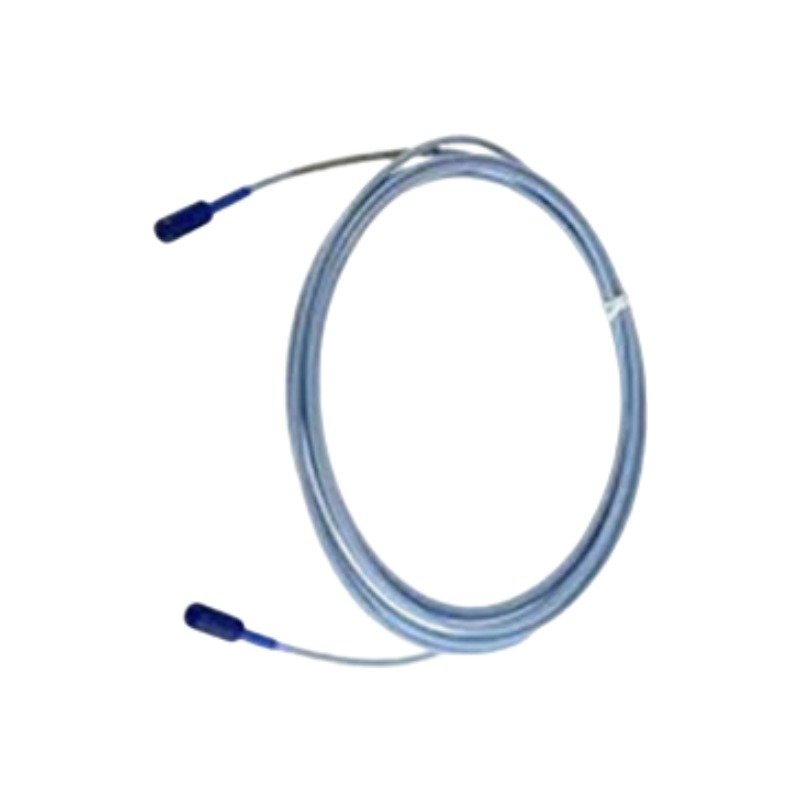

The Bently Nevada 26179-01-04-10-02, also cataloged as the Bently Nevada 26179 Proximity System Element, operates as a dedicated hardware component for machinery condition monitoring within vibration protection networks. Specifically, this assembly establishes the critical physical-to-electrical connection between field-mounted proximity sensors and monitoring backplanes. Consequently, it transmits precise analog voltage signals over specified distances without attenuation, which allows engineers to perform exact shaft position and relative vibration analysis.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Because this hardware module handles analog sensor signals, it directly impacts eddy-current probe scaling accuracy. Operators must calibrate the transducer network during setup, which requires strict gap voltage validation to ensure that baseline readings hit the target -10 VDC zone. Moreover, proper installation enforces robust cross-talk suppression by keeping high-frequency sensor cables inside dedicated, isolated conduit runs. As a result, this protective shielding maintains high-fidelity signal propagation, preventing electromagnetic noise from distorting critical data on rotor dynamics.

Frequently Asked Questions

Q: How does the 26179 cable construction assist with cross-talk suppression in high-density installations?

A: The component utilizes a high-coverage braided outer shield that actively blocks external electromagnetic interference, which prevents signal degradation when routing multiple sensor lines together.

Q: Why must field technicians verify the mechanical connection before performing gap voltage validation?

A: Loose threaded couplings alter the electrical impedance of the coaxial loop. Therefore, technicians must secure the physical connections first to ensure stable -10 VDC calibration targets.

Field Installation Guidelines

• Route all coaxial field wiring away from sharp structural edges to prevent mechanical abrasion or insulation punctures.

• Insulate all outer coaxial connectors using specialized heat-shrink tubing to seal the connection points against fluid or moisture ingress.

• Secure the cable bundles within grounded metal conduits, which separates the delicate sensor loops from high-voltage motor supply lines.

• Handle the hardware components exclusively with ESD-safe gloves during installation to prevent static charges from damaging downstream monitor inputs.
