Description

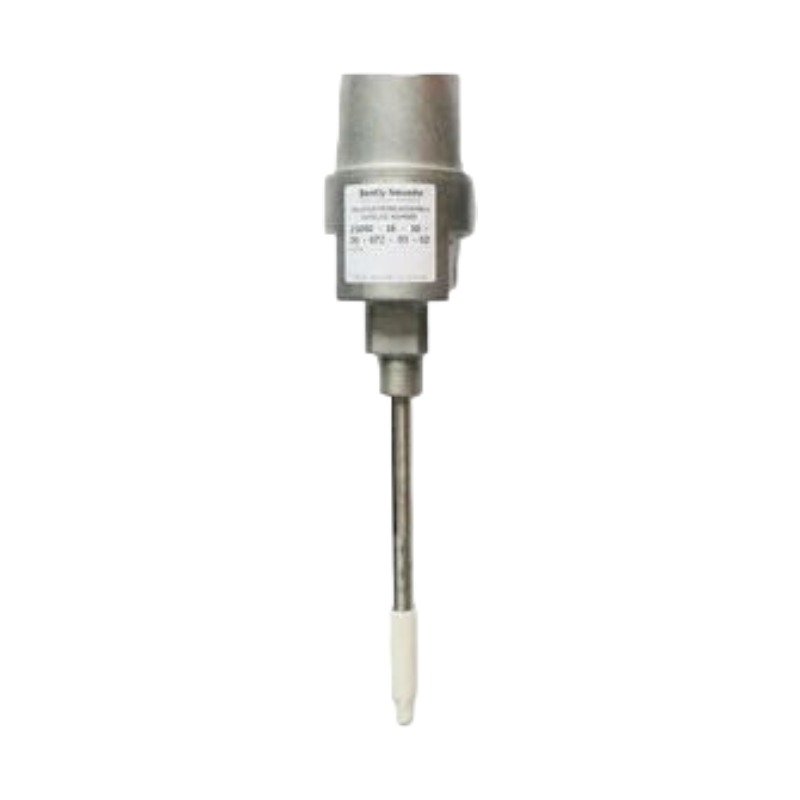

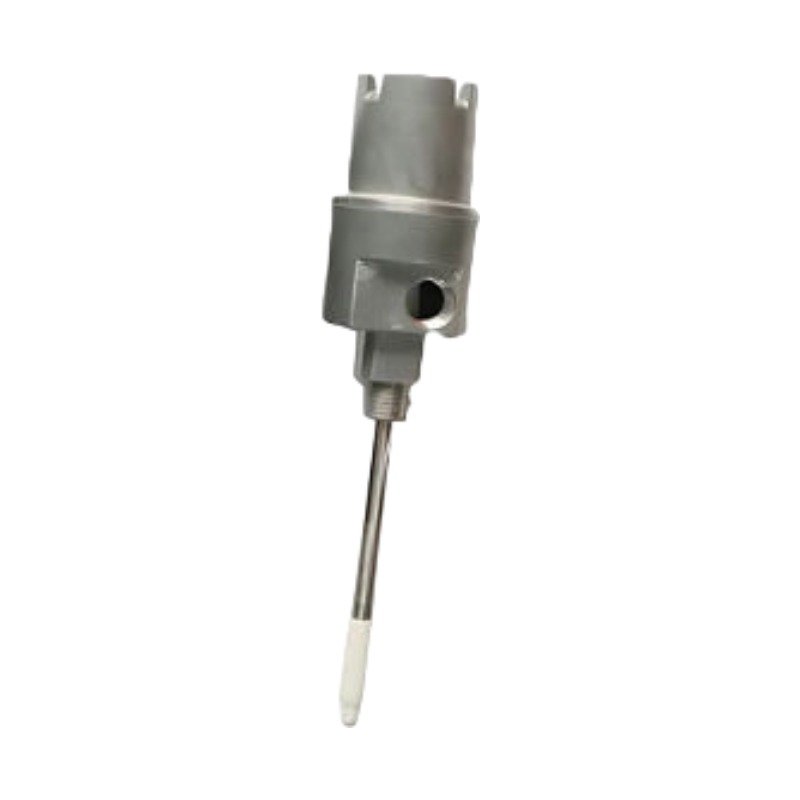

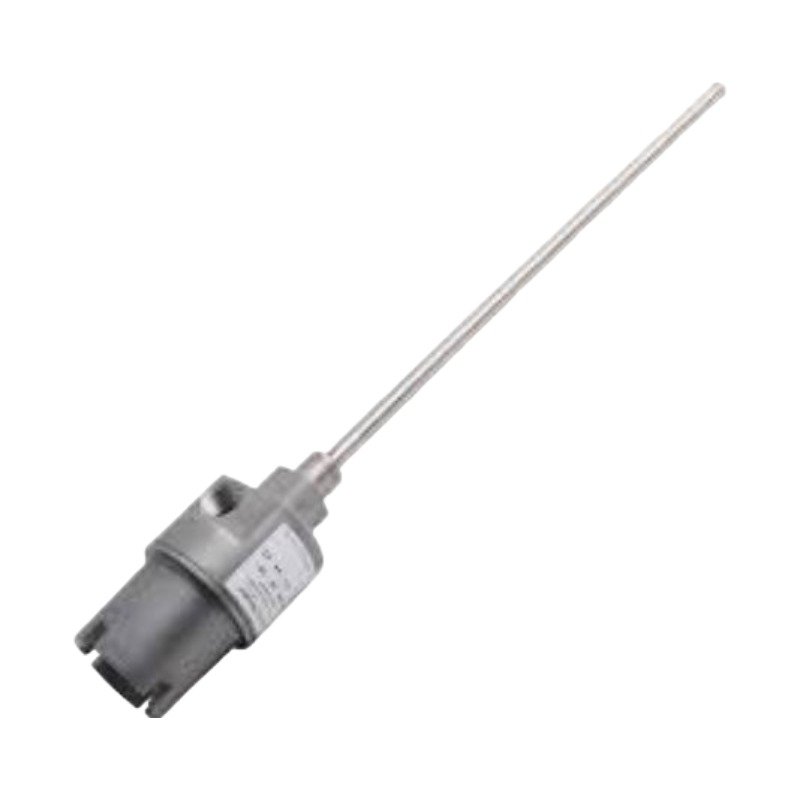

The Bently Nevada 21000-16-10-00-077-03-02, also cataloged as the 21000 Proximity Probe Housing, operates as a dedicated hardware component for protecting proximity transducer systems within Machinery Diagnostic Services (MDS) and Turbomachinery Instrumentation (TSI) networks.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Proper operation of the internal transducer requires precise eddy-current probe scaling to ensure linear voltage output over the target displacement range. During installation, field engineers must conduct gap voltage validation to verify the target distance between the probe tip and the shaft surface. Mechanics adjust the probe position until the proximity transducer system registers a steady -10 VDC target voltage, which corresponds to the physical midpoint of the linear operating range for standard Bently Nevada 5 mm and 8 mm proximity systems. This exact positioning eliminates cross-talk suppression issues and ensures accurate measurement of rotor dynamics, including radial vibration and axial thrust position, without signal clipping.

Frequently Asked Questions

Q: How does this housing mitigate cross-talk suppression issues between adjacent proximity probes?

A: Cross-talk suppression depends primarily on physical spacing and correct internal shielding. The housing maintains a rigid, orthogonal orientation relative to the observed shaft, while the internal cable routing isolation prevents parallel signal paths from causing electromagnetic interference between neighboring eddy-current probe circuits.

Q: What is the mechanical adjustment protocol to reach the -10 VDC gap voltage target?

A: Engineers thread the internal probe through the housing adapter while monitoring the proximity monitor buffered output. Rotate the probe until the voltmeter reads exactly -10 VDC, which indicates that the probe tip sits precisely at the center of the calibrated linear range. Lock the external adjustment nut to secure this mechanical position.

Field Installation Guidelines

• Ensure a minimum of five full thread engagements for all 3/4-14 NPT conduit fittings to maintain environmental sealing integrity and explosion-proof ratings.
• Route the internal proximity probe extension cable using a loop that avoids sharp bends, adhering to the minimum bend radius specification of 25.4 mm.
• Connect the probe cable outer shield only to the designated instrument ground within the remote junction box; do not ground the shield at the housing body to prevent ground loops.
• Apply thread lubricant to the housing cap threads before final torque application to avoid galling between matching aluminum components.
