Description

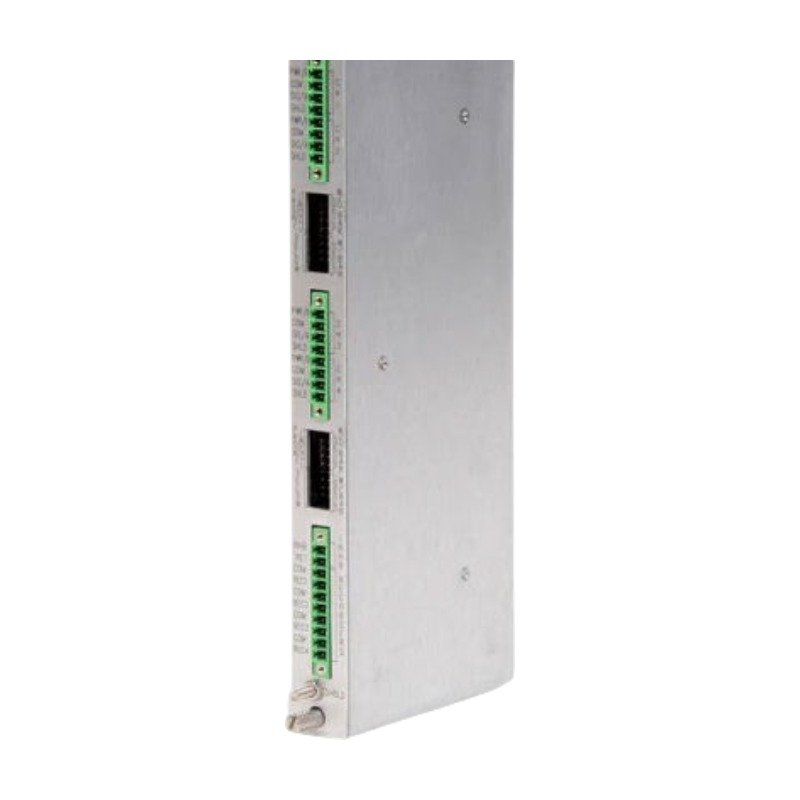

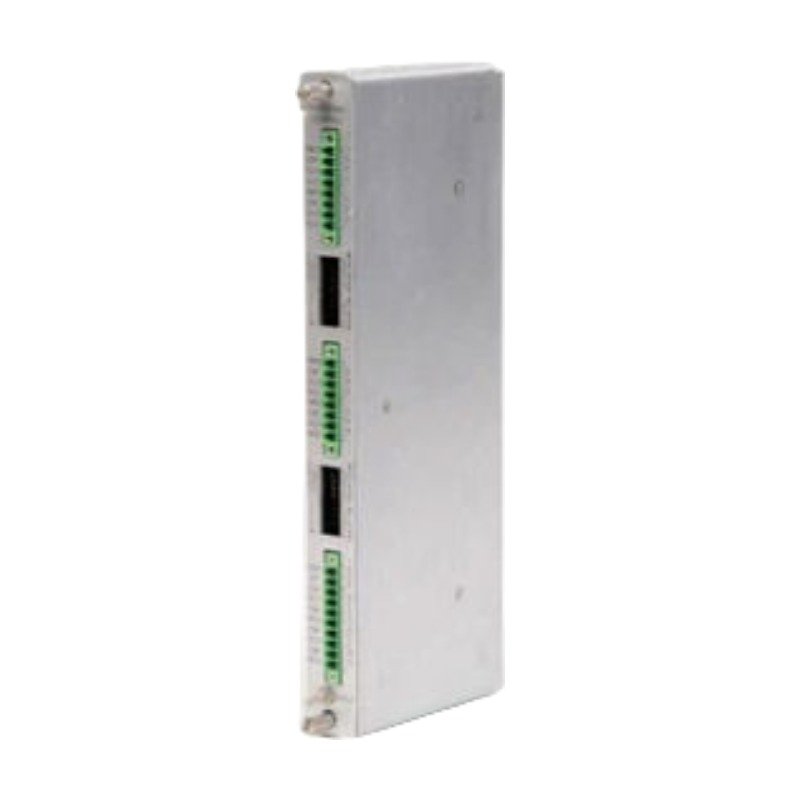

Configured for high-speed machinery monitoring data acquisition in 3500 Monitoring Systems, the Bently Nevada 176499-02, also cataloged as the 176499-02 Transient Data Interface Module, provides direct physical/electrical execution. This hardware component links the 3500 monitoring rack backplane with System 1 machinery management software, processing static and dynamic configuration data while driving synchronous and asynchronous waveform collection from proximity probes, seismic sensors, and acceleration transducers across the proprietary network bus interface.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module executes real-time digital signal conditioning for critical turbomachinery protection assets. To maintain exact calibration during high-frequency shaft vibration logging, the hardware accommodates specific eddy-current probe scaling configurations without introducing phase-shift distortion. During routine setup and continuous loops, the device automatically performs gap voltage validation (-10 VDC targets) to verify the physical positioning of proximity sensors relative to the rotor surface. This precise voltage indexing enables accurate rotor dynamics monitoring, capturing instantaneous orbits, position baselines, and transient speed events. Furthermore, the internal backplane architecture enforces cross-talk suppression between adjacent monitor channels, isolating high-frequency carrier frequencies to prevent false amplitude spikes from triggering redundant relay loops.

Frequently Asked Questions

Q: Does the 176499-02 interface module support online hot-swap installation inside an active 3500 rack?

A: Yes, the module supports live insertion and removal under power without disrupting the operation of adjacent machinery protection monitors, provided the rack configuration is locked to prevent automatic sequence re-initialization during the hardware swap.

Q: How does the module maintain synchronization across multiple racks for transient data logging?

A: The hardware utilizes a dedicated serial location bus connection to distribute common time-stamps across separate 3500 chassis, maintaining internal clock alignment within 1 millisecond for simultaneous transient capture.

Field Installation Guidelines

• Slot Assignment: Install the main module only in the designated slot directly adjacent to the power supplies on the left-hand side of the 3500 rack chassis.
• Shield Grounding: Connect all external Ethernet and serial cable shields firmly to the rack chassis ground rail. Avoid creating ground loops by terminating the shield at one end only, preferably at the rack interface terminal.
• Wiring Separation: Route all digital communication cables through separate conduits or cable trays isolated from high-voltage AC power lines and motor drive outputs to eliminate electromagnetic coupling.
• Torque Specifications: Tighten the rear I/O module thumb screws to 0.56 N m using a calibrated instrument to ensure stable physical connection to the backplane under industrial vibration conditions.
