Description

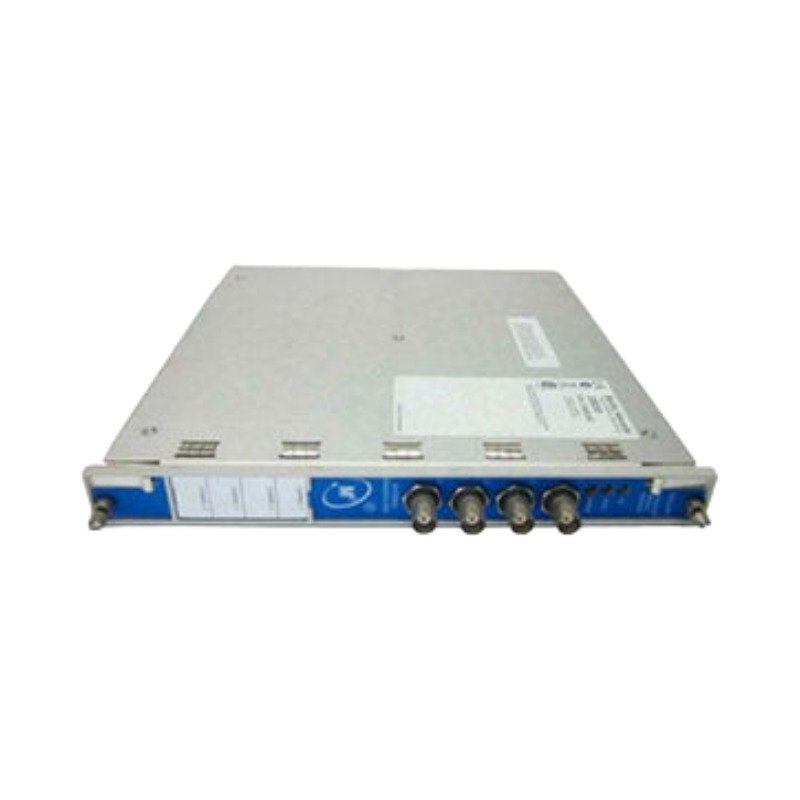

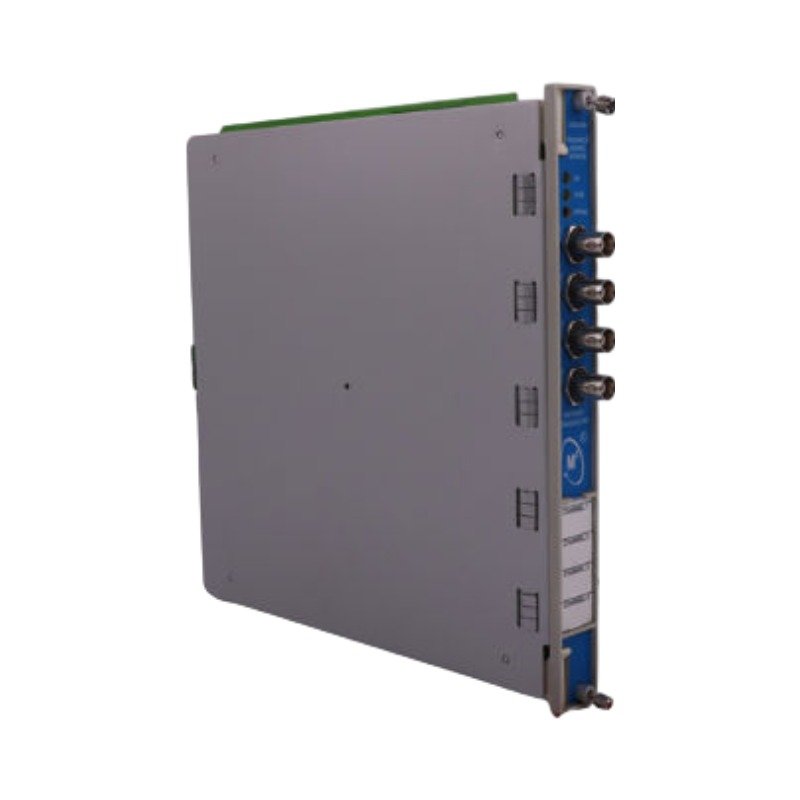

The Bently Nevada 3500/42M 140734-02, also cataloged as the 3500/42M Proximitor Seismic Monitor, operates as a dedicated hardware component for continuous machinery protection and vibration monitoring within 3500 Machinery Protection System networks. The module processes physical displacement, velocity, and acceleration signals generated by proximity probes, seismic transducers, and accelerometers to monitor rotating machinery components.

Hardware Specifications

Mechanical Monitoring & TSI Enhancements

The module performs real-time rotor dynamics calculation and internal signal processing to assess machinery health. For proper eddy-current probe scaling, the channel configuration must align with the specific millivolt-per-mil or millivolt-per-micrometer scale factor of the connected transducer system. During configuration, field engineers must execute gap voltage validation to ensure the proximity probe tip resides within the linear range of the calibration curve, targeting a baseline of -10 VDC for standard negative-voltage systems.

The internal hardware layout incorporates cross-talk suppression circuitry to prevent inductive and capacitive coupling between adjacent transducer channels. This architecture maintains signal integrity across high-density terminal blocks, preventing false alarm triggers while tracking transient rotor dynamics during machine startup, coast-down, and steady-state operations.

Frequently Asked Questions

Q: What is the primary difference between the standard 3500/42M module and the 140734-02 specific assembly part number?

A: The 3500/42M denotes the core functional model group for the Proximitor Seismic Monitor, whereas the 140734-02 designates the specific hardware revisions, internal component bill of materials, and manufacturing country standards defined by the manufacturer for this card assembly.

Q: Can the 3500/42M module be hot-swapped while the 3500 rack is energized?

A: Yes. The module supports live-insertion and hot-swap procedures under continuous backplane power without interrupting the operation or communication profiles of adjacent system modules. However, removing the active monitor card will immediately suspend protective machinery tripping functions for the four specific channels mapped to that physical slot.

Field Installation Guidelines

• Shield Grounding Protocol: Terminate all transducer cable shields at the instrument common terminal on the 3500 I/O module backplane only. Do not connect the shield to ground at the field junction box or at the transducer housing, as this establishes parallel return paths susceptible to ground loop interference.
• Terminal Wiring Integrity: Maintain a minimum of 5 tightly wrapped thread engagements if utilizing NPT-conduit adapters for field enclosure entries. Strip insulation back exactly 6 mm from field wiring conductors before clamping into screw terminals to prevent loose physical interfaces or exposed bare copper.
• Physical Clearance: Ensure the rear I/O chassis maintains a minimum cooling clearance of 50 mm above and below the rack assembly to permit unobstructed convective airflow through the vertical ventilation slots.
