Description

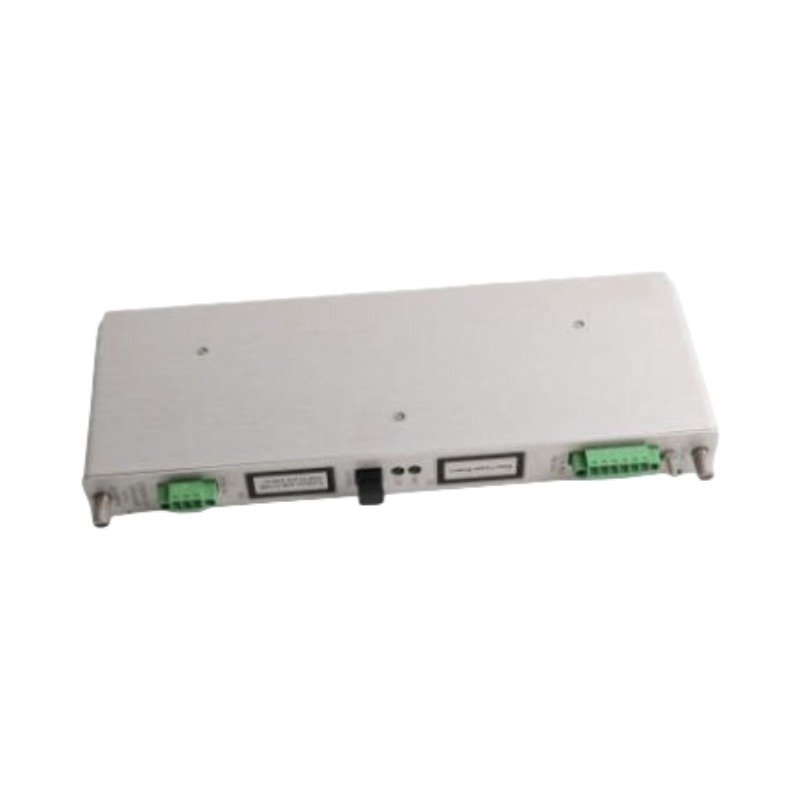

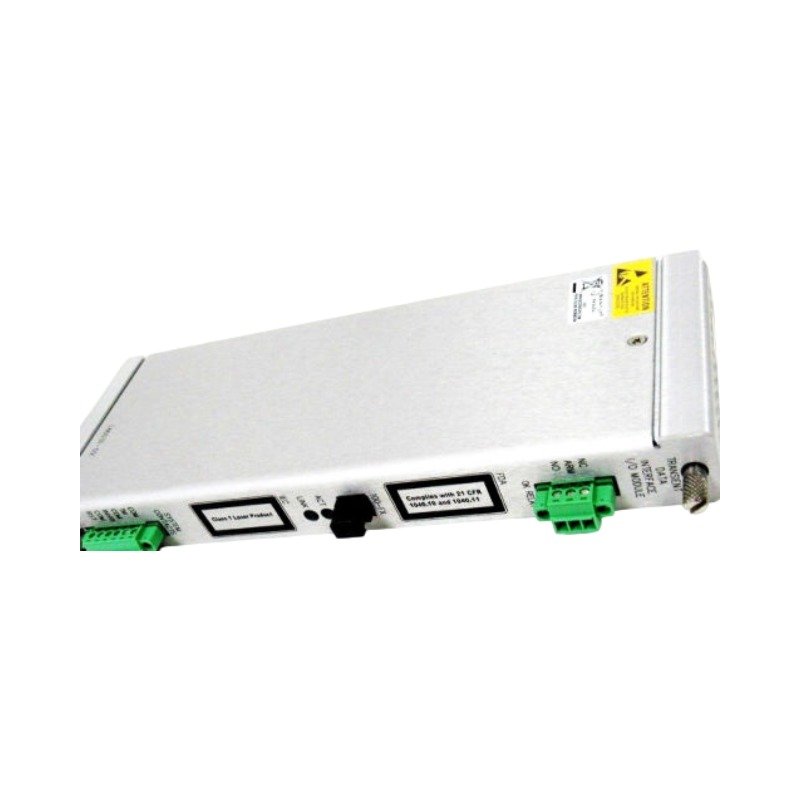

The Bently Nevada 146031-02, also cataloged as the 146031-02 Temperature Monitor Module, operates as a dedicated hardware component for continuous RTD and thermocouple thermal measurement and limits-checking within the Bently Nevada 3500 Machinery Protection System.

Hardware Specifications

Rotor Dynamics and Signal Cross-Talk Suppression

The hardware circuitry leverages advanced cross-talk suppression methodologies to protect the thermal signal integrity against adjacent high-frequency eddy-current probe scaling frequencies within the 3500 backplane layout. Because rotor dynamics demand immediate correlation between bearing housing temperature profiles and proximity displacement data, this module samples all sensor channels concurrently to eliminate timing skew. Ground loop interference is minimized via internal galvanic isolation arrays, which prevents external electrical field variances from destabilizing the baseline gap voltage validation processes occurring on neighboring vibration monitor cards.

Frequently Asked Questions

Q: Can the 146031-02 module be hot-swapped while the 3500 rack is powered and active?

A: Yes, this hardware supports full online hot-swap capability. However, removing the module will disrupt the associated temperature loop outputs and will trigger a slot fault on the 3500/15 power supply and 3500/22M Transient Data Interface.

Q: How does the module handle a broken or disconnected field sensor wire?

A: The channel circuitry automatically detects an open circuit or out-of-bounds resistance value. It immediately drives the respective channel into a Not OK status, illuminates the front-panel LED indicator, and prevents false trip execution in the voting logic matrix.

Field Installation Guidelines

• Chassis Insertion: Ensure the chassis guide rails are aligned correctly before pushing the module into the backplane connector. Fasten the two retaining screws to 0.6 N-m of torque to guarantee a secure physical ground.

• Shield Grounding: Terminate the field wiring cable shields exclusively at the 3500 internal barrier grounding terminal blocks. Do not ground the shield at both ends of the run to prevent creating a destructive ground loop circuit.

• Wiring Clearance: Maintain a minimum separation distance of 50 mm between the low-voltage sensor input wiring and high-voltage AC power distribution conduits.
