Description

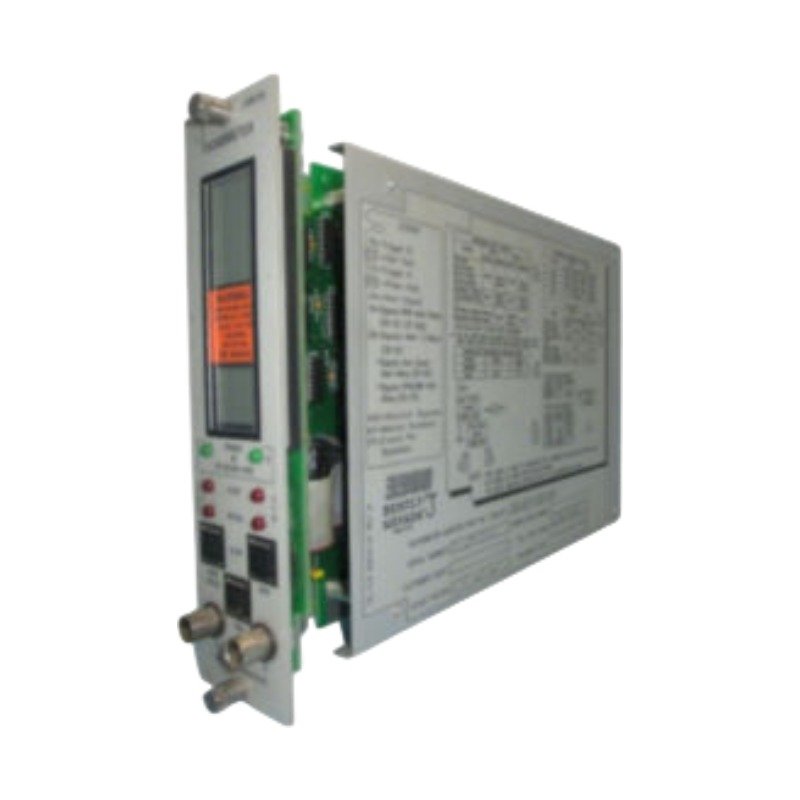

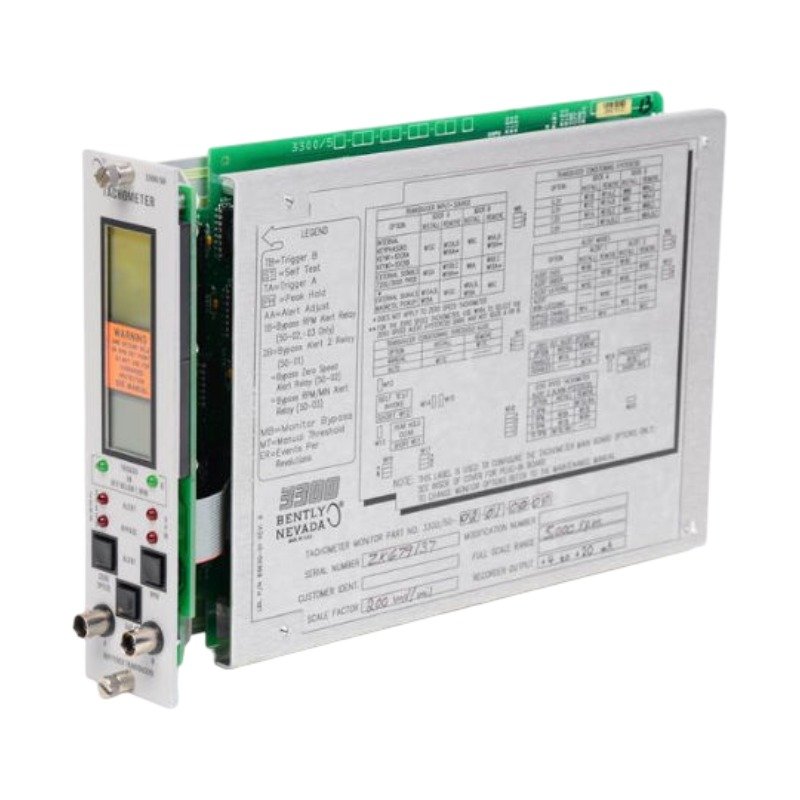

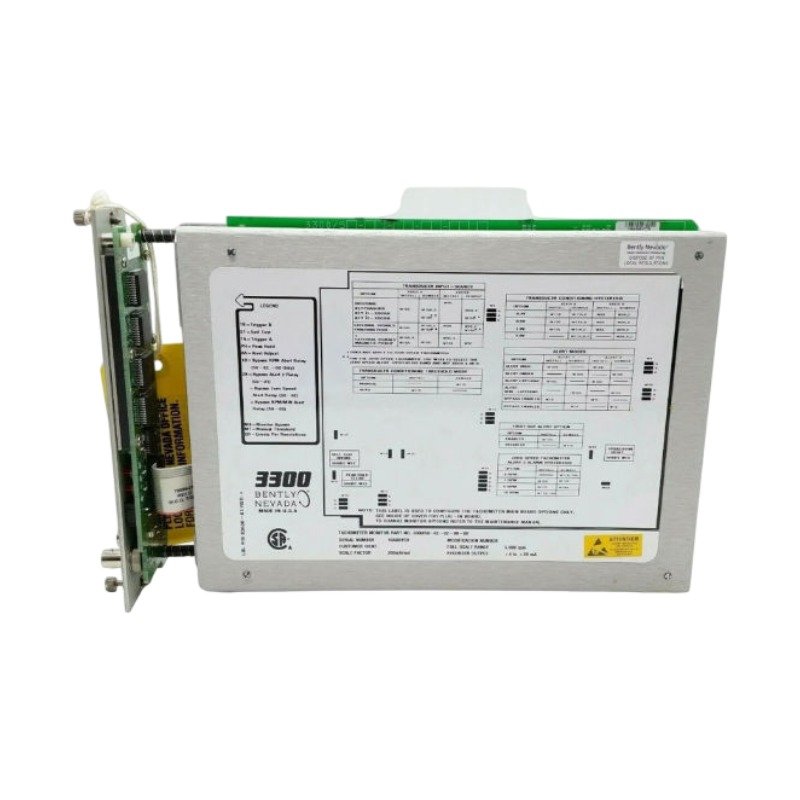

Configured for continuous shaft rotational speed tracking in machinery protection networks, the Bently Nevada 3300/50, also cataloged as the 3300/50 Tachometer Monitor, provides direct physical/electrical execution. This hardware component processes pulse inputs from transducers to monitor overspeed, underspeed, and zero-speed conditions. The module interfaces directly with proximity probes or magnetic pickups, converting input frequencies into proportional analog signals for real-time monitoring and alert triggering. It routes critical speed data to internal backplane networks and external displays, executing safety limit checks without relying on external processors.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integration

The module requires exact eddy-current probe scaling to decode physical shaft rotations from high-frequency pulse inputs. When monitoring complex rotor dynamics, the unit conditions raw transducer signals to validate gap voltage profiles, targeting a nominal -10 VDC baseline for optimal linearity. This negative voltage verification prevents false triggers during thermal shaft expansion or axial shift. Internal conditioning circuits apply hardware-level cross-talk suppression, filtering out adjacent electromagnetic interference from nearby gear teeth or phase trigger probes. This precise signal tracking prevents false overspeed trips during high-acceleration events.

Frequently Asked Questions

Q: What is the maximum acceptable signal propagation delay when a zero-speed condition occurs?

A: The monitor executes alarm relay state changes within 30 milliseconds of the signal dropping below the configured zero-speed threshold parameter.

Q: Can the 3300/50 monitor handle input signals from magnetic pickups without external pre-amplifiers?

A: Yes, the input conditioning hardware accommodates direct magnetic pickup inputs, provided the peak-to-peak voltage remains above the minimum 1.0 V threshold at low operating speeds.

Q: Is it permissible to hot-swap this module while the 3300 system backplane is energized?

A: No, the 3300 series architecture requires the rack power supply to be completely de-energized prior to module extraction or insertion to avoid backplane voltage transients.

Field Installation Guidelines

• Terminal Wiring Execution: Route all transducer signal wiring through dedicated twisted, shielded pairs. Terminate the outer shield braid exclusively at the instrument rack common ground point to prevent ground loop currents from corrupting speed metrics.
• Proximity Probe Alignment: Adjust the physical gap of the eddy-current probe until the monitor reads a steady -10 VDC gap voltage under non-rotating conditions, confirming optimal placement within the linear sensing range.
• Conductor Separation: Maintain a minimum distance of 150 mm between the transducer signal conduit and high-voltage AC power cabling to minimize electromagnetic cross-talk.
• Thread Engagement: Ensure all panel and rack retaining screws achieve at least 5 full threads of engagement to secure the module against low-frequency industrial machinery vibration.
