Description

Technical Overview

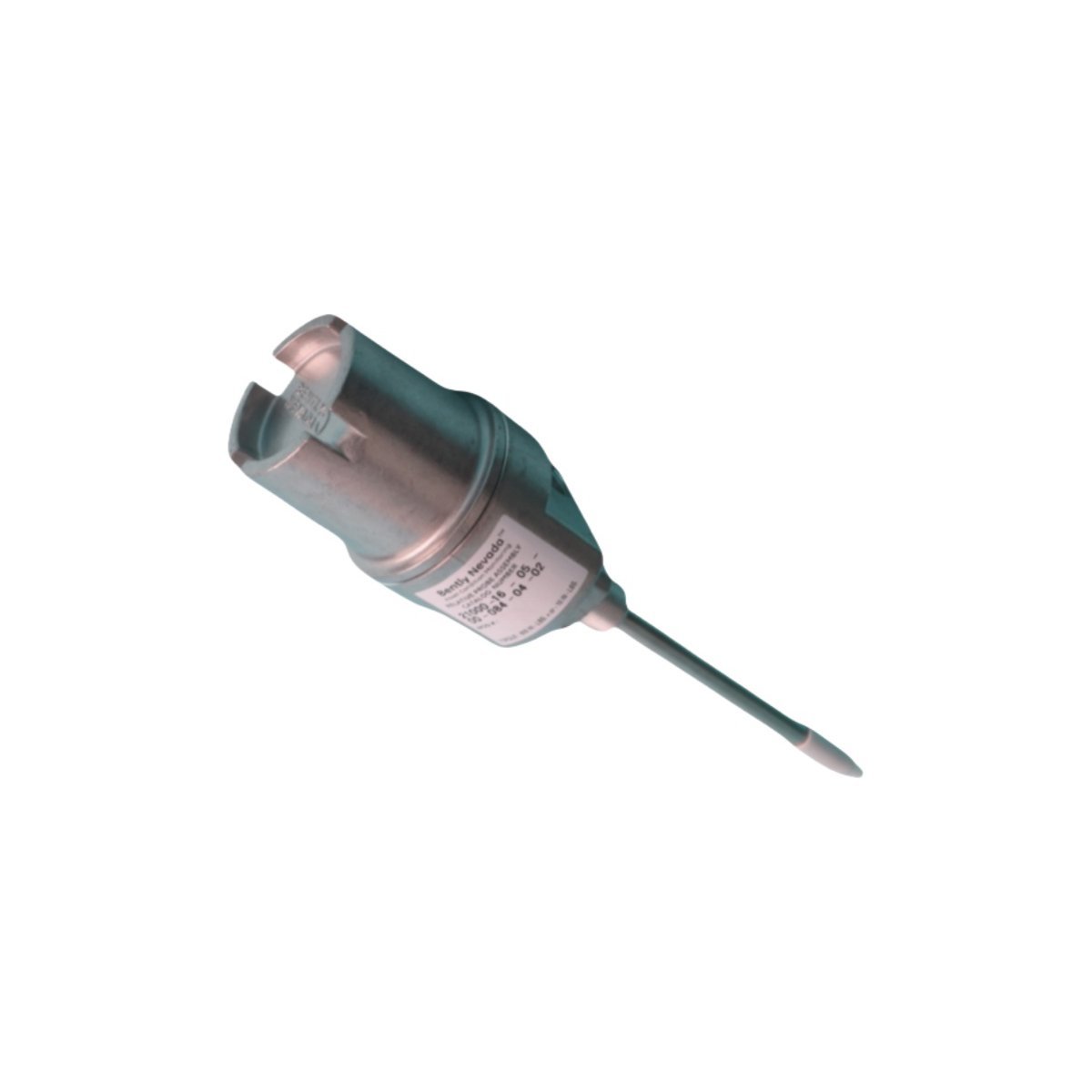

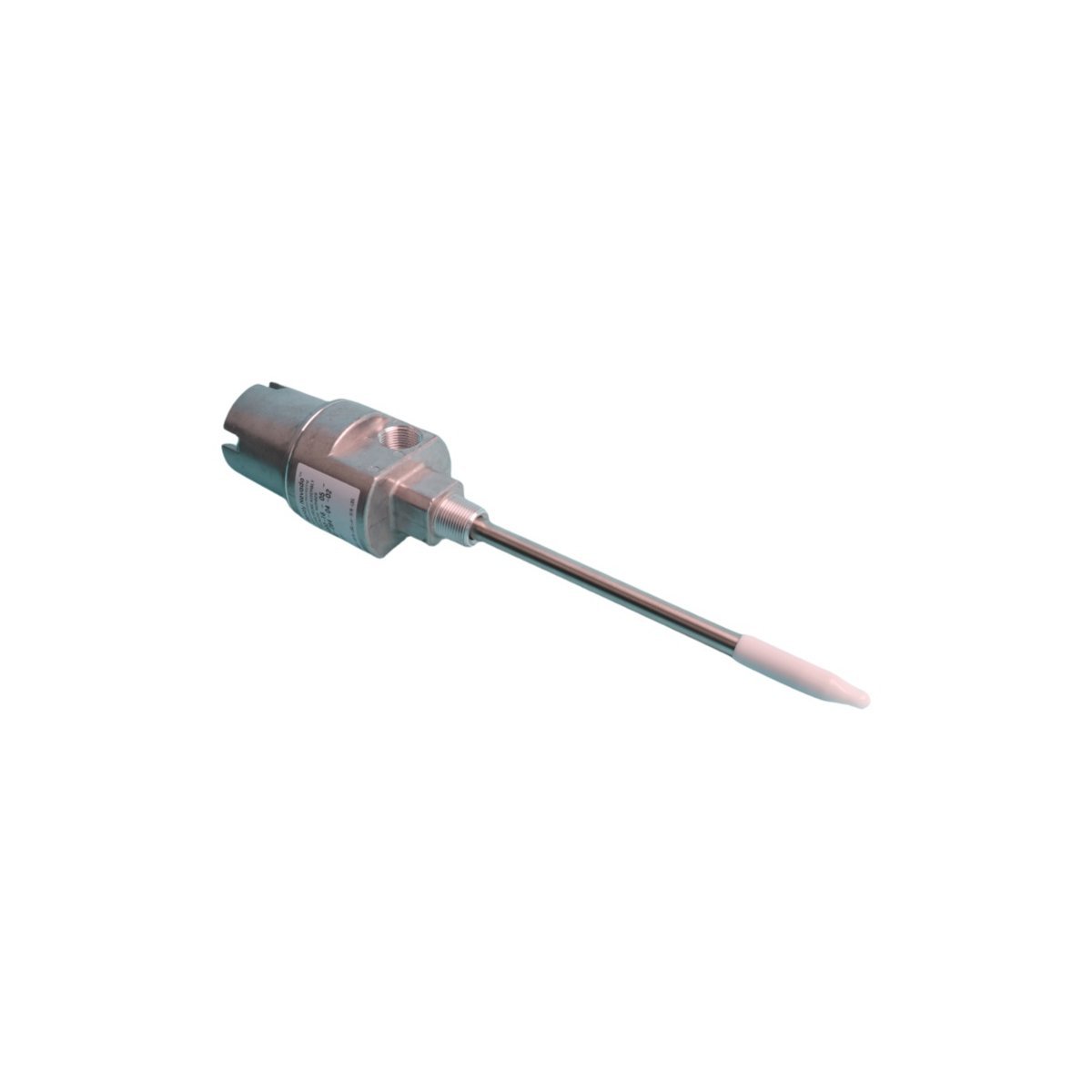

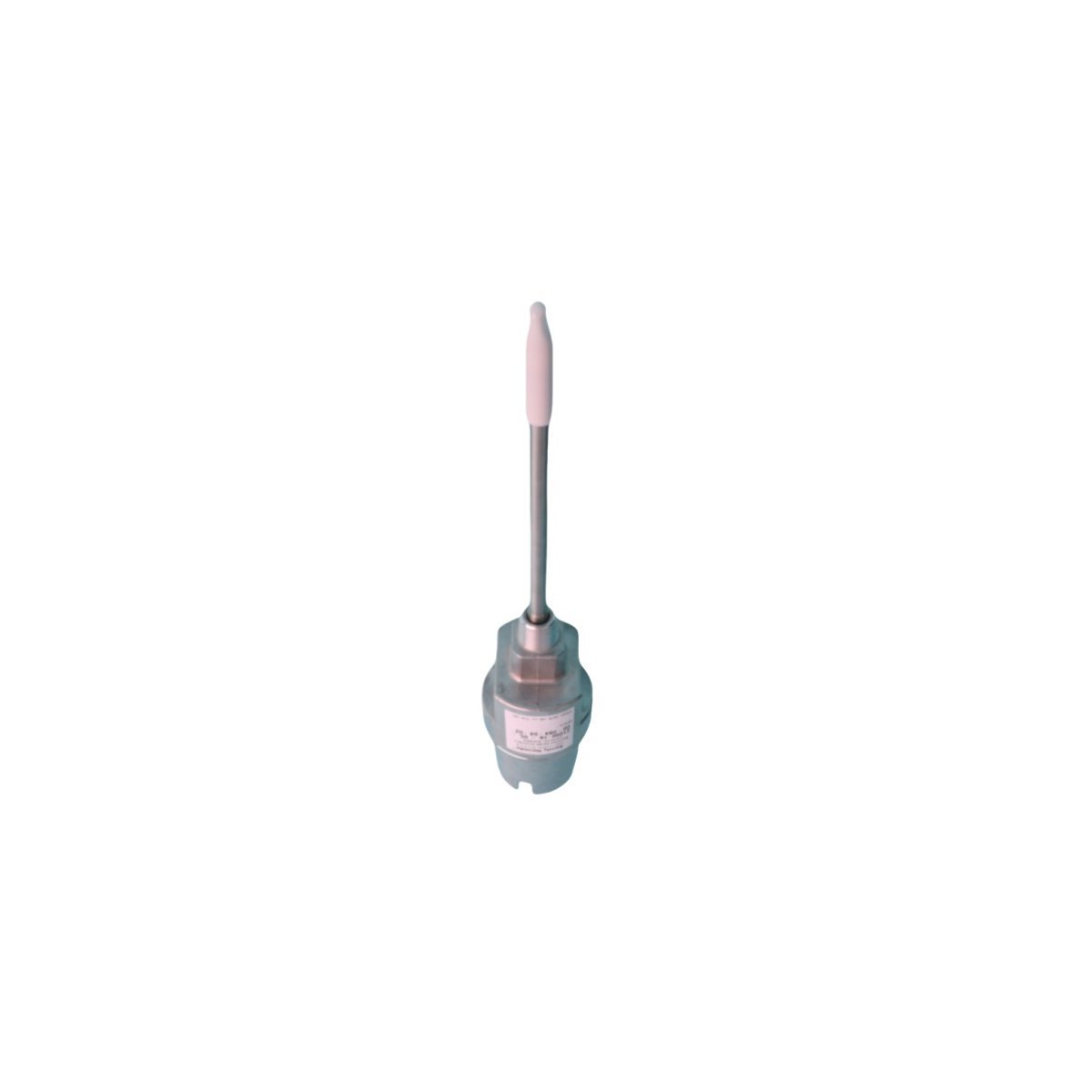

The Bently Nevada 21000-16-05-00-043-03-02 Proximity Probe Housing Assembly is a precision-engineered component designed for demanding industrial condition monitoring applications. As part of the industry-standard 3300 XL series ecosystem, this housing assembly ensures optimal mechanical alignment, thermal stability, and electromagnetic shielding for high-fidelity vibration and position measurements. It is specifically configured to accommodate standard 5 mm or 8 mm diameter proximity probes—enabling seamless integration with Bently Nevada’s 3300/3500 monitoring systems used across power generation, oil & gas, and heavy manufacturing facilities.

Constructed from high-grade stainless steel (AISI 316) with a precision-machined thread (M10 × 1.0) and integrated O-ring sealing, the housing delivers exceptional resistance to corrosion, vibration fatigue, and harsh environmental exposure—including washdown conditions, elevated ambient temperatures (up to +125°C), and aggressive chemical atmospheres. Its low-profile, compact form factor minimizes installation footprint while maintaining full compliance with API 670 (4th Edition) and ISO 10816 standards for machinery protection systems. Rigorous factory calibration and traceable metrology ensure repeatable probe gap voltage output and long-term signal integrity—critical for predictive maintenance programs and asset reliability initiatives.

Key Features

• Precision-Machined Stainless Steel Housing: AISI 316 construction for superior corrosion resistance and mechanical durability in severe industrial environments.
• API 670–Compliant Design: Engineered to meet stringent requirements for shaft vibration, axial position, and differential expansion monitoring systems.
• Integrated Sealing System: Dual O-ring configuration (Viton® elastomer) ensures IP67-rated ingress protection against dust, moisture, and process contaminants.
• Optimized Electromagnetic Compatibility (EMC): Shielded cavity and grounded mounting interface minimize noise coupling and signal degradation in electrically noisy plant settings.
• Quick-Connect Compatibility: Designed for use with standard 3300 XL extension cables and preamplifiers—enabling rapid field replacement and system scalability.

Specifications

• Part Number: 21000-16-05-00-043-03-02
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: Proximity Probe Housing Assembly
• Warranty: 24-month limited warranty covering material defects and workmanship under normal industrial use

Contact us for bulk pricing and availability
