Description

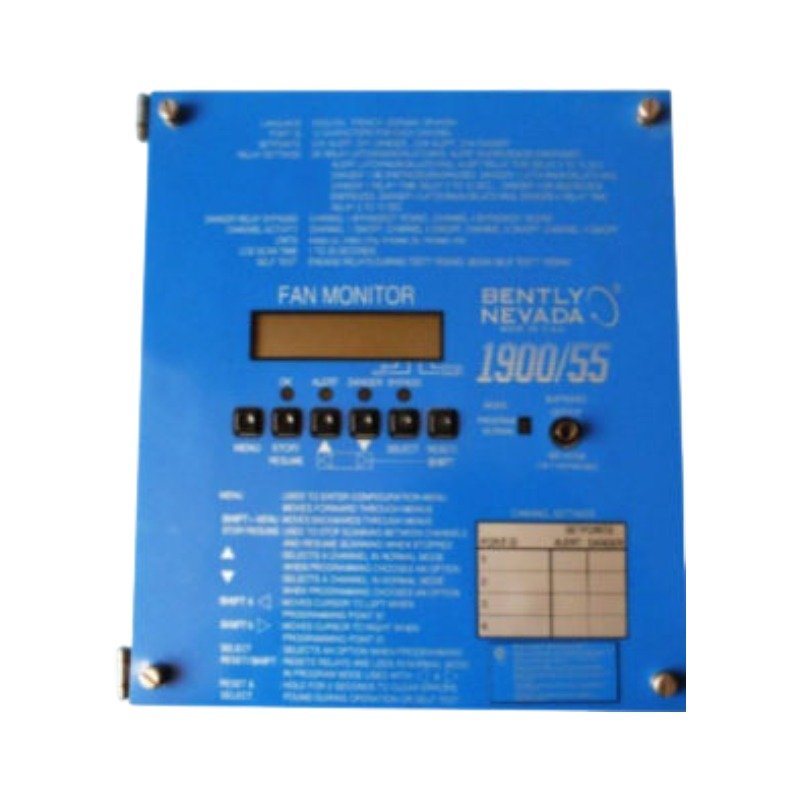

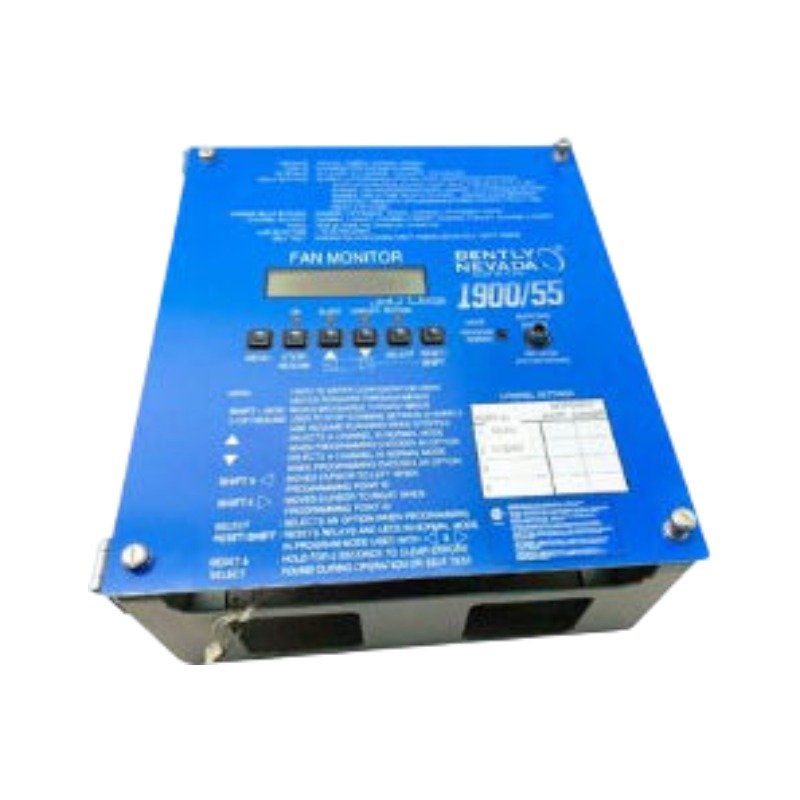

The Bently Nevada 1900/55, also cataloged as the 1900/55 Fan and Commutator Monitor, operates as a dedicated hardware component for continuous machinery protection and variable-speed fan dynamic processing within 1900 Series Machinery Monitoring System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module interfaces directly with eddy-current probe scaling architectures to translate voltage variances into precise physical displacement data. During initial deployment, technicians execute gap voltage validation (-10 VDC targets) via the dedicated buffered outputs to verify optimal linear range positioning of the proximity transducers. The internal microprocessors handle real-time rotor dynamics calculation, which extracts peak-to-peak vibration amplitudes and tracking filters variable fan blade pass frequencies. Consequently, integrated digital filtering logic applies active cross-talk suppression to eliminate phase errors and electromagnetic interference between adjacent sensor loops sharing common conduit runs.

Frequently Asked Questions

Q: How does the module handle transducer power supply faults during online operation?

A: The monitor integrates automated internal diagnostic circuits that continuously verify probe bias voltages. If a transducer circuit drifts outside the valid -10 VDC baseline window, the module flags a Not OK condition, inhibits false relay trips, and logs the specific channel failure into the non-volatile status register.

Q: Can the 4-20 mA analog outputs drive long-distance signal loops to a remote DCS?

A: Yes, the 4-20 mA analog output circuits support loop execution up to a maximum loop resistance of 600 ohms under nominal 24 VDC excitation, allowing direct integration into centralized process control networks without signal degradation.

Field Installation Guidelines

• Enclosure and Mounting: Install the hardware inside an IP54 or NPT-rated weather-proof industrial enclosure to protect electronic components from conductive dust, moisture, and corrosive atmospheric contaminants.
• Shield Grounding Protocol: Terminate all transducer cable shields exclusively at the monitor backplane chassis ground. Do not ground the shield at the sensor end, because floating the sensor-side shield prevents ground loops from inducing noise on the measurement path.
• Wiring Separation: Route low-voltage transducer input cables in dedicated, grounded metallic conduits separate from high-voltage AC power distribution or inductive relay drive lines.
