Description

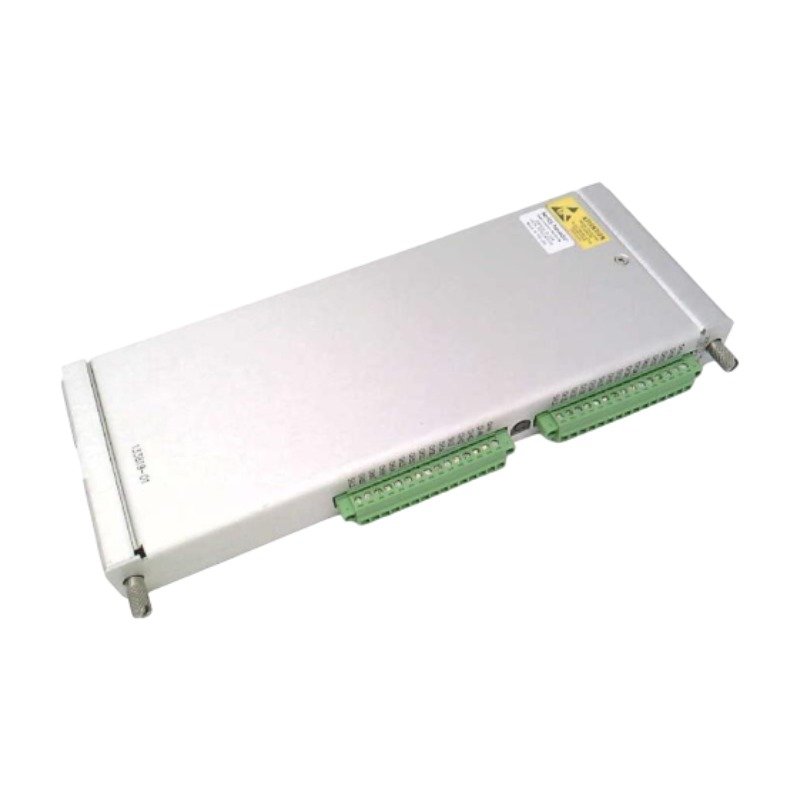

The Bently Nevada 133819-01, also cataloged as the 133819-01 Internal Barrier Module, operates as a dedicated hardware component for galvanic isolation and intrinsic safety protection within Bently Nevada 3500 Series Machinery Protection System racks.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The Bently Nevada 133819-01 provides critical cross-talk suppression between adjacent transducer paths to preserve the integrity of high-frequency dynamic waveforms. Consequently, the internal active zener network maintains eddy-current probe scaling at standard calibration values without introducing impedance mismatches. During routine field setup, technicians perform gap voltage validation (-10 VDC targets) directly through the front-panel coaxial interfaces. Thus, the integrated clamping circuits isolate any field-side faults, protecting the main backplane from overvoltage spikes while preventing erroneous rotor dynamics readings in turbomachinery applications.

Frequently Asked Questions

Q: Can the 133819-01 module be hot-swapped while the 3500 rack is energized?

A: Yes, you can replace the module under power. However, you must ensure that the field wiring is deactivated or that the surrounding atmosphere is verified as non-hazardous to prevent spark ignition during terminal disconnection.

Q: How does this module affect the loop resistance of connected proximity probes?

A: The internal barrier incorporates specific internal resistance matching. Therefore, you must calibrate the connected Proximitor sensor system to account for this component inline, ensuring that probe scaling matches the standard 7.87 V/mm (200 mV/mil) specification.

Field Installation Guidelines

• Shield Grounding: Connect the transducer cable shields directly to the chassis ground bars inside the enclosure. Avoid looping the shield drains or tying them to the signal return paths.
• Terminal Torque: Tighten all field wiring terminal blocks to a maximum torque of 0.56 N-m (5 in-lb) to prevent structural damage to the screw threads.
• Physical Separation: Maintain a minimum clearance of 50 mm between the intrinsically safe field wiring connected to this module and any non-intrinsically safe power or control cables routed within the same enclosure panels.
