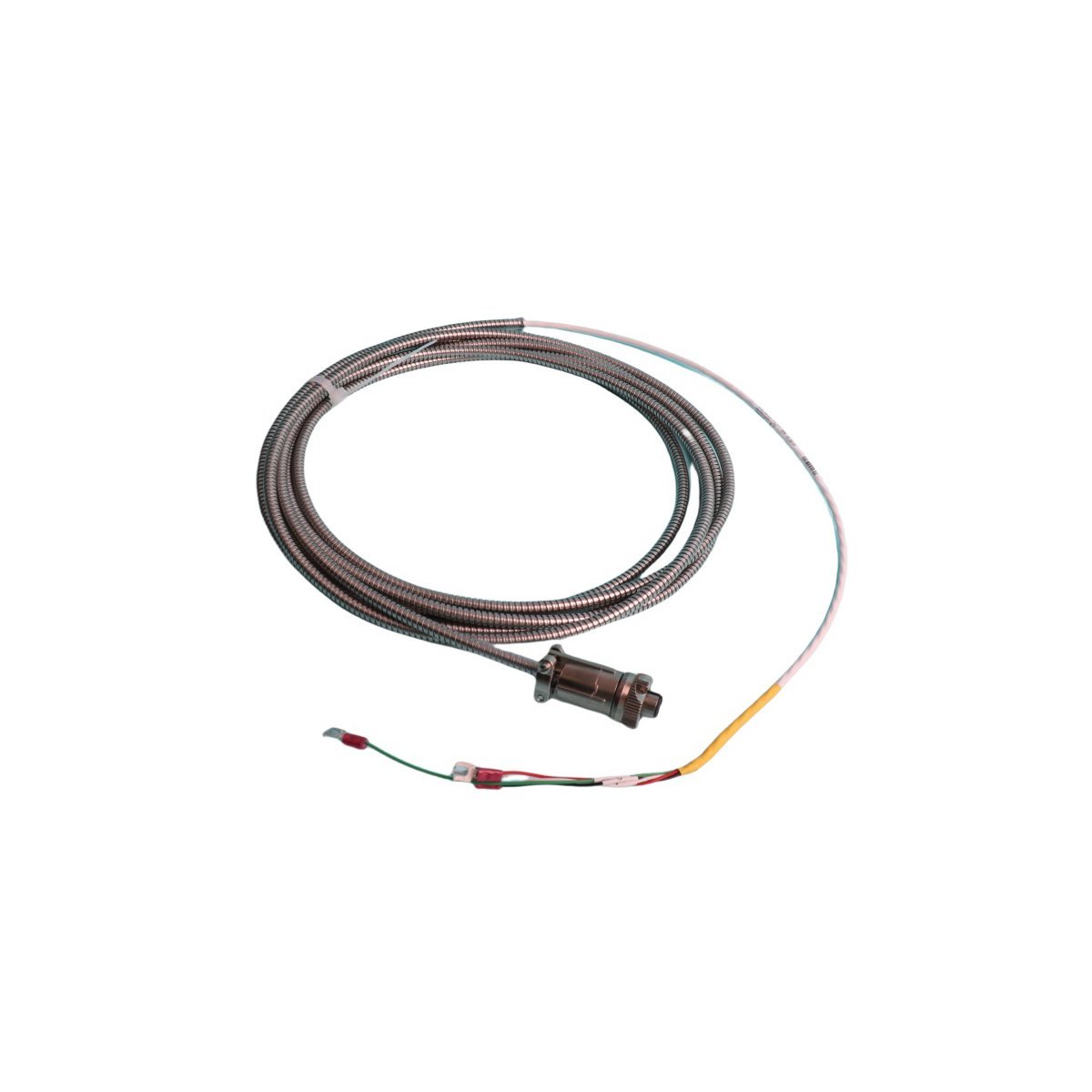

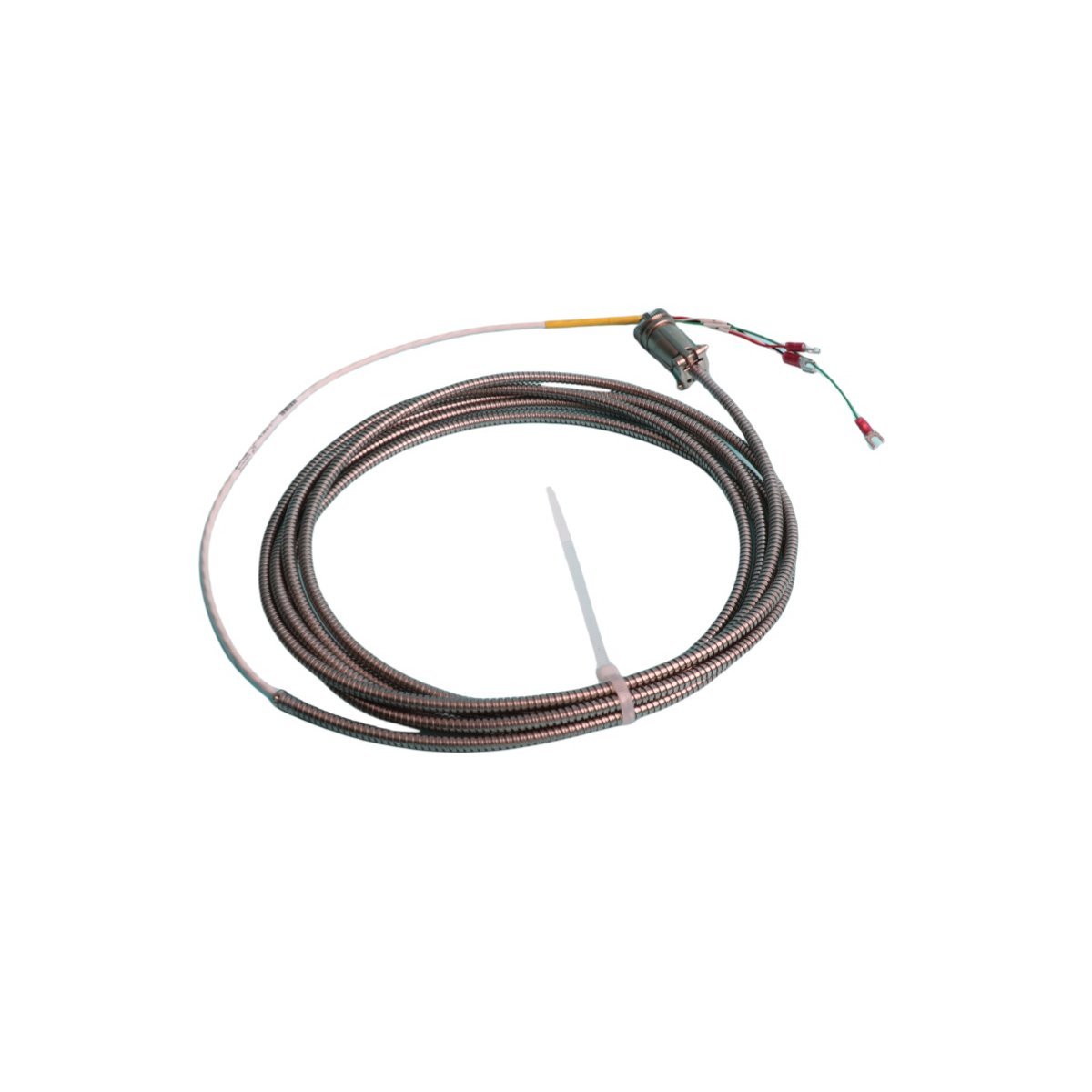

The Bently Nevada 16710-16 Interconnect Cables are high-integrity, precision-engineered signal transmission solutions designed exclusively for integration within Bently Nevada’s industry-leading machinery protection and condition monitoring systems. Manufactured by Baker Hughes (under the Bently Nevada brand), these cables serve as critical physical interfaces between proximity probe sensors, extension cables, and monitoring instrumentation—ensuring reliable, low-noise, and phase-stable analog signal transfer essential for accurate vibration, position, and speed measurements. Each 16710-16 cable is rigorously tested to meet stringent electromagnetic compatibility (EMC), thermal stability, and mechanical durability requirements defined in IEEE 1128, API RP 670 (4th Edition), and IEC 61000-4 standards. The cable assembly utilizes proprietary triaxial shielding architecture with individually foil-wrapped twisted-pair conductors and an overall braided copper shield, minimizing crosstalk, ground-loop interference, and RF ingress—even in electrically noisy industrial environments such as gas turbine enclosures, compressor skids, and large motor control centers. Constructed with low-smoke zero-halogen (LSZH) jacketing and rated for continuous operation from –40 °C to +85 °C, the 16710-16 supports long-term reliability in demanding upstream, midstream, and downstream oil & gas, power generation, chemical processing, and marine propulsion applications. All units are supplied new, factory-fresh, and traceable to original Bently Nevada production lot numbers—guaranteeing full compliance with OEM specifications and system certification requirements.

Detailed Specifications

Key Features

• OEM-Compliant Signal Integrity: Engineered to preserve the calibrated sensitivity and linear range of Bently Nevada 3300, 3500, and 3600 series proximity probes—maintaining <±0.25% gain error and <0.5° phase shift across 0–10 kHz bandwidth.
• Triaxial Noise Suppression: Unique three-conductor geometry with guard-driven shielding eliminates common-mode noise and enables stable operation in EMI-intensive zones exceeding 10 V/m RF fields.
• Plug-and-Play Compatibility: Precision-machined 10-32 UNF threaded connectors with gold-plated beryllium-copper contacts ensure repeatable mating cycles (>500 insertions) and corrosion resistance per ASTM B545.
• Environmental Resilience: LSZH jacket resists hydrocarbon exposure, ozone degradation, and UV radiation; passes MIL-STD-810G Method 509.6 (humidity) and Method 514.6 (vibration).
• Traceability & Documentation: Each cable includes serialized label with QR code linking to digital certificate of conformance (CoC), RoHS/REACH compliance report, and factory calibration data log.
• System Certification Ready: Pre-validated for SIL 2 compliance per IEC 61508 when used with Bently Nevada 3500/40M or 3600/20M monitors—reducing commissioning time and third-party audit overhead.
• Sustainable Lifecycle Support: Backed by Baker Hughes Global Repair Network with rapid exchange program, technical documentation library access, and firmware update notifications for legacy system compatibility.

Applications

• Turbomachinery Protection: Critical shaft vibration and axial position monitoring on steam turbines, gas turbines, centrifugal compressors, and turboexpanders in ISO Class 8 cleanrooms and hazardous area Zone 1 installations.
• Rotating Equipment Monitoring: Real-time displacement and gap measurement for large induction motors, synchronous generators, and gearboxes operating above 1500 RPM in petrochemical refineries and LNG liquefaction trains.
• Condition-Based Maintenance (CBM) Systems: Seamless integration into enterprise-wide Asset Performance Management (APM) platforms including GE Digital Predix, Siemens Desigo CC, and Baker Hughes Nexus™ for predictive analytics and failure mode trending.
• API RP 670 Compliance Installations: Primary sensor interconnects meeting mandatory requirements for machinery protection systems in oil & gas production facilities, pipeline compressor stations, and offshore platform power trains.
• Legacy System Modernization: Drop-in replacement for aging 16710-xx series cables during upgrades from 3300 to 3500/3600 monitoring systems—preserving existing probe mounting hardware and calibration history.
• Marine & Naval Propulsion: Shock- and vibration-resistant signal routing aboard naval vessels, cruise liners, and offshore support vessels where MIL-DTL-24643/11 certification equivalency is required.
• Research & Development Test Benches: High-fidelity data acquisition in university labs and OEM validation centers requiring metrologically traceable signal fidelity for modal analysis and rotor dynamics modeling.
