Description

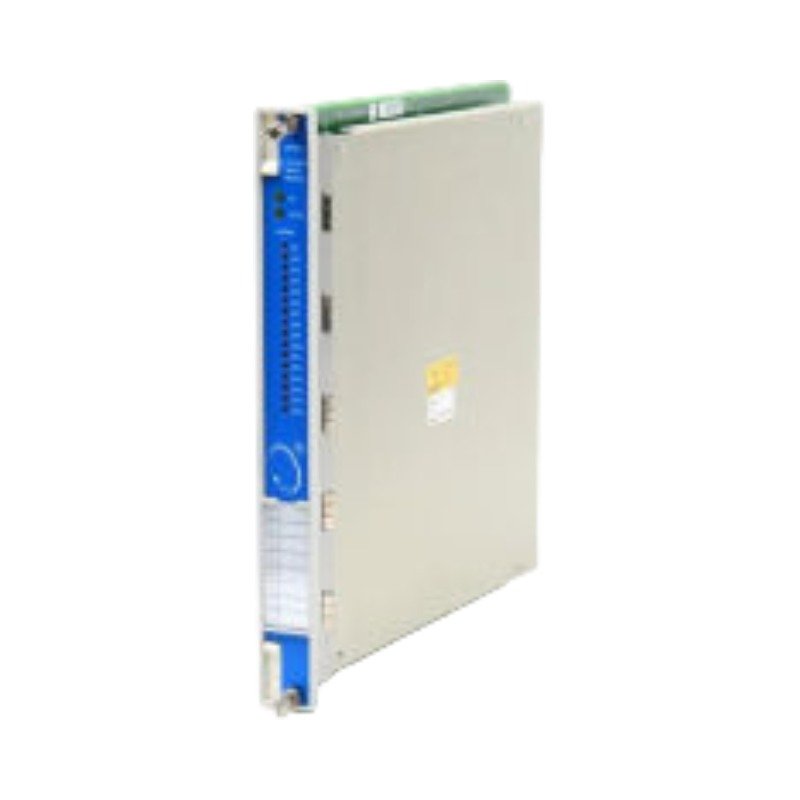

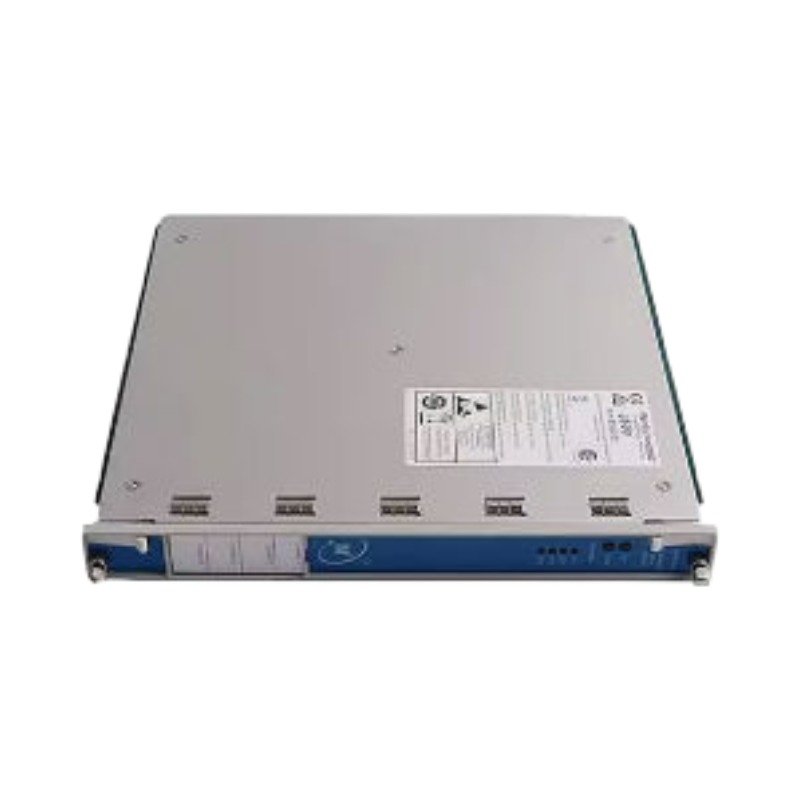

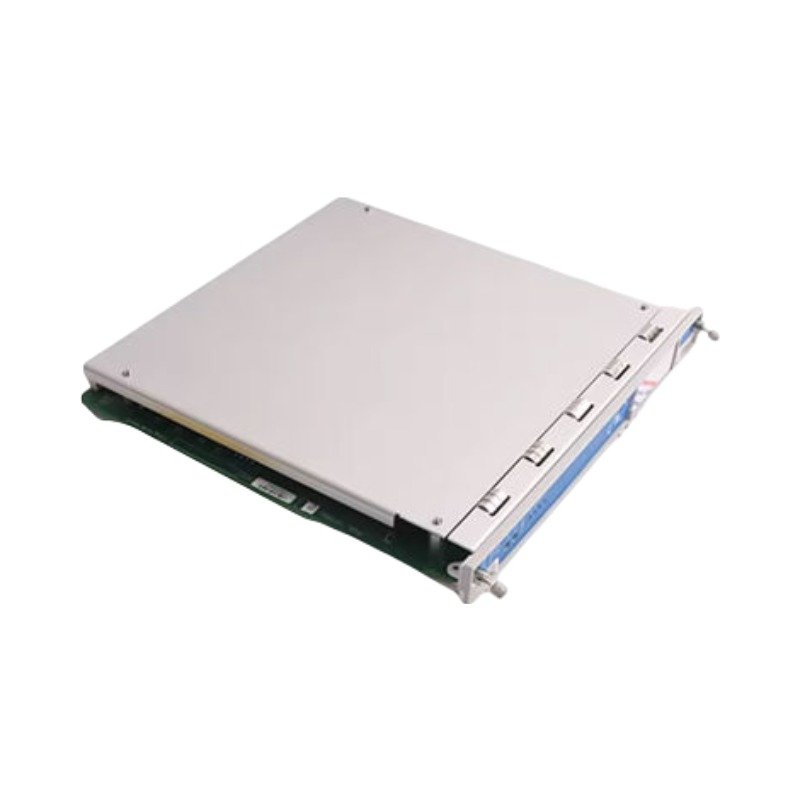

Configured for discrete relay drive logic and safety interlocking execution within the 3500 Monitoring System, the Bently Nevada 149986-02, also cataloged as the 149986-02 Relay Module, provides direct physical/electrical execution. This hardware component functions as a 16-channel, non-interacting circuit interface designed to actuate external alarm, annunciation, and machinery trip circuits based on pre-programmed logic conditions configuration.

Hardware Specifications

Mechanical Monitoring and Rotor Dynamics Integration

This 16-channel relay module maintains direct operational alignment with the 3500 platform’s machinery protection parameters. During real-time processing, the component evaluates digitised sensor inputs from eddy-current probe scaling, validation mechanisms, and seismic transducers. Consequently, it executes trip commands based on rotor dynamics criteria, such as absolute shaft vibration levels and axial thrust limits.

The onboard processor actively implements internal cross-talk suppression circuitry across all 16 discrete channels to safeguard signal integrity against electromagnetic interference. Furthermore, the relay state logic integrates with internal gap voltage validation protocols, ensuring the module does not erroneously trip external safety circuits if a fault occurs in the underlying transducer power loop or when the gap voltage drifts outside the targeted -10 VDC baseline window.

Frequently Asked Questions

Q: Can the 149986-02 relay outputs be configured for both Normally Open (NO) and Normally Closed (NC) configurations?

A: Yes, each of the 16 channels features physical Single-Pole, Double-Throw (SPDT) contacts. Users can select Normally Open or Normally Closed wiring terminations via the physical terminal block layout.

Q: What is the maximum switching voltage and current capacity for this module?

A: The onboard relays support a maximum continuous current of 5 A at a voltage limit of 24 VDC or 240 VAC, provided the connected field load remains strictly resistive.

Q: Does the 149986-02 module support live hot-swap installation inside the 3500 rack?

A: Yes, this hardware supports hot-swapping under powered rack conditions. However, technicians must bypass or isolate all connected external trip loops prior to extraction to prevent accidental machinery shutdown during the swap procedure.

Field Installation Guidelines

• Chassis Insertion: Insert the module firmly into the designated slot of the 3500 rack until the backplane connectors seat completely, then tighten the integrated front panel screws to 0.7 N-m of torque.
• Shield Grounding: Terminate all external relay wiring shields at the instrumentation ground bus bar located at the base of the control enclosure. Do not loop or float the shield connection at the module terminal block.
• Wiring Separation: Route the high-voltage AC output relay lines through dedicated physical wire ducts separate from low-voltage DC sensor input instrumentation cables to minimize electromagnetic coupling.
• Conductor Gauge: Use stranded copper conductors with a cross-sectional area between 0.5 mm sq and 2.1 mm sq (20 to 14 AWG) to ensure robust physical engagement in the screw terminal assembly.
