Description

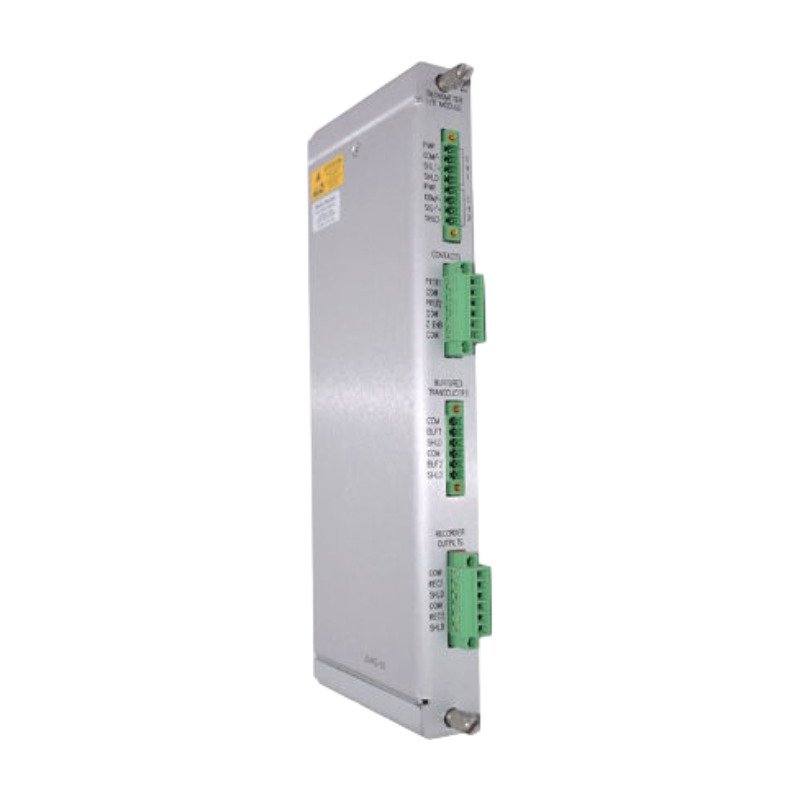

The Bently Nevada 133442-01, also cataloged as the Bently Nevada 133442 Tachometer Input/Output Module, operates as a dedicated hardware component for speed signal processing within 3500 Series Machinery Protection System platforms. This rear-insert component establishes the electrical termination interface that accepts pulsed frequency waveforms from proximity probes or magnetic speed sensors, subsequently routing those processed pulses to the corresponding front-panel main monitoring module.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

The module processes raw speed waveforms to maintain sub-rpm resolution, ensuring accurate tracking during rapid machine transitions where rotor dynamics dictate strict phase validation. Each channel supplies a regulated -24 VDC transducer power drive capable of sustaining active proximity sensors. The physical trace routing utilizes hardware-level cross-talk suppression to isolate sensitive phase pulses from surrounding high-voltage instrumentation wiring. This grounding configuration preserves precise gap voltage validation across the internal circuitry, enabling clean signal clamping from +10.0 VDC down to -24.0 VDC to prevent erroneous noise thresholds from corrupting the calculated shaft rotational velocity metrics.

Frequently Asked Questions

Q: Can this internal termination module be paired with external termination blocks or TMR architectures?

A: No, the 133442-01 hardware design features dedicated onboard terminal strips for direct field wiring. It is fundamentally incompatible with external termination blocks and cannot be substituted into Triple Modular Redundant (TMR) discrete I/O wiring networks.

Q: What are the minimum frequency performance limits for passive magnetic pickups versus active proximity probes when connected to this I/O card?

A: Active proximity probes paired with this module achieve a low-frequency limit of 0.0167 Hz (equivalent to 1 rpm for a single event per revolution). Conversely, passive magnetic pickups require a minimum input threshold of 3.3 Hz due to the reduced voltage output generated at lower rotational velocities.

Field Installation Guidelines

• Wiring Termination Security: Strip the field insulation back 6 mm and secure the conductors directly into the integrated compression terminals. Tighten the terminal screws to the manufacturer-specified torque rating to prevent vibration-induced loosening.
• Transducer Shield Grounding: Terminate the outer copper shield of the transducer cable exclusively at the designated chassis ground terminal on the 133442-01 panel. Do not ground the shield at the sensor housing end to avoid creating an active ground loop.
• Chassis Retention: Slide the card along the designated rear chassis guides until the edge connector seats into the backplane receptacle. Fully tighten the dual integrated retention screws to establish a low-impedance functional earth path with the main rack frame.
