Description

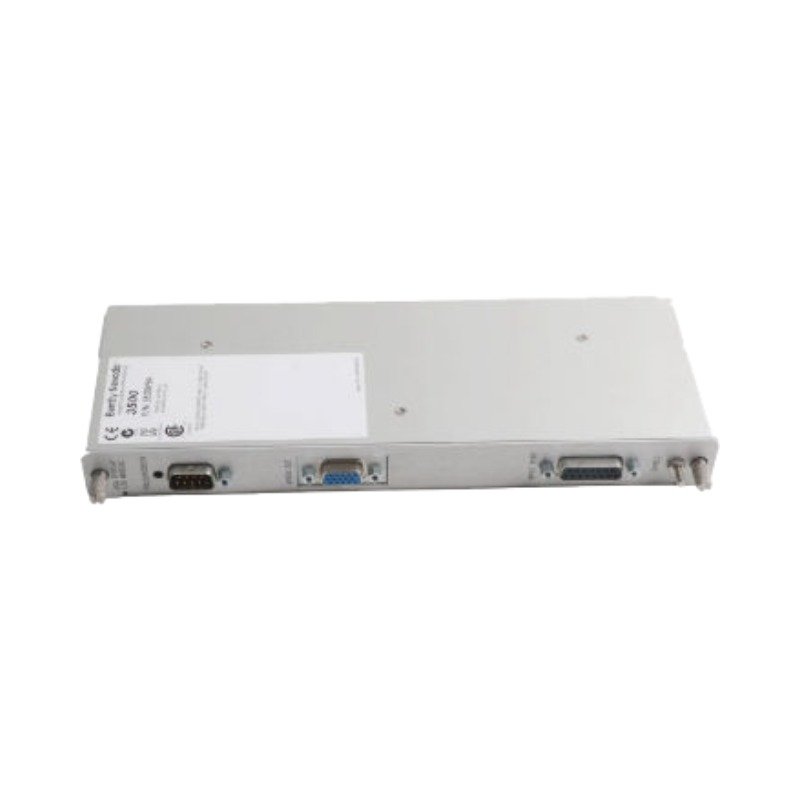

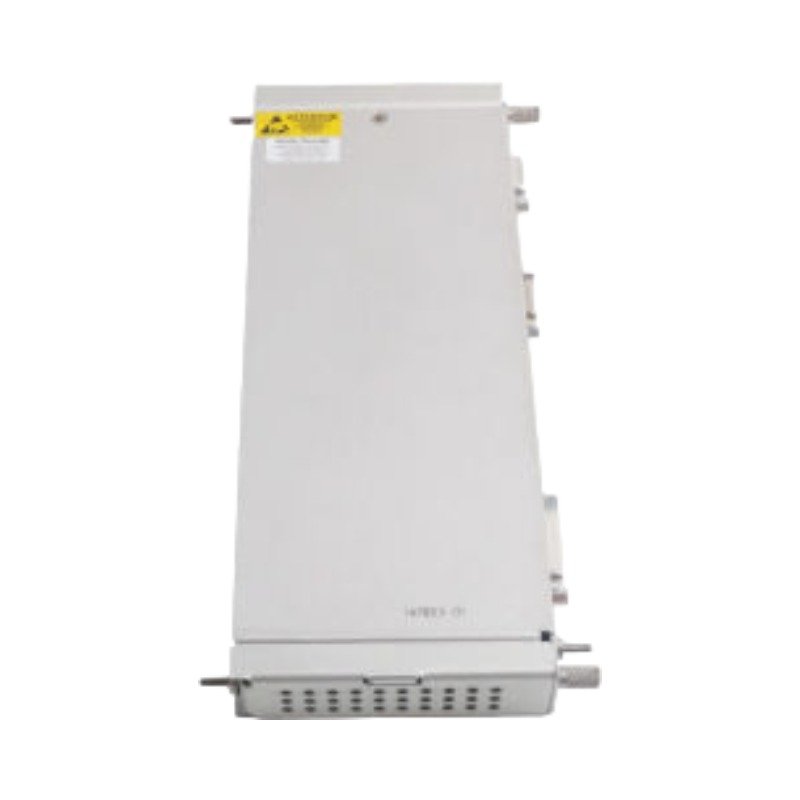

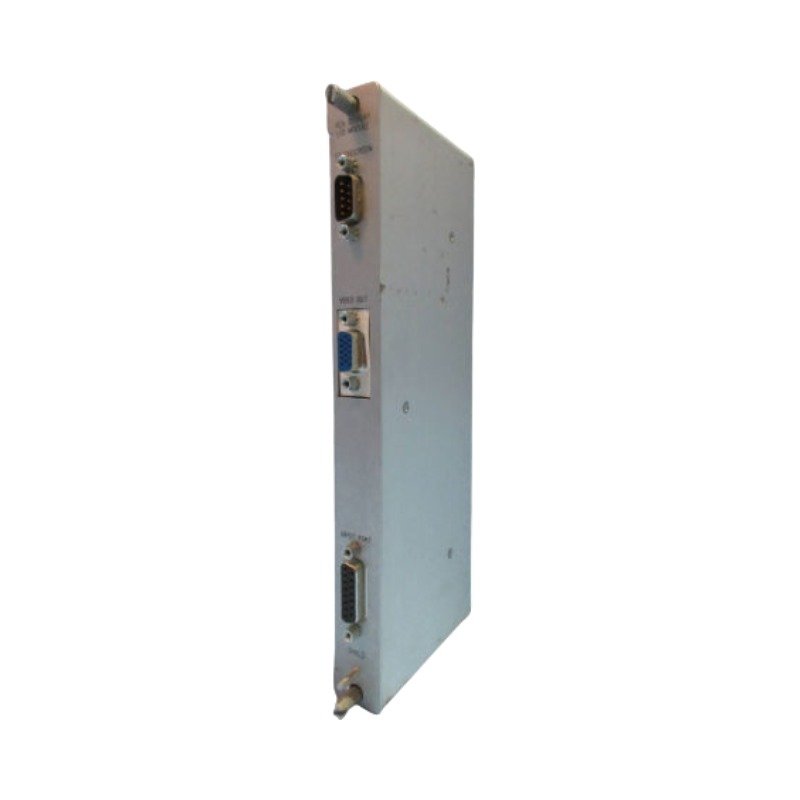

The Bently Nevada 147663-01, also cataloged as the 147663-01 Proximitor Seismic Monitor Module, operates as a dedicated hardware component for continuous vibration monitoring and machinery protection within the 3500 Series Machinery Protection System network name platforms. The module accepts inputs from proximity transducers, seismic transducers, and accelerometers, converting these electrical signals into physical vibration, position, and velocity measurements.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

This module relies on precise eddy-current probe scaling to convert analog voltage shifts into exact mechanical displacement metrics. Engineers must verify the gap voltage validation (-10 VDC targets) during commissioning to ensure the proximity probe operates within its linear range. Because rotor dynamics produce complex high-frequency vibrations, the internal processing circuitry applies active cross-talk suppression. Consequently, this suppression prevents adjacent probe signals from corrupting the instrumentation loop, maintaining signal integrity across all four channels.

Frequently Asked Questions

Q: Does the 147663-01 module support hot-swap replacement while the 3500 rack is energized?

A: Yes. Technicians can perform a hot-swap installation under power without interrupting the operation of adjacent monitor modules within the same rack chassis.

Q: What is the maximum backplane current consumption for this specific hardware revision?

A: The module draws a maximum of 0.80 A from the 3500 system backplane power rail during full 4-channel signal processing execution.

Q: How does the module handle a transducer failure or cable disconnect event?

A: The internal firmware detects out-of-range gap voltage variations and triggers a “Not OK” status, which automatically drives the corresponding channel bypass relay to prevent false machinery trips.

Field Installation Guidelines

• Chassis Slot Assignment: Insert the main monitor module into any available full-height slot in the 3500 rack chassis, excluding slots 0 and 1, which are reserved for the Rack Interface Module (RIM) and Power Supplies.
• Transducer Shield Grounding: Terminate the external cable shields exclusively at the designated chassis ground studs on the I/O module terminal blocks. Do not ground the shield at both ends to prevent ground loop currents from distorting the vibration readings.
• Terminal Block Wiring: Use 18 AWG to 22 AWG stranded copper wire for all I/O connections. Strip insulation back exactly 7 mm before securing the terminal screws to a torque spec of 0.56 N-m.
