Description

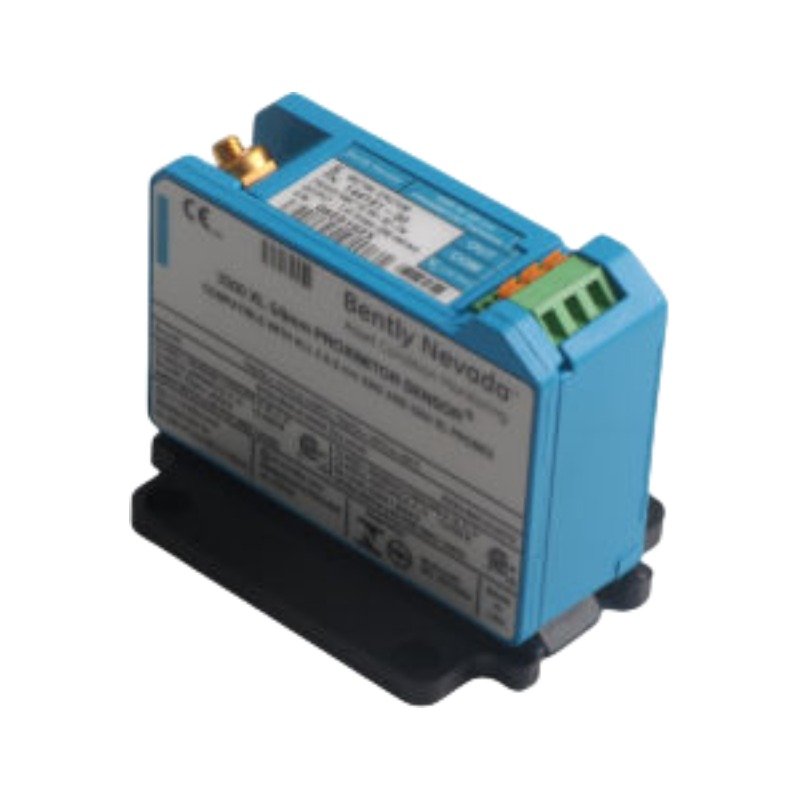

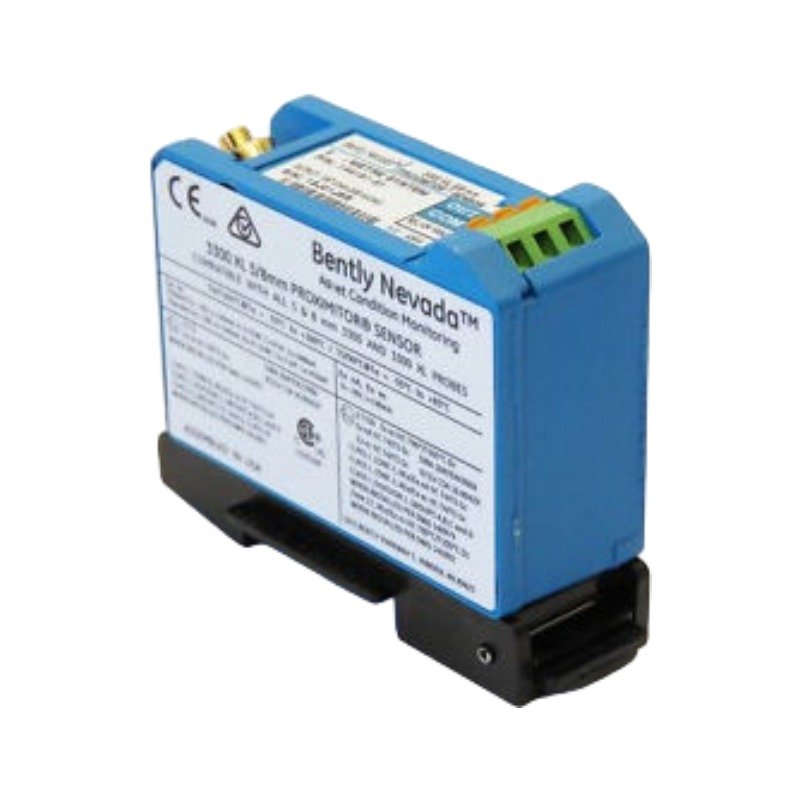

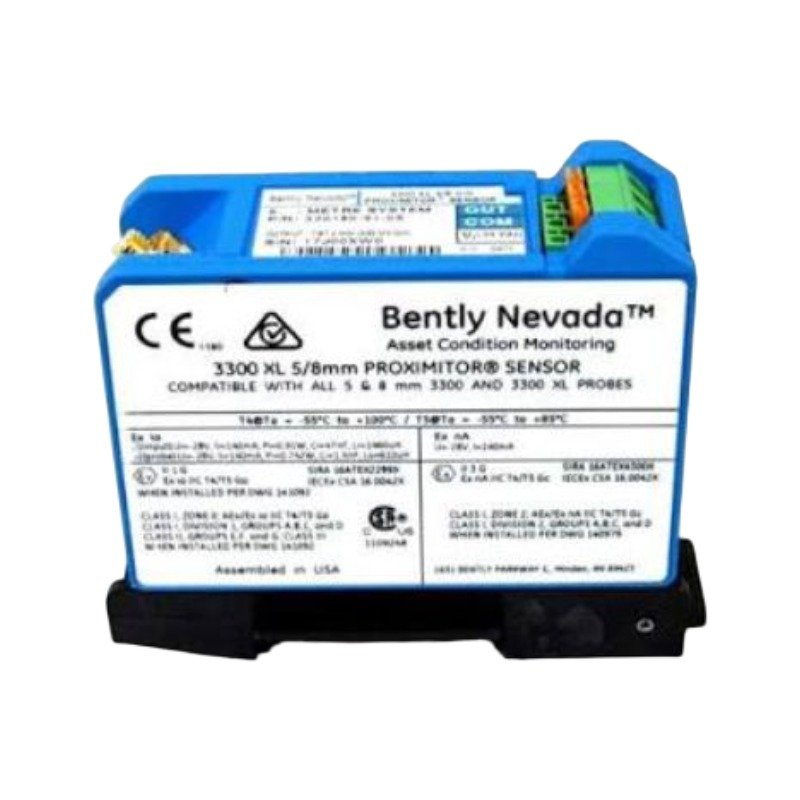

The Bently Nevada 144181-51 serves as the primary 3300 XL Proximitor Sensor utilized to execute non-contacting vibration and displacement measurements across machinery protection platforms. Consequently, the hardware conditions raw radio frequency signals generated by eddy-current probes into stable linear voltage outputs. This conversion allows industrial monitors to process precise physical shaft metrics.

Hardware Specifications

Gap Voltage Validation and Eddy-Current Probe Scaling

Field engineers perform gap voltage validation to adjust the physical distance between the probe tip and the observed shaft surface. Specifically, this procedure positions the transducer loop within the linear measurement zone, targeting an output value of -10 VDC at the mechanical midpoint. Furthermore, proper eddy-current probe scaling compensates for the specific metallurgical profile of the target structure to maintain accuracy in recording rotor dynamics. This precise setup effectively minimizes external electromagnetic interference and ensures maximum cross-talk suppression between adjacent sensor arrays.

Frequently Asked Questions

Q: How do technicians confirm calibration integrity when replacing a 144181-51 Proximitor module?

A: Technicians verify loop operation by tracking voltage output variations against known mechanical displacement steps. This test confirms that the sensor matches the standard nominal scale factor of 7.87 V/mm without internal adjustment.

Q: What power parameters must the external monitoring system maintain for this hardware?

A: The connected power network must supply a continuous negative voltage between -17.5 VDC and -26 VDC, while restricting maximum current draws to 12 mA.

Field Installation Guidelines

First, mount the sensor housing onto a grounded panel plate or within an isolated environmental enclosure. Next, route the triaxial extension cable along dedicated pathways to avoid physical pinching. Additionally, execute finger-tight torque limits on the ClickLoc coaxial connectors to secure the electrical interface. Finally, seal the mated connections using self-fusing insulation tape to isolate the loop from industrial fluid contaminants.
