Description

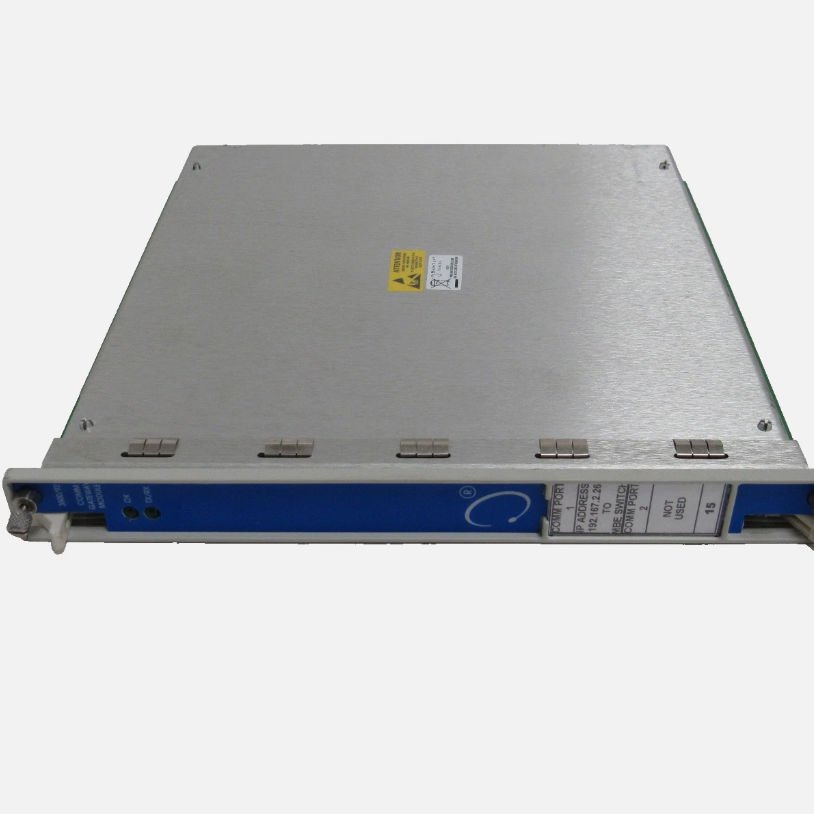

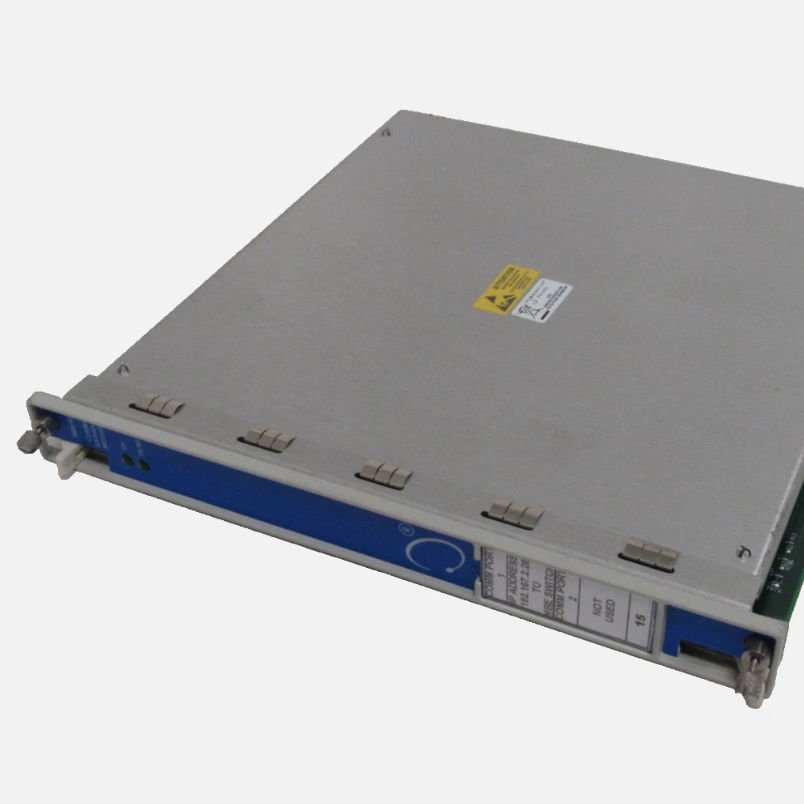

The Bently Nevada 136180-01, also cataloged as the 136180-01 Communication Gateway Module, operates as a dedicated hardware component for transmitting high-speed digital data between the 3500 monitoring rack and external automation controllers within 3500 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The Bently Nevada 136180-01 actively extracts current proportional values, module statuses, and time-stamped alarm data via a high-speed internal network. Consequently, this component processes rotor dynamics data and delivers it to external process control systems without interfering with primary hardware safety functions. Furthermore, the module utilizes a Configurable Modbus Register Utility. This program directly drives network mapping optimization, avoiding internal packet collisions and minimizing communication latency during high-transient machinery events.

Frequently Asked Questions

Q: How does the module handle a sudden network disconnection on the Ethernet port?

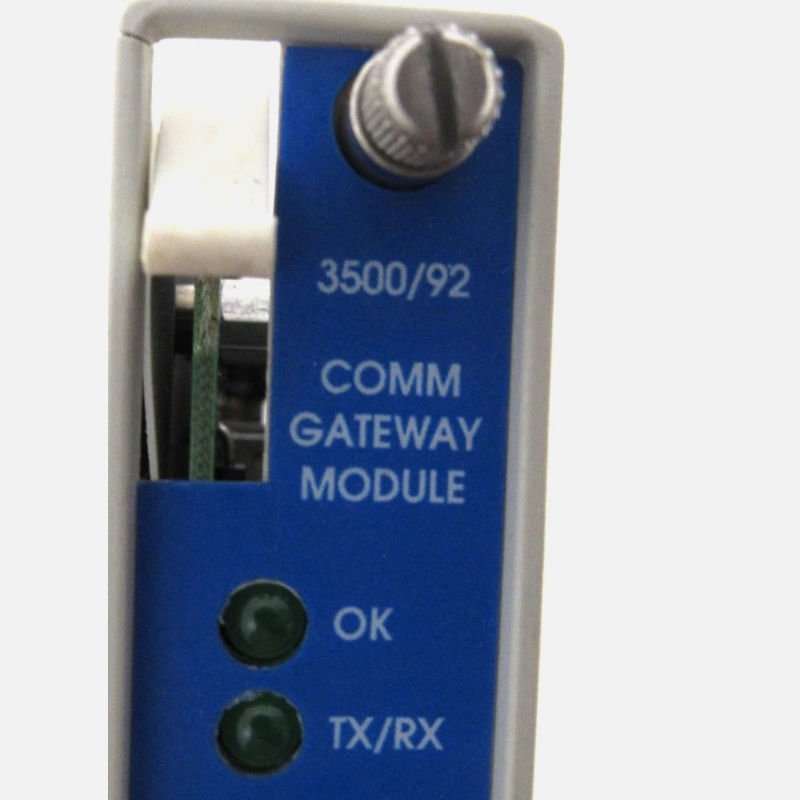

A: The module continues gathering data from the backplane bus internally. However, it drops external Modbus TCP/IP data transmission instantly. Meanwhile, the OK LED remains illuminated, but the TX/RX LED stops flashing until installers restore the network layer.

Q: Does installing this gateway module decrease the scanning speed of the main protection modules?

A: No. The gateway acts as a passive listener on the internal high-speed rack network. Therefore, this communication task executes independently of the main safety processor loop, ensuring that alarm response times remain uncompromised.

Field Installation Guidelines

• Slot Placement: Installers must insert the main board into any full-height front slot of the 3500 rack, except for the Power Supply and Rack Interface Module slots.
• Wiring Separation: Technicians must separate the Ethernet or serial cables coming from the rear I/O module from high-voltage power lines. This installation practice actively suppresses electromagnetic cross-talk.
• Grounding Connection: Personnel must terminate the cable shields directly at the rear I/O module terminal strip to prevent ground loop noise from disrupting data integrity.
