Description

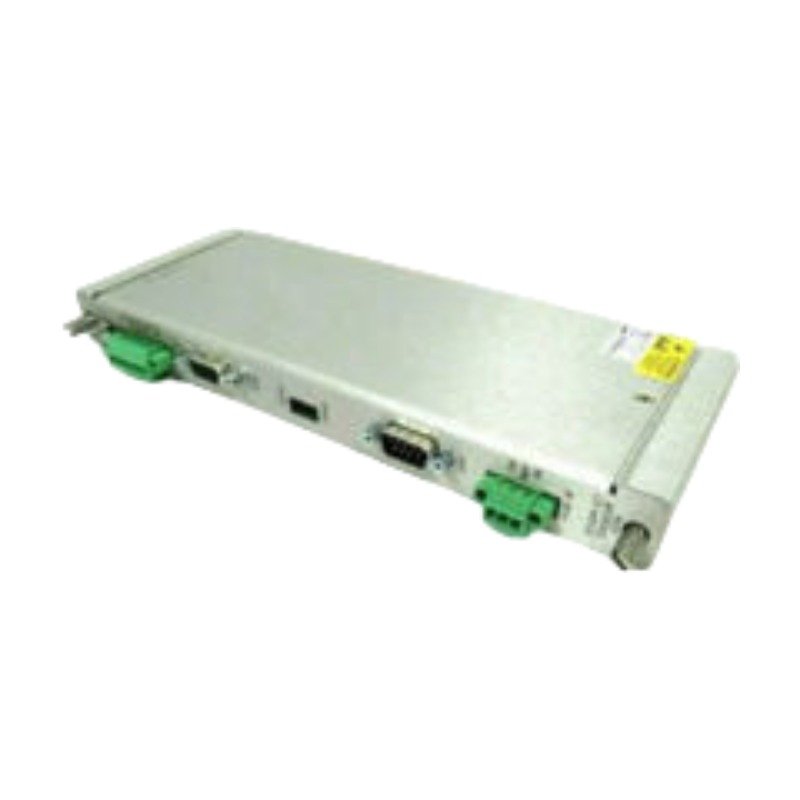

The Bently Nevada 125769-01, also cataloged as the 3500/20 Data Manager I/O Module, operates as a dedicated hardware component for specific technical data processing within the 3500 Monitoring System.

Hardware Specifications

Rotor Dynamics and Signal Conditioning

Consequently, the 125769-01 module executes continuous static and transient data collection to streamline the evaluation of machine rotor dynamics. During tracking sequences, the internal hardware facilitates gap voltage validation across the backplane bus, driving consistent telemetry values toward nominal -10 VDC targets. Meanwhile, the localized electrical architecture enforces strict cross-talk suppression between concurrent communication lines. As a result, this separation shields serial transmission blocks from electromagnetic leakage, preserving raw diagnostic wave paths before sending data to external condition monitoring networks.

Frequently Asked Questions

Q: What is the primary functional relationship between the 125769-01 I/O module and the main 3500/20 Rack Interface Module?

A: The 125769-01 acts as the physical connection plane for the main 3500/20 processor board. Consequently, it handles the electrical termination of the serial links and routes external communication lines directly through the backplane system.

Q: Can this specific I/O module be hot-swapped without turning off rack power?

A: Yes, technicians can hot-swap the 125769-01 I/O module while the 3500 rack remains powered. However, disconnecting the module immediately disrupts data links to the diagnostic computer and consequently suspends static data streaming during the replacement period.

Field Installation Guidelines

• Chassis Engagement: First, align the circuit board edges with the slot tracks directly behind the 3500/20 main module. Next, push the module straight into the backplane until the faceplate sits flush against the rack frame. Finally, secure the retention screws to establish proper electrical ground.
• Transducer Shielding: Terminate the outer shields of all serial interface cables directly at the designated instrument grounding terminal. Conversely, do not connect the shield at both ends, as double-grounding creates circulating current loops that can distort communication signals.
• Wiring Separation: Route serial link cables through dedicated, isolated conduit paths. Furthermore, maintain physical separation from high-current AC motor leads or variable frequency drive runs to suppress inductive noise.
