Description

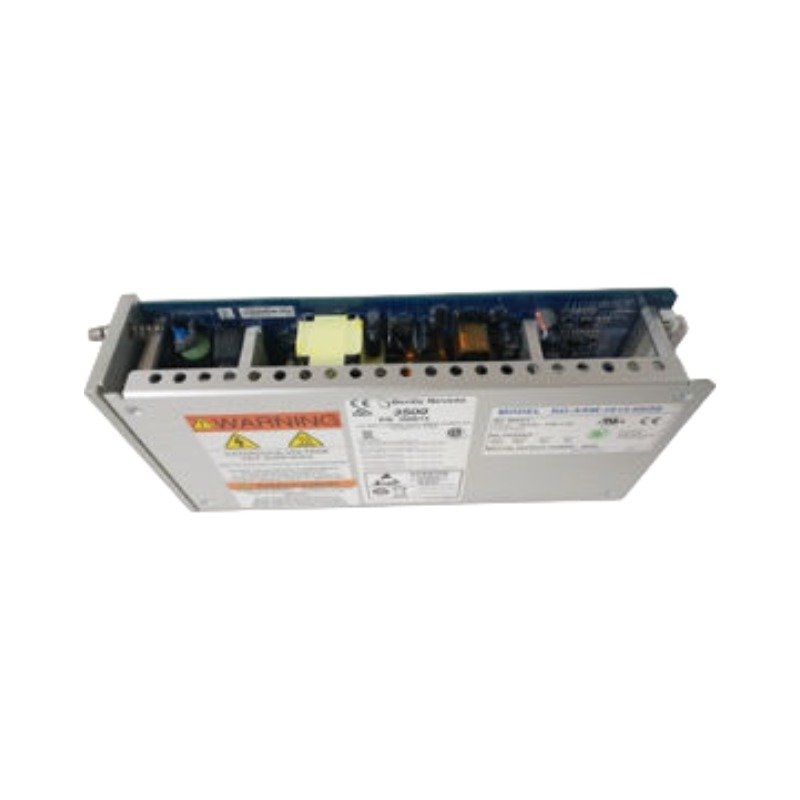

The Bently Nevada 122407-01, also cataloged as the 122407-01 Power Supply Module, operates as a dedicated hardware component for power conversion within the 3500 Monitoring System chassis. Specifically, this half-height module accepts high-voltage AC input utilities and converts them into the regulated, stabilized DC voltages required by the internal backplane motherboard. Consequently, the hardware supplies continuous electrical energy to all adjacent machinery protection, position, and vibration monitors installed inside the same rack enclosure.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 122407-01 establishes the highly filtered and regulated power rails that drive remote field Proximitor sensors via the 3500 backplane motherboard lines. During mechanical checkouts and loop commissioning, this stable electrical foundation allows proper gap voltage validation, ensuring that field transducers match a nominal -10 VDC baseline reliably. This precise voltage regulation directly underpins the calibration accuracy of the standard 7.87 V/mm (200 mV/mil) sensor scaling factor. Furthermore, the internal power conditioning layout minimizes common-mode ripple noise, which enhances cross-talk suppression whenever multiple proximity probe loops share the same localized field junction box or wiring tray. Because the module preserves supply line integrity against factory grid fluctuations, it ensures that high-frequency rotor dynamics signals pass into the monitor cards without phase distortions. As a result, micro-structural variances in the shaft target appear cleanly without power-induced parasitic voltage noise superimposed on the vibration trends.

Frequently Asked Questions

Q: How does the 3500 rack handle grid disruptions or switchover sequences when using this power supply?

A: The module features an internal holdup time that bridges minor line voltage sags. In a dual-redundant configuration (combining two 122407-01 modules), the backplane automatically shifts the entire electrical load to the secondary supply within microseconds if the primary line goes dark, preventing any interruption to the online machinery protection logic.

Q: Can an instrument technician live-swap a faulty 122407-01 module while the machinery is operating?

A: Yes, but only if the 3500 chassis is configured with dual-redundant power supplies and the second supply module is healthy and powered. If the rack utilizes only a single power supply module, extracting it will immediately shut down the entire rack, dropping machinery protection loops and potentially triggering unvoted emergency trip circuits.

Field Installation Guidelines

• Chassis Slot Placement and Dual Configurations: Install the power supply module into the dedicated power slots located on the far left side of the 3500 instrument chassis. When configuring a dual-redundant system, place the primary unit in the upper power slot and the secondary unit in the lower power slot.
• Input Terminal Wiring and Safe Grounding: Connect the incoming 220 VAC power source conductors to the rear terminal strip of the matching lower I/O module using a minimum wire gauge of 14 AWG. Technicians must connect the green/yellow earth safety wire directly to the master protective earth (PE) grounding stud of the enclosure frame to prevent safety hazards.
• Thermal Management Clearances: Ensure that the top and bottom ventilation openings of the 3500 rack frame remain completely unobstructed. The 122407-01 utilizes natural convection cooling to shed heat dissipation profiles from its internal transformer components; restricting this ambient airflow compromises power regulation stability and reduces module lifespan.
