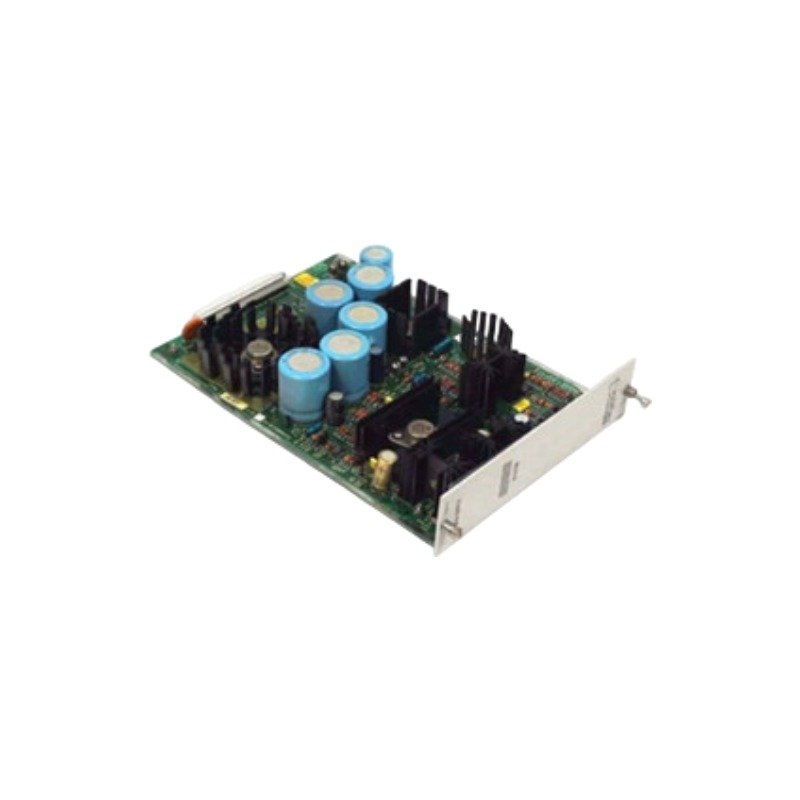

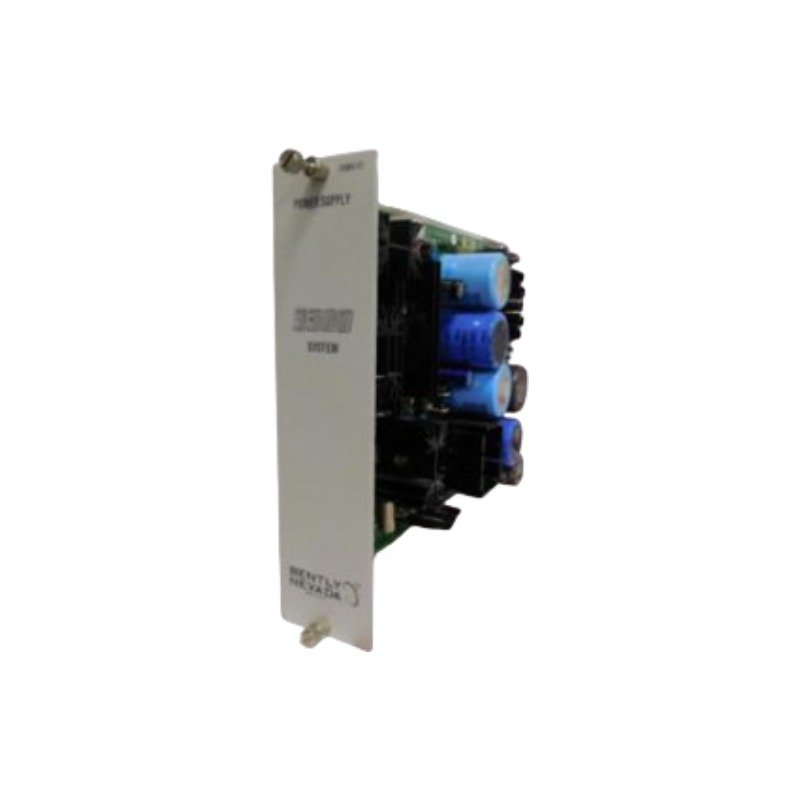

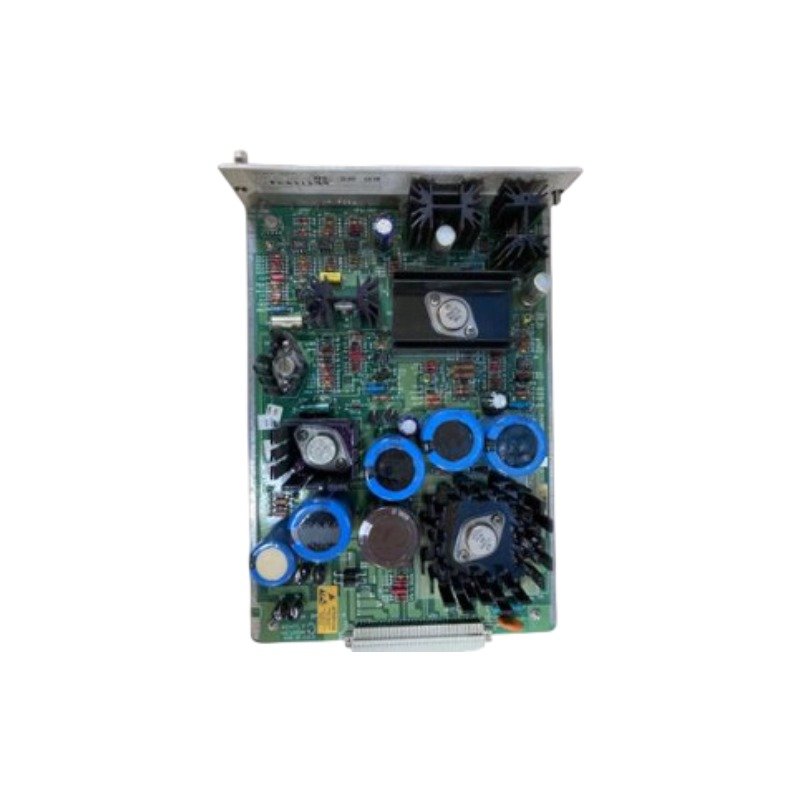

The Bently Nevada 3300/12-02-20-00, also cataloged as the Bently Nevada 3300/12 AC Power Supply Module, operates as a dedicated hardware component for converting line power within the 3300 Series Monitoring Systems network.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The AC power supply module regulates critical DC voltages directly for the backplane motherboard. Specifically, the internal conditioning circuits stabilize the -24 VDC rails to ensure precise eddy-current probe scaling across all connected proximity transducers. Consequently, the module maintains strict gap voltage validation levels, preventing baseline drift from affecting rotor dynamics measurement accuracy. Furthermore, high-frequency filtering layers within the transformer assembly suppress cross-talk induction and line-side voltage transients before they penetrate adjacent vibration monitoring channels.

Frequently Asked Questions

Q: How does the power supply handle brief fluctuations or brownouts in the incoming line voltage?

A: The input circuitry utilizes high-capacity hold-up capacitors. Consequently, the module bridges short voltage drops up to 20 milliseconds without dropping the secondary DC output rails or triggering false rack alarms.

Q: Can an engineer test the output voltages while the power supply operates inside a live system rack?

A: Yes. The front panel features dedicated test points for checking the +5 VDC, +15 VDC, -15 VDC, and -24 VDC outputs. Therefore, maintenance personnel can verify voltage rails directly using a digital multimeter without extracting the hardware.

Field Installation Guidelines

• Line Power Isolation: Open the external supply breaker before terminating incoming AC lines. Thus, you eliminate shock hazards during the initial installation phase.
• Fuse Verification: Confirm that the installed input fuse matches the 220 VAC rating specified on the module side panel. As a result, you preserve overcurrent protection compliance.
• Ground Continuity: Terminate the incoming AC safety ground wire directly to the chassis frame grounding screw. Therefore, you establish a solid reference point and eliminate stray leakage currents.
• Extraction Lever Lock: Slide the module fully into the designated left-most rack slot. Then, actuate the front locking mechanism to secure the backplane interface contacts.
