Description

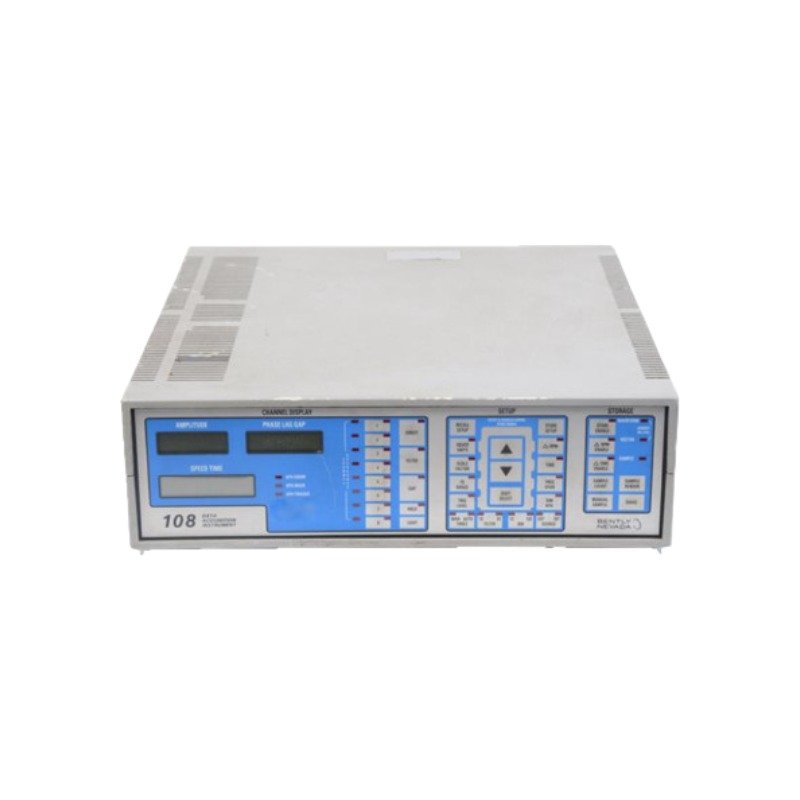

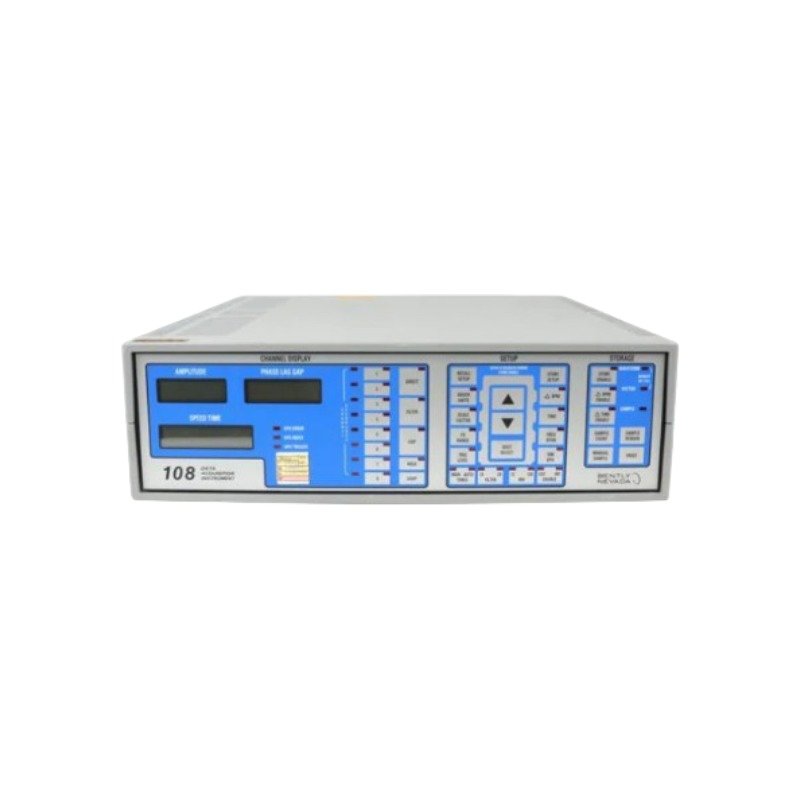

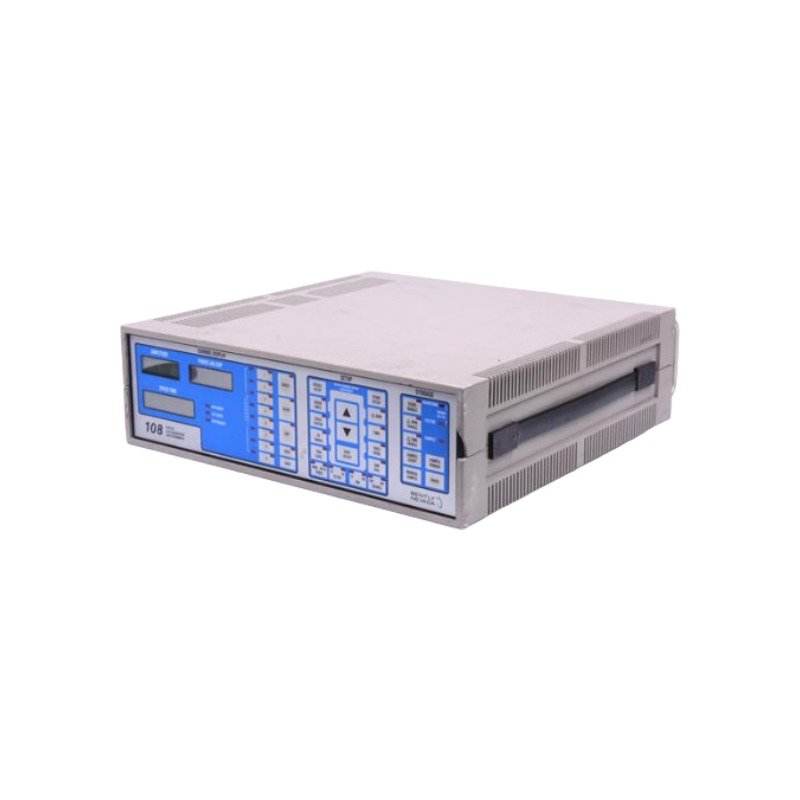

The Bently Nevada 108000-02 acts as a high-performance 8-channel Data Acquisition Instrument (DAI) that integrates directly with the Automated Diagnostic for Rotating Equipment (ADRE) platform. This highly specialized, robust field instrument actively captures and processes dynamic signal inputs from proximity probes, accelerometers, velocity transducers, and Keyphasor sensors. Consequently, it provides advanced diagnostic capabilities—such as Hot-Align analysis, multi-channel synchronous data collection, and machinery transient capturing—so that plant engineers can optimize uptime and proactively prevent catastrophic failures in rotating machinery.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The internal system architecture relies heavily on precise eddy-current probe scaling to convert analog sensor signals into meaningful vibration and displacement wave data. Therefore, when interfacing the ADRE 108 with proximity transducer networks, field technicians must execute a rigorous gap voltage validation. This process ensures that target metrics line up perfectly with the standard -10 VDC targets for linear operating ranges. By correctly biasing the inputs, the system successfully avoids clipping dynamic waveforms during high-amplitude machine vibrations. As a result, the instrument maps highly accurate rotor dynamics during critical startup and shutdown cycles. Meanwhile, the internal filtering modules maximize cross-talk suppression, which ensures that high-frequency proximity signals do not contaminate adjacent channels during simultaneous 8-channel acquisition.

Frequently Asked Questions

Q: Can technicians hot-swap sensor inputs on the 108000-02 while a data acquisition run is active?

A: Although connecting or disconnecting BNC inputs will not physically damage the passive hardware interface, hot-swapping sensors during an active data acquisition sequence will instantly corrupt the ongoing capture file. Therefore, you should always pause the test session or stop recording within the ADRE software before you alter any physical channel configurations.

Q: How does this instrument handle power filtering and backplane protection?

A: The 108000-02 features an integrated, isolated power supply assembly that actively filters industrial line noise and voltage surges. In addition, the internal analog-to-digital processing backplane handles transient load fluctuations smoothly, which prevents current consumption spikes from dropping or delaying critical data packets on their way to the communication interface.

Field Installation Guidelines

• Implement Multi-Probe Grounding: Connect all proximity probe extension cables to the 108000-02 front panel using a single-point grounding layout. Furthermore, isolate the shielding at the machine housing and ground it directly at the data acquisition interface to eliminate ground loop distortion.
• Verify the Gap Voltage: Before you initiate a dynamic capture run, check the instrument’s front-panel status readings or use an external voltmeter to confirm that the static gap voltage sits within the -10 VDC target zone for all calibrated eddy-current channels.
• Isolate Signal Cables: Route dynamic signal lines completely away from high-current AC power cables, variable frequency drives, and motor lines. By maintaining this physical separation, you establish structural cross-talk suppression and effectively avoid electromagnetic field noise injection.
• Maintain Ventilation Clearance: When you operate the portable instrument case in field conditions, ensure that the cooling fan vents remain completely unobstructed so that you prevent internal thermal thresholds from exceeding safe limits during prolonged data logs.
