Description

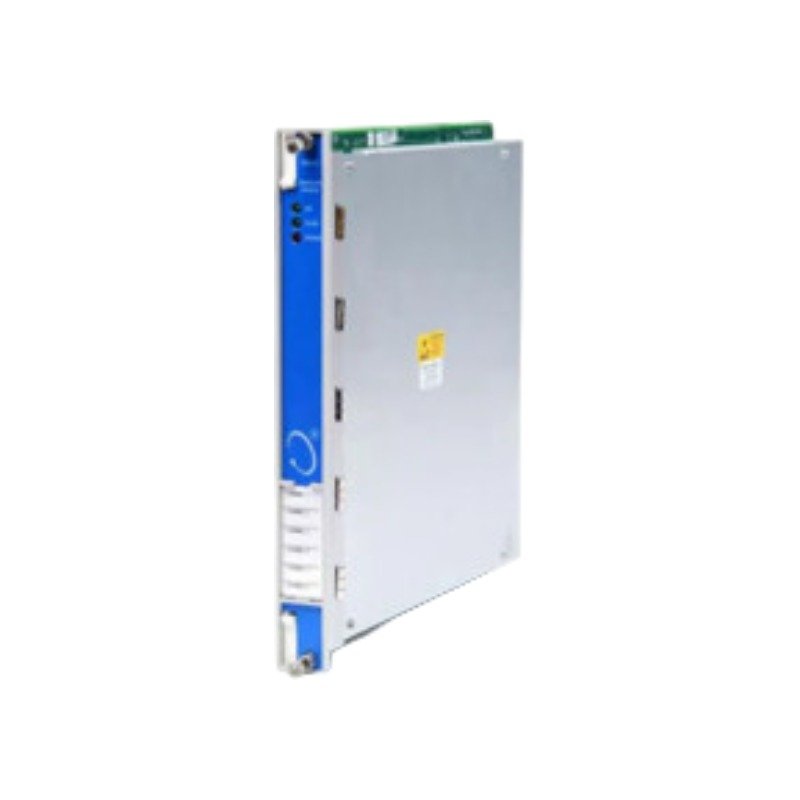

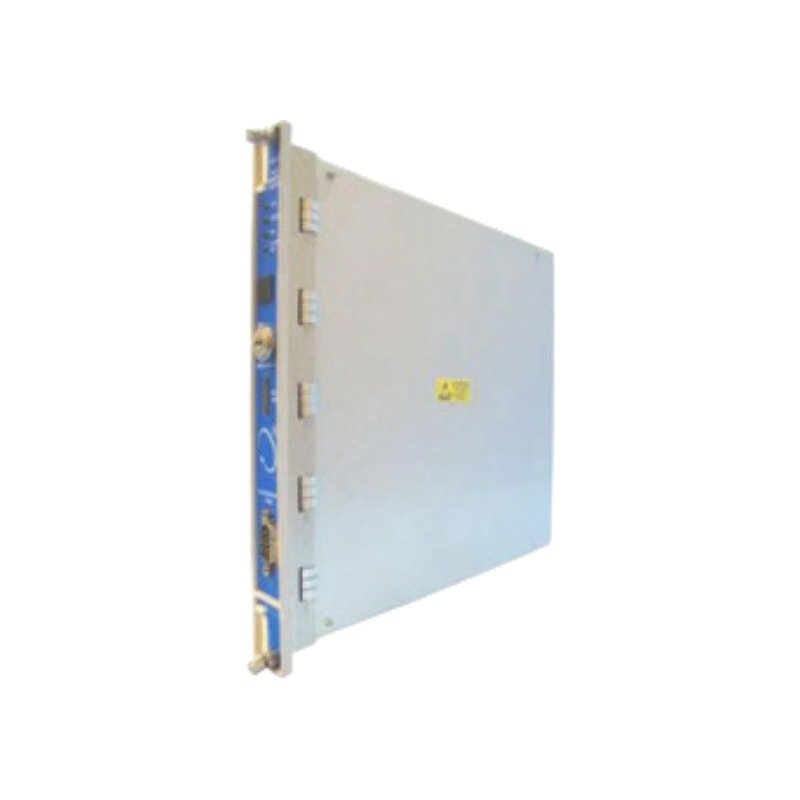

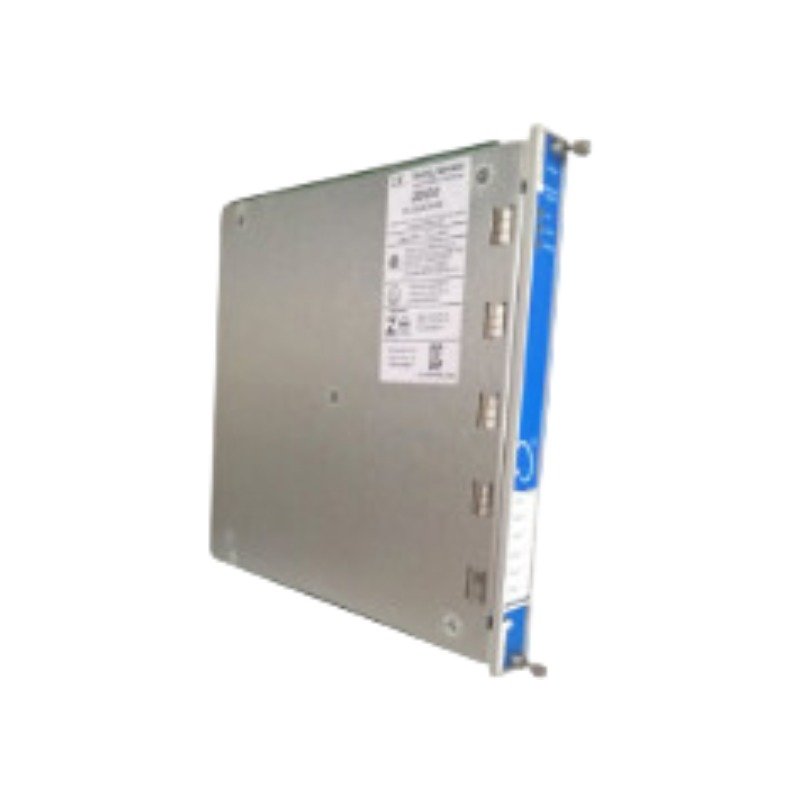

The Bently Nevada 163179-01 operates as a high-performance 6-channel temperature monitor module within the industry-standard 3500 Machinery Protection System. This specialized, rack-mounted device actively processes inputs from both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs) to monitor critical machine temperatures. Consequently, the module continuously evaluates thermal conditions against user-programmable alarm setpoints, ensuring that plant operators can spot thermal overloads early and prevent catastrophic mechanical failures in heavy rotating machinery.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Although this specific module interfaces directly with thermal sensors, its primary diagnostic firmware integrates deeply with broader structural monitoring systems that rely on eddy-current probe scaling to track physical rotor shaft displacement. When deploying a complete 3500 monitoring solution, field technicians must conduct strict gap voltage validation across nearby vibration modules to confirm that target metrics match standard -10 VDC targets for linear operation. Correctly biasing those displacement inputs prevents high-amplitude wave clipping during intense thermal expansion states. Consequently, as the 163179-01 logs temperatures, the master rack correlates thermal growth with rotor dynamics seamlessly. Furthermore, the internal structural backplane utilizes advanced cross-talk suppression, which ensures that high-frequency proximity signals do not bleed into or corrupt the low-voltage analog inputs of the temperature monitoring channels.

Frequently Asked Questions

Q: Can technicians hot-swap the 163179-01 temperature module while the 3500 rack remains powered?

A: Yes, you can hot-swap the main monitor module while the rack is energized because the 3500 backplane supports live-insertion. However, extracting the module will instantly disrupt the 6 thermal loops, which might trigger downstream safety relays. Therefore, you must bypass or inhibit all associated voting logic and alarm relays before pulling the module from its slot.

Q: How does this specific module handle isolation between adjacent temperature channels?

A: The 163179-01 architecture depends heavily on the specific rear I/O module pairing. When you install the Thermocouple Isolated version, the hardware delivers 250 Vdc of channel-to-channel isolation. This high boundary actively blocks external electromagnetic interference and prevents stray voltages from distorting accurate sensor readings.

Field Installation Guidelines

• Verify Sensor Grounding: Ensure that you isolate all thermocouple and RTD wiring shields from the machinery housing. Ground the shield wires exclusively at the rear terminal block of the 3500 rack to eliminate ground loop interference.
• Match Electrical Lengths: When wiring RTDs, keep all lead resistances well within the manufacturer specification limits. This practice ensures that the internal 925 µA current source maintains precise calibration across long field runs.
• Observe Separation Layouts: Route all low-voltage thermal sensor lines through dedicated, grounded conduits. Concurrently, separate these lines completely from heavy AC power cables, variable frequency drives, and high-voltage motor lines to maximize cross-talk suppression.
• Tighten Terminals Properly: Secure all field wiring to the internal or external termination blocks using proper torque tools. Adequate tightness safeguards the signal paths from loosening over time when exposed to heavy machine vibration.
