Description

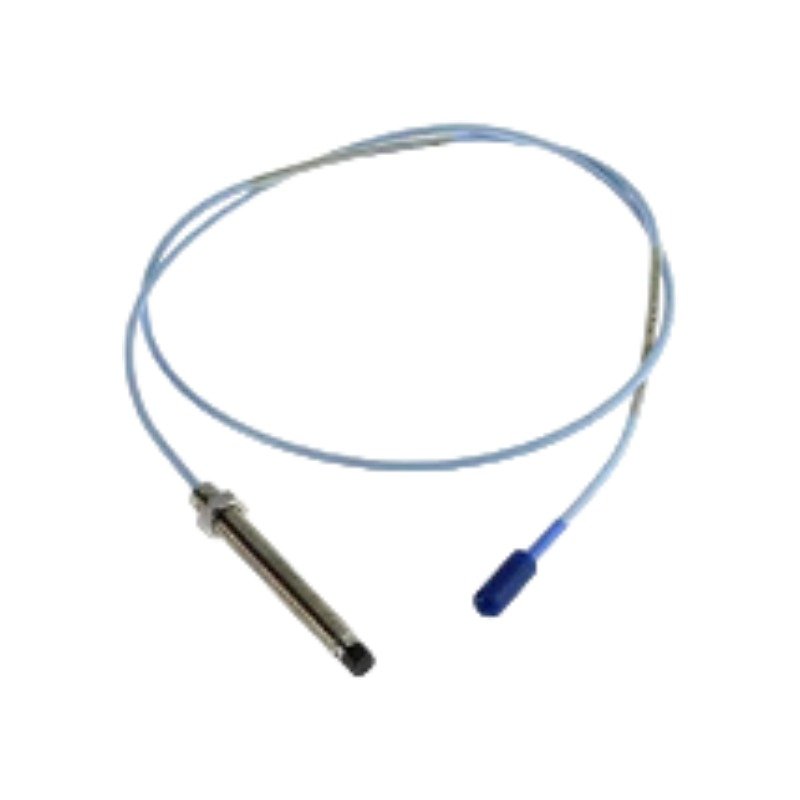

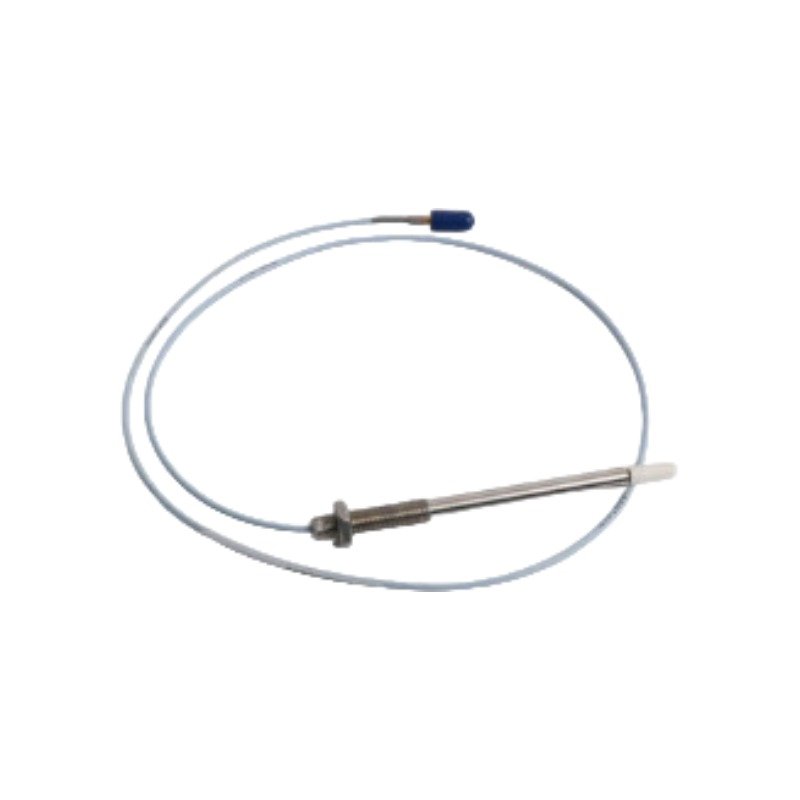

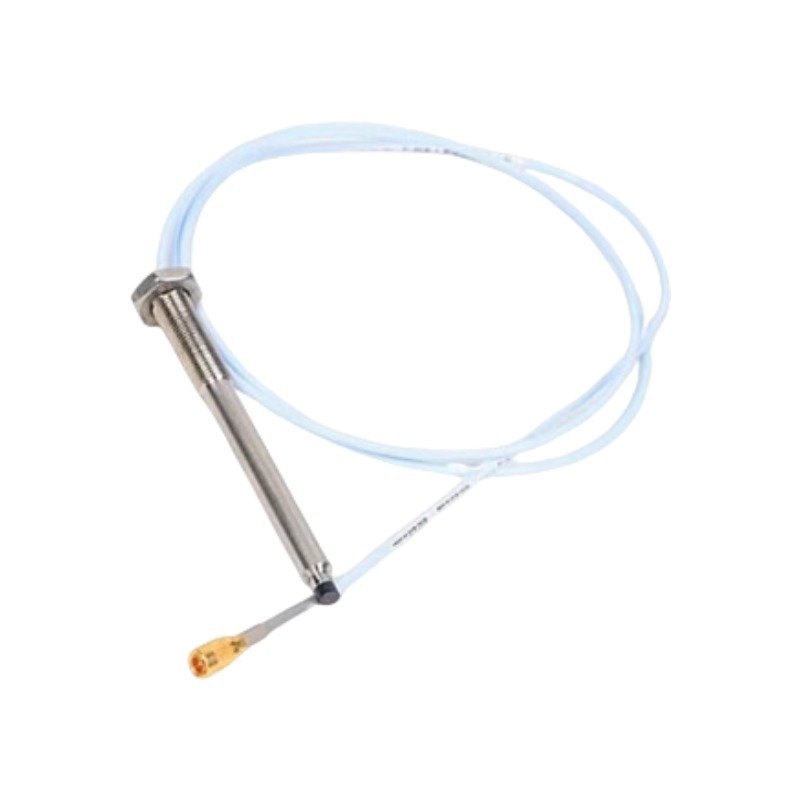

The Bently Nevada 330905-00-05-10-02-00 is a high-precision 3300 NSv proximity sensor probe designed for non-contacting vibration and displacement measurements in demanding industrial environments. Engineered specifically for critical machinery monitoring, it operates seamlessly within the 3300 NSv Proximity Transducer System, making it exceptionally well-suited for small-bore clearances or confined installation spaces where standard-size eddy-current probes cannot fit.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The Bently Nevada 330905-00-05-10-02-00 relies on precise eddy-current probe scaling to convert physical displacement into linear voltage output, typically rated at 7.87 V/mm (200 mV/mil) when paired with the correct 3300 NSv Proximitor. During field commissioning, executing a strict gap voltage validation is imperative; engineers must adjust the probe’s mechanical position to achieve the standard -10 VDC target voltage at the center of the linear range. This baseline calibration guarantees optimal dynamic range for capturing rotor dynamics, preventing signal clipping during peak-to-peak vibration excursions. Furthermore, proper spacing and cable routing are essential to ensure robust cross-talk suppression, preventing adjacent electromagnetic fields from compromising signal integrity in multi-probe machinery monitoring applications.

Frequently Asked Questions

Q: Can this proximity probe be hot-swapped while the monitoring system is live? A: Yes, the probe itself can be disconnected or reconnected at the extension cable junction while the system is powered. However, to prevent false trips or transient alarms within the main machinery protection system (such as a 3500 rack), the corresponding channel must be placed in “Bypass” or “Inhibit” mode prior to physical disconnection.

Q: What are the backplane current consumption and power requirements for this sensor? A: The probe does not draw power directly from a backplane; it is a passive inductive device powered by an external 3300 NSv Proximitor Sensor. The Proximitor typically draws a maximum constant current of 12 mA from a standard -24 VDC power supply rails.

Field Installation Guidelines

• Gap Voltage Validation: Always use a calibrated digital multimeter to verify the gap voltage during mechanical installation. Rotate the probe within its threaded mounting brackets until the DC voltage reads approximately -10 VDC at the physical midpoint of the expected target movement.
• Thread Engagement and Torquing: Ensure clean thread engagement. Avoid over-torquing the probe body during installation to prevent damage to the internal coil architecture; use a dedicated torque wrench and adhere to standard industrial installation torque specifications for 3/8-24 threads.
• Shielding and Grounding: The coaxial cable shield must be continuously isolated from the machine housing and grounded exclusively at the monitor rack or Proximitor panel end. Ensure the coaxial connectors are wrapped in insulating self-fusing tape to prevent unintended grounding points.
• Cable Routing Limits: Maintain minimum bend radiuses for the coaxial extension cable to prevent signal attenuation or physical degradation. Avoid routing the probe leads parallel to high-voltage AC motor lines to eliminate external noise coupling.
