Description

Brief Product Description

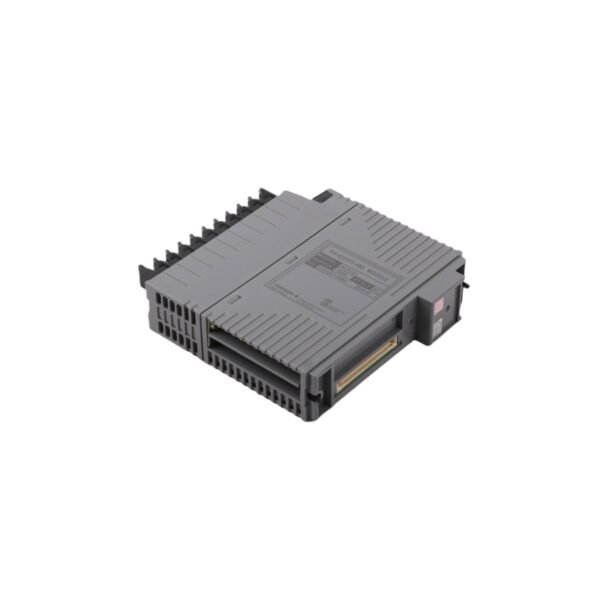

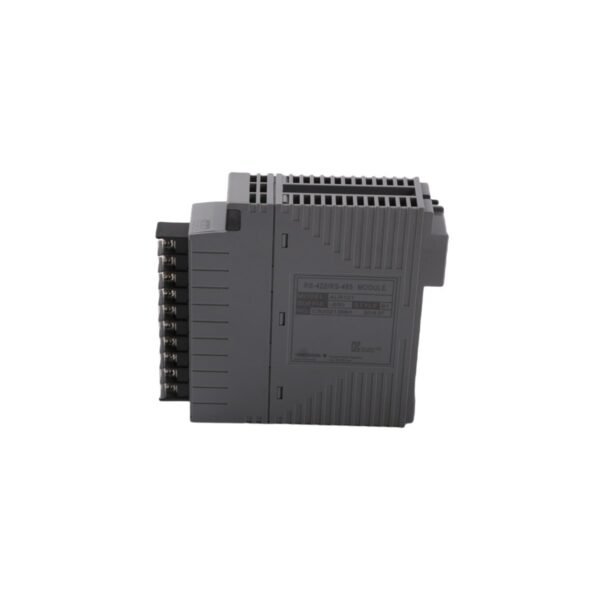

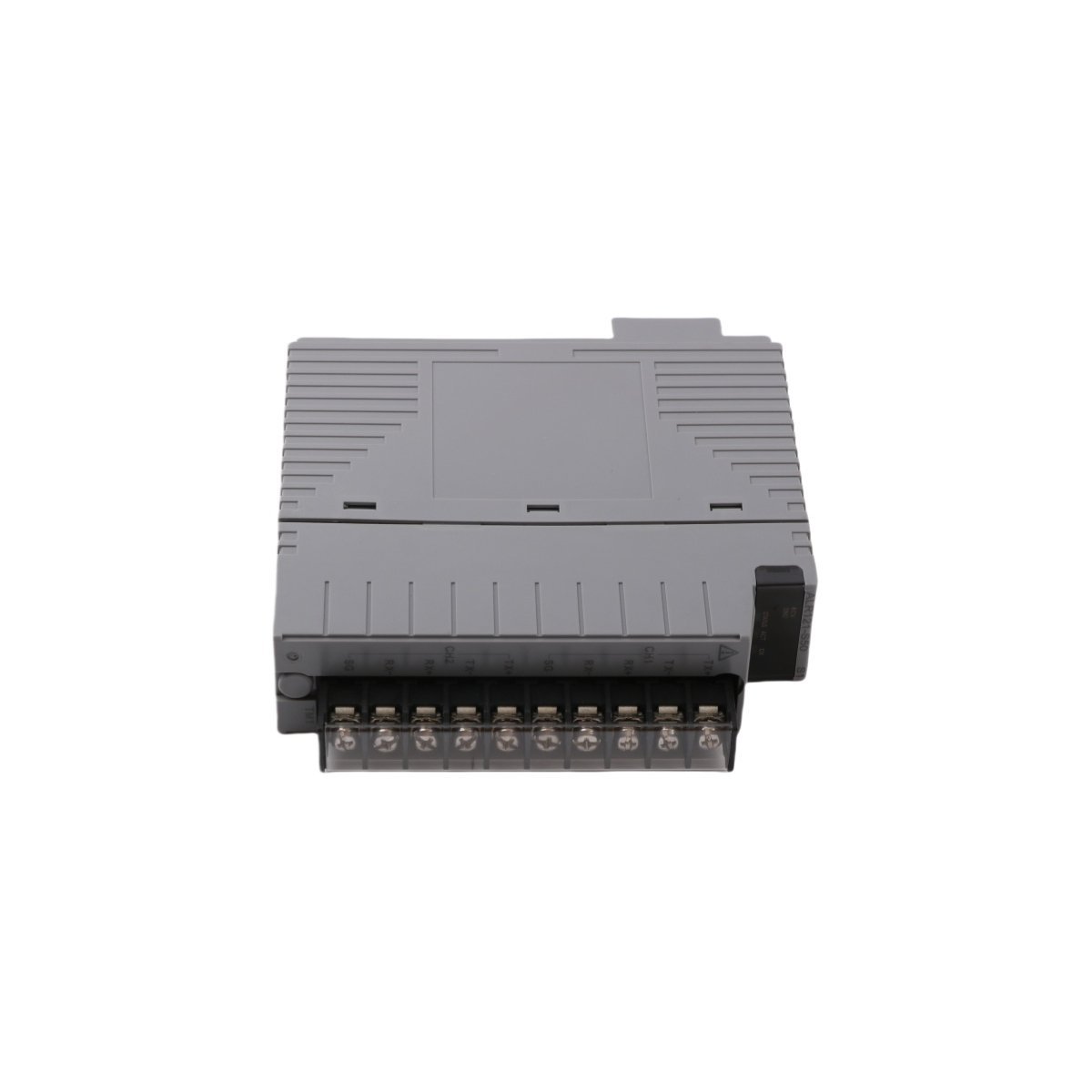

The Yokogawa ALR121-S50 is a high-reliability serial communication module designed for the ProSafe-RS safety instrumented system. It enables secure Modbus RTU slave connectivity, allowing external master devices to access safety data without compromising SIL3 integrity.

Product Description

Secure Modbus Connectivity for Safety Systems

The Yokogawa ALR121-S50 functions as a high-integrity serial interface designed specifically for the ProSafe-RS safety control architecture. This module facilitates RS-232 communication, acting as a Modbus slave to bridge the gap between Safety Control Stations (SCS) and external Modbus master devices. By utilizing this module, industrial facilities can export critical safety data to human-machine interfaces (HMI) or third-party monitoring systems. Most importantly, the ALR121-S50 maintains strict data isolation, ensuring that external communication activities never interfere with the execution of safety logic.

Engineering for SIL3 Compliance

While many communication interfaces introduce vulnerabilities, the ALR121-S50 upholds IEC 61508 SIL3 certification within the Yokogawa safety ecosystem. The module architecture prioritizes diagnostic coverage and fail-safe performance, which makes it suitable for high-stakes environments like emergency shutdown (ESD) and burner management systems (BMS). Its design incorporates complete electrical isolation to safeguard the safety network against surges and electromagnetic noise common in heavy industrial settings. Furthermore, the module supports redundant configurations, providing an additional layer of availability for mission-critical data links.

Simplified Deployment and Diagnostics

Operators can easily integrate the ALR121-S50 into ProSafe-RS racks thanks to its compact, hot-swappable form factor. The module features clear LED indicators on the front panel that provide real-time status updates on transmission activity and hardware health. This immediate visual feedback accelerates troubleshooting during commissioning and routine maintenance. Additionally, the software integration via Yokogawa’s engineering suite allows for rapid configuration of Modbus registers and communication parameters. Consequently, this module streamlines the path to achieving full plant transparency while keeping safety as the primary objective.

Technical Specifications
