Description

Brief Product Description

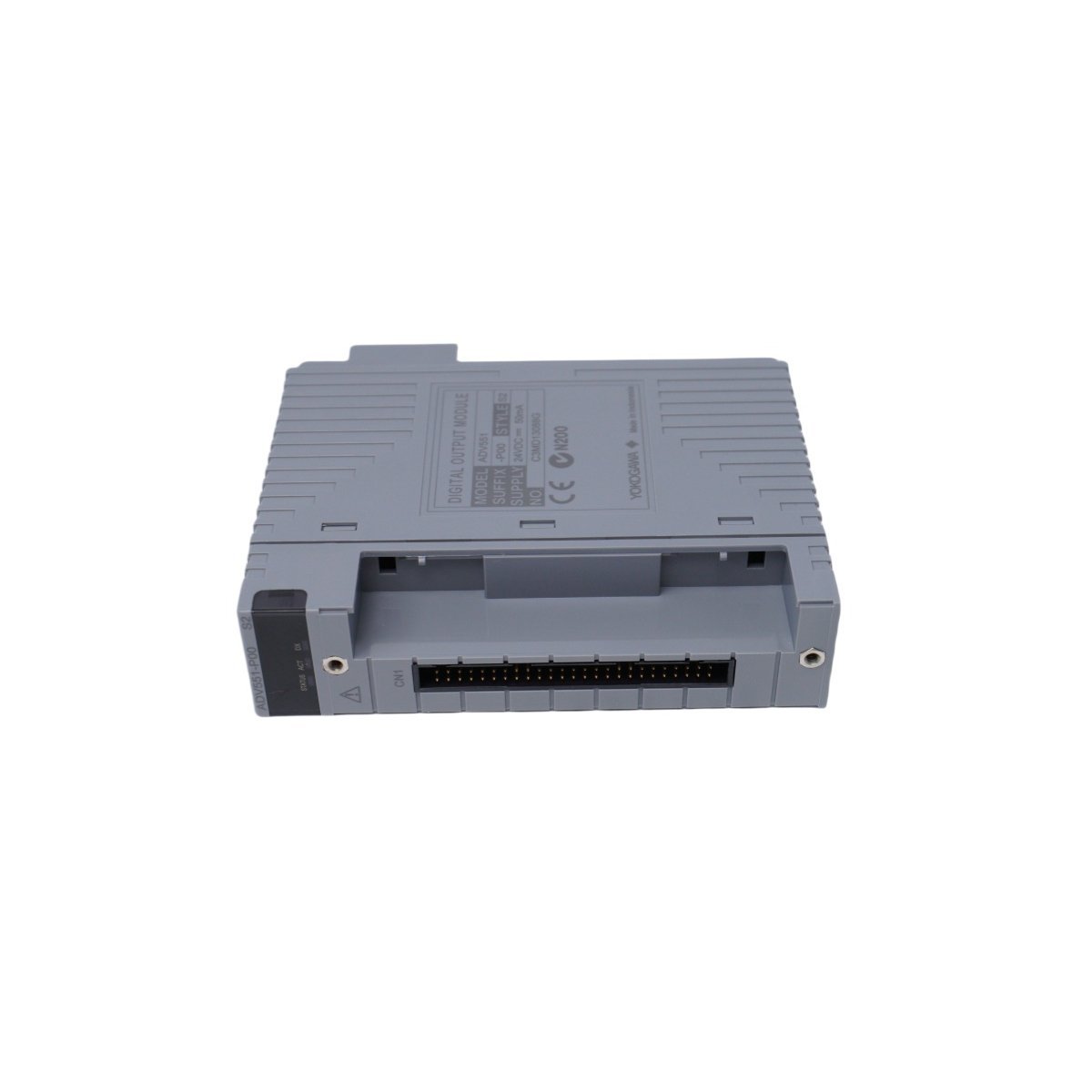

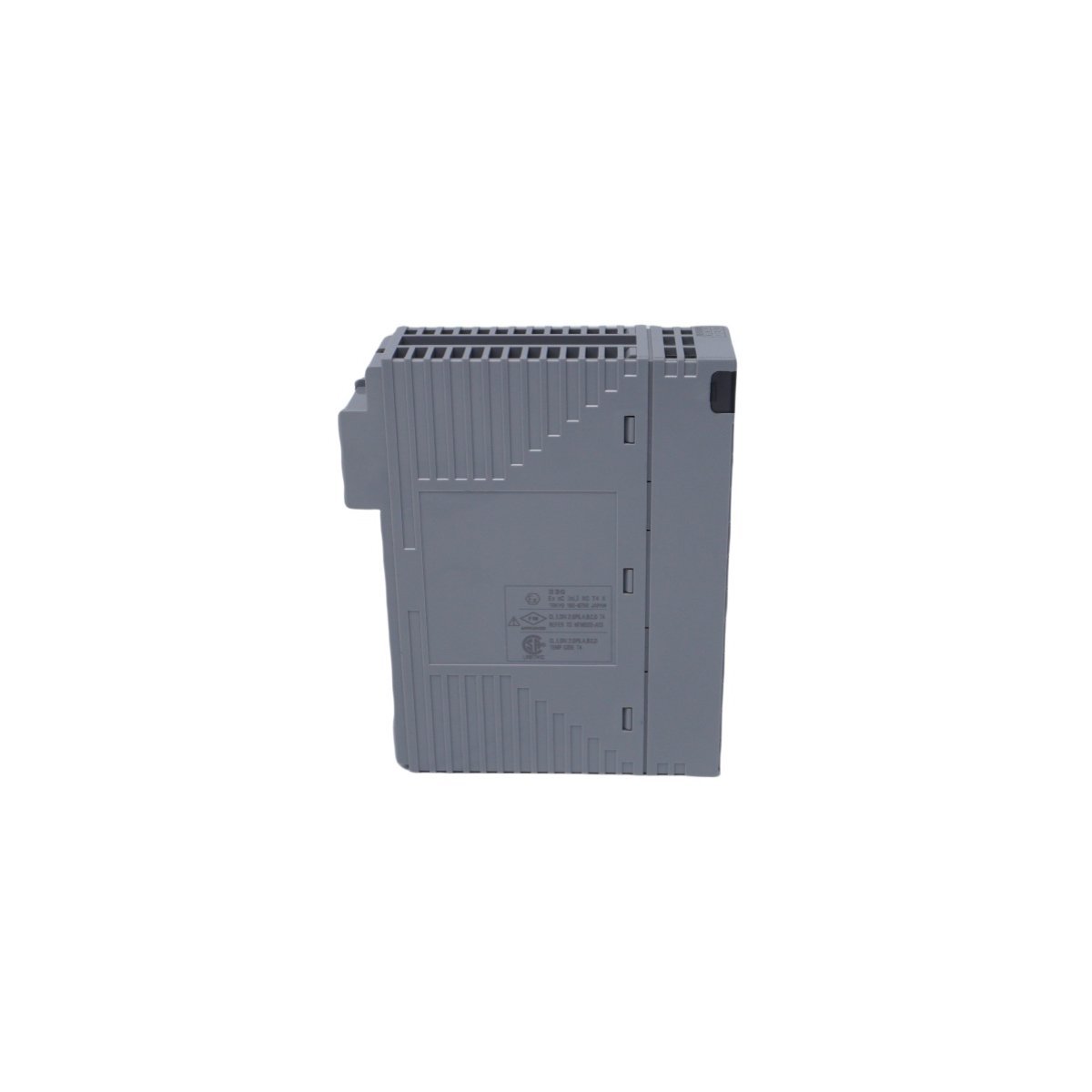

The Yokogawa ADV551-P60 is a high-density 32-channel digital output module designed for the Centum VP Distributed Control System. It provides reliable 24V DC transistor contact signaling with integrated protection and support for dual-redundant hardware configurations.

Advanced Discrete Signal Control

The Yokogawa ADV551-P60 functions as a high-performance executive component within the Centum VP architecture, specifically engineered to drive field actuators, solenoids, and relay coils. This module manages 32 discrete output channels using a common-minus (sink) transistor logic. By utilizing high-speed switching circuitry, the ADV551-P60 ensures that the control system commands reach field devices with minimal latency. Furthermore, the module maintains strict signal isolation to protect the internal DCS bus from external electrical anomalies, thereby preserving the integrity of the process logic.

Integrated Redundancy and Safety Compliance

To meet the stringent uptime requirements of modern refineries and power plants, the ADV551-P60 supports fully redundant operations. When technicians install a pair of these modules in a redundant configuration, the system automatically synchronizes output states and performs seamless failover if it detects a hardware fault. Additionally, the ADV551-P60 provides a safety-conscious architecture suitable for critical interlocking and process-protection tasks. The module actively monitors its internal status and reports diagnostic data back to the Field Control Station, allowing operators to identify potential failures before they impact production.

Optimized Maintenance and Global Certification

Maintenance efficiency remains a core benefit of the ADV551-P60 hardware design. The module features a hot-swappable interface, enabling technical teams to perform hardware upgrades or replacements without de-energizing the system or stopping the process. Beyond its mechanical convenience, the module carries extensive global certifications, including ATEX, IECEx, and cULus listings for hazardous area deployment. Because Yokogawa builds these units to withstand extreme ambient temperatures and corrosive industrial atmospheres, the ADV551-P60 serves as a dependable solution for the most demanding global infrastructure projects.

Key Technical Characteristics

• 32-Channel High-Density Output: Enables extensive field device control within a compact single-slot form factor.
• Common-Minus Transistor Logic: Optimized for driving 24V DC industrial loads and relay interfaces.
• Dual-Redundancy Support: Ensures continuous signal output through automated hardware failover mechanisms.
• Robust Signal Isolation: Protects system-side logic from field-side voltage spikes and ground loops.
• Diagnostic Transparency: Provides real-time health monitoring and visual status indication for maintenance.
• Hazardous Area Approval: Rated for installation in explosive and corrosive industrial environments.

Technical Specifications
