Description

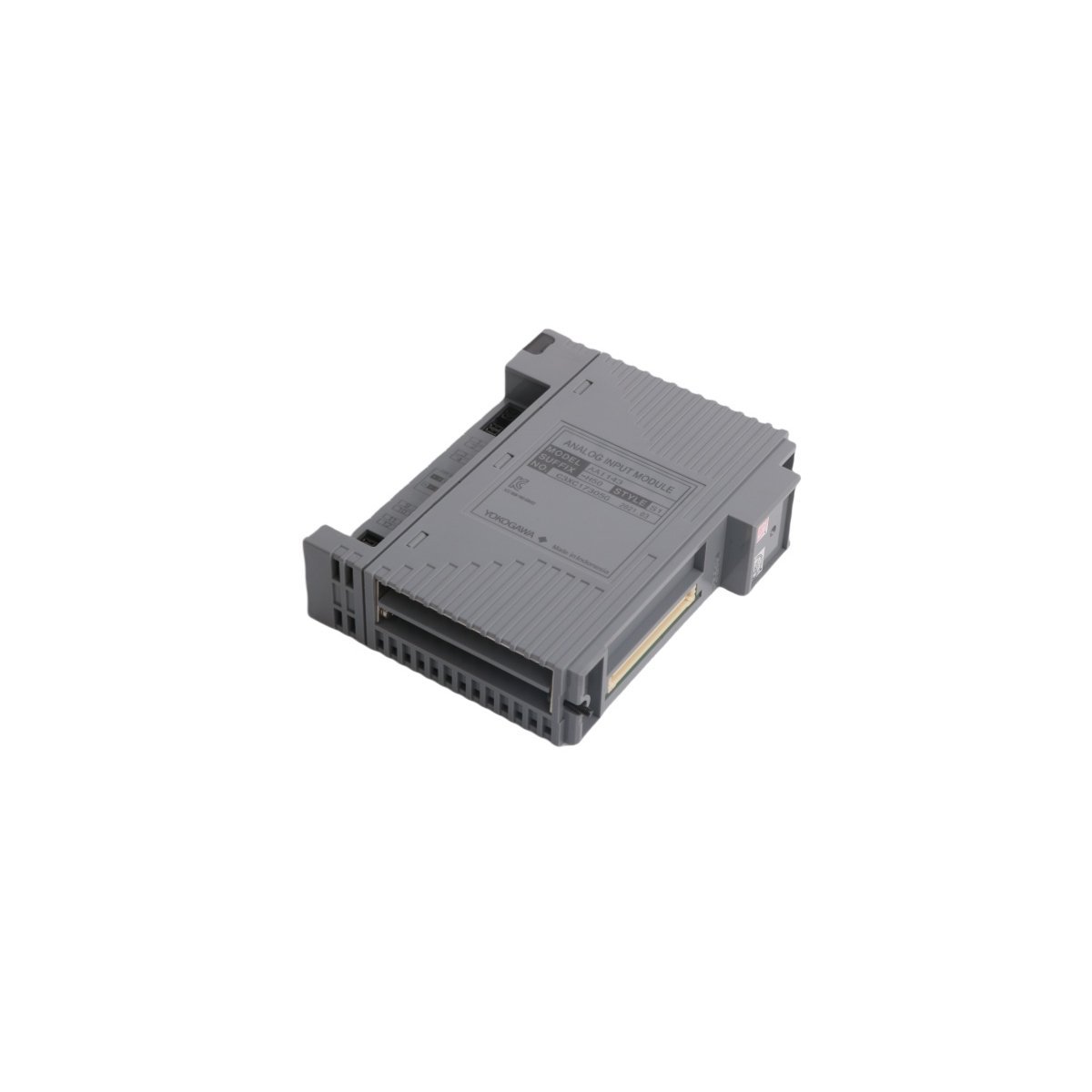

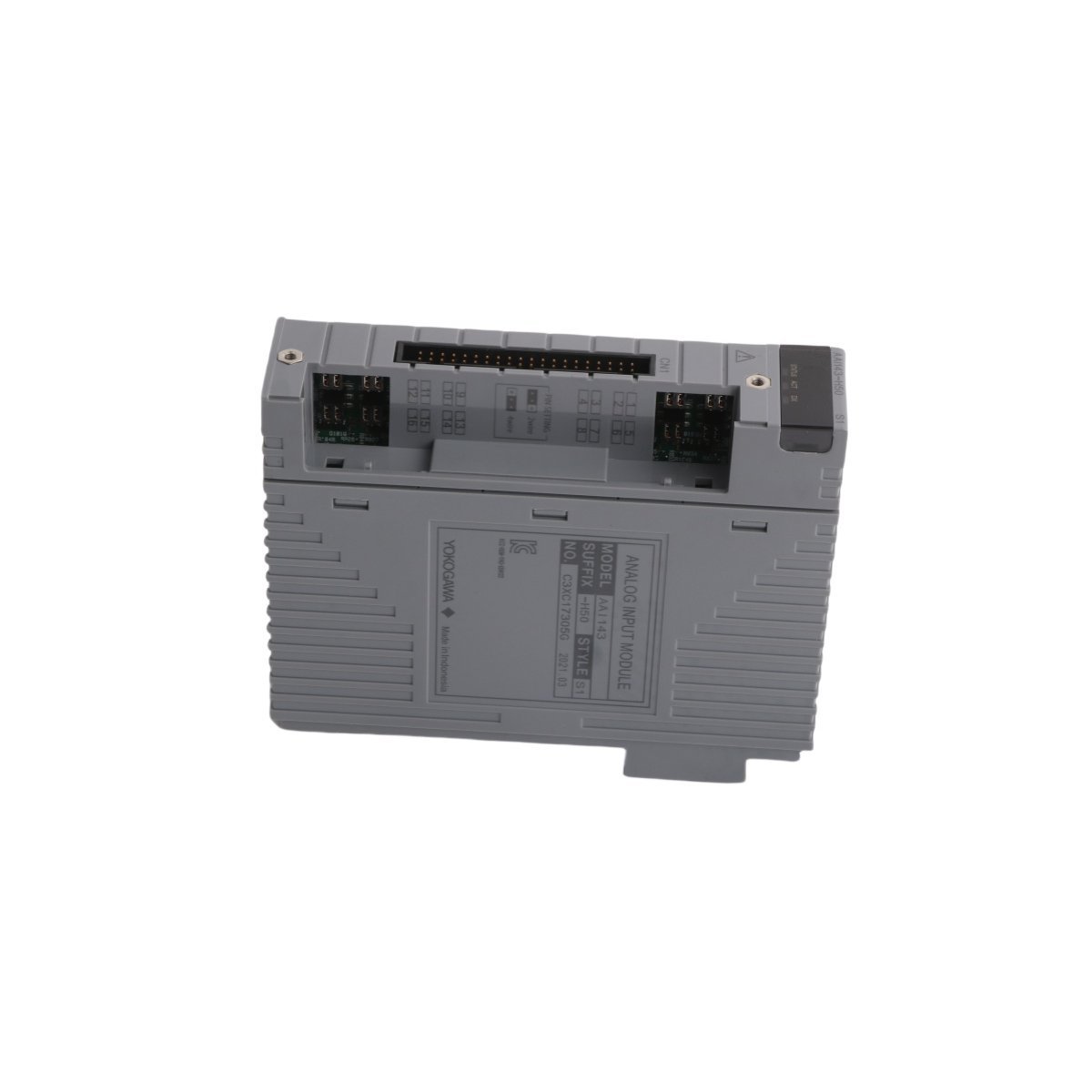

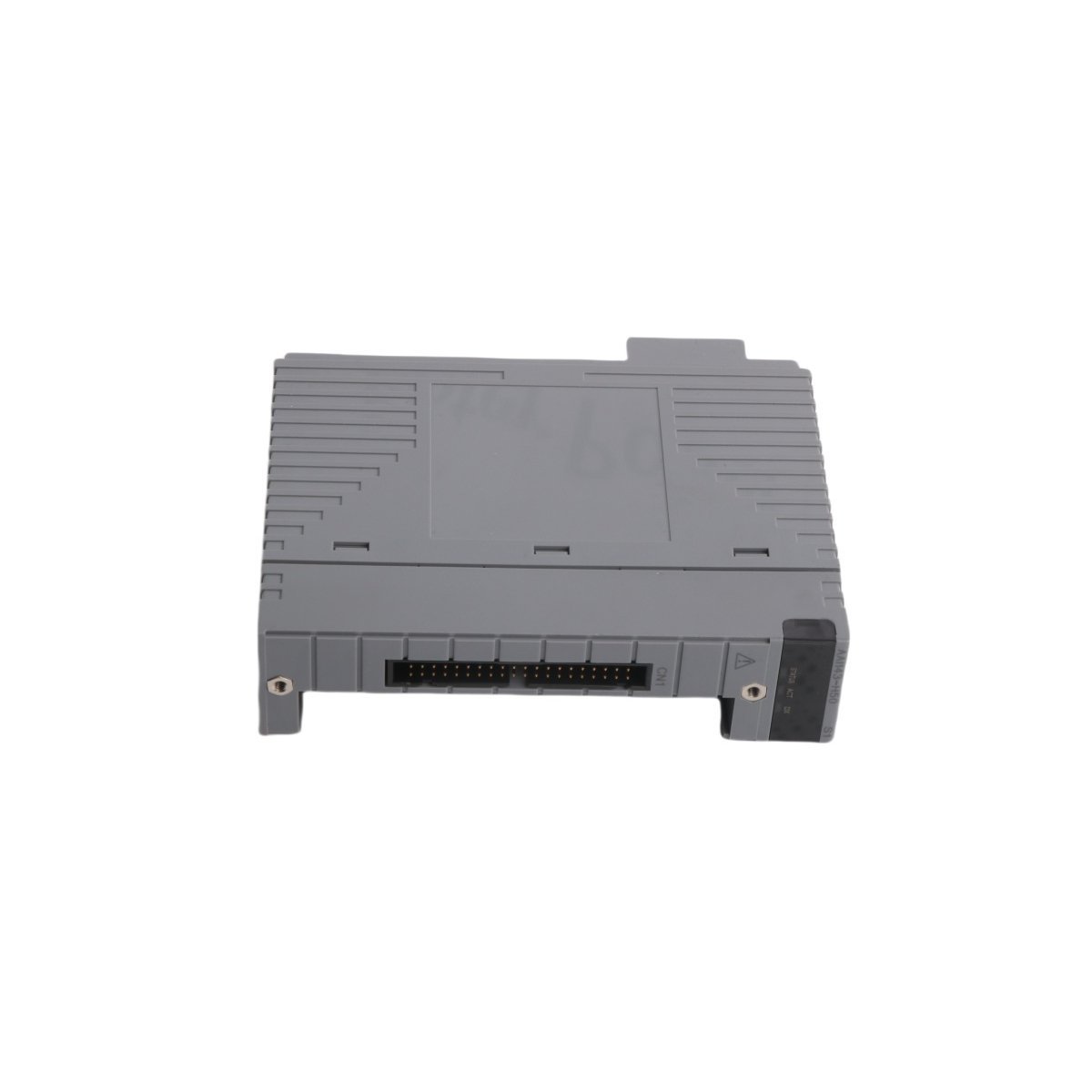

The Yokogawa AAI143-H50 serves as a high-performance analog interface for the CENTUM VP distributed control system. This module features 16 isolated channels designed for current signal acquisition. It precisely converts 4 to 20 mA field signals into digital data for the controller. Consequently, it provides the accuracy required for critical process variables like pressure and flow. Modern refineries and chemical plants rely on this module for stable and continuous data measurement.

This unit excels in high-density environments due to its compact hardware design. Furthermore, the AAI143-H50 supports the HART communication protocol for advanced field device management. This capability allows technicians to access diagnostic data directly through the control system. Such integration simplifies maintenance tasks and improves overall plant visibility.

Key Technical Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Number: AAI143-H50
• Module Type: Analog Input (Current Input)
• Input Channels: 16 Channels, Isolated
• Signal Range: 4 to 20 mA DC
• Measurement Accuracy: ±0.1% of full scale
• System Platform: CENTUM VP / CS 3000
• Protocol Support: HART 5/6/7 Digital Communication
• Weight: 0.24 kg
• Dimensions: 3.2 x 12.3 x 13 cm
• Installation: Hot-swappable in FIO bus architecture

Enhanced Reliability and Safety Features

The AAI143-H50 incorporates robust electrical isolation for every channel. This protection prevents ground loops and eliminates signal cross-talk during operation. Additionally, the module carries SIL2 certification for use in safety-related applications. It meets stringent global standards including ATEX and IECEx for hazardous area deployment. Therefore, it remains a secure choice for volatile industrial environments.

Moreover, the hardware supports hot-swap functionality to ensure maximum system availability. Maintenance teams can replace modules without powering down the entire control station. This feature significantly reduces the risk of unplanned production stops. The rugged build quality also ensures stable performance across a wide temperature range.
