Description

Brief Product Description

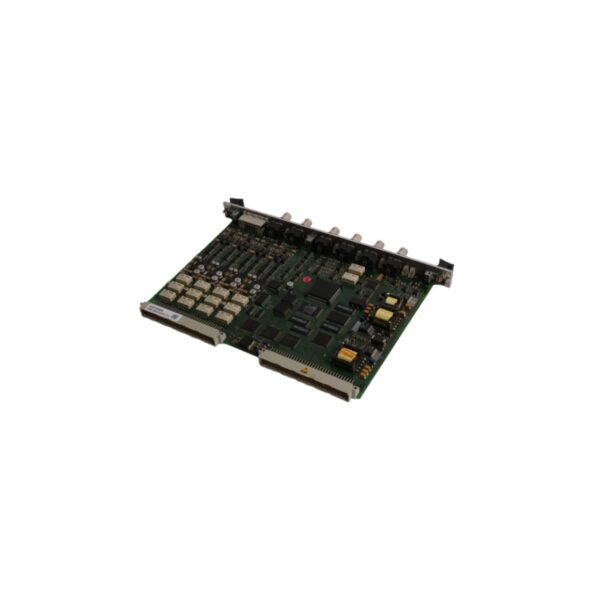

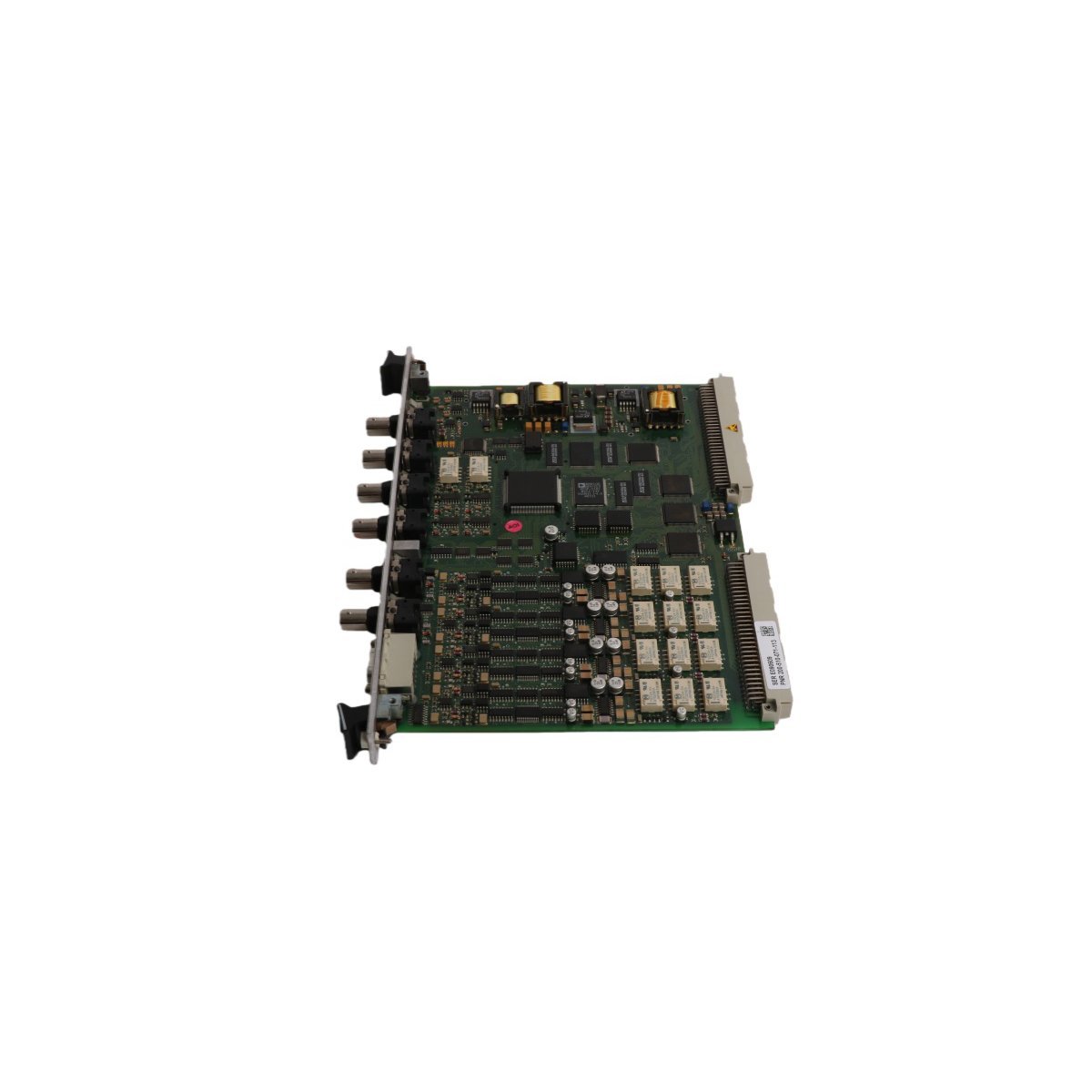

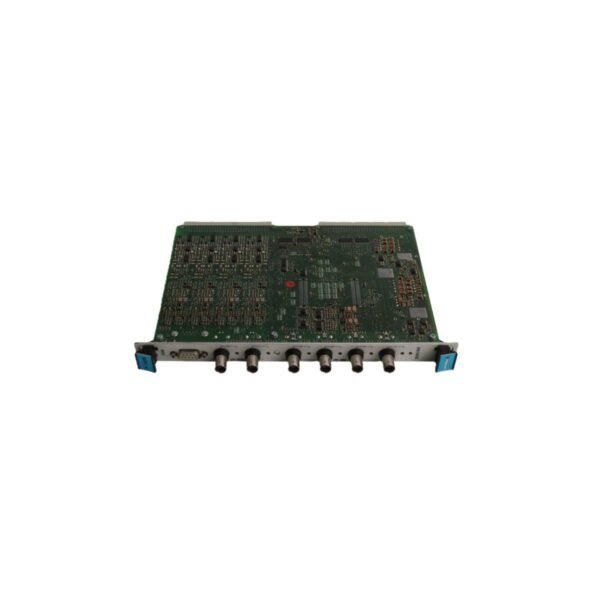

The Vibro-Meter VM600 MPC4 (200-510-071-113) is a versatile machinery protection card providing four dynamic input channels and two speed channels for comprehensive rotating equipment monitoring. It delivers real-time vibration analysis and automated alarm triggering to safeguard high-value industrial assets.

Advanced Dynamic Signal Analysis

The Vibro-Meter VM600 MPC4 200-510-071-113 functions as the primary processing intelligence within the VM600 rack system. This module features a sophisticated four-channel architecture capable of interfacing with accelerometers, velocity sensors, and proximity probes. Simultaneously, two dedicated tachometer channels facilitate precise phase measurements and speed-correlated analysis. By utilizing integrated digital signal processing (DSP), the MPC4 calculates critical health indicators such as peak-to-peak vibration, axial thrust position, and shaft eccentricity. This continuous evaluation ensures that operators receive high-accuracy data regarding the mechanical integrity of their rotating machinery.

Programmable Intelligence and Diagnostic Precision

Standardization meets customization through the MPC4’s flexible software-defined filters. The module supports both broad-band and narrow-band monitoring, allowing engineers to isolate specific mechanical frequencies relevant to their equipment. Advanced mathematical functions, including integration and differentiation, enable the conversion of acceleration data into velocity or displacement units in real-time. Furthermore, the 200-510-071-113 supports order tracking, which synchronizes vibration data with rotational speed to provide superior diagnostic depth. This capability allows for the early detection of developing faults like unbalance, misalignment, or bearing wear.

Automated Protection and System Reliability

Reliability remains the core focus of the Vibro-Meter VM600 MPC4 200-510-071-113 design. The card features fully programmable alarm and danger setpoints that can adapt dynamically based on the machine’s current operating state. For hardware maintenance, the hot-swappable architecture allows for card replacement without interrupting the power to the rest of the rack. The front panel includes BNC buffered outputs, which provide technicians with direct access to raw sensor signals for external analysis without disturbing the protection loop. These safety-critical features make the MPC4 an essential component for turbines and compressors in the power generation and petrochemical sectors.

Key Technical Characteristics

• Multi-Channel Architecture: Processes four dynamic vibration inputs and two auxiliary speed inputs per card.
• Versatile Sensor Interface: Supports a wide range of transducers, including eddy current probes and piezoelectric sensors.
• Real-Time DSP: Performs high-speed calculations for SMAX, eccentricity, and complex expansion measurements.
• Adaptive Alarm Logic: Features configurable setpoints with logic-driven alert and trip thresholds.
• Live Maintenance Access: Equipped with front-panel BNC connectors for signal buffering and troubleshooting.
• Seamless Integration: Designed for full compatibility with VM600 racks and plant-wide DCS/PLC systems.

Technical Specifications
