Description

Brief Product Description

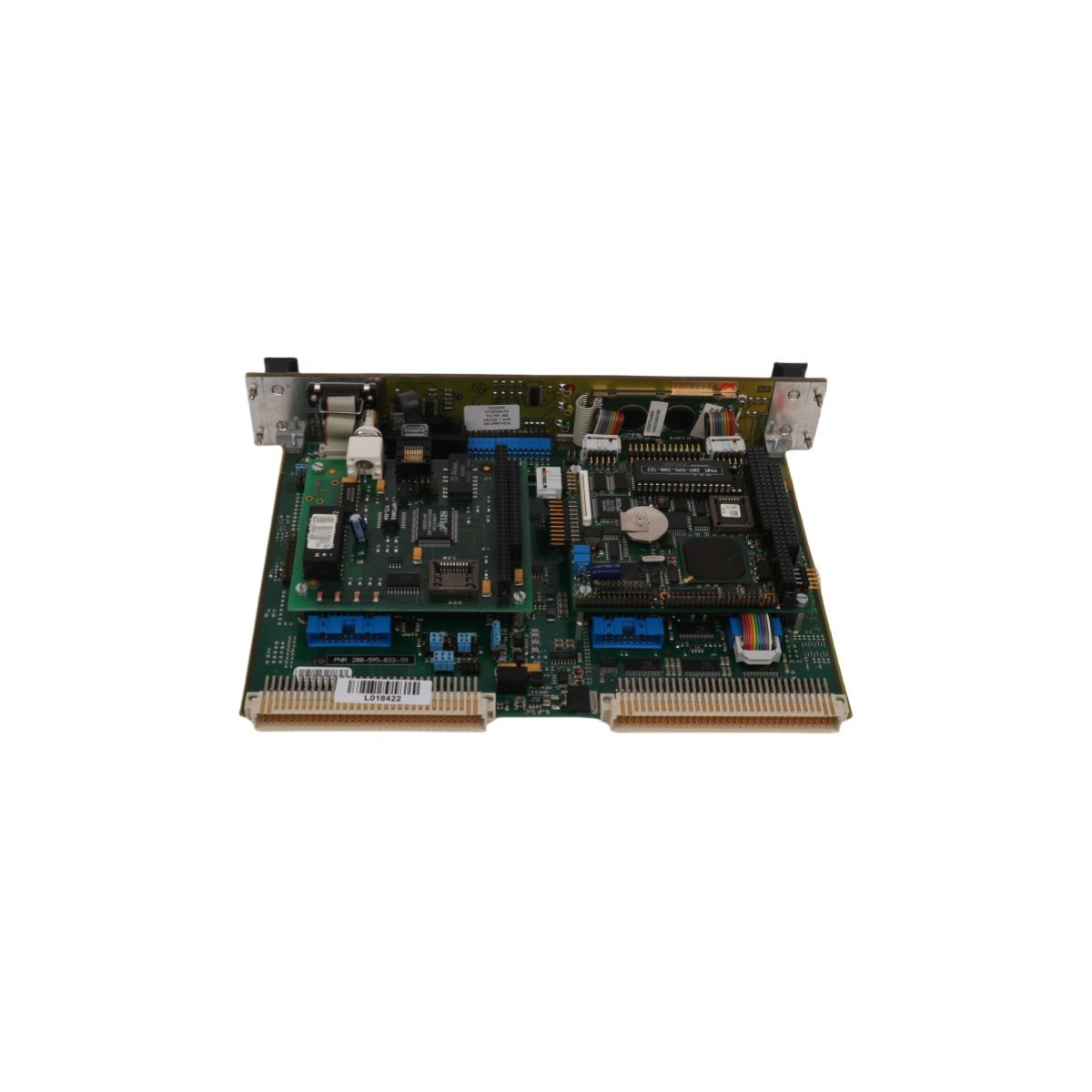

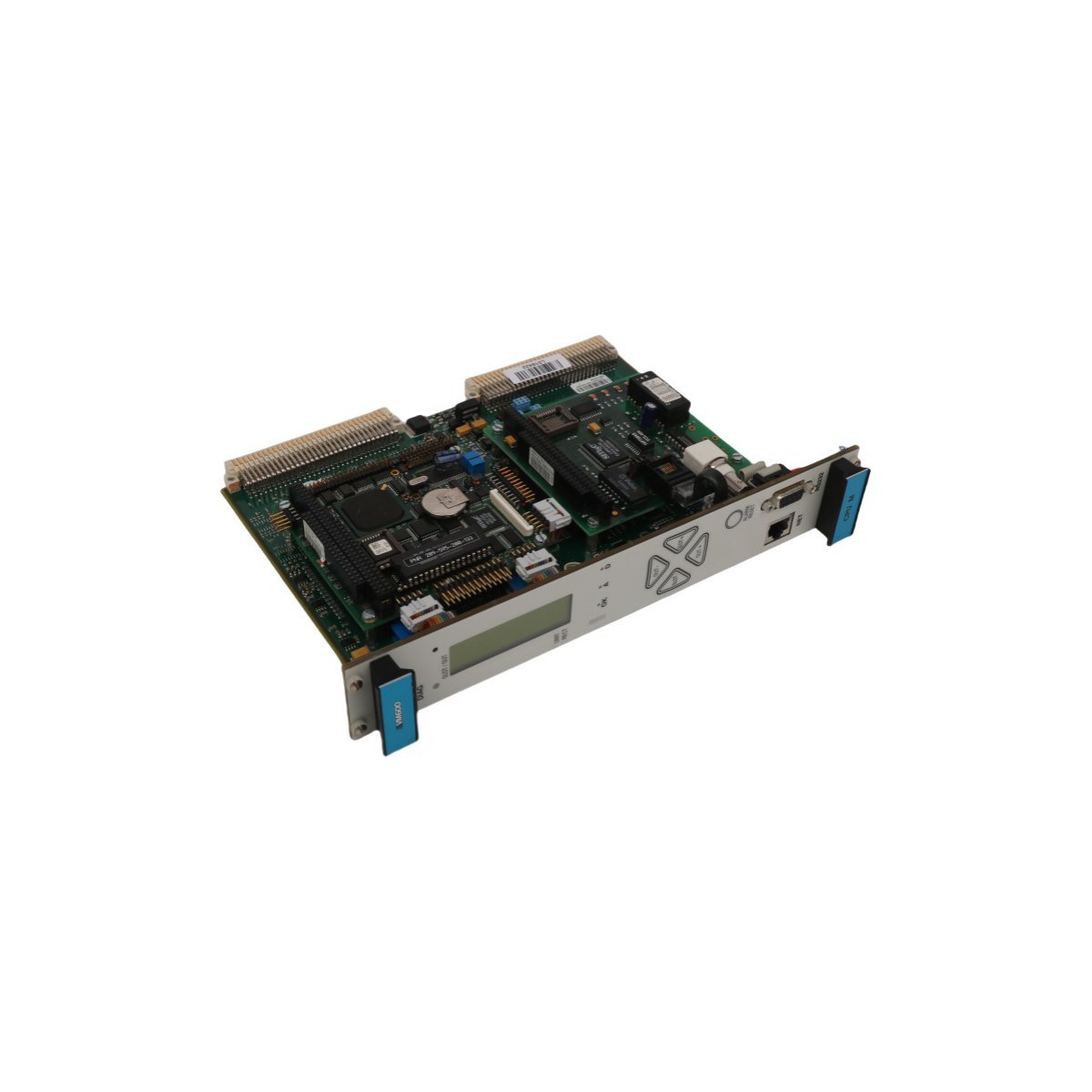

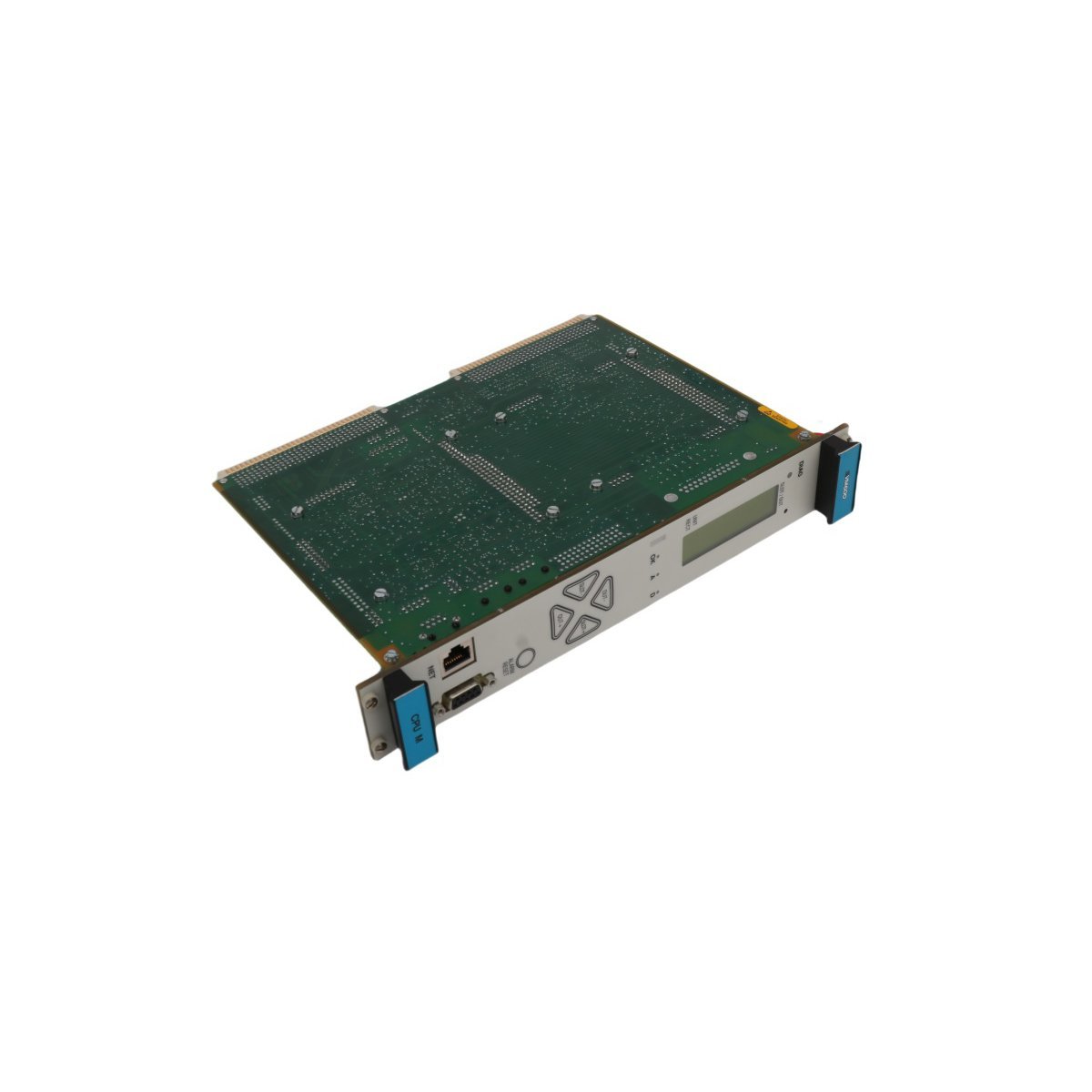

The Vibro-Meter VM600 CPU M (200-595-033-111) acts as the primary intelligent controller and communication gateway for the VM600 rack-based machinery protection system. It orchestrates data flow between monitoring cards and external networks to ensure the continuous safety of critical rotating assets.

Centralized Processing for Machinery Protection

The Vibro-Meter VM600 CPU M, identified by part number 200-595-033-111, serves as the essential “brain” within the VM600 hardware ecosystem. This modular CPU card coordinates the complex operations of the entire rack by managing data acquisition from vibration, speed, and temperature sensors. By centralizing the logic for machinery protection (MPS) and condition monitoring (CMS), the module ensures that critical alarms and protective relay logic execute with absolute precision. Consequently, industrial facilities can rely on this unit to prevent catastrophic equipment failure through high-speed processing of dynamic signal data.

Advanced Communication and System Integration

Beyond its processing power, the VM600 CPU M functions as a high-performance communication bridge. It utilizes specialized interfaces to transmit processed data from the rack’s internal bus to higher-level plant control systems and diagnostic software. When paired with an IOCN input/output communication module, the CPUM facilitates seamless connectivity via Ethernet or serial protocols. This integration allows operators to monitor real-time machinery health from a central control room. Furthermore, the module supports sophisticated protocol conversion, ensuring that the Vibro-Meter hardware remains compatible with a wide array of third-party PLC and DCS architectures.

Robust Engineering for Industrial Reliability

Meggitt designed the VM600 CPU M to withstand the grueling environmental conditions often found in power generation and petrochemical plants. The 200-595-033-111 hardware features a ruggedized circuit design that maintains operational stability across a broad temperature spectrum. Because it manages the configuration of all other cards in the VM600 rack, the CPUM includes built-in self-diagnostics to monitor its own health and the integrity of the system bus. This focus on reliability ensures that turbines, compressors, and large motors remain under constant supervision, significantly reducing the likelihood of unplanned downtime in mission-critical applications.

Key Technical Characteristics

• Integrated Rack Control: Manages configuration and data synchronization for all VM600 monitoring cards.
• Dual-Function Support: Simultaneously handles Machinery Protection (MPS) and Condition Monitoring (CMS) tasks.
• High-Speed Bus Interface: Facilitates rapid data exchange between input modules and communication ports.
• Enhanced System Security: Provides secure access levels for system configuration and alarm setpoint management.
• Visual Status Indication: Features front-panel LEDs for immediate diagnostic feedback on CPU and rack status.
• Industrial Longevity: Built with high-grade components for continuous 24/7 operation in harsh environments.

Technical Specifications
