Description

Product Overview

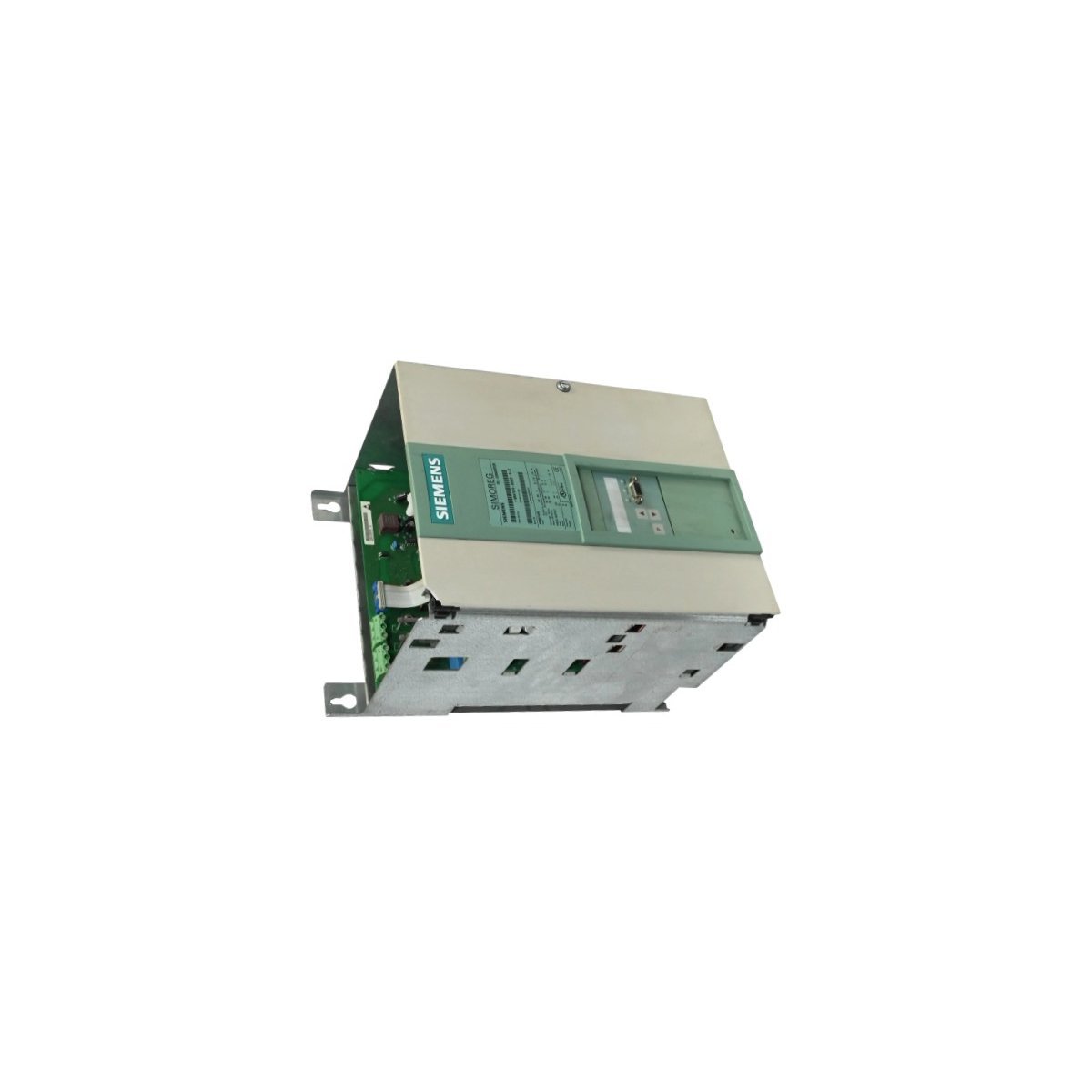

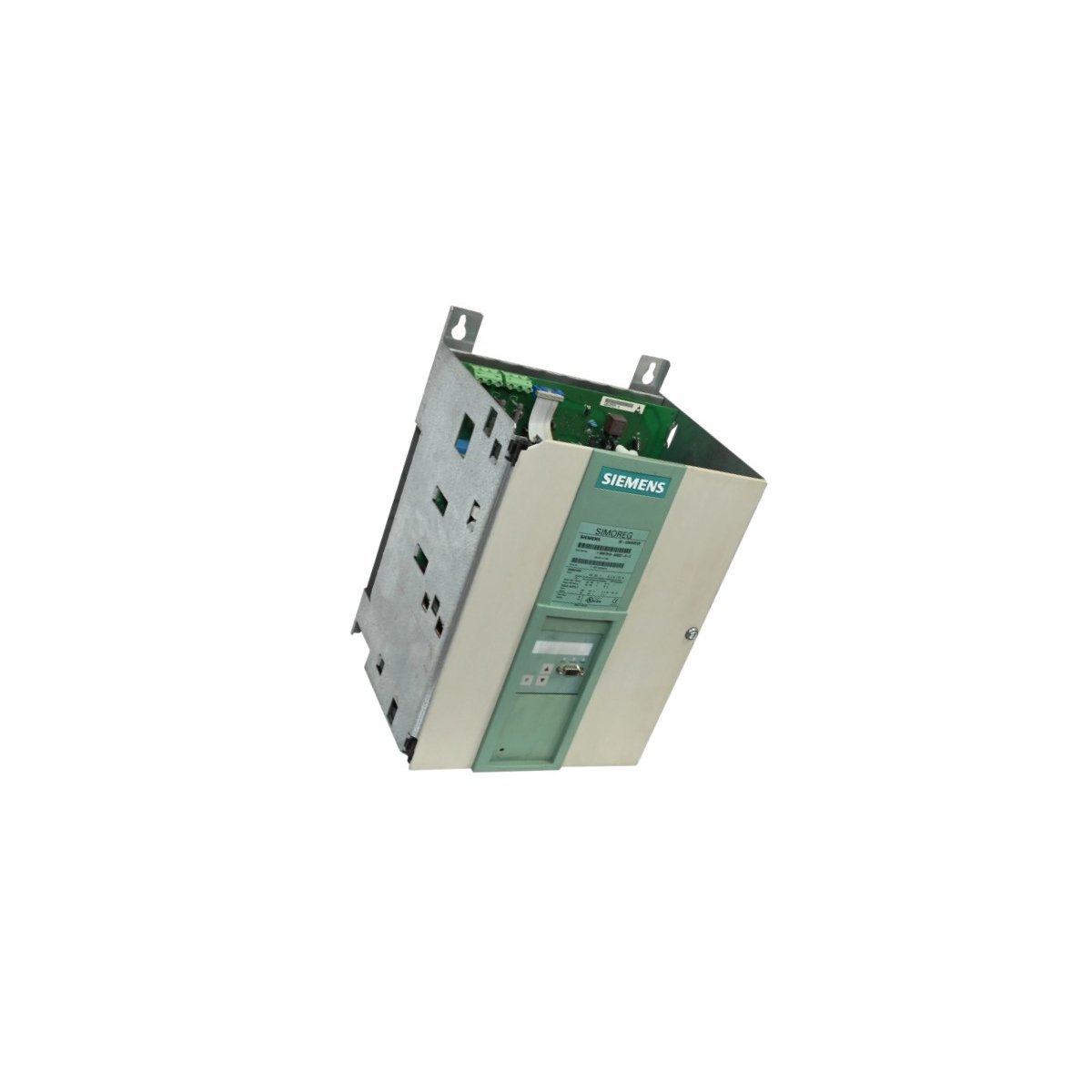

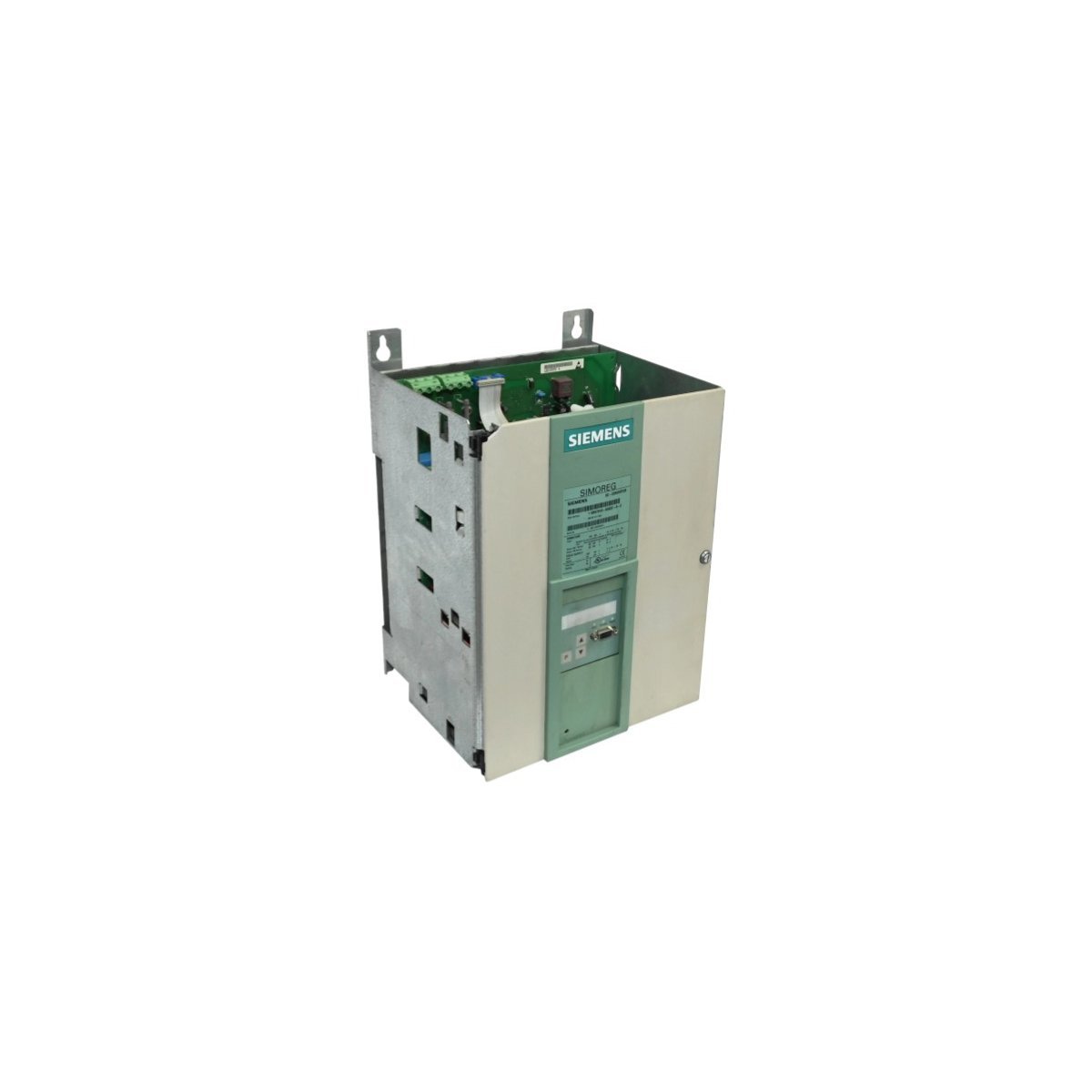

The Siemens 6RA7091-6FS22-0 is a high-capacity Converter Commutation Protector (CCP) designed for the SIMOREG DC-Master series to prevent commutation failure in four-quadrant DC drive applications. This module actively safeguards power electronics by managing energy discharge in the armature circuit during critical switching sequences.

Commutation Protection and System Safety

This protector module specifically addresses the risks associated with inverter commutation faults, which often occur during power dips or dynamic loading. By monitoring the switching process in high-power DC converters, the 6RA7091-6FS22-0 intervenes to reduce energy levels within the armature circuit. This action prevents fuse ruptures and protects the thyristors from catastrophic damage. Operators utilize adjustable parameters to synchronize the protector’s response with the specific torque and speed demands of the DC motor. Consequently, the module ensures that heavy-duty industrial processes continue with minimal risk of unplanned interruptions.

High-Power Performance and Global Compatibility

Siemens engineered the 6RA7091-6FS22-0 to handle demanding industrial loads, supporting currents up to 1200 A at a 550V rating. Because the unit supports both 50 Hz and 60 Hz power frequencies, it integrates seamlessly into industrial grids worldwide. The hardware maintains system stability during rapid directional changes or sudden torque fluctuations, which are typical in steel mills, mining operations, and large-scale manufacturing. Furthermore, its specialized design focuses on extending the operational lifespan of the main converter by absorbing electrical stresses that would otherwise degrade the power semiconductors.

Technical Characteristics and Installation

The module features a robust mechanical design tailored for cabinet mounting alongside the SIMOREG DC-Master system. Advanced diagnostic capabilities allow the drive controller to communicate directly with the CCP, ensuring that protection status is always visible to the control system. Transitioning to this dedicated protector module reduces overall maintenance costs by preventing the high expense of replacing large power thyristors. Its precise engineering reflects Siemens’ commitment to high-availability DC drive technology, making it a standard requirement for high-current, four-quadrant DC installations.

Technical Specifications
