Description

Product Overview

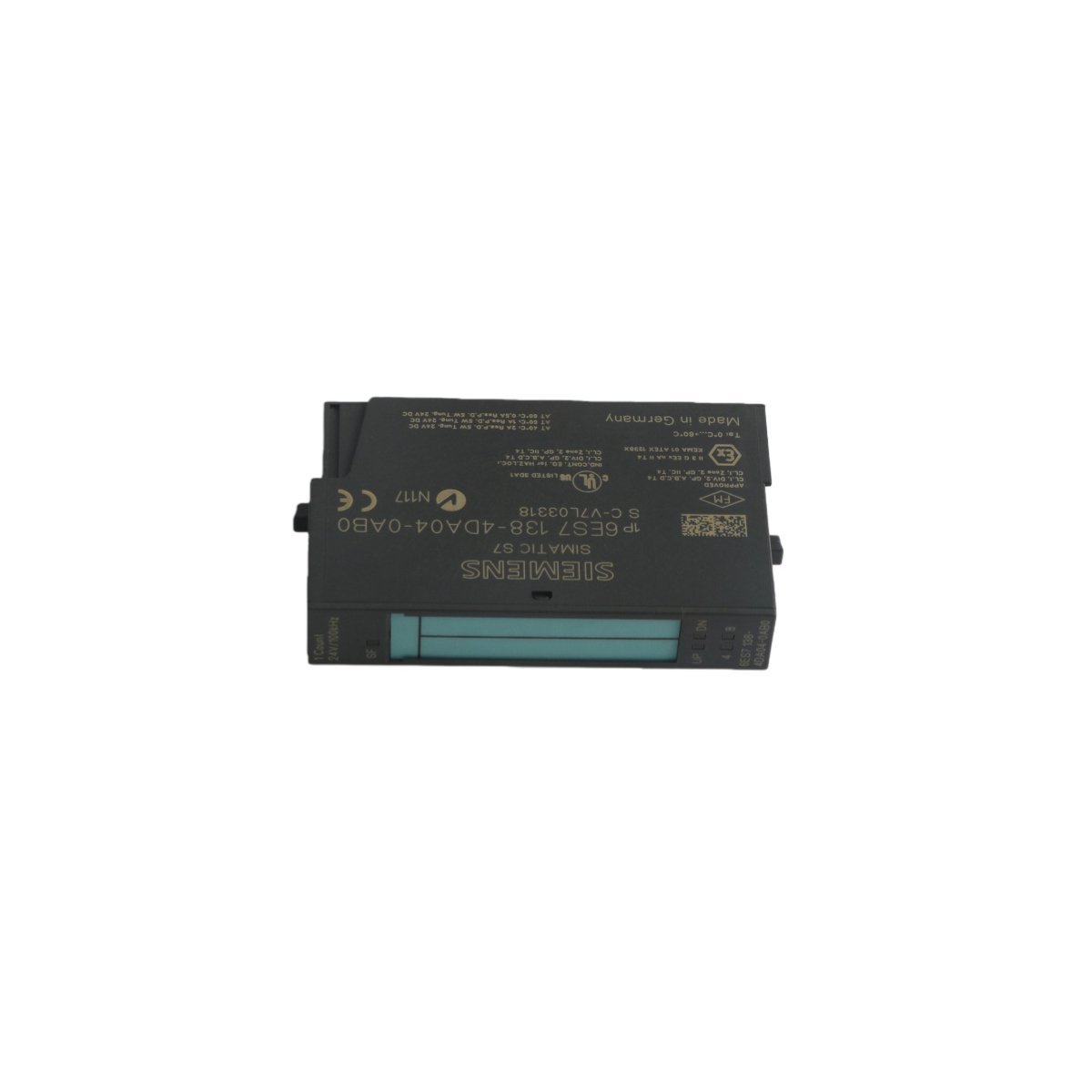

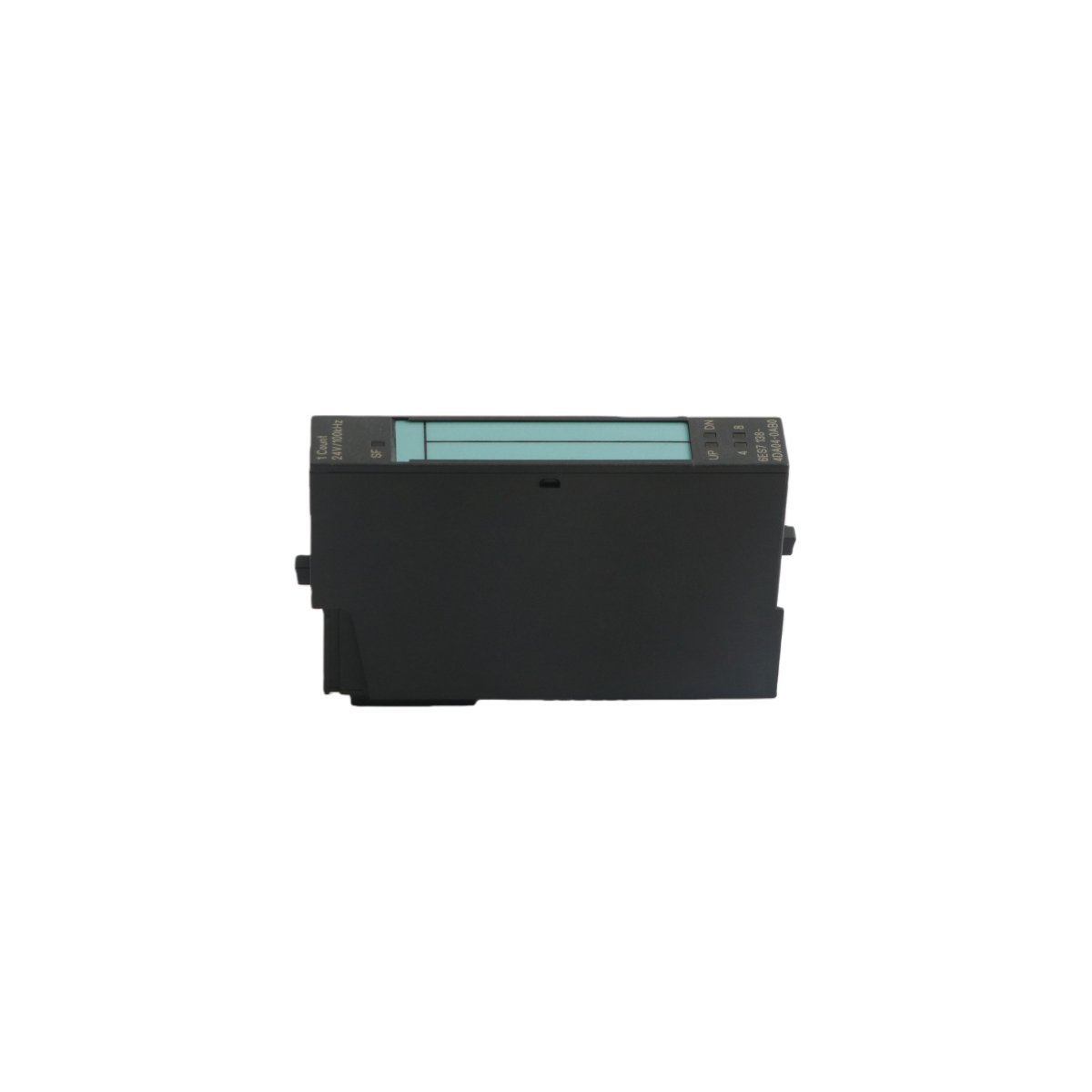

The Siemens 6ES7138-4DA04-0AB0 functions as a high-speed electronic counting module specifically designed for the SIMATIC ET 200S distributed I/O system. This module processes 24V pulse signals with high accuracy, reaching frequencies up to 100 kHz. Consequently, it serves as an essential component for engineers managing precise position feedback, rotational speed monitoring, and event counting in complex automation environments. Because the device supports multiple operating modes—including continuous, single, and periodic counting—it offers substantial flexibility for diverse machine control requirements.

Technical Specifications

• Model Number: 6ES7138-4DA04-0AB0
• Series: SIMATIC ET 200S
• Module Type: 1Count24V Electronic Counter
• Input Voltage: 24 VDC
• Max Frequency: 100 kHz
• Installation Width: 15 mm
• Compatible Terminals: TM-E15S24-01 / TM-E15S26-A1
• Data Interface: 12 bytes input / 6 bytes output
• Protection Rating: IP20

Operational Features and System Integration

This module utilizes an isochronous operation mode to ensure synchronized data acquisition across PROFIBUS or PROFINET networks. Furthermore, the compact 15mm design minimizes cabinet space requirements while maintaining robust performance. Because the module incorporates advanced diagnostic functions, it provides operators with real-time status updates regarding signal integrity and process counts. Additionally, the unit maintains full backward compatibility with previous hardware generations. Consequently, maintenance teams perform system upgrades seamlessly, which significantly reduces downtime and protects existing infrastructure investments. By integrating this module, facilities improve measurement precision in high-speed production lines, such as packaging and automotive assembly.
