Description

Product Overview

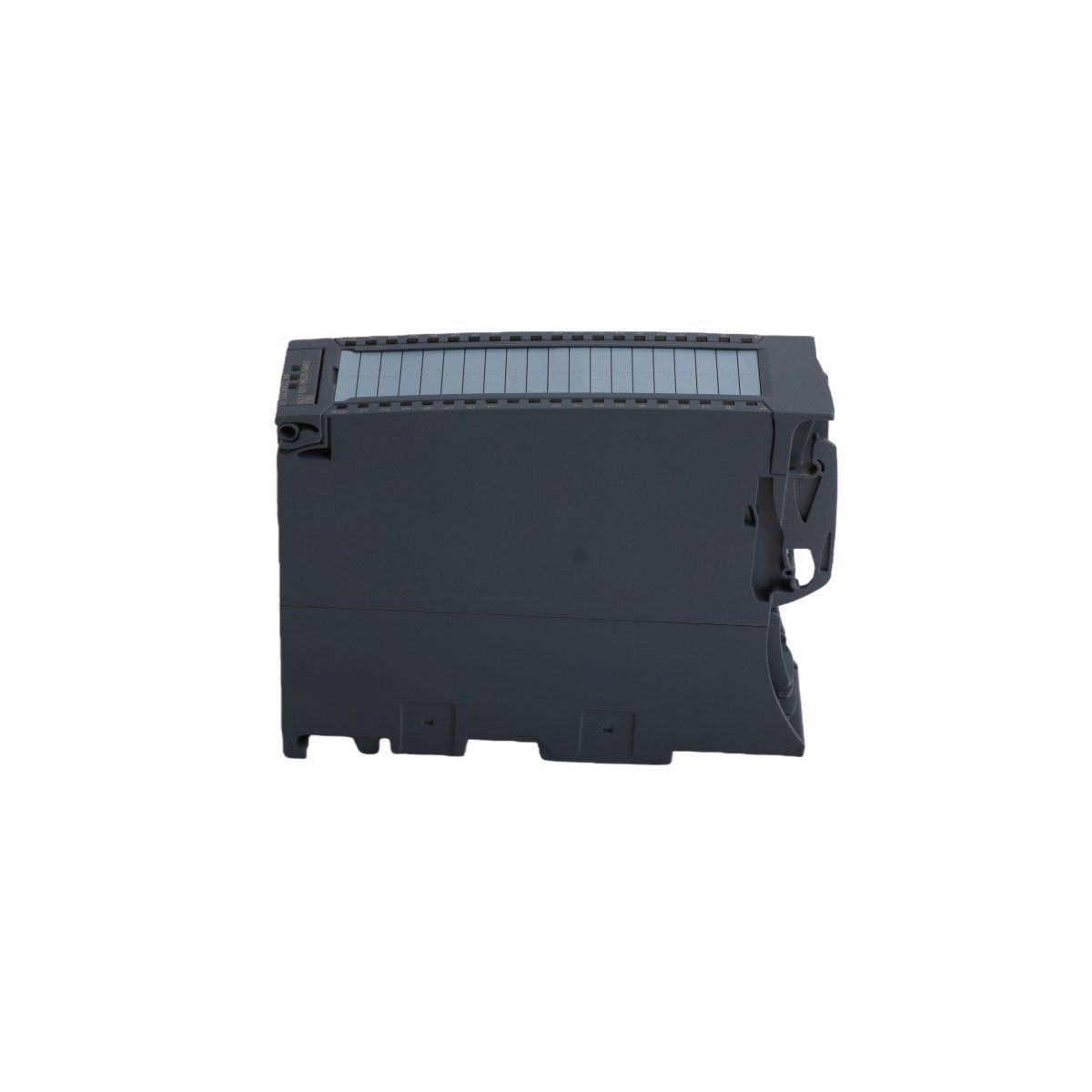

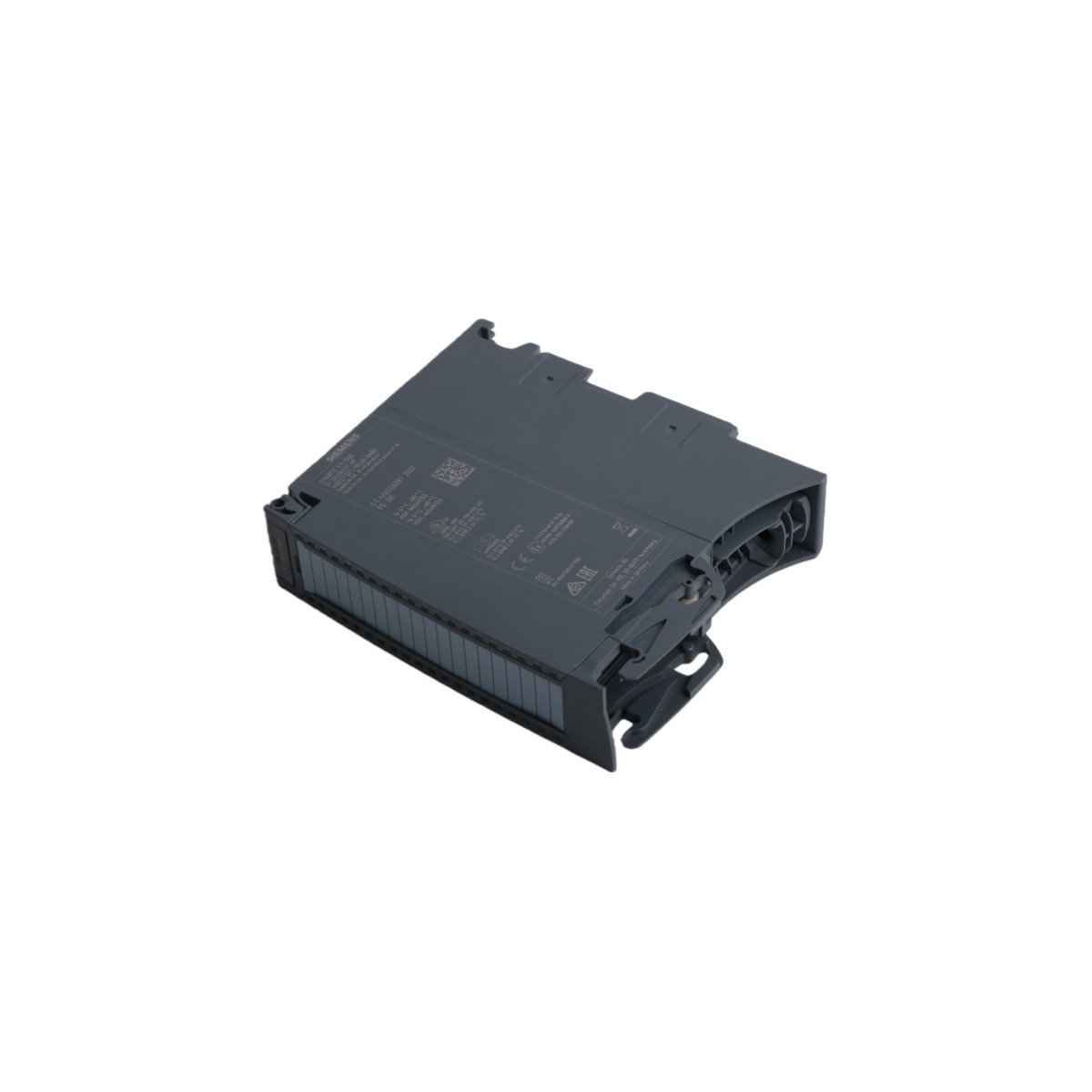

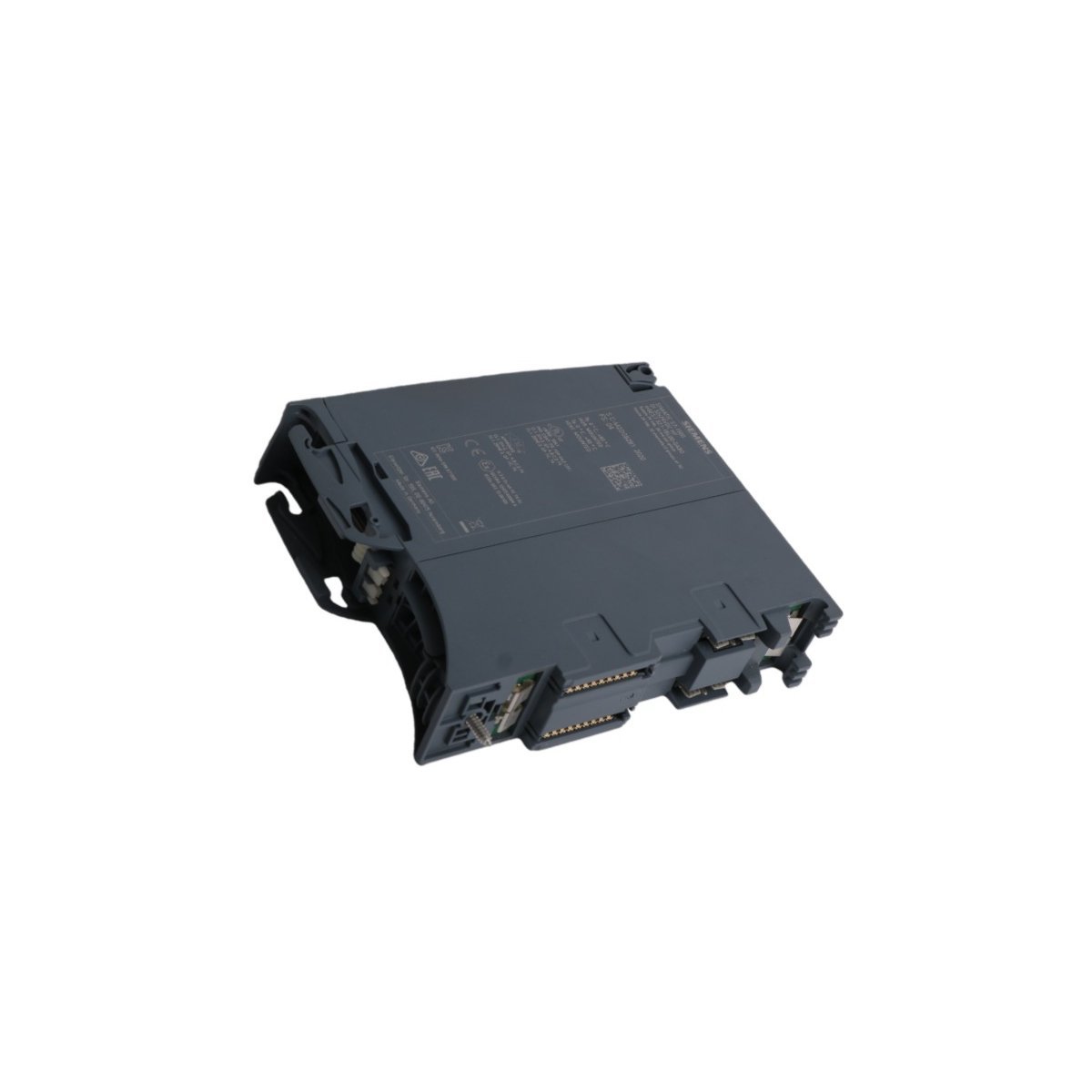

The Siemens 6ES7521-1BL00-0AA0 functions as a high-density digital input module specifically engineered for the SIMATIC S7-1500 and ET 200MP automation platforms. This unit processes digital signals from field devices, which allows the controller to monitor and react to machine states in real time. Because it provides 32 isolated input channels, engineers use this module to consolidate large-scale sensor data into a single, efficient hardware footprint.

Technical Specifications

• Model Number: 6ES7521-1BL00-0AA0
• Manufacturer: Siemens
• Component Type: Digital Input (DI) Module
• Input Channels: 32 channels (grouped into two sets of 16)
• Input Voltage: 24V DC
• Input Characteristics: Type 3 according to IEC 61131
• Configurable Input Delay: 0.05 ms to 20 ms
• Counter Functionality: Two channels support 10 kHz frequency counting
• Compatibility: SIMATIC S7-1500 / ET 200MP systems
• Dimensions: 2.5 cm x 5.1 cm x 83.8 cm (Approx.)
• Weight: 0.95 kg

Operational Characteristics

This module incorporates advanced diagnostic features, which significantly simplify troubleshooting and system maintenance. Furthermore, the design supports isochronous mode, which allows for precise synchronization with other system components during complex motion control or high-speed data acquisition tasks. Because the hardware supports firmware updates via the TIA Portal, operators maintain long-term scalability without replacing physical units. Additionally, the inclusion of hardware interrupts enables the CPU to respond immediately to critical state changes, which improves overall machine reaction times. Consequently, this module reliably serves as a foundational component in demanding industrial environments where downtime must be minimized.

Industrial Applications

Maintenance teams deploy the 6ES7521-1BL00-0AA0 across various sectors, including automated packaging, material handling, and process manufacturing. Since the module integrates seamlessly with the TIA Portal engineering suite, system integrators rapidly configure and commission complex I/O networks. Moreover, the robust construction ensures high data integrity even when exposed to electrical noise, which frequently occurs in dense cabinet installations. By providing both standard input scanning and specialized high-speed counting, the unit handles diverse sensor inputs, ranging from simple proximity switches to high-frequency pulse generators.
