Description

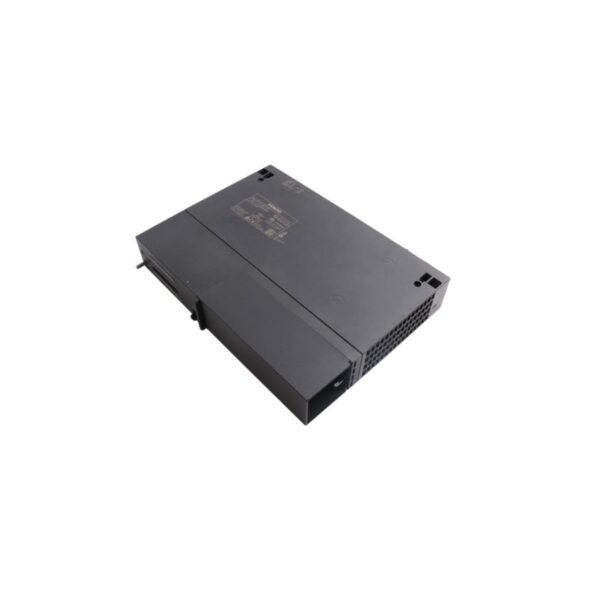

Siemens 6ES7414-5HM06-0AB0 as a high-performance central processing unit for SIMATIC S7-400H redundant systems. This processor ensures maximum availability for critical automation tasks in process industries. The unit features five integrated interfaces to facilitate complex network topologies easily. Specifically, it includes one MPI/DP port, one PROFIBUS DP port, and one PROFINET port. Furthermore, two dedicated synchronization ports enable seamless coupling of redundant CPU pairs. Users benefit from 4 MB of integrated working memory split equally between code and data. The module supports Configuration in Run (CiR) to modify hardware during operation without stopping. Consequently, facilities maintain continuous production even during system expansions or repairs. Engineers program the device using STEP 7 V5.5 SP2 or higher software packages. Internal battery backup preserves vital user data during power outages effectively. Additionally, the CPU supports optional memory expansion up to 64 MB via FEPROM or RAM cards. Robust construction allows stable operation in harsh industrial environments with significant electrical noise.

Technical Specifications

Application and Integration

Facilities utilize this processor for safety-critical applications in oil, gas, and chemical plants. The redundant architecture automatically switches to the standby CPU upon primary failure. Moreover, the PROFINET interface enables direct connection to modern distributed I/O devices. Users configure synchronization links via fiber optic cables for high-speed data exchange. The CiR feature allows technicians to add or remove modules while the plant runs. Engineers rely on the large memory capacity for complex control algorithms and data logging. Battery backup ensures no loss of recipe data or setpoints during grid fluctuations. Additionally, the module supports fault-tolerant systems (S7-400FH) for highest safety integrity levels. Its multiple communication ports simplify integration with SCADA systems and enterprise networks. This component serves as the reliable core for uninterrupted industrial processes globally.
