Description

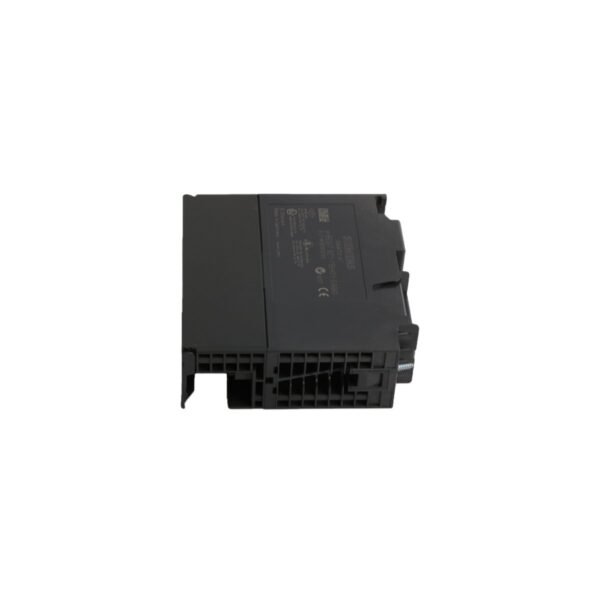

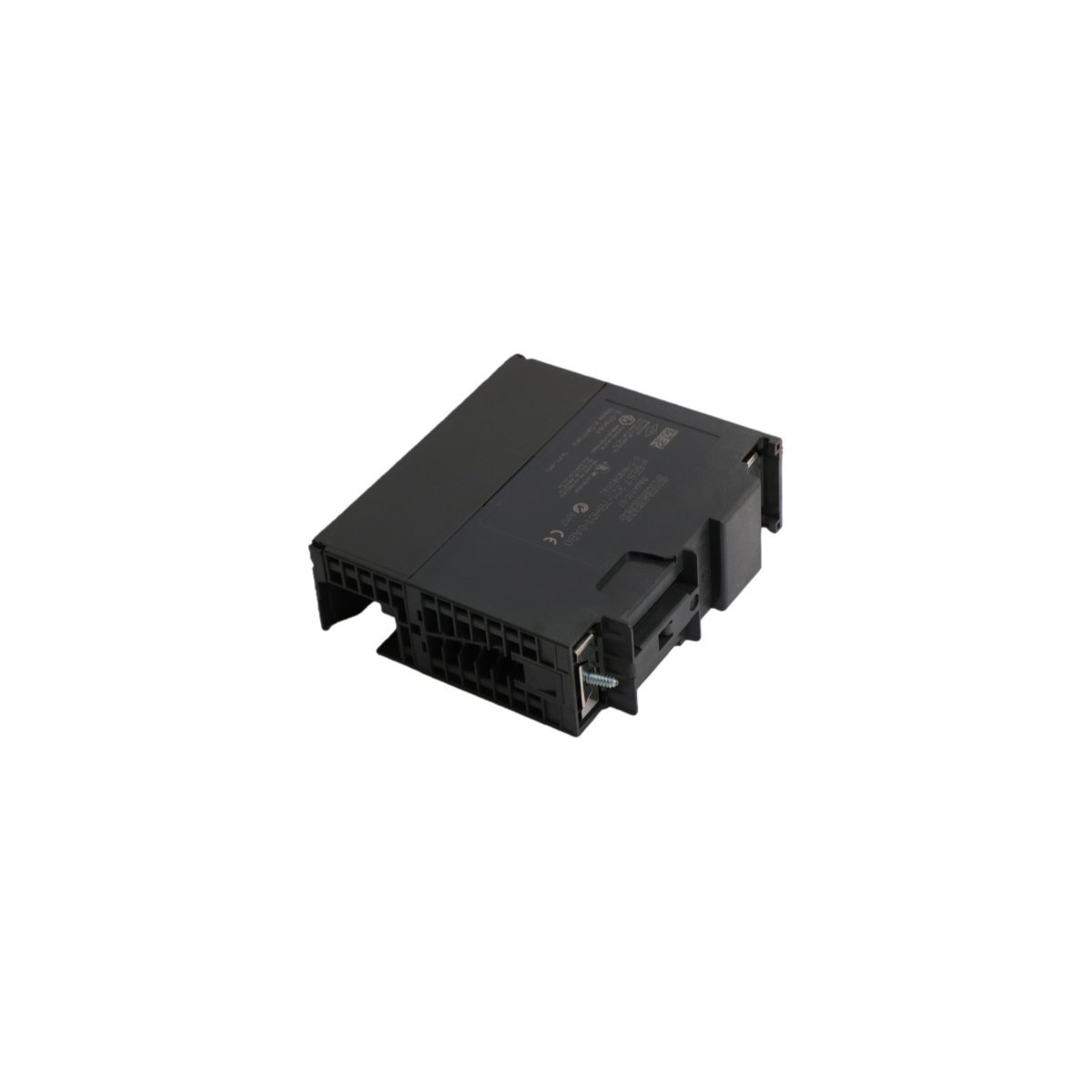

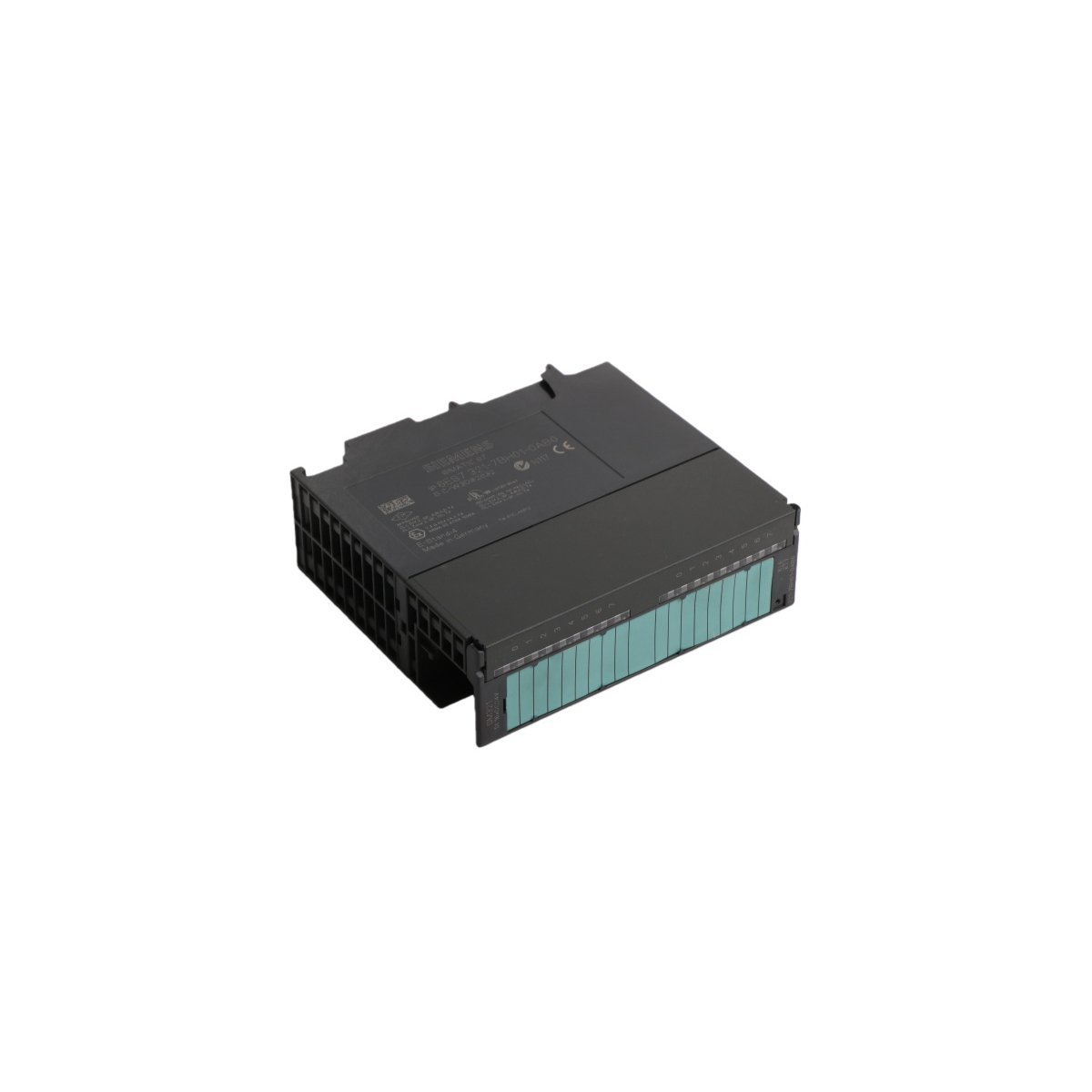

The Siemens 6ES7321-7BH01-0AB0 is a high-performance digital input module for the SIMATIC S7-300 PLC system. It features 16 isolated channels designed for 24V DC signals. This module connects standard industrial sensors and switches to the central controller. Consequently, it provides reliable data acquisition for various automation tasks.

Engineers select this specific model for its advanced diagnostic and interrupt capabilities. It handles time-critical events with high precision. Furthermore, the hardware supports isochronous mode for synchronized motion control applications. This ensures consistent performance in demanding manufacturing environments.

Technical Specifications

Core Functional Characteristics

Enhanced Process Safety

The module utilizes optocouplers to isolate field signals from the internal bus. This design prevents electrical noise from affecting the PLC CPU. Additionally, it features wire-break detection to alert operators of wiring failures. These safety measures reduce unexpected downtime significantly.

High-Speed Signal Processing

The 6ES7321-7BH01-0AB0 supports process interrupts to trigger immediate CPU responses. This feature is vital for monitoring high-speed machine cycles. Because it works in isochronous mode, the module maintains strict timing for distributed I/O. Such precision improves the overall quality of automated production lines.

Simplified Maintenance and Installation

The compact housing allows for efficient mounting on standard S7-300 rails. A single 20-pole front connector handles all field wiring tasks. This setup simplifies initial installation and subsequent module replacements. Moreover, clear status LEDs provide instant feedback for troubleshooting activities.
