Description

Brief Product Description

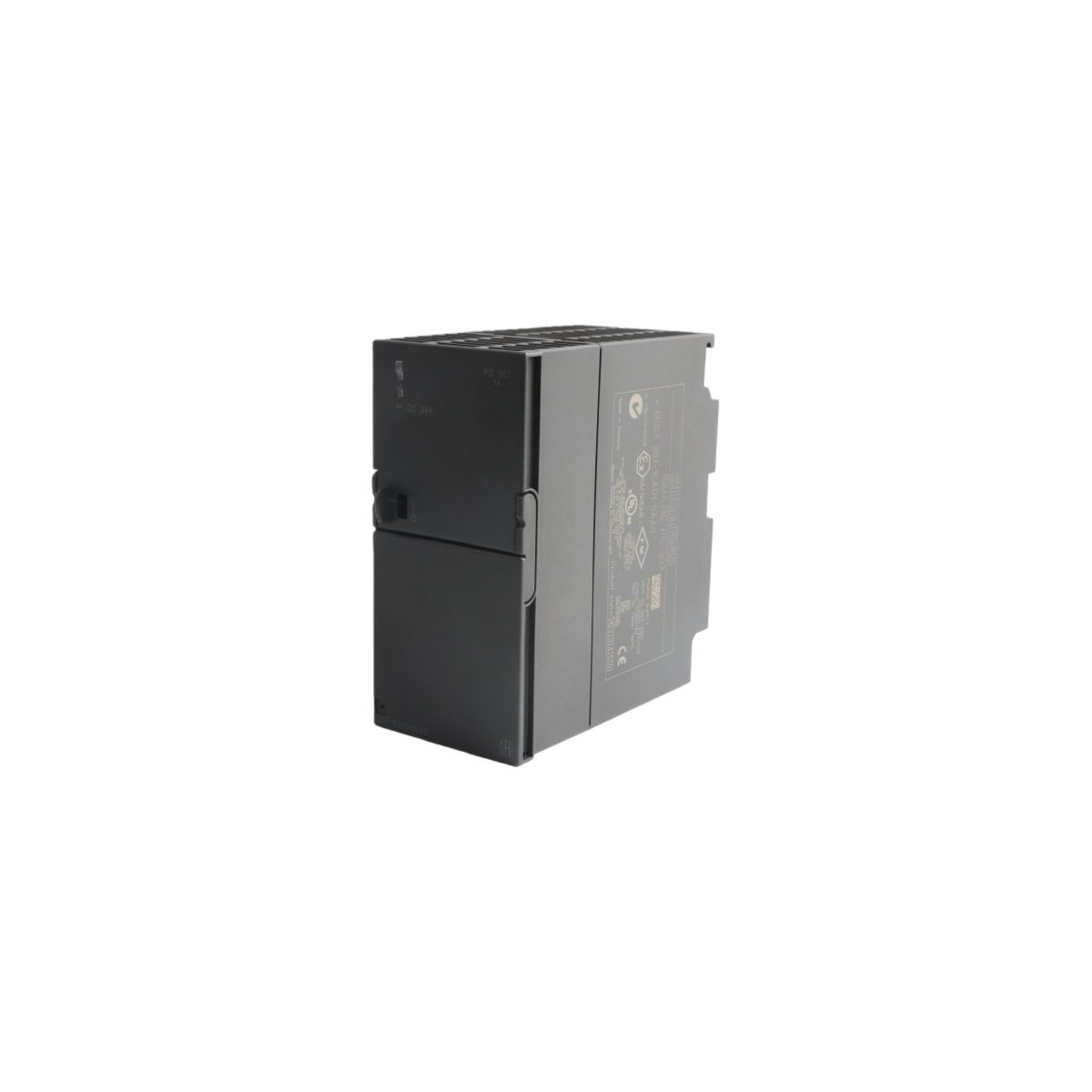

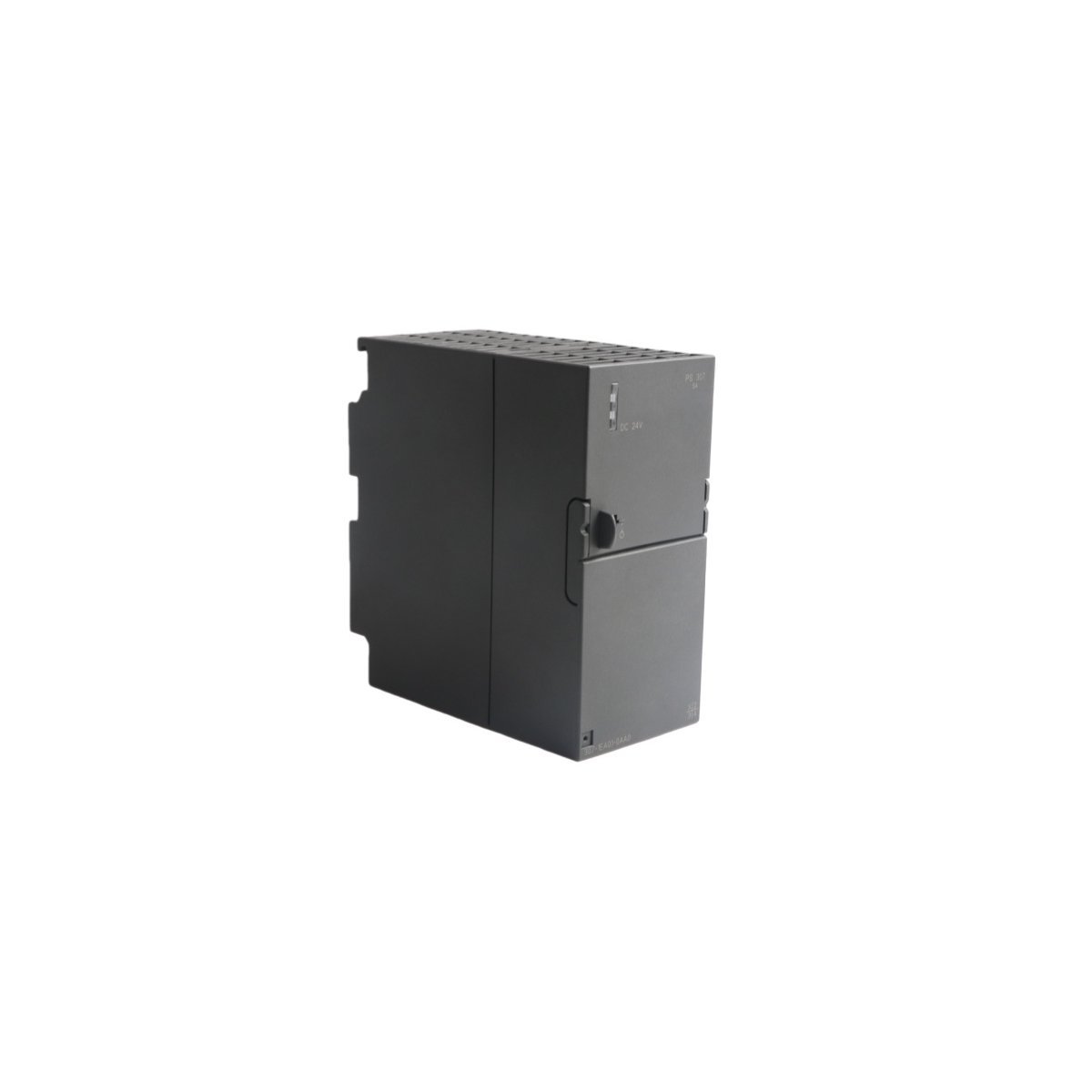

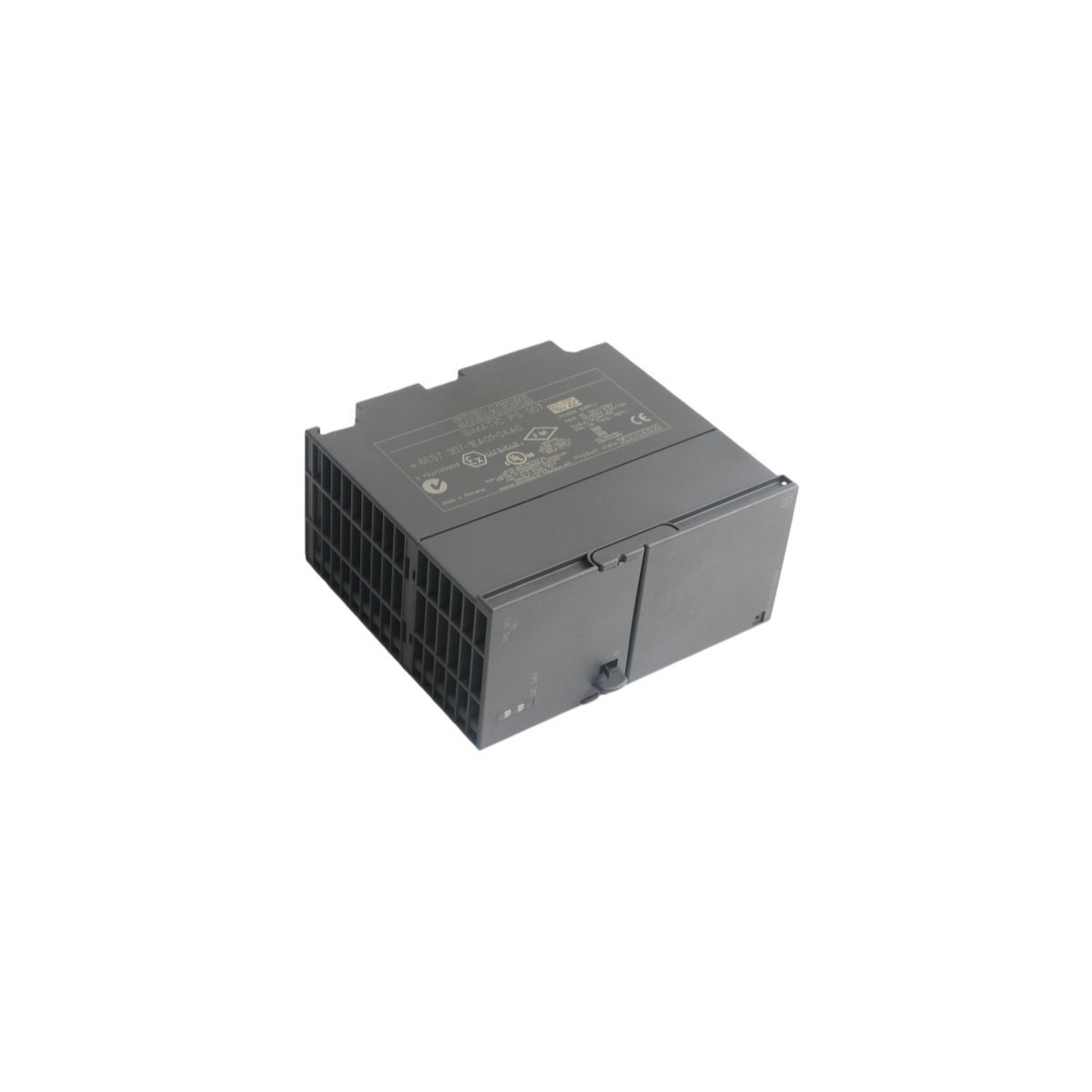

The Siemens 6ES7307-1EA01-0AA0 is a high-performance PS 307 stabilized power supply module that delivers a consistent 5A current at 24V DC.⁴ Specifically engineered for the SIMATIC S7-300 series, it provides reliable energy for CPUs and I/O expansion modules within industrial PLC racks.⁵

High-Performance Energy Regulation for SIMATIC Systems

The Siemens 6ES7307-1EA01-0AA0 serves as the primary energy source for the SIMATIC S7-300 PLC platform, efficiently converting AC mains power into the regulated 24V DC required by sensitive electronic components.⁶ This PS 307 module maintains a steady output current of 5A, which reliably supports the central processing unit and an extensive array of signal modules. By integrating this module directly onto the S7-300 rail, engineers ensure a seamless mechanical and electrical connection that minimizes wiring complexity. The module’s architecture prioritizes system uptime, providing a clean power backbone that mitigates the risk of logic errors caused by voltage instability.

Global Compatibility and Protective Engineering

Versatility defines the 6ES7307-1EA01-0AA0 design, as it features an automatic range-switching input that accommodates both 120V and 230V AC nominal voltages.⁷ This capability allows manufacturers to standardize on a single power supply module for global machinery exports, regardless of local grid standards. Furthermore, the unit employs advanced stabilization technology to protect the PLC backplane from primary-side transients and line interference. Integrated safety features include electronic short-circuit protection and overload handling, which automatically reset once the fault condition is cleared.⁸ These safeguards ensure that downstream hardware remains protected during unexpected electrical events.

Optimized Integration and Thermal Management

Installation of the 6ES7307-1EA01-0AA0 remains straightforward due to its compact form factor and dedicated mounting bracket for the S7-300 rail. The module utilizes a 60mm width, effectively balancing space-saving requirements with the thermal dissipation needs of a 120W power source. Because it features efficient heat management, the module operates reliably in high-density control cabinets without requiring external cooling fans. This stabilized power supply represents a critical investment for industrial facilities seeking to maintain high availability in production lines, material handling systems, and complex process automation environments.

Key Technical Characteristics

• Reliable 5A Output: Provides sufficient 24V DC power for a fully populated S7-300 rack.⁹
• Automatic Input Switching: Detects and adjusts to 120/230V AC mains voltage for international use.¹⁰
• S7-300 Form Factor: Matches the mechanical design of the S7-300 series for easy rail mounting.
• Advanced Circuit Protection: Integrated short-circuit and overload protection with automatic recovery.
• Efficient Stabilization: Delivers low ripple and noise to ensure the integrity of digital signals.
• High Durability: Manufactured in Germany to meet rigorous industrial E-E-A-T standards.

Technical Specifications
