Description

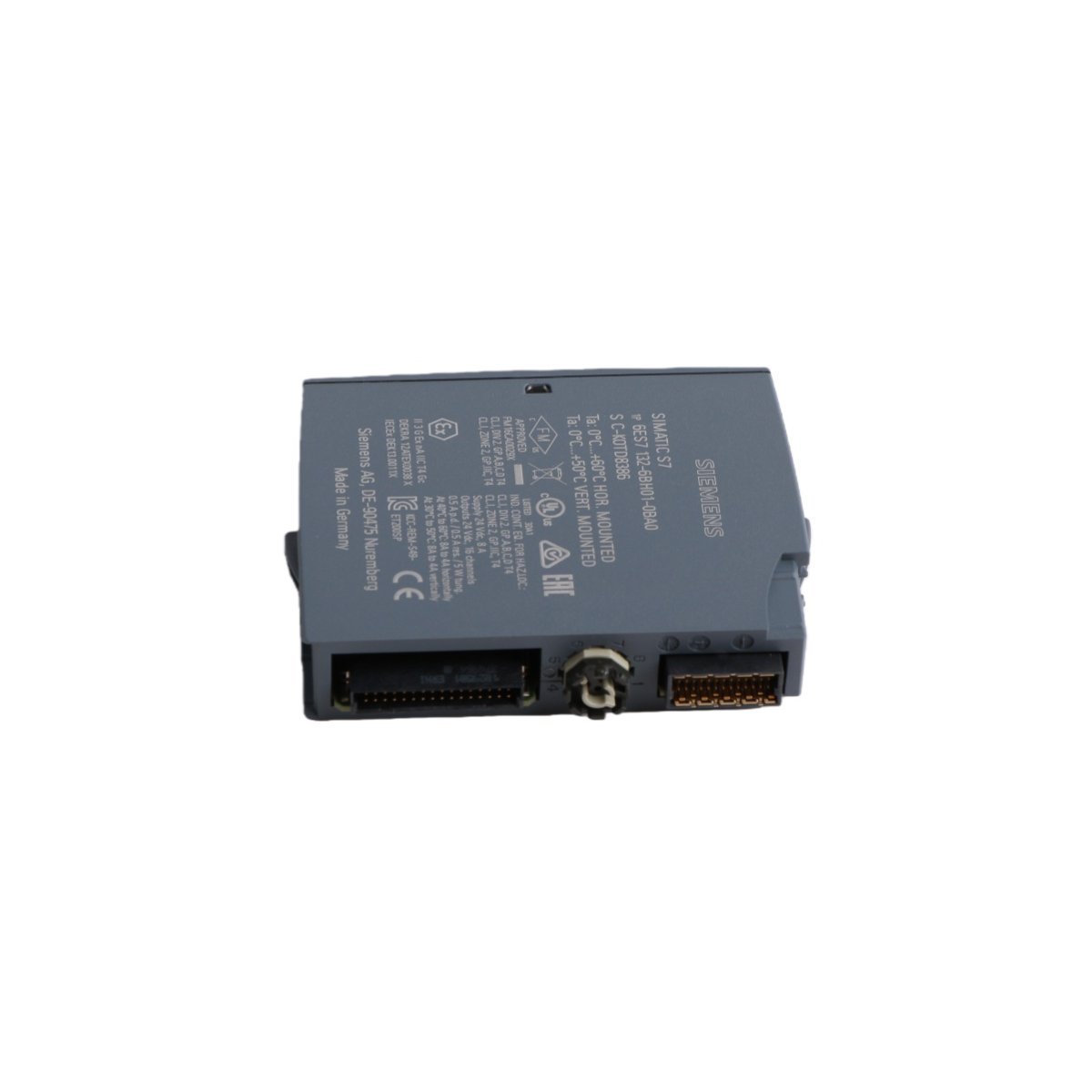

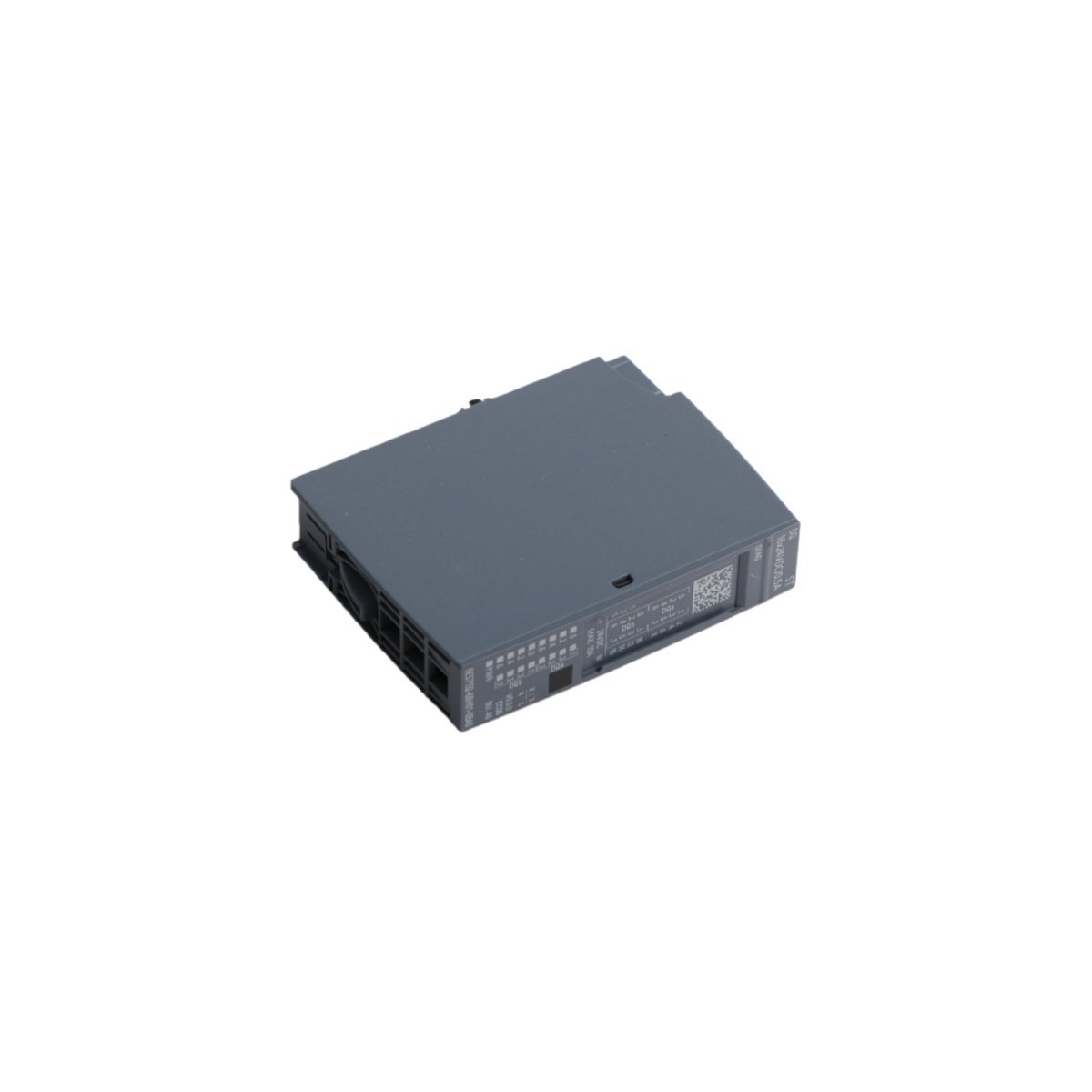

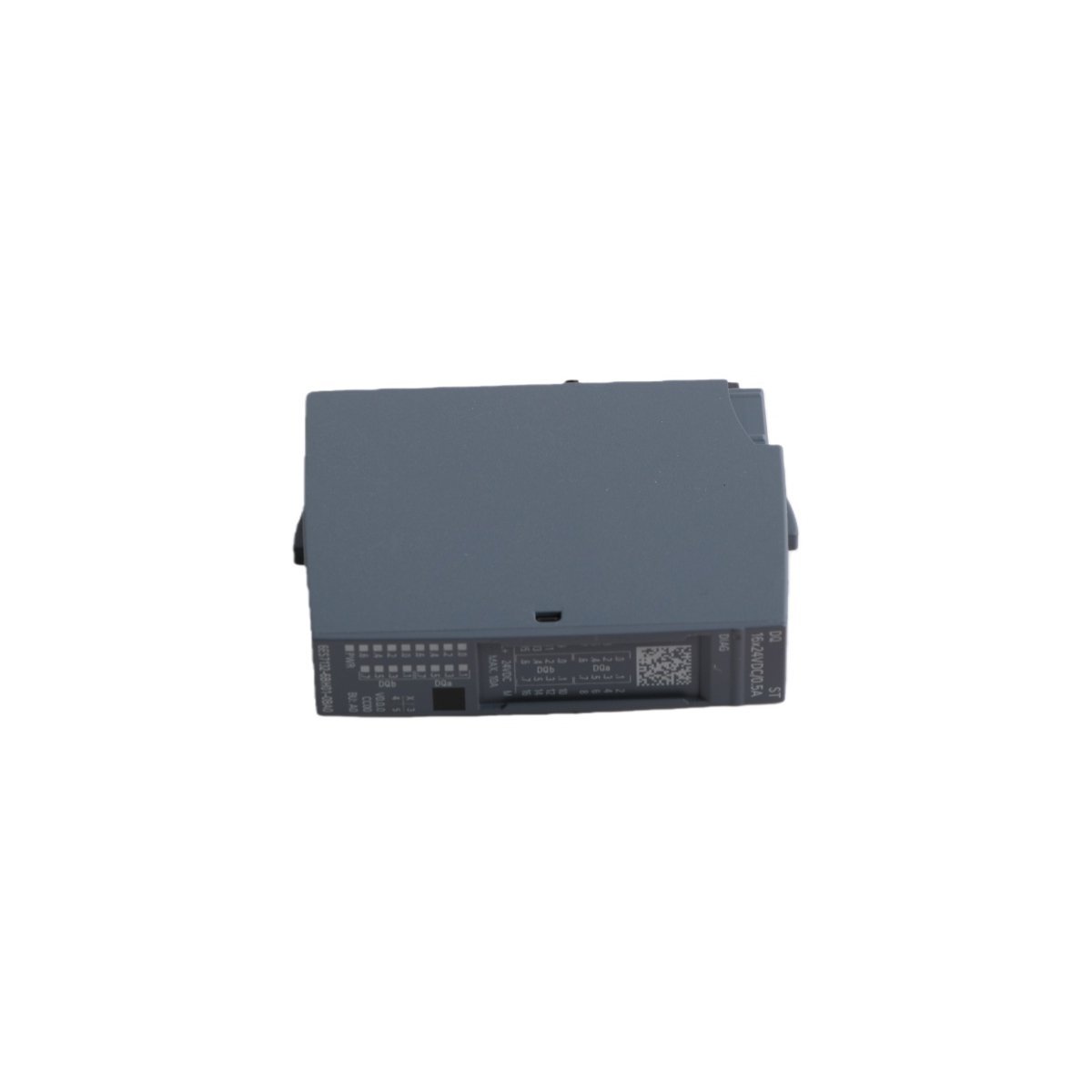

The Siemens 6ES7132-6BH01-0BA0 is a high-density digital output (DQ) module. It belongs to the versatile SIMATIC ET 200SP distributed I/O series. This module features sixteen 24V DC channels with a 0.5A current rating per channel. Engineers typically utilize this component to drive solenoid valves and DC contactors. It also manages signal lamps within complex industrial control systems. Its slim form factor allows for maximum channel density in tight control cabinets.

Technical Specifications

Advanced Diagnostic and Safety Features

This module incorporates sophisticated monitoring to ensure high system availability. It detects short circuits to ground and supply voltage loss immediately. Furthermore, the unit identifies wire breaks to prevent unexpected signal failures. Users can configure substitute values for each channel during communication interruptions. This capability ensures that the system enters a safe state automatically. Consequently, maintenance teams can identify and resolve field faults with minimal downtime.

Integration and Configuration

The 6ES7132-6BH01-0BA0 integrates easily into Siemens engineering software environments. It supports STEP 7 TIA Portal V14 or higher versions. Additionally, it remains compatible with PCS 7 V8.1 SP1 systems. The module utilizes the Identification and Maintenance (I&M) data standard. This feature simplifies device tracking and digital documentation across the plant. Although the hardware design focuses on stability, it provides consistent performance under the FS03 functional status.

Operational Characteristics

• Provides source output switching for standard industrial actuators.
• Supports high-speed switching frequencies for precise control tasks.
• Features internal electronic protection against reverse polarity.
• Minimizes heat dissipation through efficient power management circuits.
• Enables hot-swapping during operation for simplified maintenance procedures.
• Works with GSD and GSDML files for multi-vendor controller compatibility.
