Description

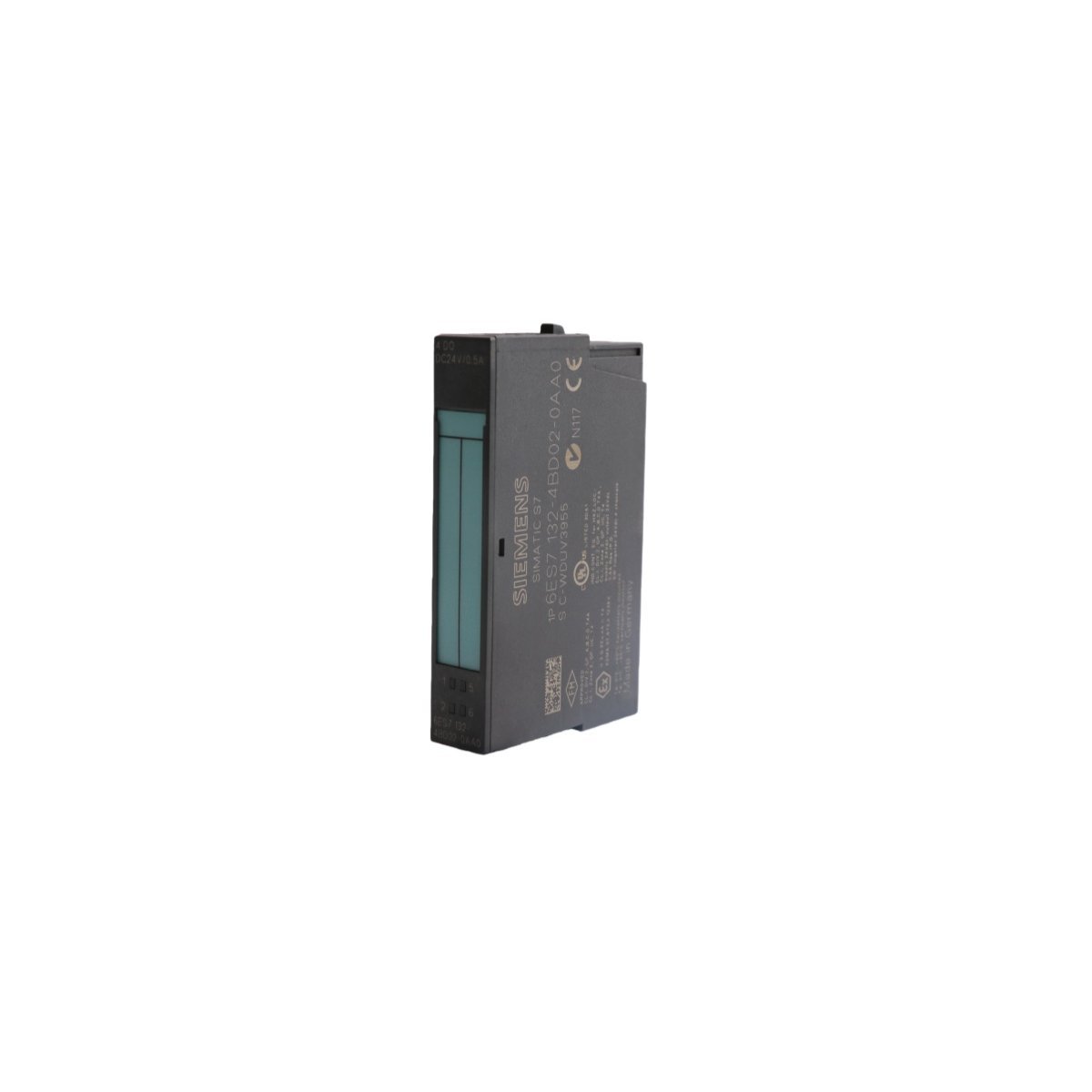

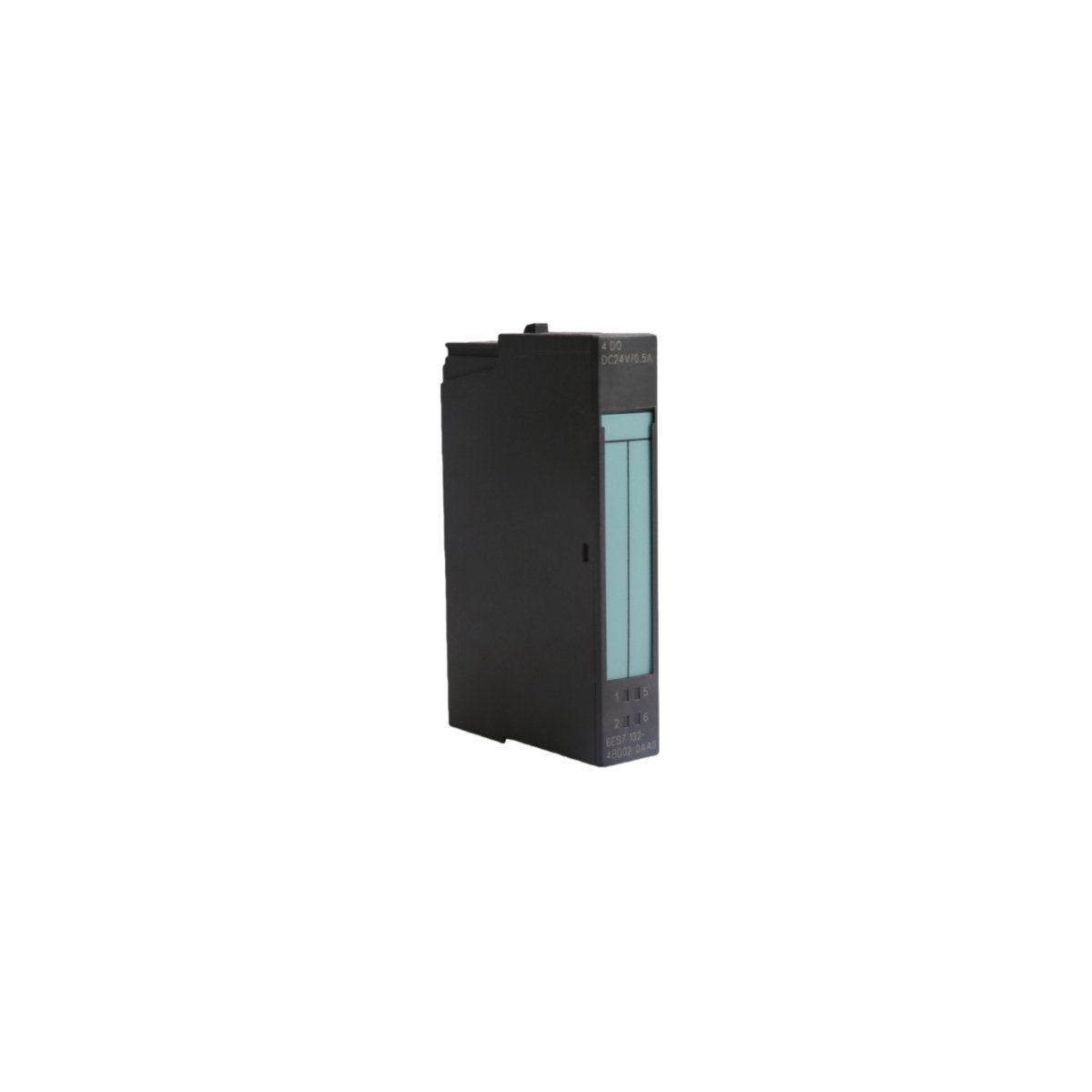

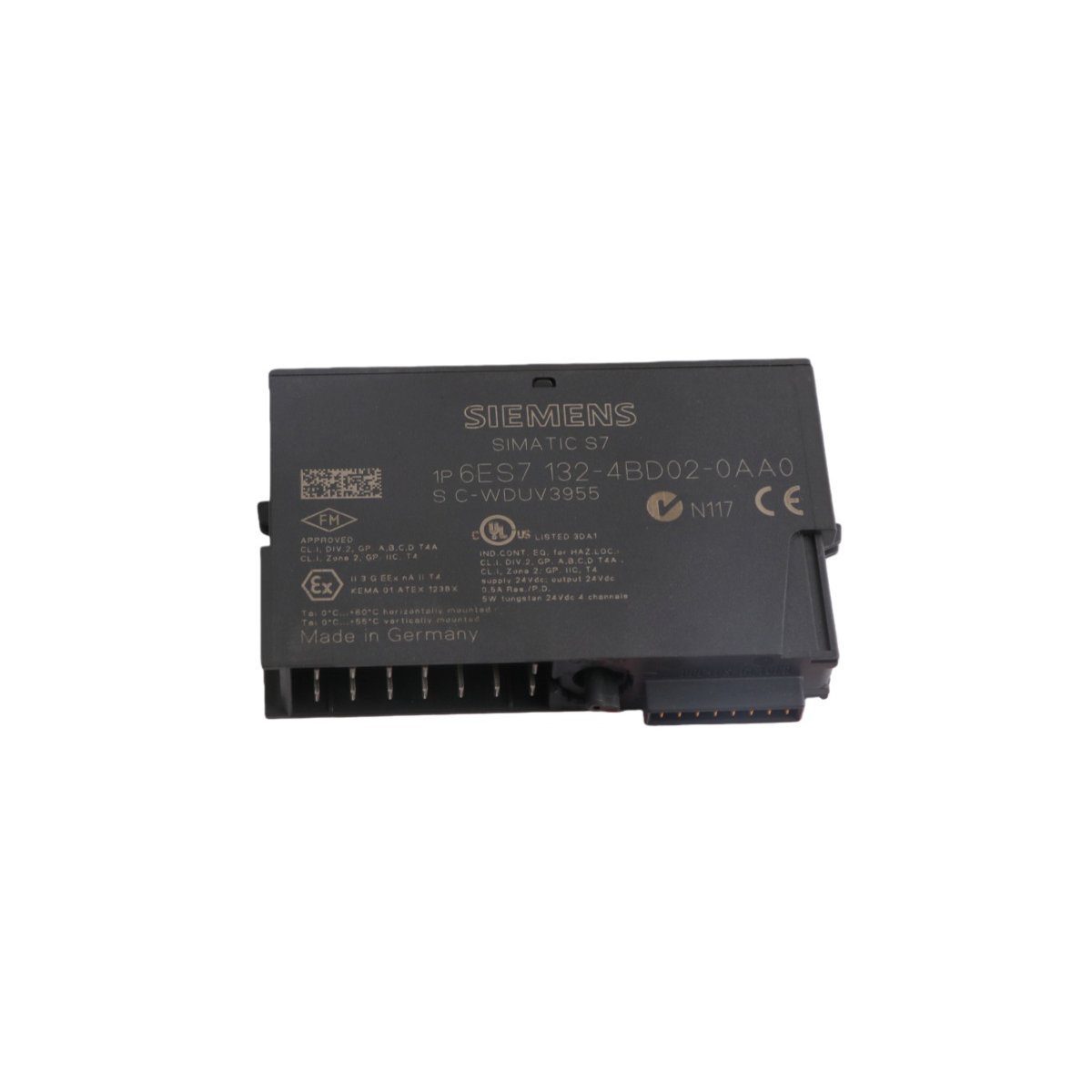

Siemens 6ES7132-4BD02-0AA0 as a compact digital output solution for the SIMATIC ET 200S distributed I/O system. This specific package contains five identical electronic modules to support large-scale installations efficiently. Each individual unit provides four discrete outputs for switching 24 V DC loads up to 0.5 A. The slim 15 mm width allows users to maximize channel density within limited control panel space. Furthermore, the device features integrated short-circuit protection to safeguard connected actuators and wiring. Internal circuitry limits inductive shutdown voltage to prevent damage from relay coils or solenoids. Users benefit from rapid switching times of approximately 50 microseconds for turning loads on. Conversely, the turn-off time remains under 120 microseconds for resistive loads. Additionally, the module supports high switching frequencies up to 800 Hz for precise process control. Robust design ensures reliable operation even in environments with significant electrical interference. Consequently, this component serves critical roles in manufacturing, packaging, and material handling applications.

Technical Specifications

Application and Integration

Facilities utilize these modules to control solenoid valves, contactors, and indicator lamps simultaneously. The 5-pack configuration simplifies procurement for projects requiring multiple output points. Users install the modules directly onto the ET 200S interface module using a snap-on mechanism. High switching frequencies enable precise control of fast-acting pneumatic or hydraulic components. Moreover, electronic protection circuits eliminate the need for external fuses in many applications. Engineers can connect shielded cables up to 1000 meters without signal degradation. The compact form factor reduces overall cabinet size and installation costs significantly. Maintenance teams appreciate the clear diagnostic feedback for rapid fault identification. Additionally, the modules support redundant load control strategies for critical safety systems. This product delivers consistent performance for demanding industrial automation tasks globally.
