Description

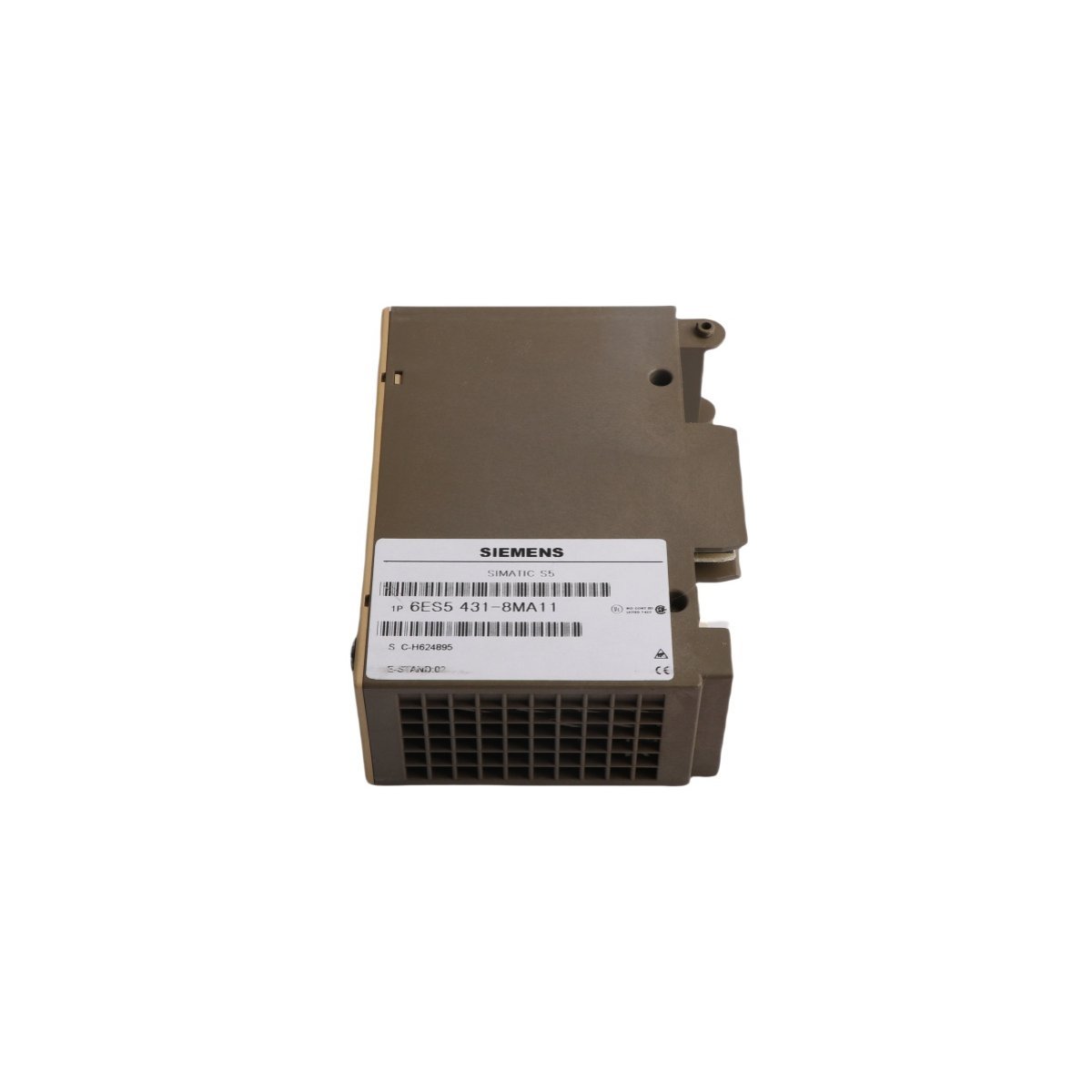

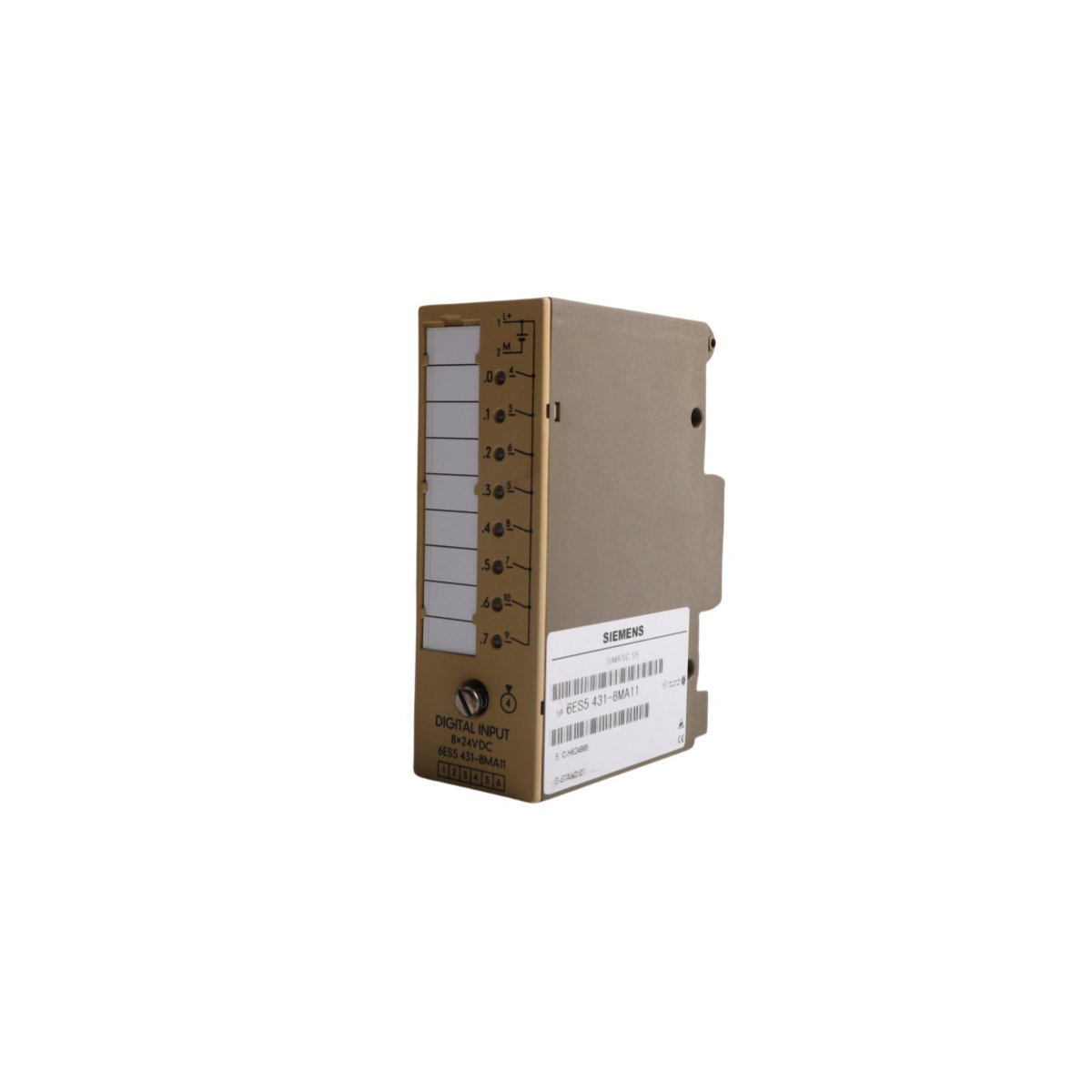

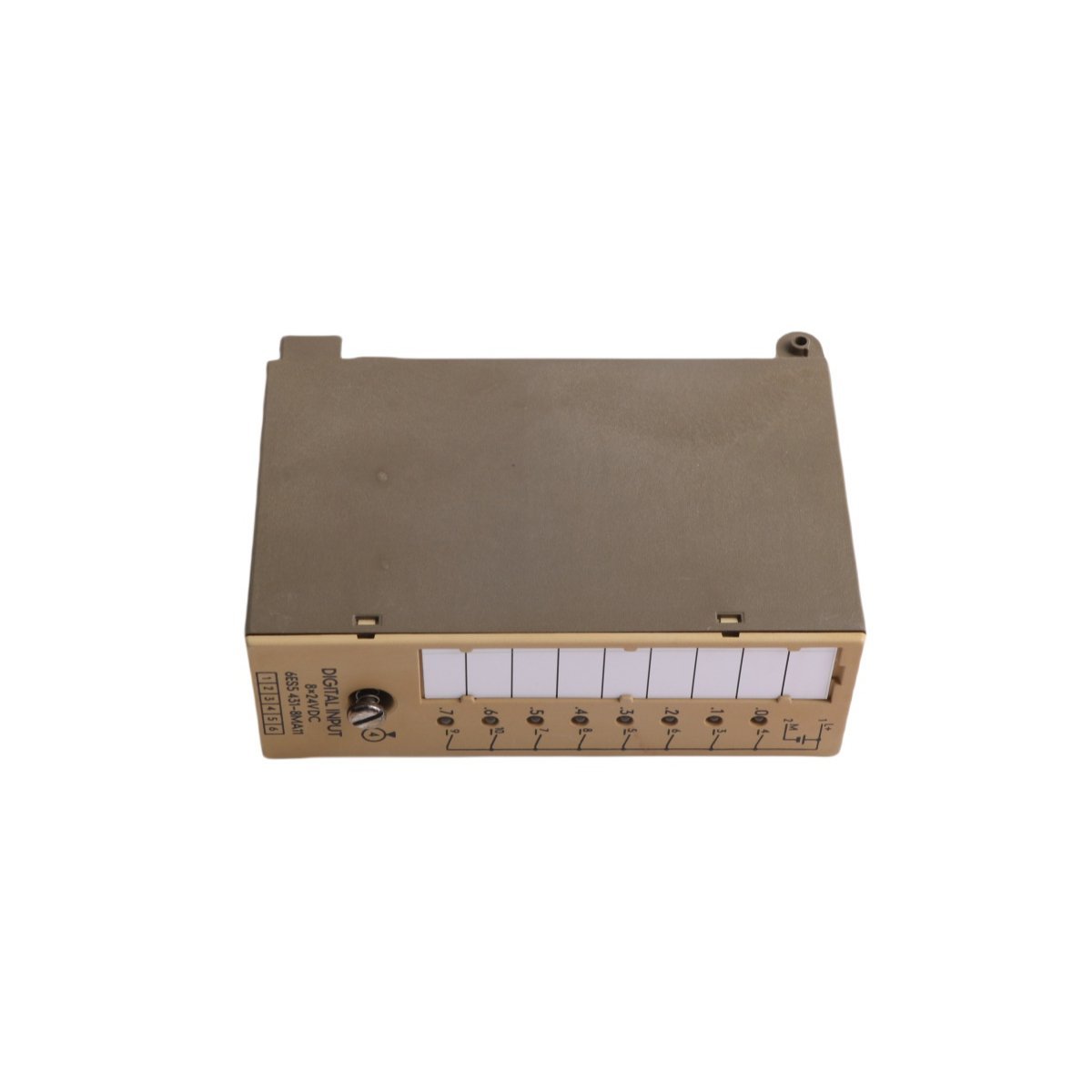

The Siemens 6ES5431-8FA11 serves as a high-density digital input interface for the SIMATIC S5 PLC series. This module effectively converts external binary signals from the field level into internal logic levels. It features 8 isolated input channels designed for various industrial monitoring tasks. Furthermore, the unit facilitates the connection of limit switches, sensors, and pushbuttons to the central controller. This capability ensures precise data collection for complex automation sequences. Consequently, it remains a critical component for maintaining established control systems.

Technical Specifications

Rugged Industrial Design

Siemens engineered this digital input card to withstand harsh factory floor conditions. The hardware utilizes high-quality optocouplers to provide galvanic isolation between the field and the PLC. This protection prevents electrical noise and surges from damaging the sensitive CPU. Additionally, the module maintains reliable performance across a wide range of operating temperatures. The slim profile allows for efficient use of rack space in busy control cabinets. These design choices contribute to a significantly longer operational lifespan.

Integration and Field Wiring

The 6ES5431-8FA11 simplifies the wiring process through a standard SIMATIC S5 front connector. Technicians can easily replace modules without disturbing the permanent field wiring. Moreover, the front panel includes status LEDs for each individual input channel. These indicators allow for rapid visual diagnostics and troubleshooting during maintenance cycles. The module integrates seamlessly with S5-115U, 135U, and 155U racks. This compatibility makes it a versatile spare part for various legacy installations.
