Siemens 6EP1437-3BA00 Power

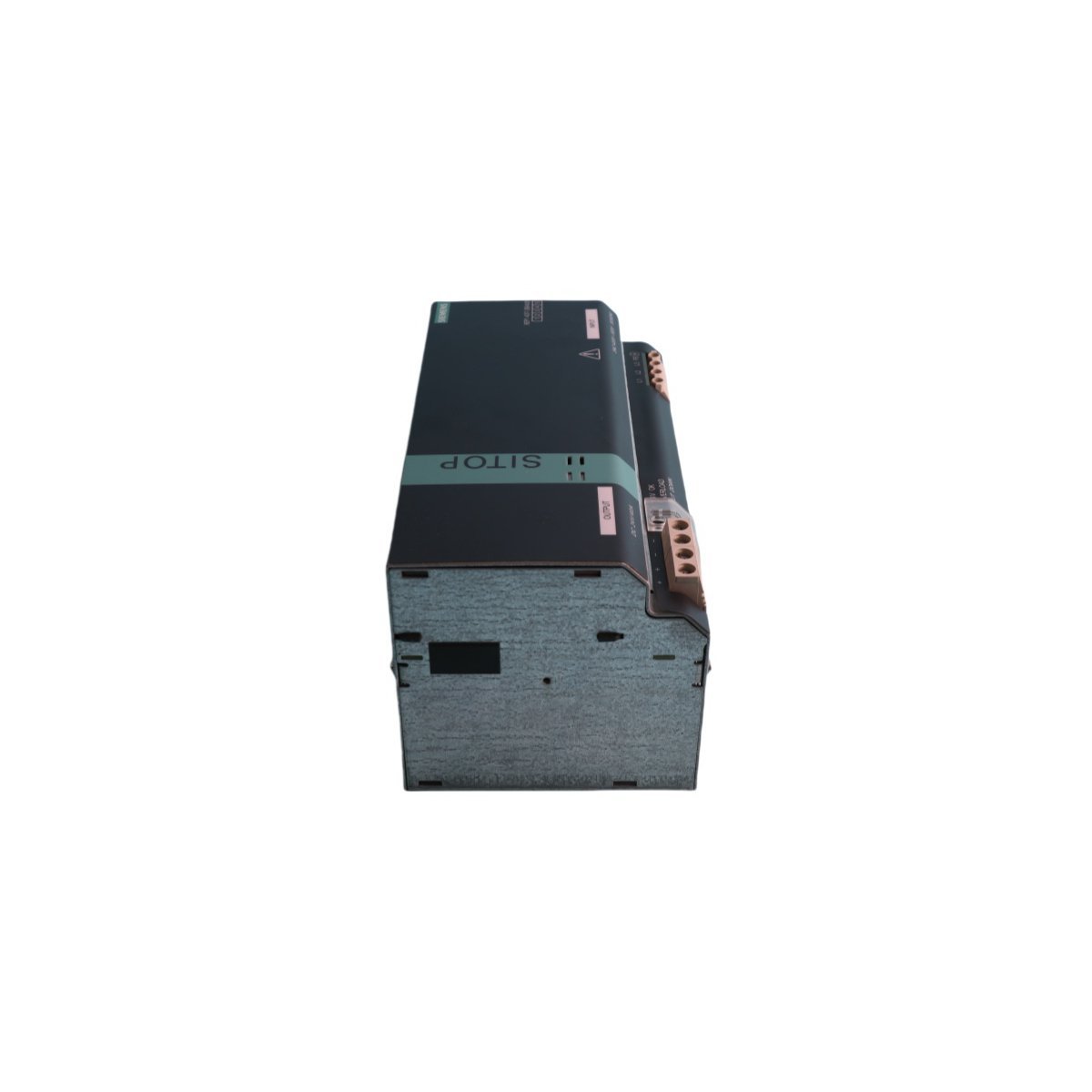

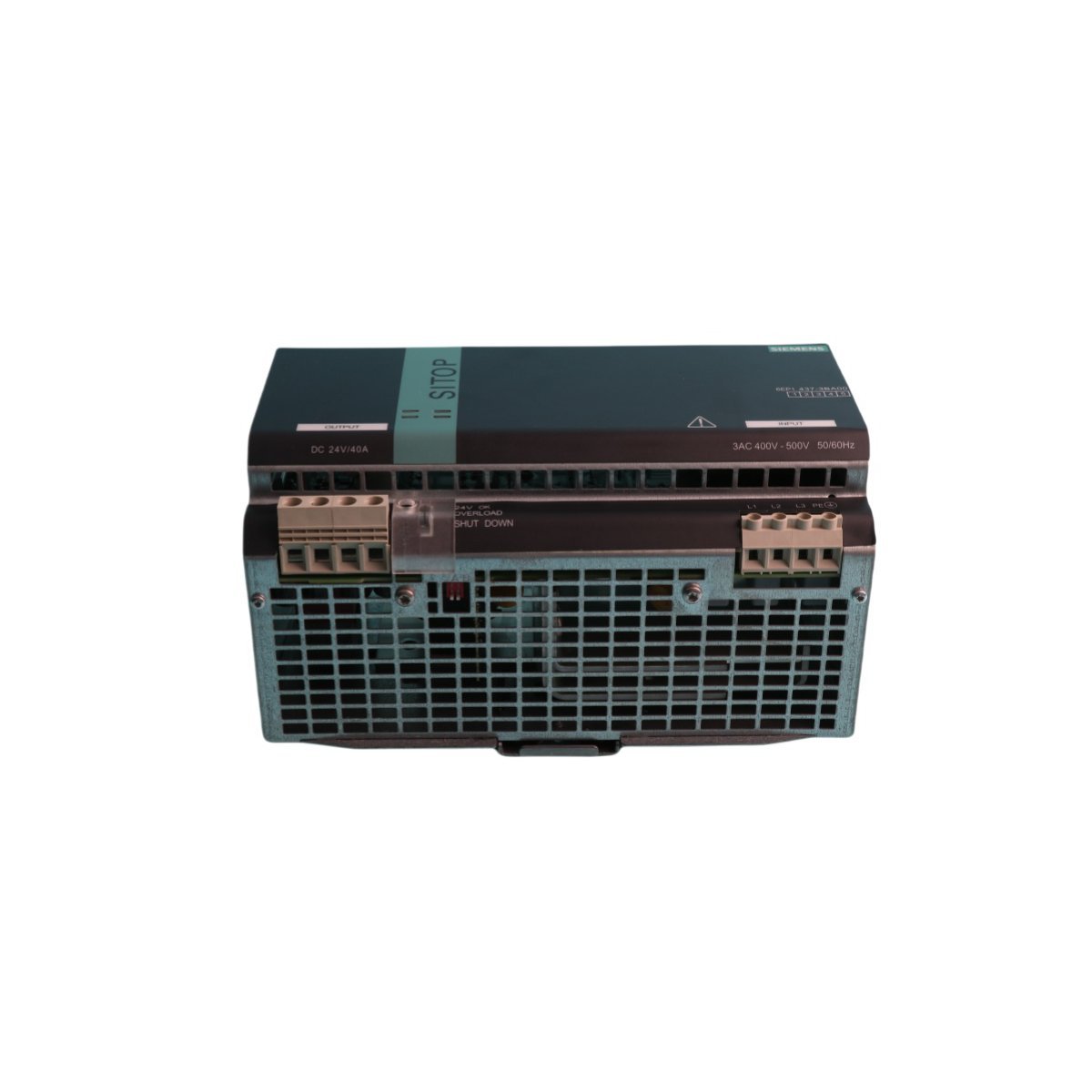

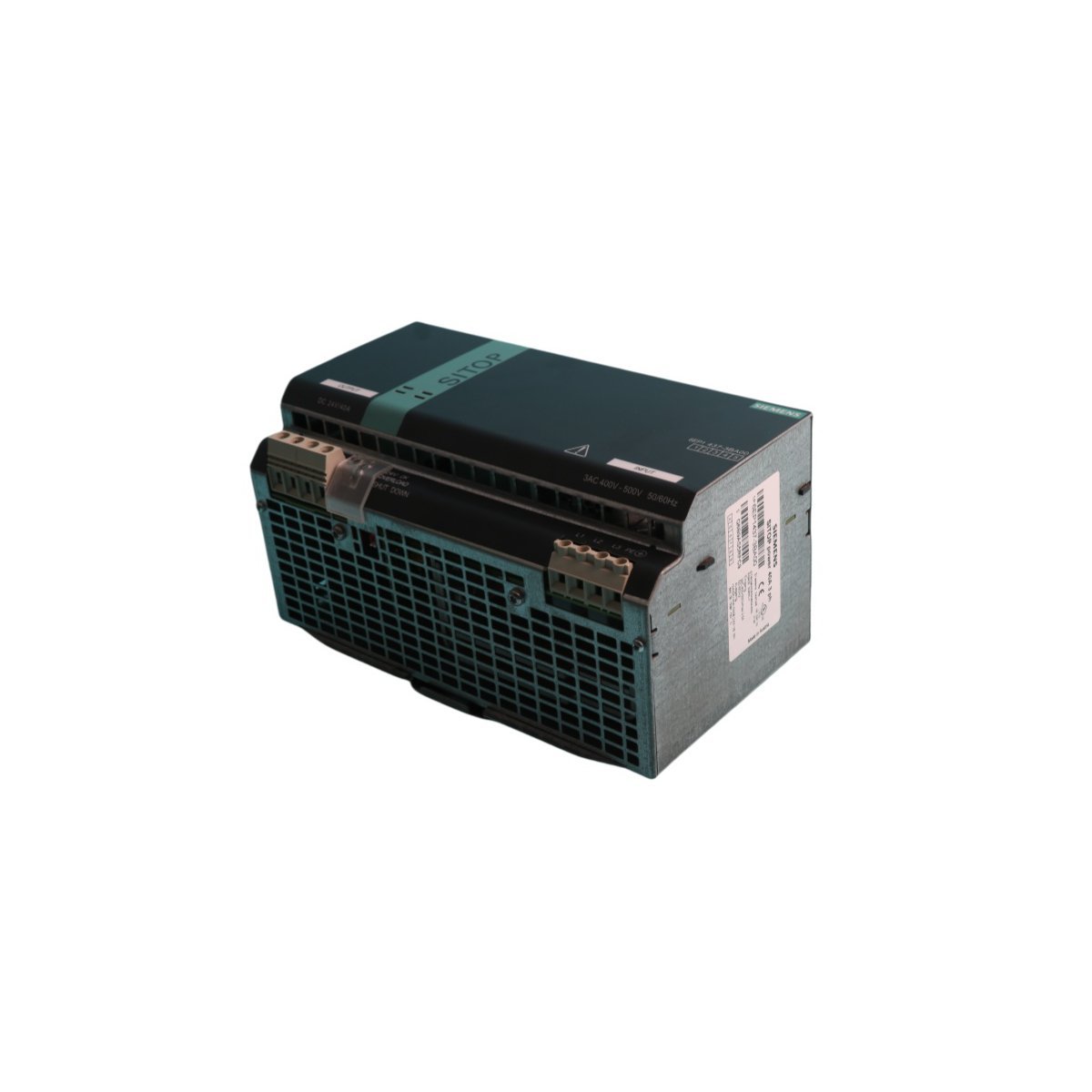

The Siemens 6EP1437-3BA00 is a 3-phase SITOP modular power supply providing 24V DC at 40A. It offers a wide input range of 320V to 550V AC and high efficiency. This stabilized unit ensures reliable power for demanding industrial automation and large-scale control systems.
Description
The Siemens 6EP1437-3BA00 belongs to the premium SITOP modular product line. This three-phase stabilized power supply delivers a consistent 24V DC output. It provides a substantial 40A current rating for heavy-duty industrial loads. Consequently, the module supports complex automation systems requiring high power density. The unit maintains exceptional voltage stability even during significant load fluctuations.
The device features a rugged metal enclosure designed for standard DIN rail mounting. Furthermore, it incorporates advanced protective mechanisms against short circuits and overloads. This ensures the safety of connected PLC components and sensors. The metal housing also assists with heat dissipation during continuous high-load operation.
Technical Parameters and Input Versatility
| Feature | Detailed Specification |
| Model Number | 6EP1437-3BA00 |
| Brand | Siemens |
| Input Voltage | 3-Phase 400V to 500V AC |
| Input Range | 320V to 550V AC |
| Output Voltage | 24V DC |
| Output Current | 40 Amperes |
| Efficiency | Approximately 91.5% |
| Mains Buffering | > 6 ms at 400V |
| Weight | 3.36 kg |
| Dimensions | 150 x 125 x 150 mm |
Operational Resilience and Environmental Suitability
This power supply excels in volatile electrical environments. It tolerates input voltage surges up to 2.3 times the rated value. Therefore, the SITOP 40A module remains stable during transient grid disturbances. The wide-range input accommodates various global power standards effortlessly.
The 6EP1437-3BA00 also features selectable short-circuit behavior. Users can choose between constant current or latching shutdown modes. This flexibility allows engineers to tailor the power response to specific machine requirements. Additionally, integrated LED indicators provide immediate visual feedback on the operating status.
Integrated Application Scope
- Large-scale production lines requiring high-current 24V DC distribution.
- Automotive manufacturing cells with numerous sensors and actuators.
- Process industry control cabinets with high safety requirements.
- Mechanical engineering projects needing modular and scalable power solutions.
- Complex PLC architectures within the SIMATIC S7 ecosystem.
Additional information
| Weight | 3.36 kg |
|---|---|
| Country of Origin | Germany |
| Dimension | 12.5 x 15.5 x 15 cm |
