Description

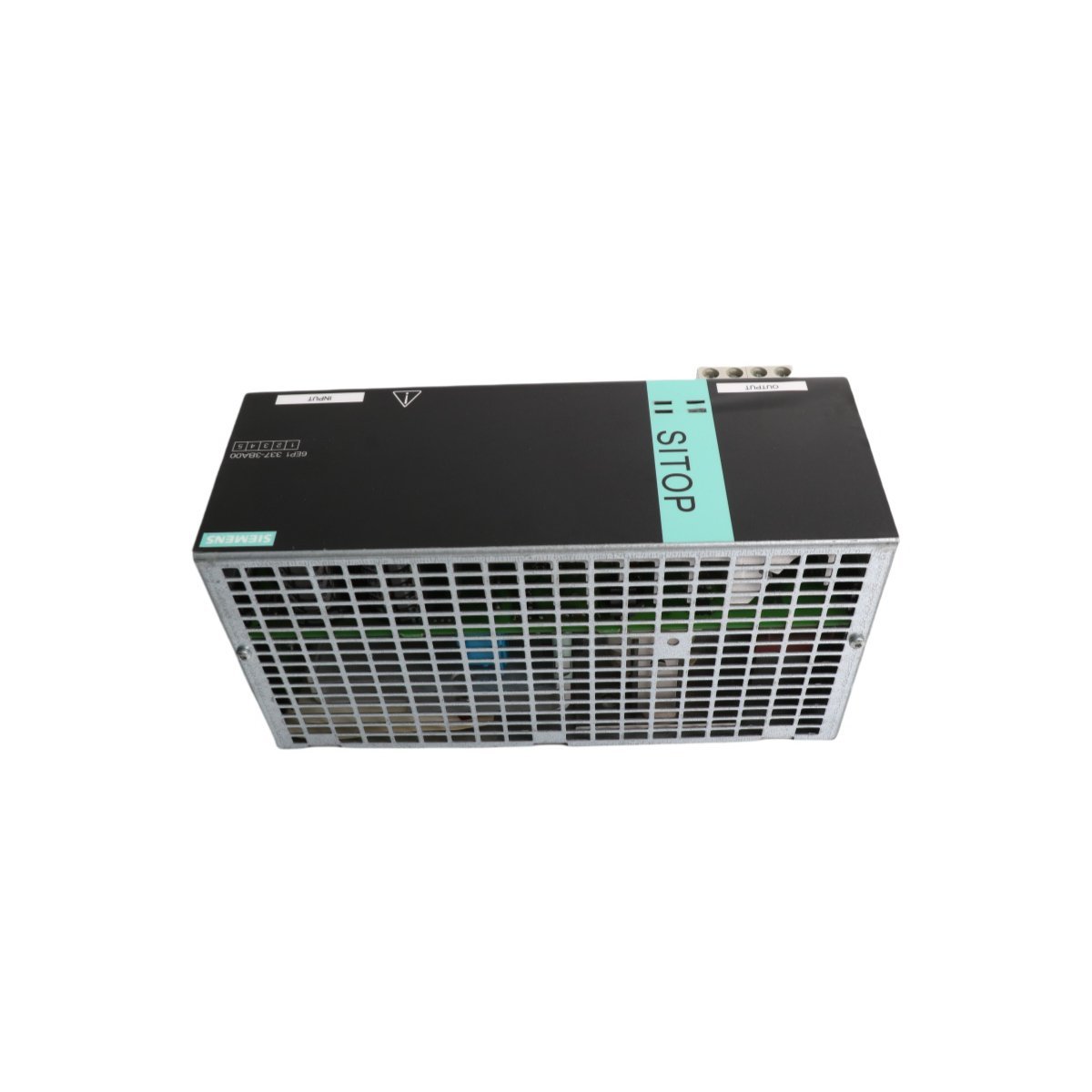

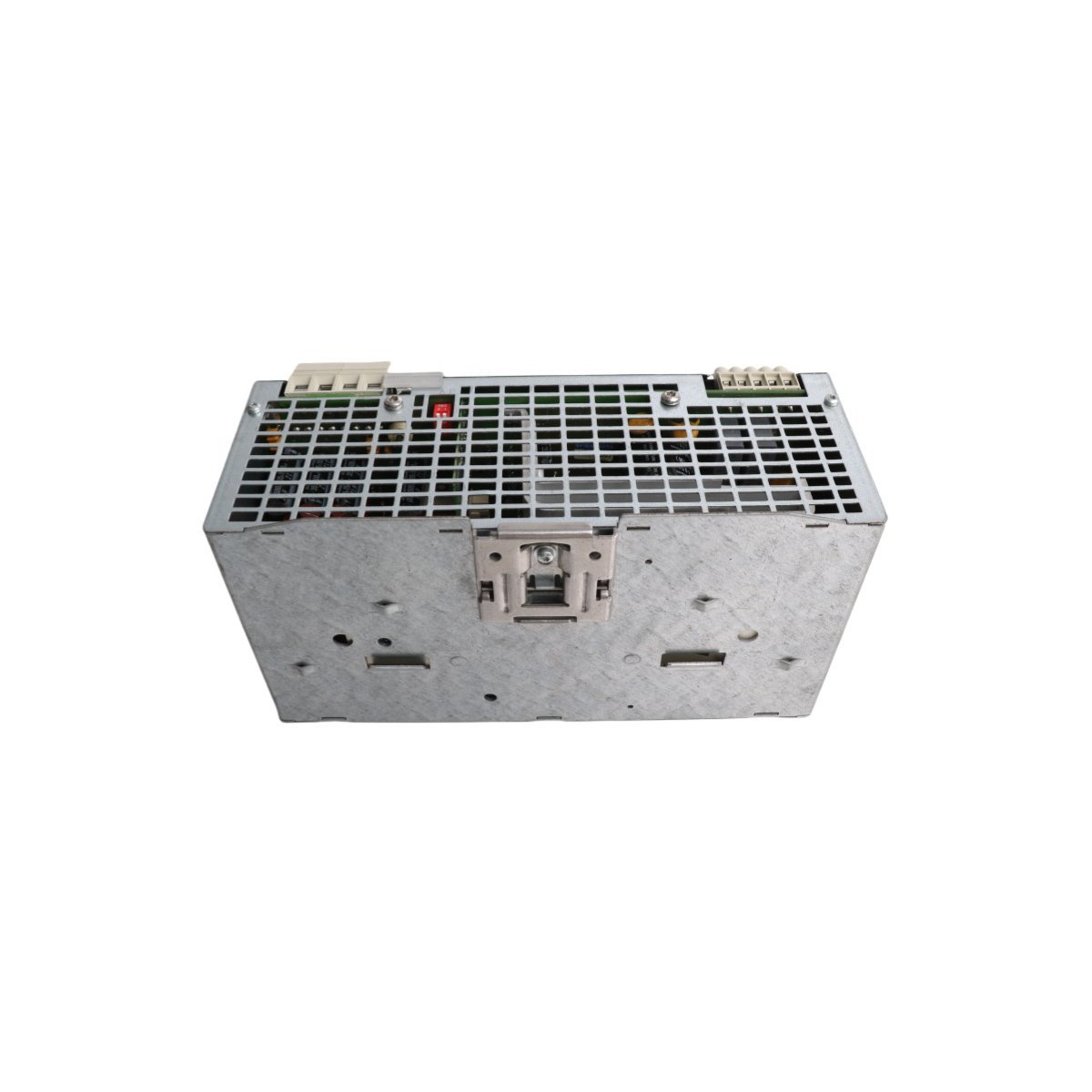

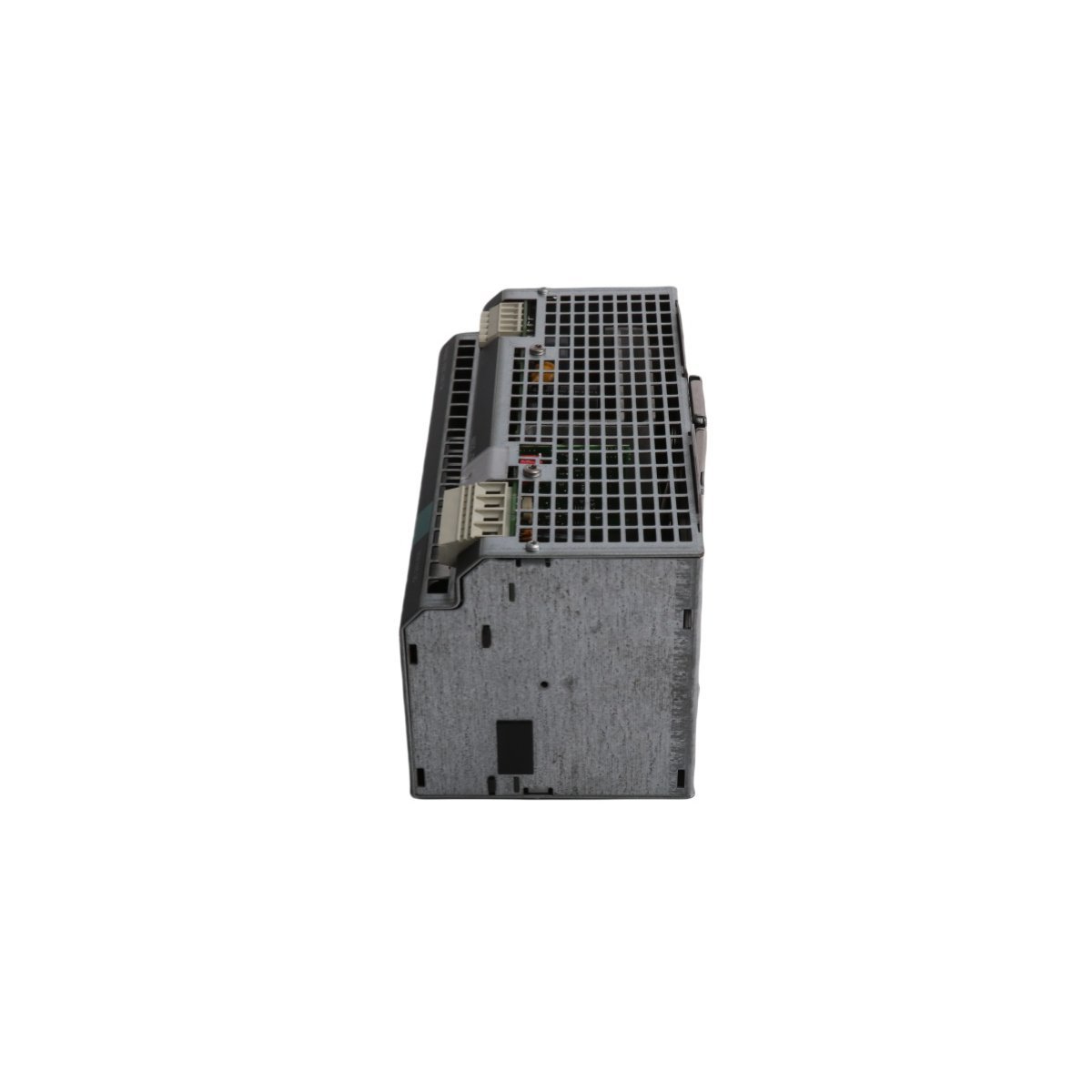

The Siemens 6EP1337-3BA00 is a high-capacity, stabilized power module belonging to the advanced SITOP modular series. This unit delivers a regulated 24V DC output at a 20A rated current for complex automation systems. Because it features a wide-range input, the device supports both single-phase and two-phase AC networks effortlessly. It excels in demanding environments where stable energy distribution remains critical for operational success. This power supply provides the necessary precision to protect sensitive PLC and industrial computing hardware.

Technical Specifications

Superior Efficiency and Power Management

One primary advantage of this module is its exceptional 94% efficiency rating. Higher efficiency reduces heat generation inside the control cabinet significantly. Furthermore, the integrated active Power Factor Correction improves overall power quality for the entire system. Users can adjust the output voltage via a front-mounted potentiometer to compensate for cable losses. This flexibility ensures connected devices receive exactly 24V regardless of the installation distance. The unit also includes comprehensive short-circuit and overload protection to prevent hardware damage.

Reliable Integration and Monitoring

The 6EP1337-3BA00 supports parallel operation for applications requiring higher current or redundant power configurations. Because the housing uses a slim modular design, it occupies minimal DIN rail space. Clear LED indicators on the front panel display the current operating status for fast troubleshooting. Additionally, the unit facilitates remote monitoring when combined with optional SITOP signaling modules. Its rugged German engineering guarantees a long service life even under high thermal stress. This power supply serves as a dependable cornerstone for modern manufacturing and process control infrastructure.

Principal Technical Advantages

• Provides a high-power 20A output for large-scale automation loads.
• Features a versatile input range for global industrial power grid compatibility.
• Minimizes energy waste through an industry-leading 94% efficiency level.
• Includes adjustable output voltage to ensure precise power delivery.
• Protects against overloads and short circuits with automatic recovery.
• Operates reliably in extreme temperatures up to 70°C.
• Supports modular expansion for redundancy and signaling requirements.
