Description

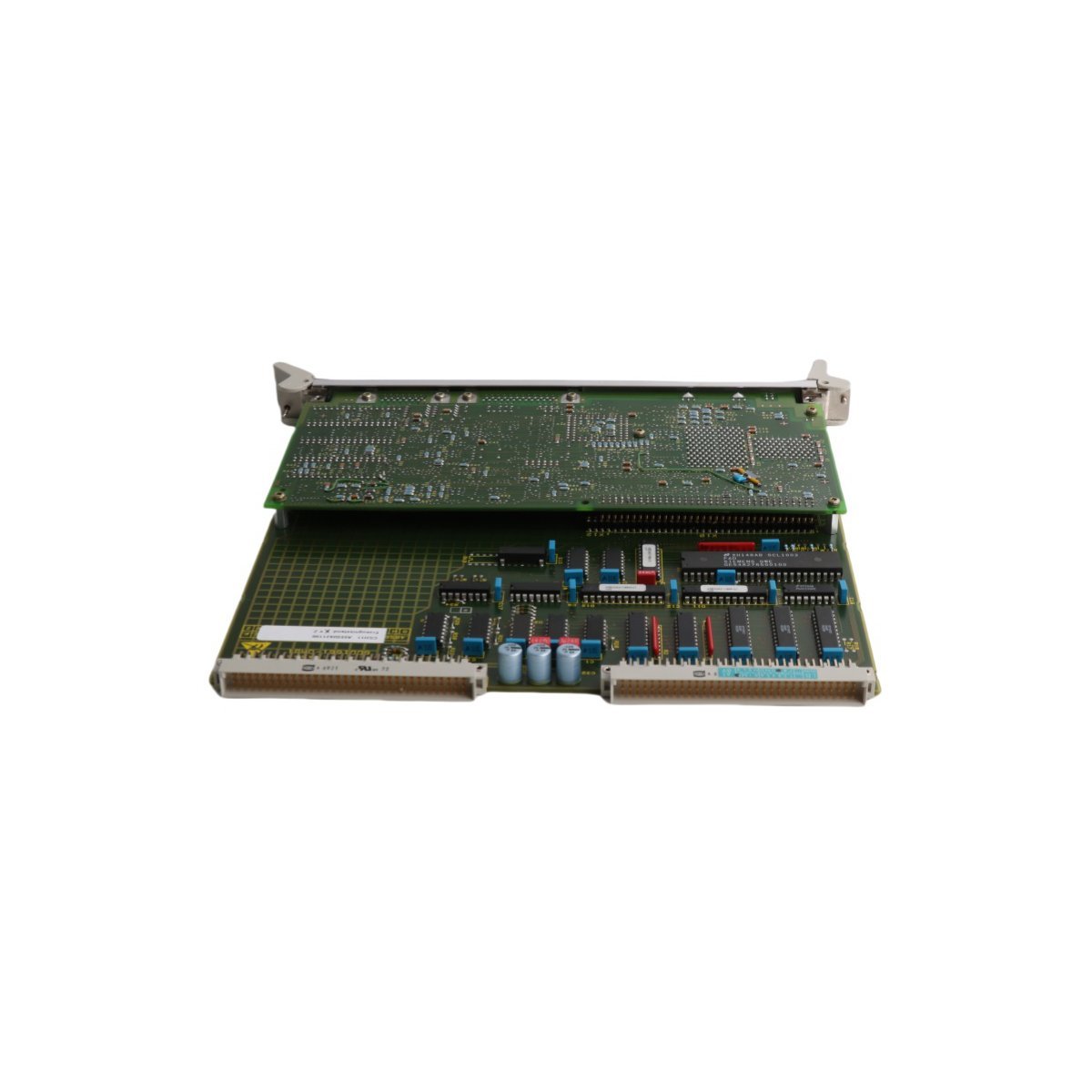

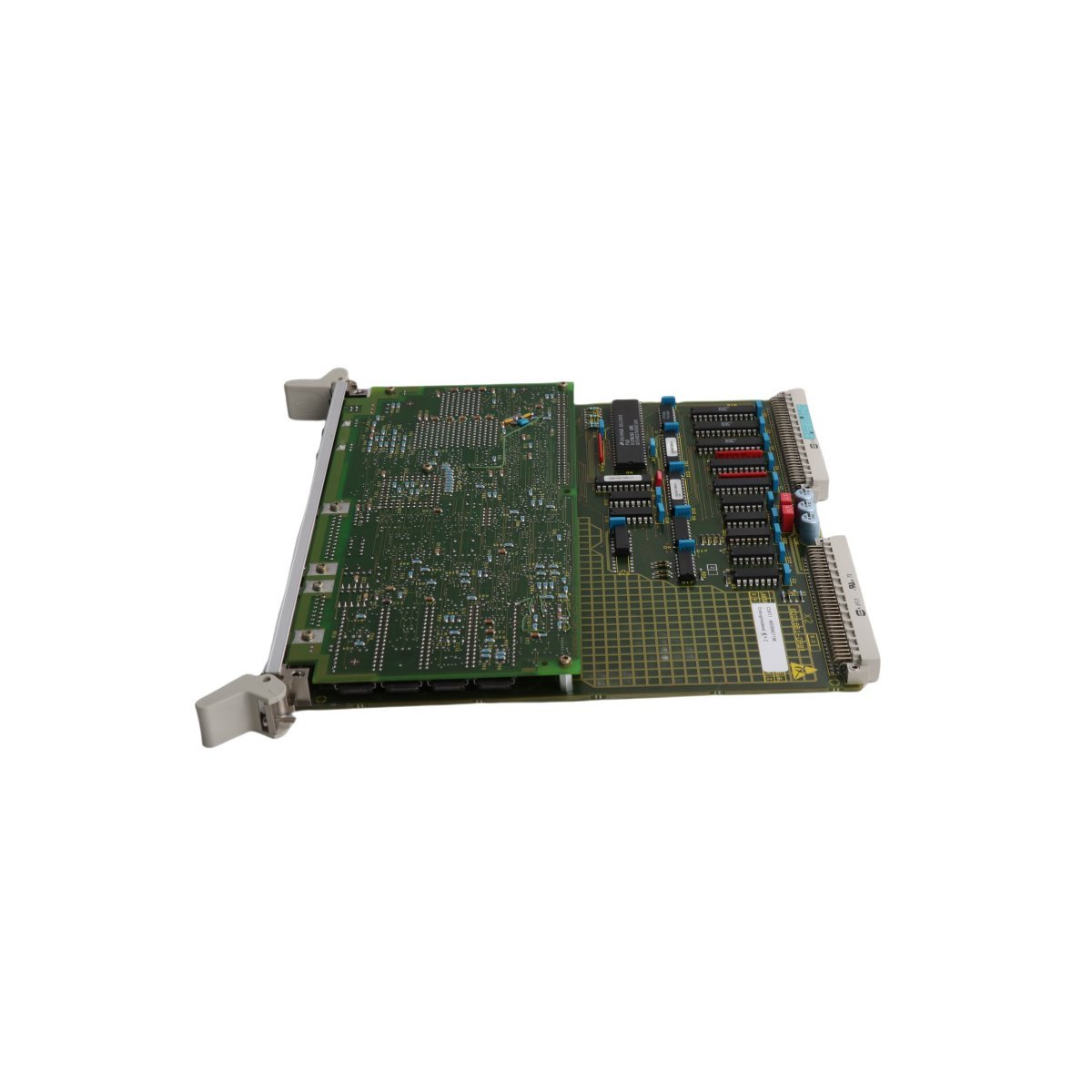

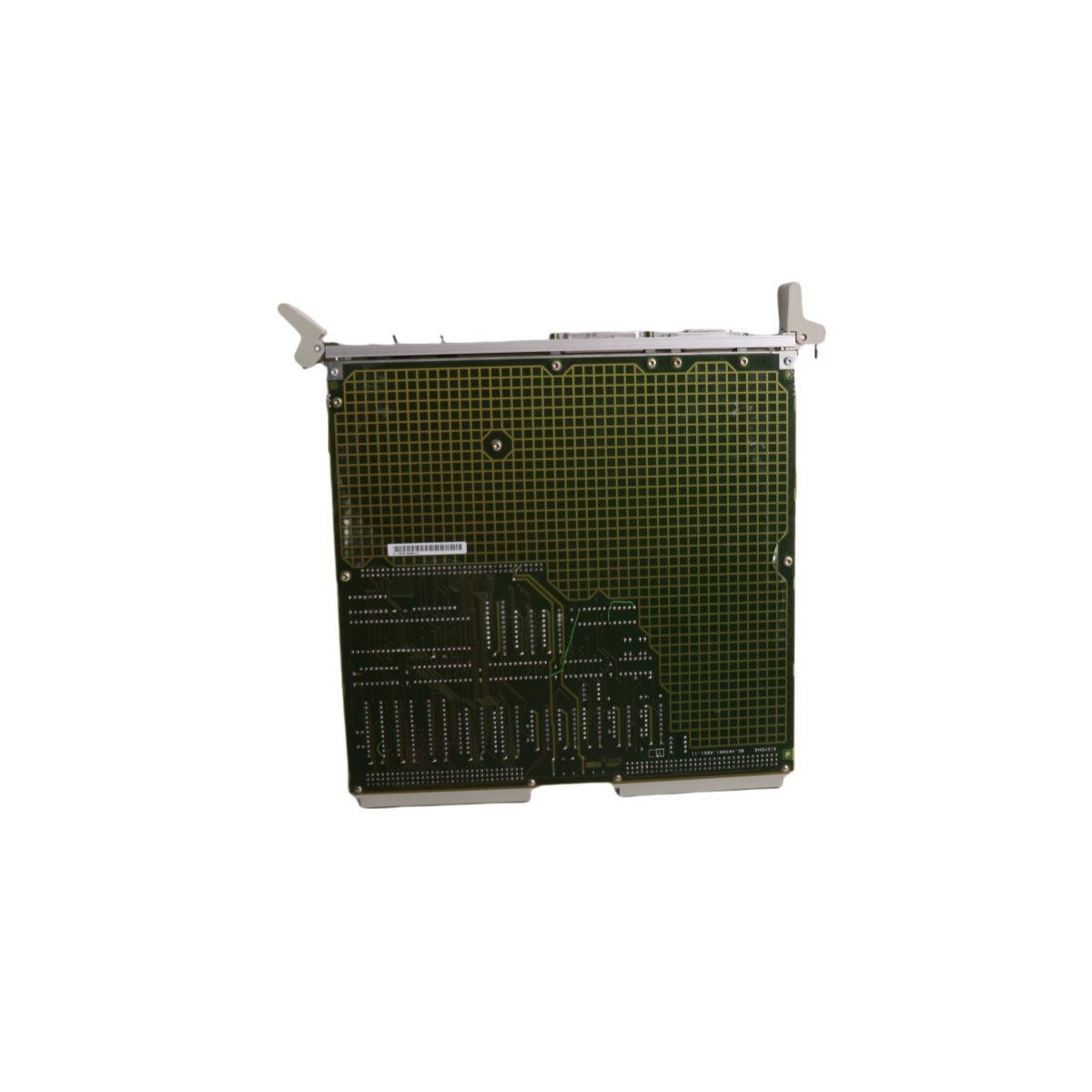

The Siemens 6DD1661-0AB1 serves as a specialized CSH11 communication slave module for the SIMADYN D control system. This hardware facilitates high-speed data exchange via the SINEC H1 industrial Ethernet bus. It features an onboard CP1470 processor to manage complex network protocols. Additionally, dual-port RAM enables rapid communication between the central CPU and the network interface. This configuration ensures consistent data throughput for demanding industrial automation environments.

Technical Specifications

Interface and Connectivity Options

The CSH11 module provides several connection ports to ensure versatile system integration. A 25-pin X5 port allows users to parameterize the module using SINEC NML software. Meanwhile, the 15-pin X6 connector links directly to the SINEC H1 bus coupler. This port supports drop cables reaching up to 50 meters in length. Furthermore, passive 20 mA TTY and RS 232 interfaces permit local connections to programmers or PCs. These options simplify the configuration of Ethernet addresses and system parameters.

Operational Control and Diagnostics

The front panel includes a function selector switch with ADM, RUN, and STP modes. This physical control allows maintenance teams to toggle module states quickly during servicing. A dedicated reset button also assists in clearing temporary faults without power cycling. Additionally, integrated diagnostic LEDs provide real-time status updates for the communication link. These indicators help technicians identify network issues immediately to maintain maximum system uptime.
