Description

Brief Product Description

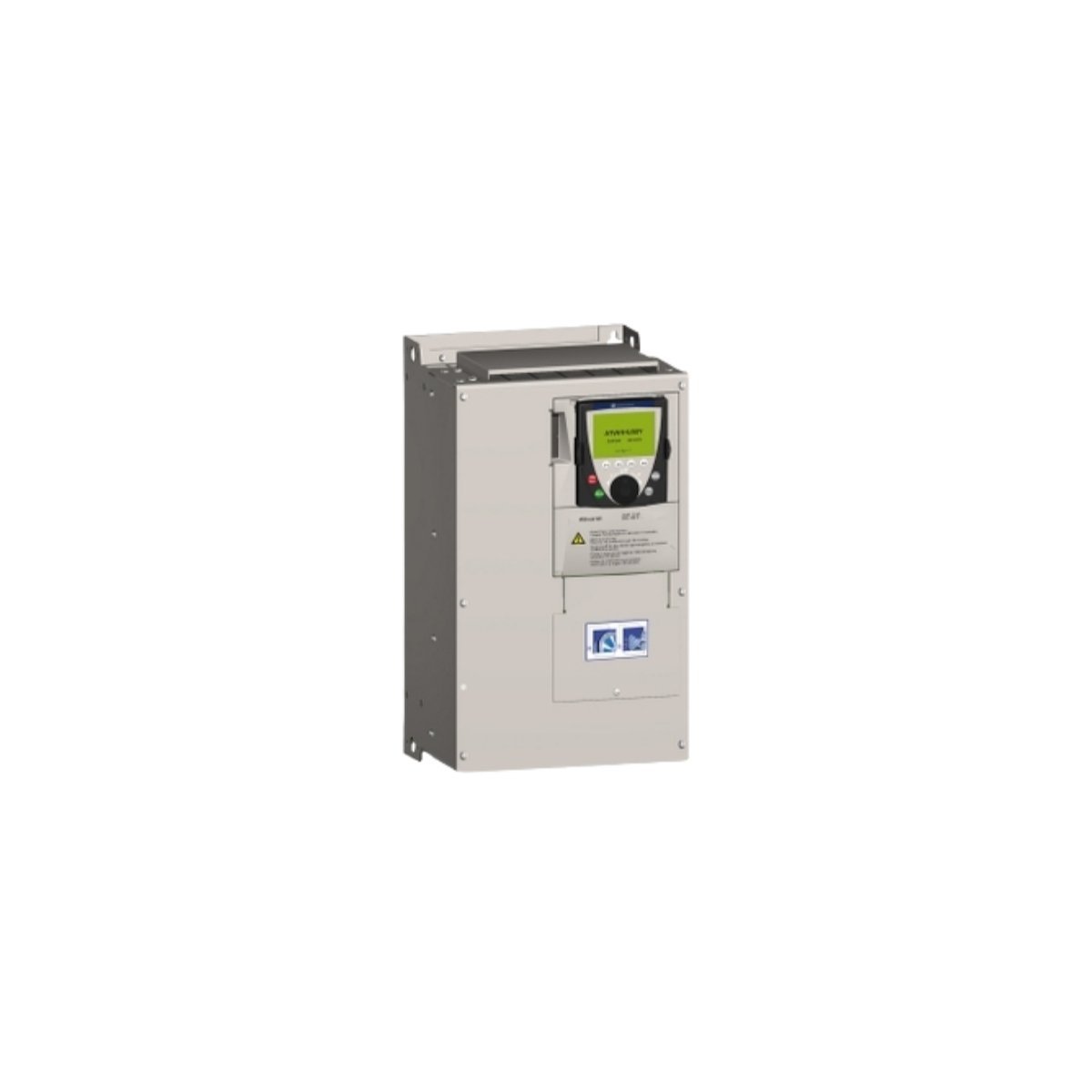

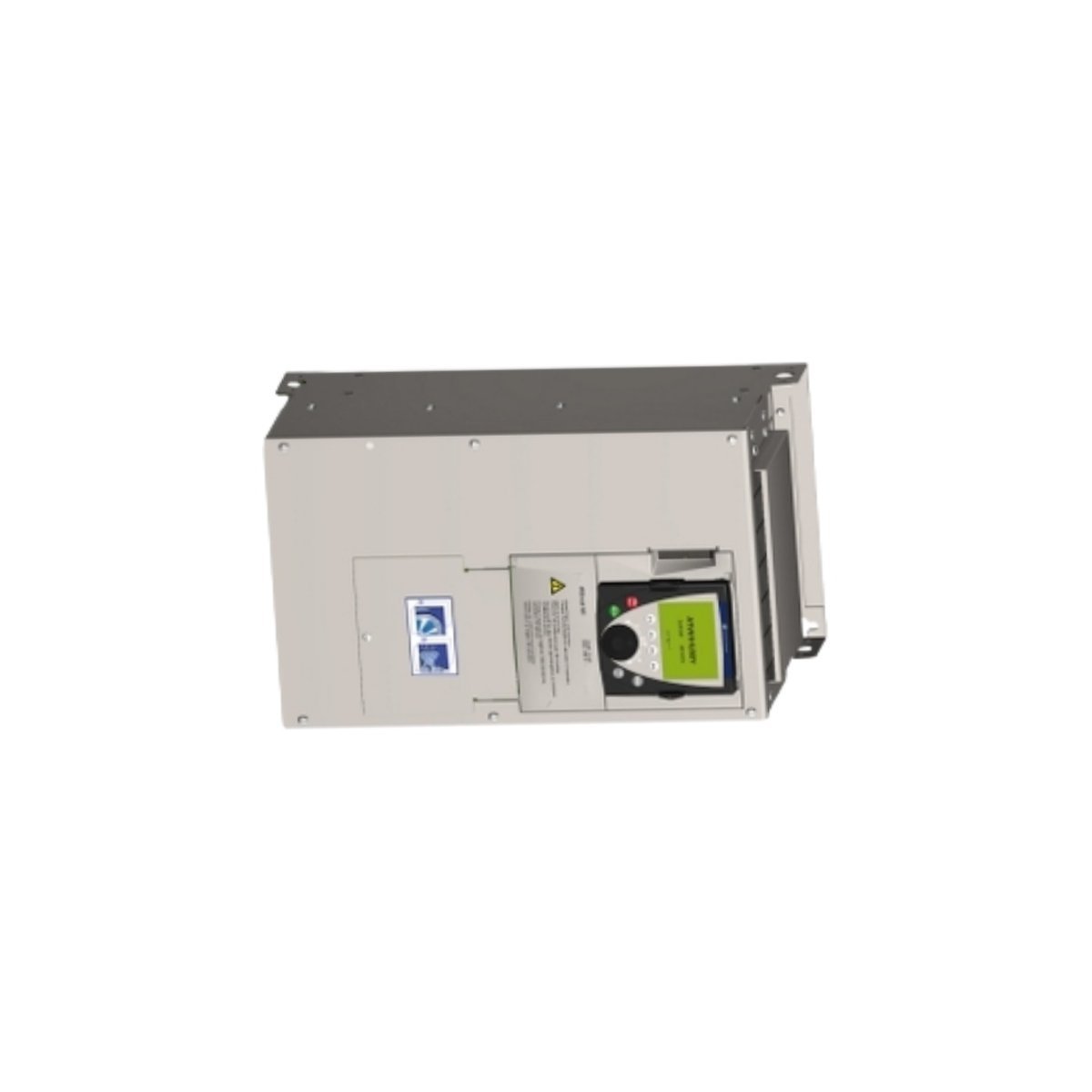

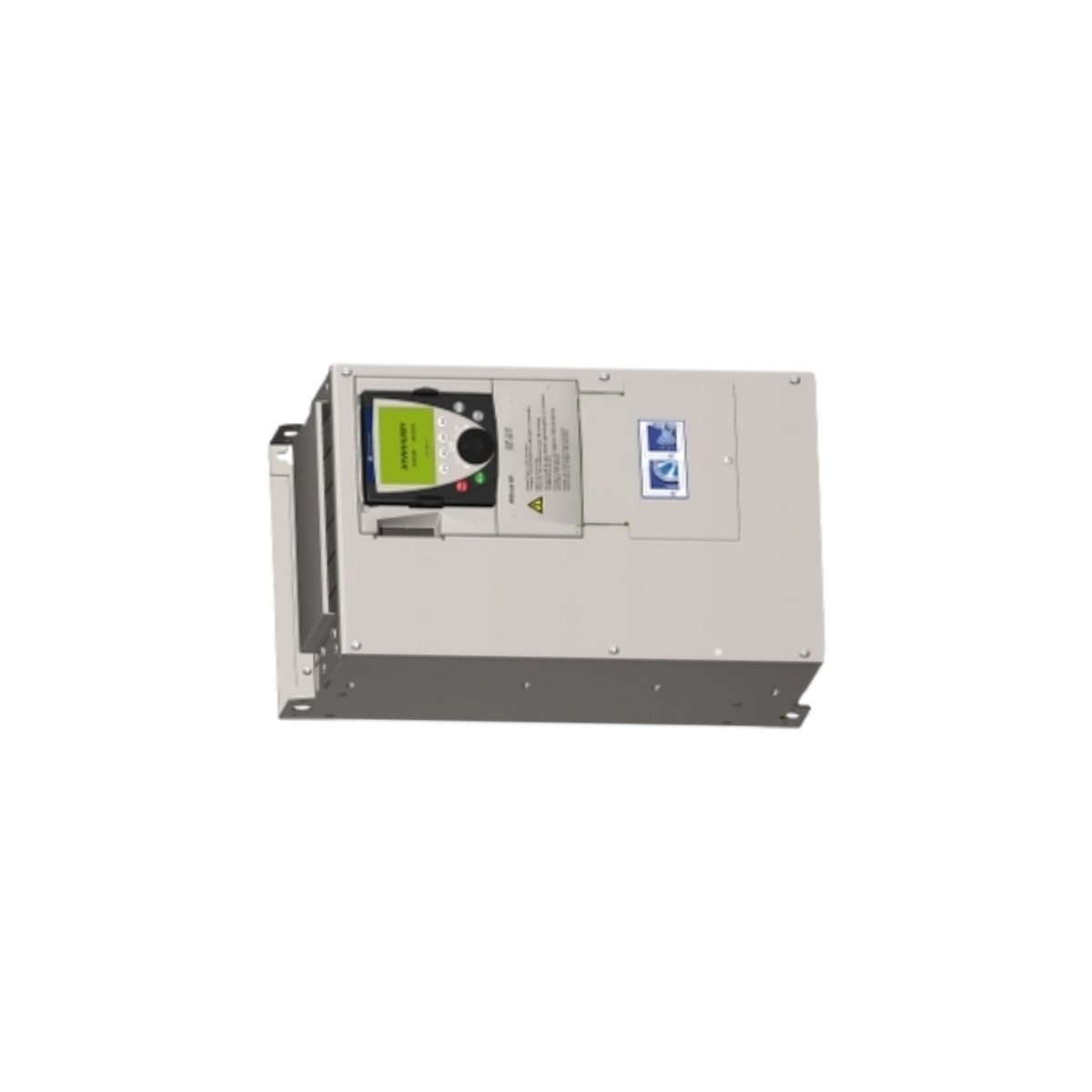

The Schneider Electric ATV61HD22N4Z is a high-capacity 22 kW (30 HP) variable speed drive designed for precise control of three-phase asynchronous motors. Engineered for variable torque applications, this Altivar 61 series inverter optimizes performance in pump and fan systems through advanced thermal management and robust electrical protection.

High-Performance Variable Torque Control

The Schneider ATV61HD22N4Z serves as a sophisticated motor control solution for heavy-duty industrial environments. This 22 kW drive specifically targets the quadratic torque requirements typical of centrifugal pumps and ventilation fans. By employing precise frequency modulation, the drive eliminates the mechanical shock associated with across-the-line starting, thereby extending the service life of motors and connected equipment. Furthermore, the integrated control algorithms actively manage load variations to maintain peak system efficiency, making it an essential component for facilities focused on energy conservation and process reliability.

Thermal Management and Installation Integrity

Operational longevity for the ATV61HD22N4Z depends heavily on adherence to professional mounting standards. To ensure maximum cooling efficiency, technicians must install the drive vertically on a flat surface, maintaining unobstructed clearance for air to move from the bottom to the top of the chassis. During the commissioning phase, the removal of the top blanking cover is mandatory to enable effective heat dissipation. Because the drive’s internal components are sensitive to ambient temperature, installers should avoid proximity to heat-generating machinery, ensuring that the natural convection process remains uncompromised even under full-load operation.

Environmental Resilience and Protective Enclosures

While the standard chassis provides robust performance, the ATV61HD22N4Z requires additional safeguards when deployed in contaminated industrial settings. In the presence of corrosive gases, conductive dust, or high humidity, the unit must reside within a metal enclosure rated for at least IP54 protection. This configuration allows the drive to function reliably in ambient temperatures reaching up to 50°C. By utilizing IP54-rated filters and sealed cabinets, plant operators protect the inverter’s power electronics from splashing liquids and particulate matter, ensuring consistent uptime in water treatment plants and heavy manufacturing facilities.

Key Technical Characteristics

• 22 kW Power Delivery: Provides reliable 30 HP output for medium-to-large industrial motor applications.
• Advanced Safety Monitoring: Includes internal protection against motor short-circuits, phase loss, and thermal runaway.
• Optimized Airflow Design: Engineered for vertical convection cooling with a removable top cover for high-load venting.
• Flexible Input Voltage: Accommodates three-phase power supplies ranging from 380V to 480V.
• Variable Torque Efficiency: Tailored for fan and pump curves to maximize energy savings during partial-load cycles.
• Rugged Industrial Chassis: Designed for easy mounting in standard control cabinets or specialized IP54 enclosures.

Technical Specifications
