Description

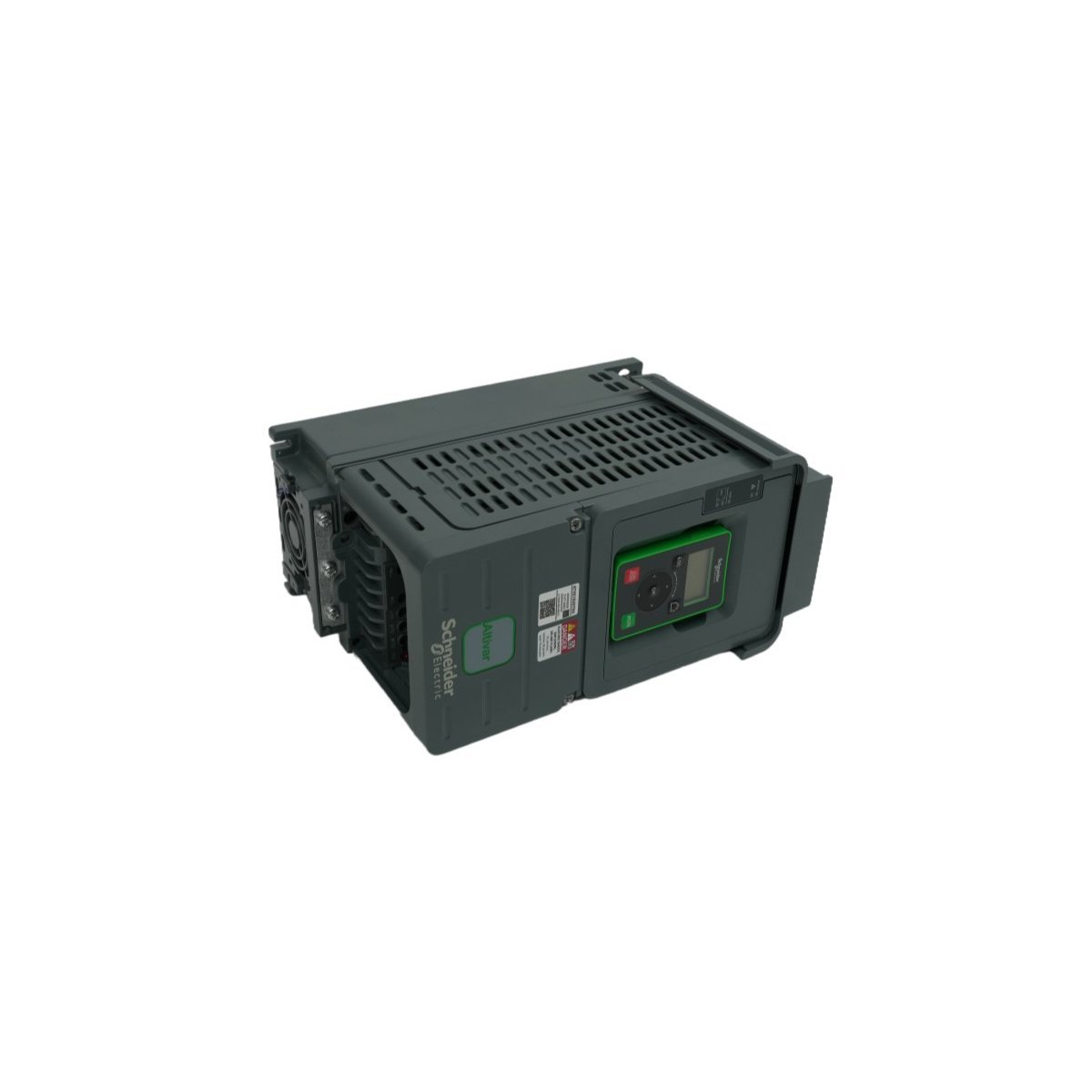

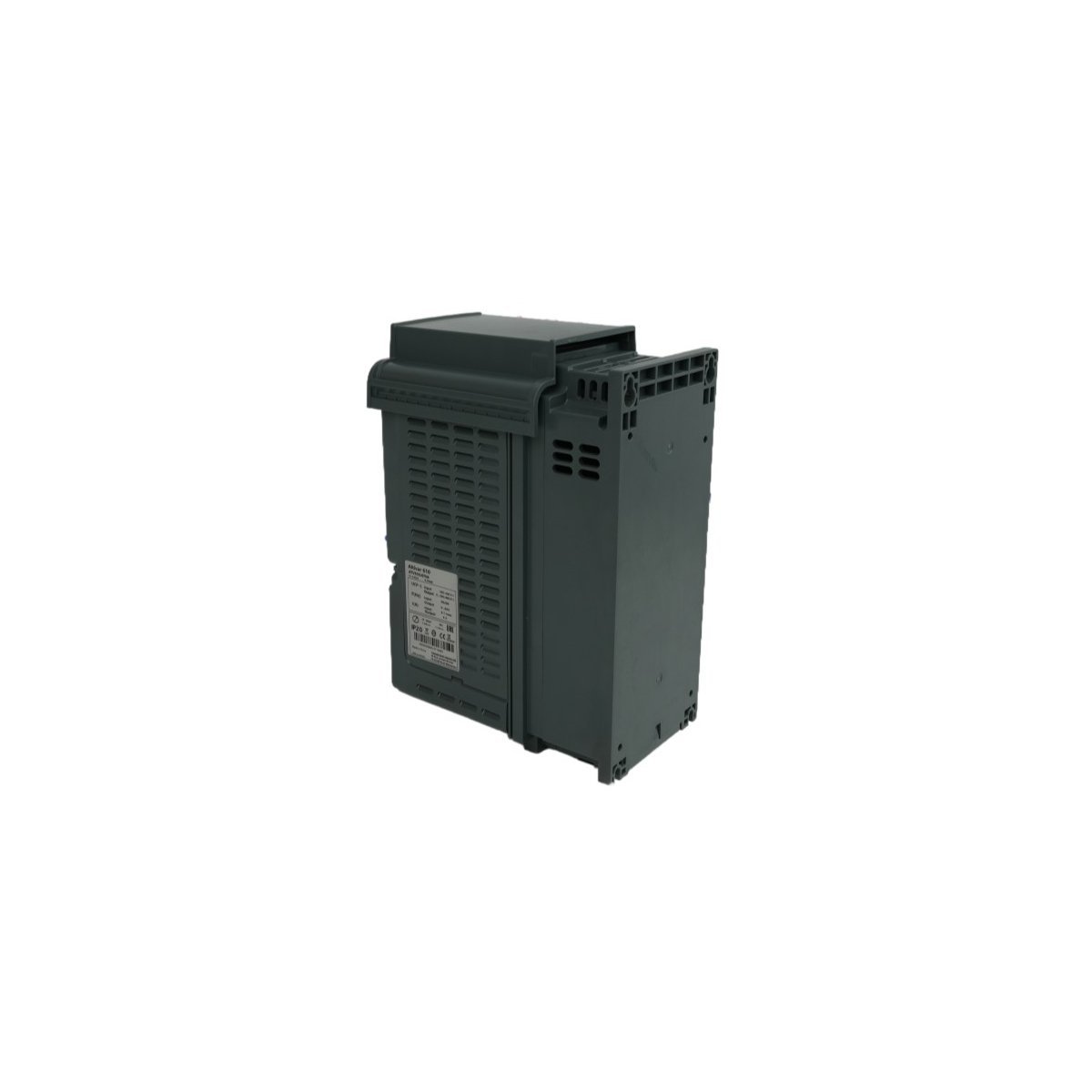

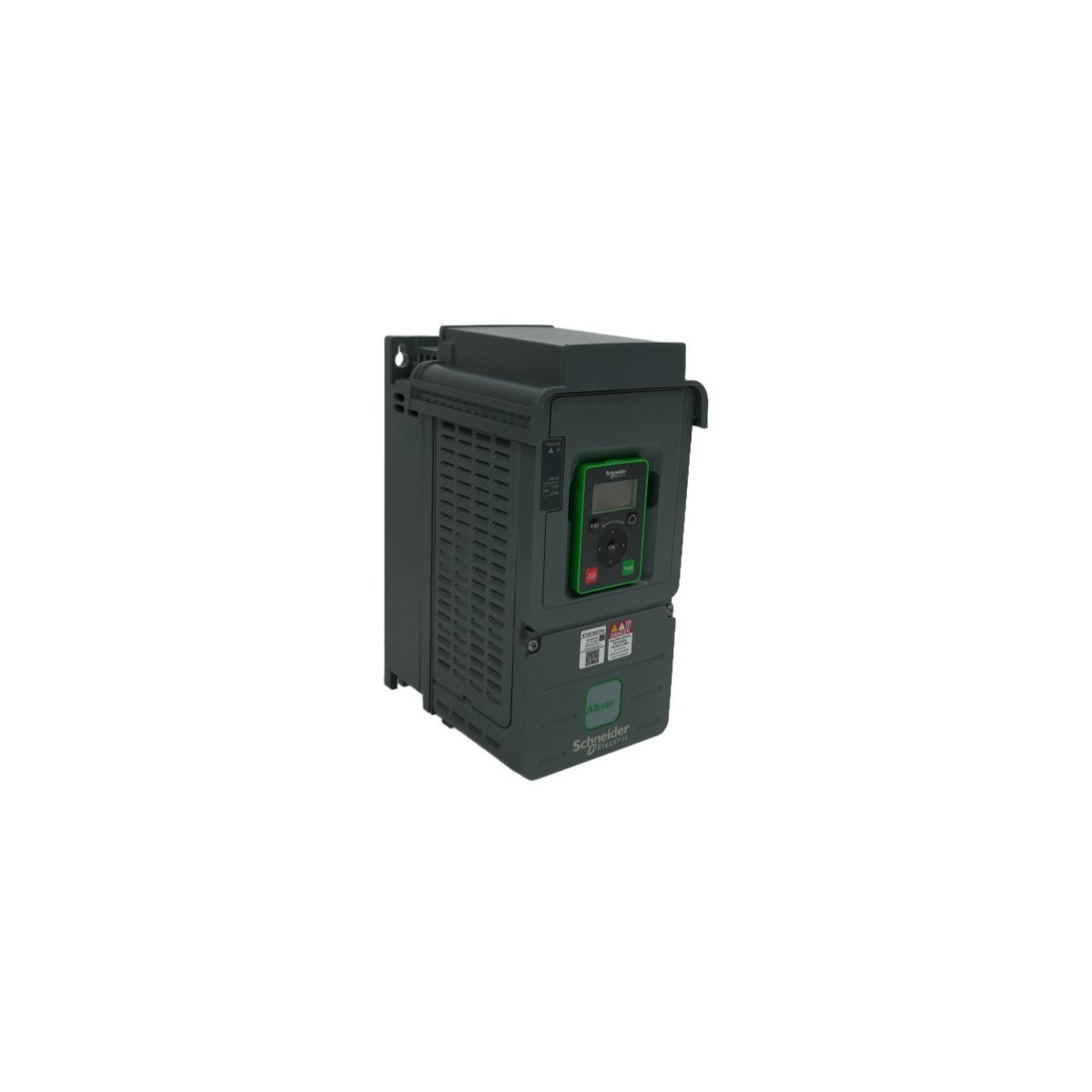

The Schneider Electric ATV630C16N4 represents a high-capacity solution within the Altivar Process ATV600 family. This drive specializes in fluid management and industrial process optimization. It provides precise speed control for three-phase asynchronous and synchronous motors. With a power rating of 160 kW, this unit handles heavy-duty industrial demands. The drive ensures high operational efficiency across diverse infrastructure projects.

Advanced Energy and Asset Management

This variable speed drive incorporates proprietary energy-saving technology to reduce operational expenses. The innovative “Stop and Go” function minimizes power consumption during inactive standby periods. Furthermore, the system provides real-time monitoring of pump performance and energy usage. Integrated web servers allow for remote diagnostics and predictive maintenance scheduling. Consequently, users can extend equipment life cycles while decreasing the total cost of ownership. The drive also supports various I/O expansion modules and communication fieldbus options.

Installation and Mechanical Design

The ATV630C16N4 features a robust floor-standing or wall-mounting design for versatile placement. It operates effectively in ambient temperatures up to 50°C without significant performance loss. Integrated EMC filters reduce electromagnetic noise in sensitive industrial environments. Additionally, the unit provides comprehensive motor protection against overloads and short circuits. These safeguards maintain system stability during fluctuating power conditions. Operators can easily configure the drive using the high-resolution graphic display terminal.

Core Technical Specifications
