Description

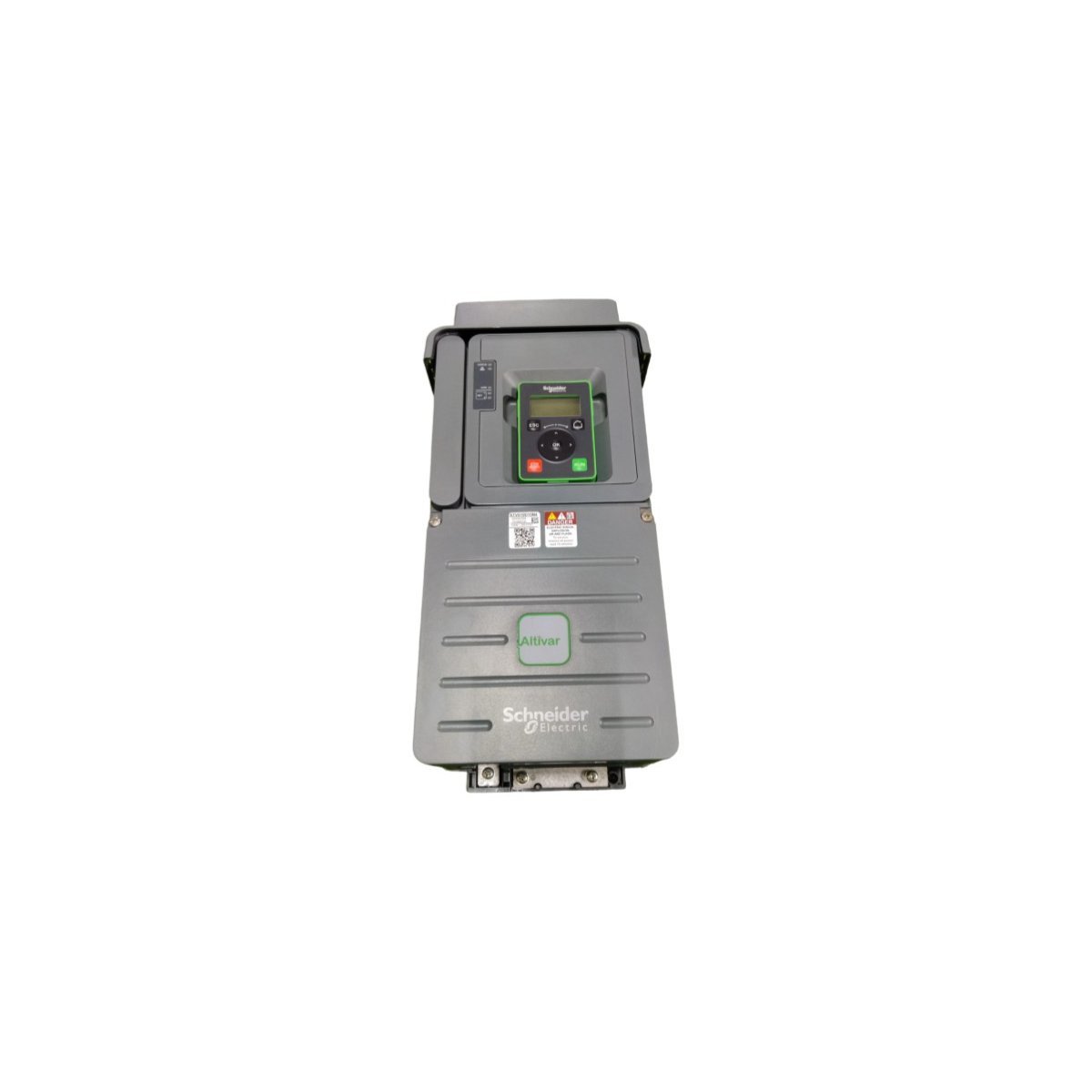

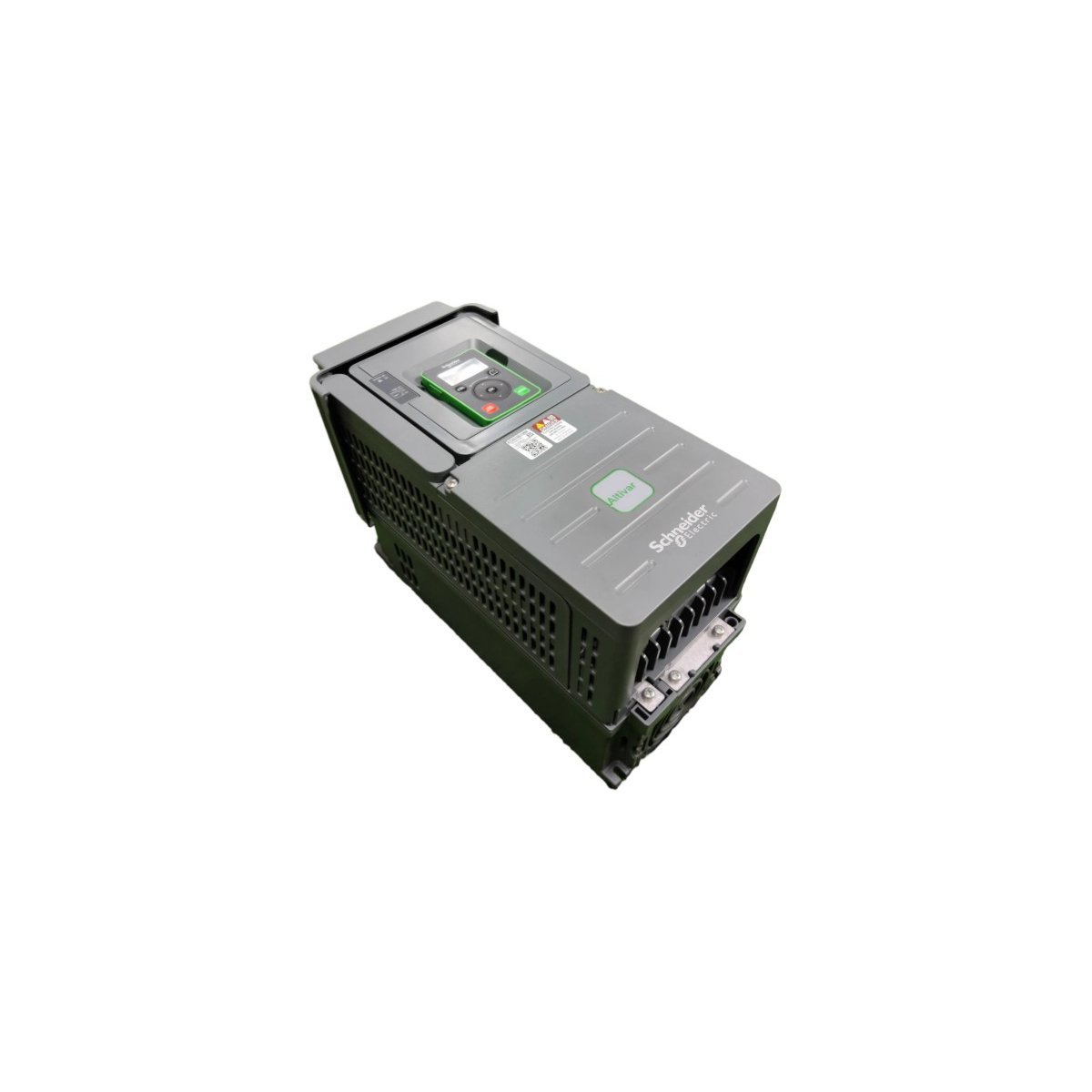

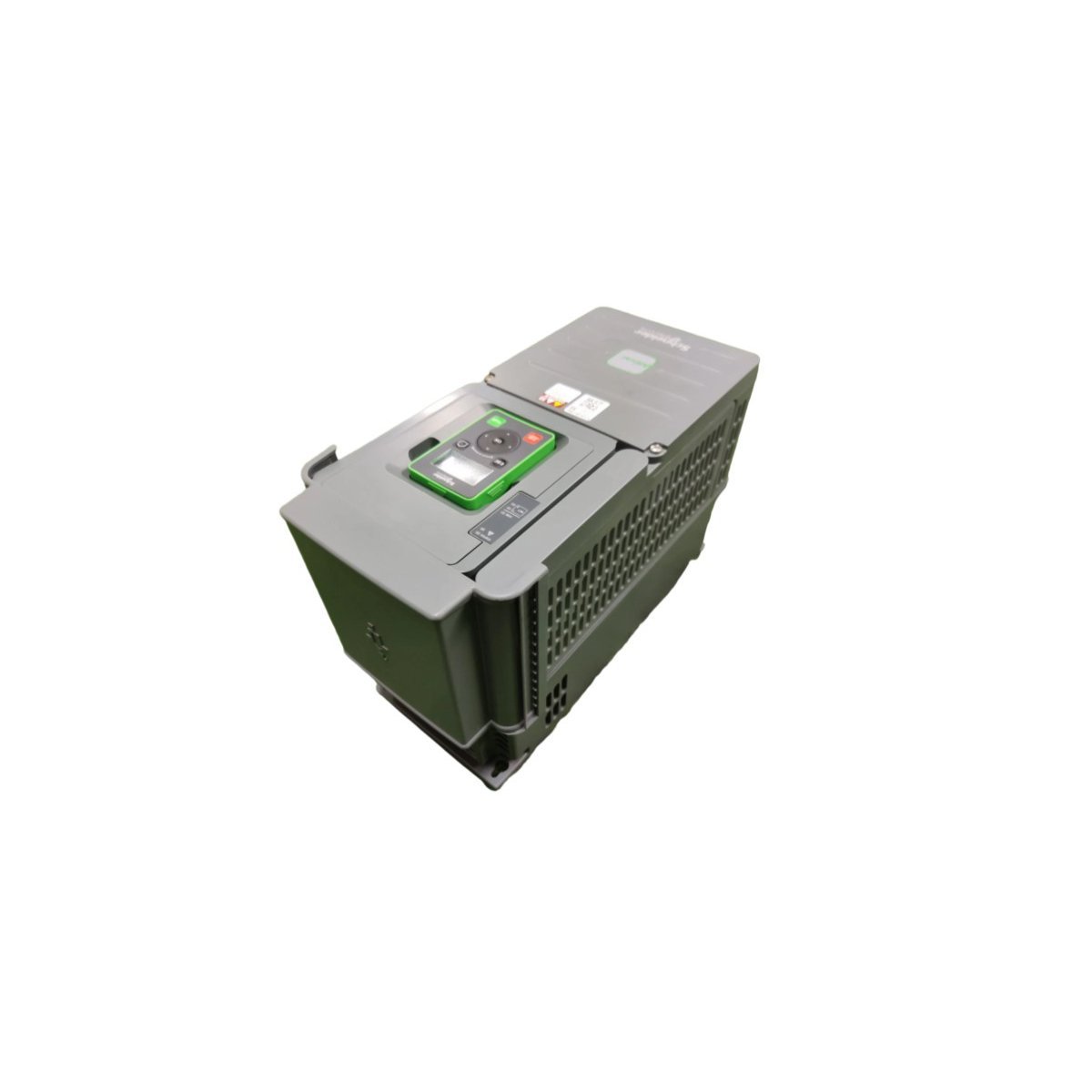

The Schneider Electric ATV610D15N4 provides reliable speed regulation for three-phase asynchronous motors. This 15 kW (20 hp) inverter belongs to the specialized Easy Altivar 610 product range. It operates effectively within a voltage spectrum of 380V to 460V AC. Because it features factory-preset parameters, the unit supports immediate plug-and-play installation. This design choice significantly reduces commissioning time for field engineers. Furthermore, the drive balances high-performance output with a user-friendly interface. It serves as an essential component for modern industrial energy management.

Key Technical Specifications

• Brand: Schneider Electric
• Model Number: ATV610D15N4
• Product Type: Variable Speed Drive (VFD)
• Motor Power: 15 kW (Normal Duty) / 11 kW (Heavy Duty)
• Supply Voltage: 380V to 460V AC (Three-Phase)
• Continuous Output Current: 33 A at 4 kHz
• Maximum Transient Current: 36.3 A for 60 seconds
• Overload Capacity: 110% to 120% for 60 seconds
• EMC Filter: Integrated radio interference filter (IEC/EN 61800-3)
• IP Rating: IP20 protection for indoor environments
• Dimensions: 171mm (W) x 360mm (H) x 233mm (D)
• Net Weight: 7.2 kg

Performance and Protection Capabilities

This frequency inverter maximizes efficiency in centrifugal pump and fan applications. Advanced algorithms minimize power loss by adapting to real-time load requirements. Additionally, the integrated EMC filter ensures compliance with strict electromagnetic compatibility standards. The hardware handles transient current spikes to protect connected equipment from electrical stress. Robust internal diagnostics monitor for short circuits, phase loss, and thermal overloads. Consequently, these safeguards extend the operational life of the entire drive system. The compact frame also enables high-density mounting within standard electrical cabinets.

Application and Integration Versatility

The ATV610D15N4 excels in the water, wastewater, and oil and gas industries. It manages building management systems and complex HVAC installations with consistent precision. Because the drive supports standard communication protocols, it integrates seamlessly into PLC-based architectures. Modbus RTU connectivity comes standard to allow for remote monitoring and data logging. Moreover, the durable French-engineered construction withstands demanding industrial vibrations. This drive represents a cost-effective solution for facilities prioritizing operational simplicity. It maintains the high manufacturing standards synonymous with the Schneider Electric brand.
