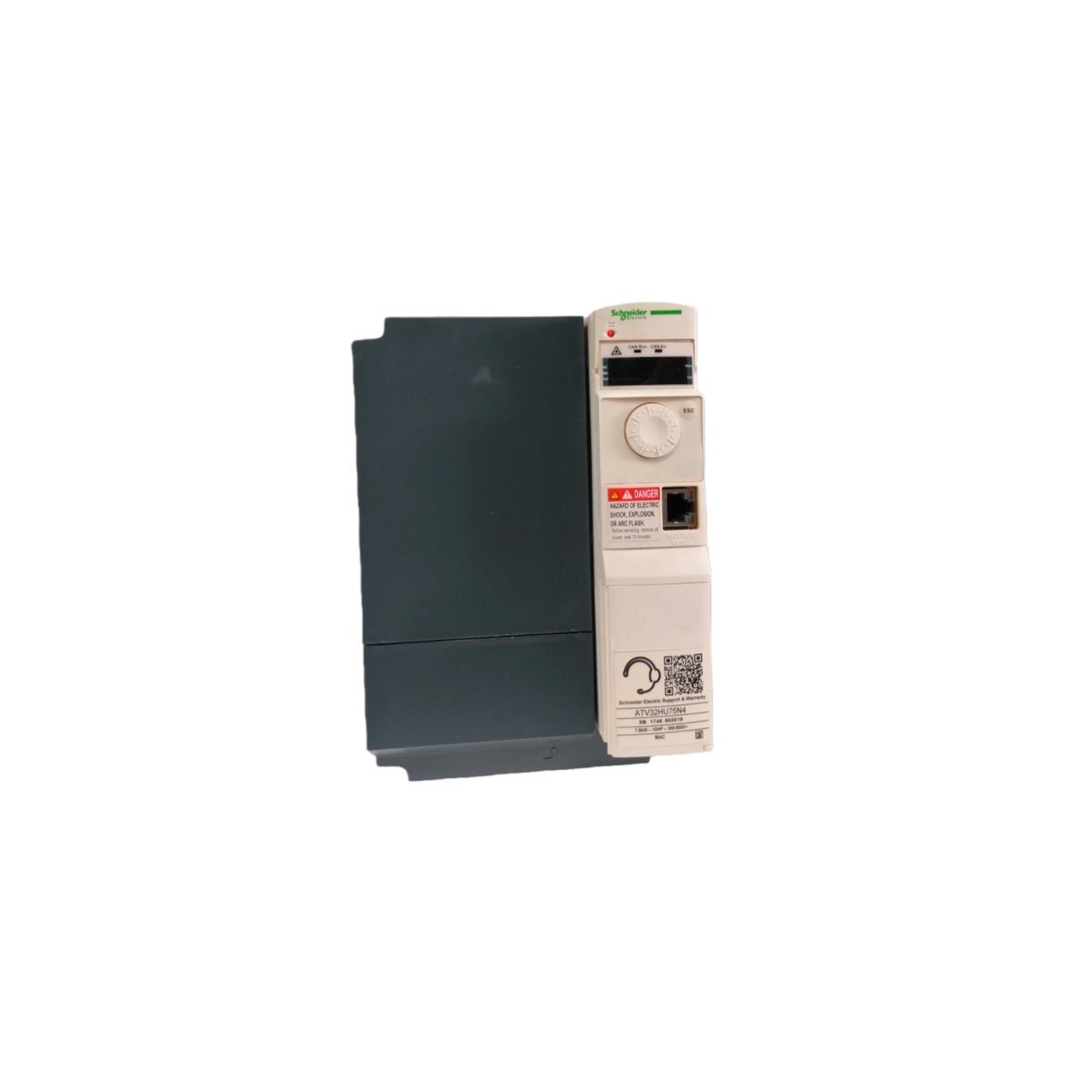

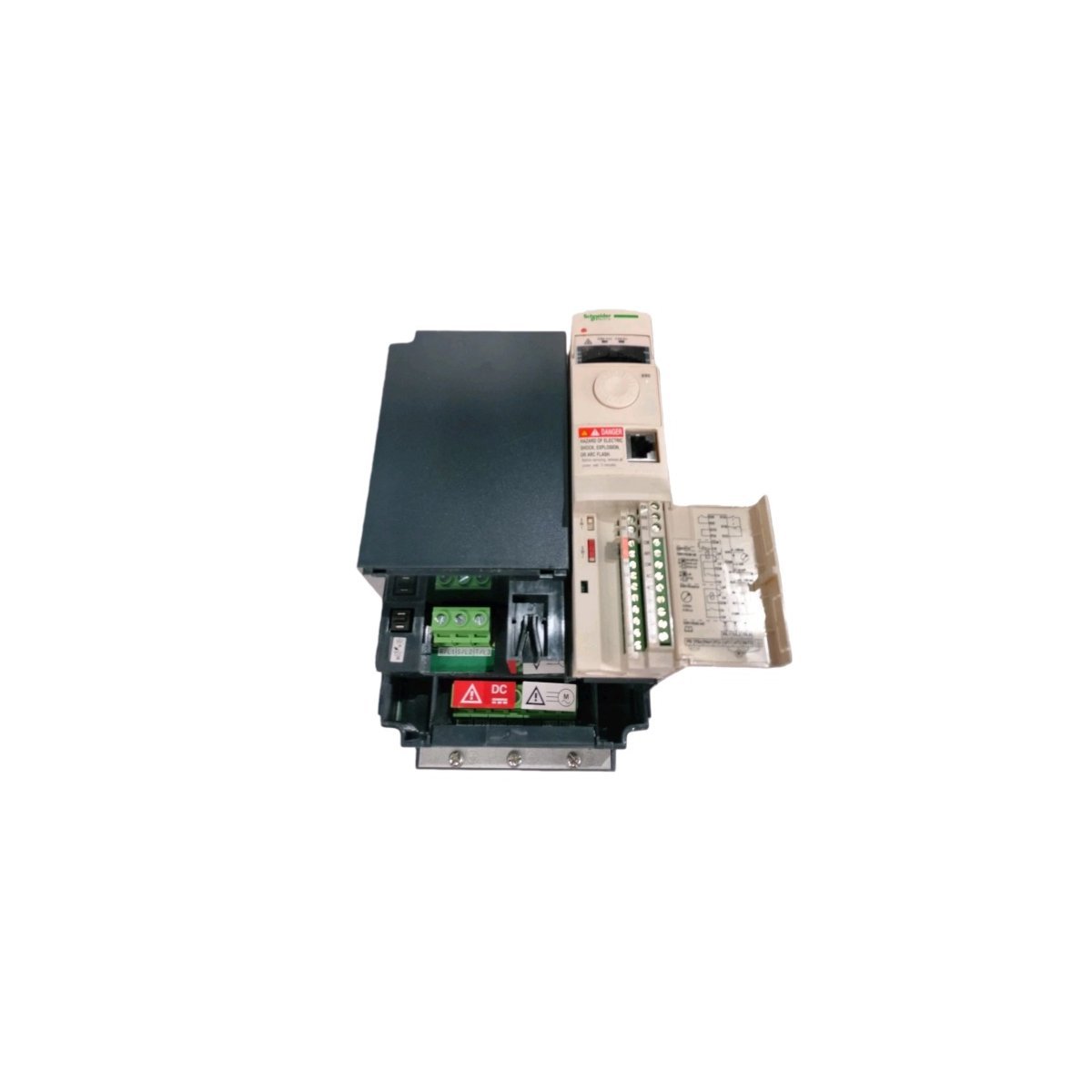

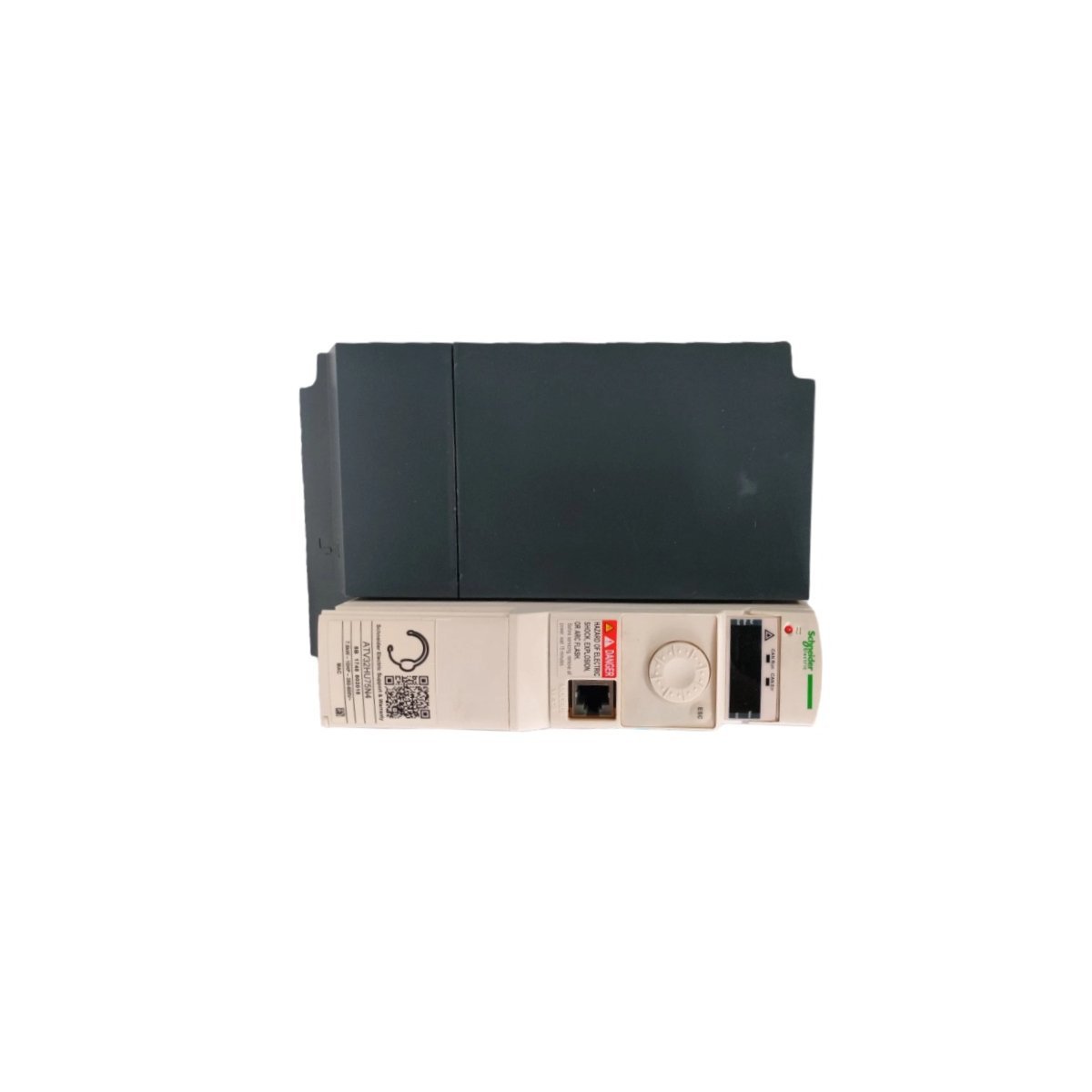

Schneider ATV32HU75N4 Variable Speed Drive
The Schneider Electric ATV32HU75N4 is a 7.5kW (10 HP) three-phase variable speed drive. It provides high-performance control for asynchronous and synchronous motors. This Altivar 32 series unit offers integrated safety functions and compact dimensions for industrial automation.
Description
The Schneider Electric ATV32HU75N4 belongs to the high-performance Altivar 32 range. Engineers designed this drive to control three-phase asynchronous and synchronous motors. It delivers 7.5 kW of power for demanding industrial machinery. The slim book-style format saves significant panel space during installation. This unit supports advanced motor control for IE2, IE3, and Permanent Magnet types.
Key Technical Specifications
| Feature | Specification |
| Brand | Schneider Electric |
| Model Number | ATV32HU75N4 |
| Rated Power | 7.5 kW (10 HP) |
| Supply Voltage | 380…500 V AC (Three Phase) |
| Output Current | 17 A continuous at 4 kHz |
| Maximum Transient Current | 25.5 A for 60 seconds |
| Switching Frequency | 2…16 kHz adjustable |
| Communication Protocols | Modbus, CANopen (standard) |
| Safety Functions | STO, SLS, SS1, SMS, GDL |
| Protection Rating | IP20 |
Functional Capabilities and Motor Control
This variable speed drive utilizes sophisticated algorithms to optimize energy consumption. It provides precise torque control across various speed ranges. Integrated safety features eliminate the need for several external components. The drive manages high-inertia loads and fast cyclic movements with ease. Users can program specific logic functions via integrated control blocks.
Industrial Applications
- Material handling systems and conveyors
- Packaging machinery and wrapping equipment
- Complex textile and woodworking machines
- Pumping and ventilation systems requiring high torque
- Hoisting and small crane applications
Installation and Environment
The ATV32HU75N4 features a built-in Class C2 EMC filter. This reduces electromagnetic interference in industrial environments. The drive operates reliably in temperatures up to 50°C without derating. Its vertical mounting capability allows for high-density cabinet layouts. Built-in thermal protection safeguards both the motor and the drive electronics.
Additional information
| Weight | 1.9 kg |
|---|---|
| Country of Origin | France |
| Dimension | 27.9 x 21.6 x 6.3 cm |
