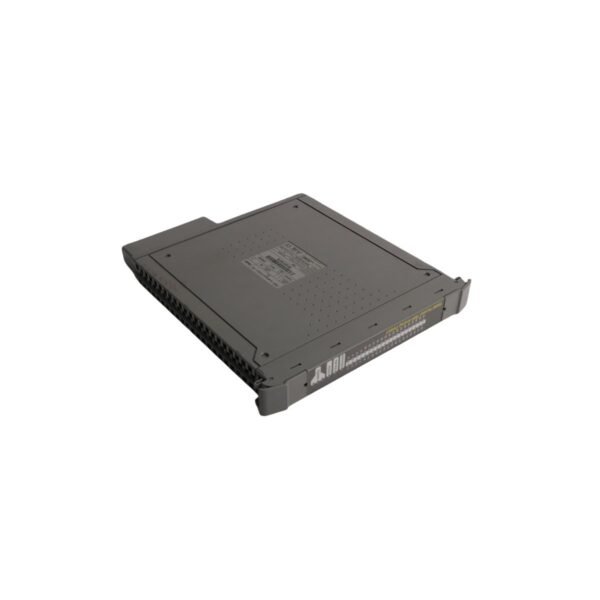

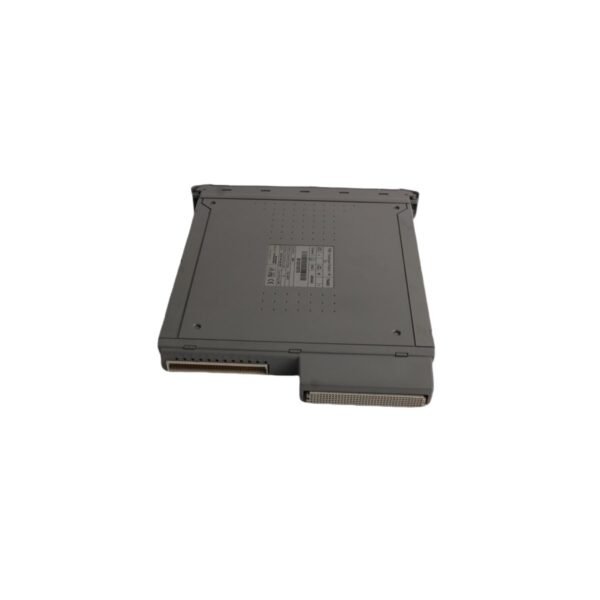

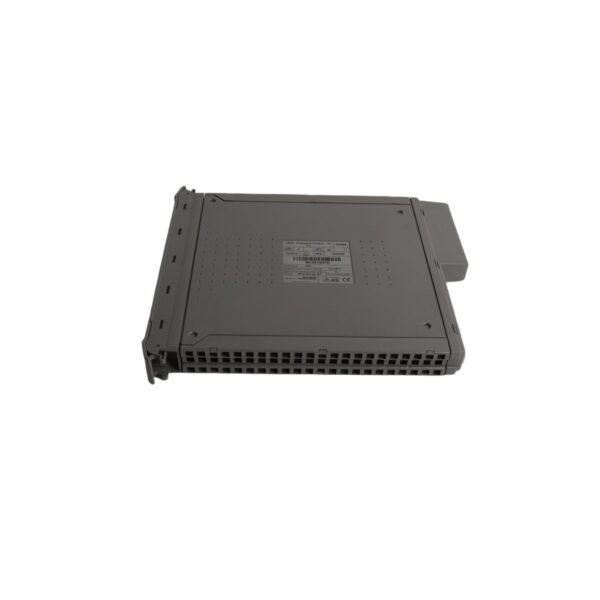

The ICS Triplex T8480 is a high-integrity Analog Output Module designed for the Trusted TMR system, delivering precise and fault-tolerant control for critical industrial actuators. It ensures maximum process safety by utilizing a Triple Modular Redundant architecture to eliminate single points of failure in hazardous environments.

​High-Availability Process Control Architecture

The ICS Triplex T8480 serves as a primary interface for controlling analog field devices in high-stakes industrial applications. By employing Triple Modular Redundant (TMR) technology, the module ensures that every output signal undergoes internal 2-out-of-3 (2oo3) voting. This mechanism allows the system to identify and isolate internal hardware faults without disrupting the output to the field. Consequently, industries such as oil and gas, chemical processing, and power generation rely on this module to maintain continuous control of valves, dampers, and speed governors even during component failures.

Advanced Diagnostic Capabilities and Safety

Safety remains the core objective of the T8480 module. It incorporates comprehensive onboard diagnostics that continuously monitor the health of the internal circuitry and the integrity of the connected field wiring. The module identifies open-loop or short-circuit conditions immediately, alerting operators to maintenance needs before they escalate into process shutdowns. Furthermore, the unit supports 2500V galvanic isolation, which protects the sensitive Trusted system bus from electrical noise and high-voltage surges originating in the field.

Rugged Design and Ease of Maintenance

Engineered for the most demanding environments, the T8480 maintains peak performance in temperatures ranging from high-ambient heat to freezing unconditioned spaces. Its modular design supports “hot-swap” functionality, enabling technicians to replace the module during active system operation without losing control over the process. Moreover, the standardized Trusted form factor ensures that the module fits securely into the chassis with mechanical keying to prevent incorrect insertion. This combination of durability and accessibility significantly reduces the Mean Time to Repair (MTTR) and optimizes long-term lifecycle costs.

Key Technical Characteristics

• Triple Modular Redundancy (TMR): Provides fail-operational performance through hardware voting.
• High-Density Output: Supports multiple independent channels for complex actuator control.
• Integrated Diagnostics: Offers real-time feedback on channel status and loop integrity.
• Industrial Hardening: Resists extreme vibration, electromagnetic interference, and corrosive atmospheres.
• Hot-Swappable Module: Facilitates live hardware replacement to ensure zero process downtime.
• SIL 3 Certified: Meets international safety standards for Safety Instrumented Systems (SIS).
