Description

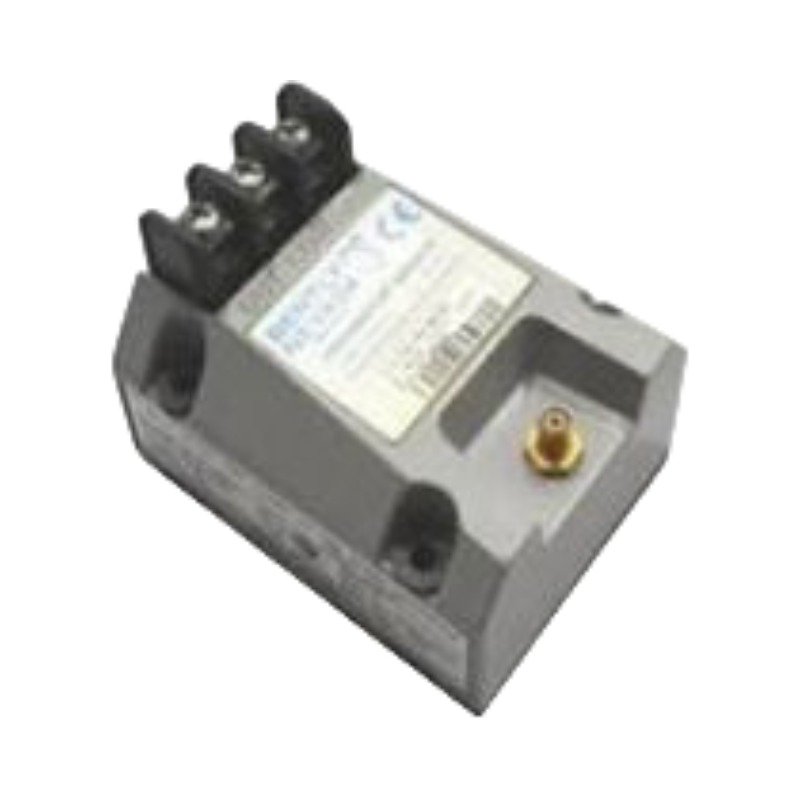

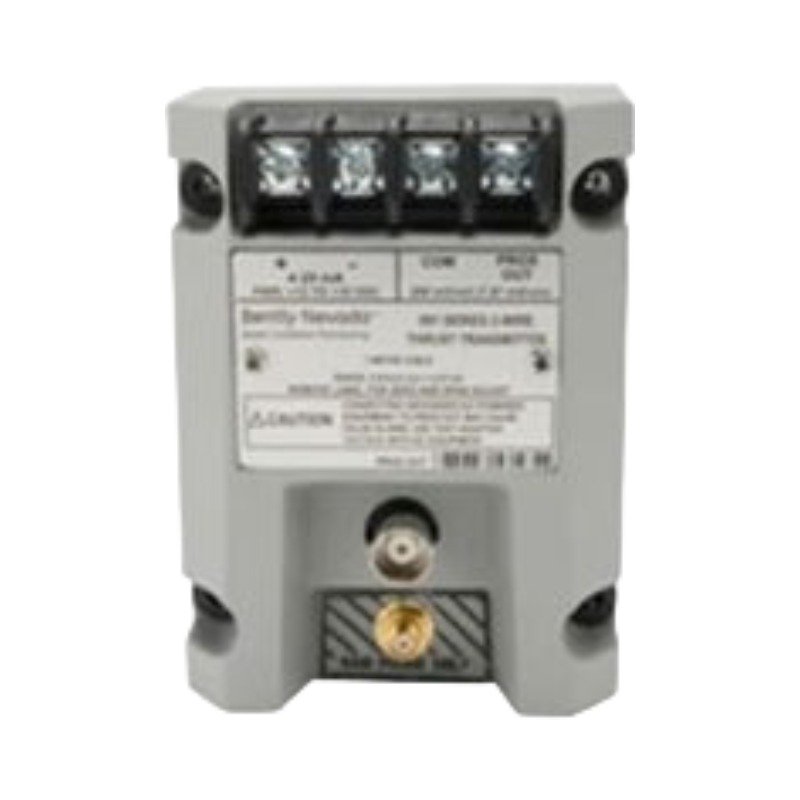

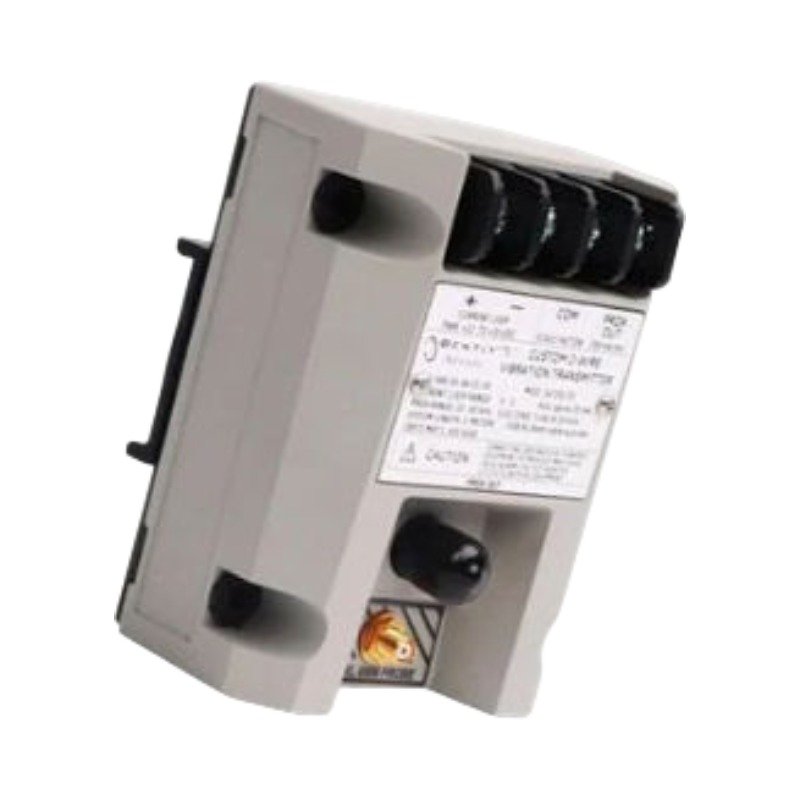

The Bently Nevada P3403893-0351, also cataloged as the P3403893 Vibration Transmitter, operates as a dedicated hardware component for converting mechanical oscillations into electrical signals within plant control and asset management platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal electronic interface maintains consistent validation protocols to match specialized eddy-current probe scaling configurations. It processes dynamic voltage shifts from proximity sensor loops, translating raw gap changes into proportional current loops while executing cross-talk suppression to isolate parallel channel interferences. The integrated signal tracking facilitates stable calibration over high-velocity rotor dynamics spectrums without introducing baseline phase delay.

Frequently Asked Questions

Q: What is the behavior of the loop current when a sensor fault or Not OK condition occurs?

A: Upon validation of a Not OK condition, the internal circuit executes a signal defeat that forces the loop current down to less than 3.6 mA within 100 microseconds to alert the supervisory system.

Q: What are the interface limits for the direct proximity sensor monitor connection?

A: The transmitter accepts input from one non-contacting proximity probe and extension cable assembly, presenting an output impedance of 10 kohms at the dedicated coaxial buffer connection.

Field Installation Guidelines

Mount the transmitter housing securely onto a stable bulkhead or standard DIN rail bracket within a weather-resistant enclosure. Route the 4-20 mA loop signal wire inside grounded steel conduit, ensuring absolute physical separation from any concurrent AC power distribution runs to prevent electromagnetic coupling. Maintain a precise proximity sensor probe gap between 0.5 mm and 1.75 mm relative to the target shaft surface during static cold machine conditions. Ground the coaxial cable outer shielding braid at exactly one point to intercept common-mode noise pathways.
