Brief Product Description

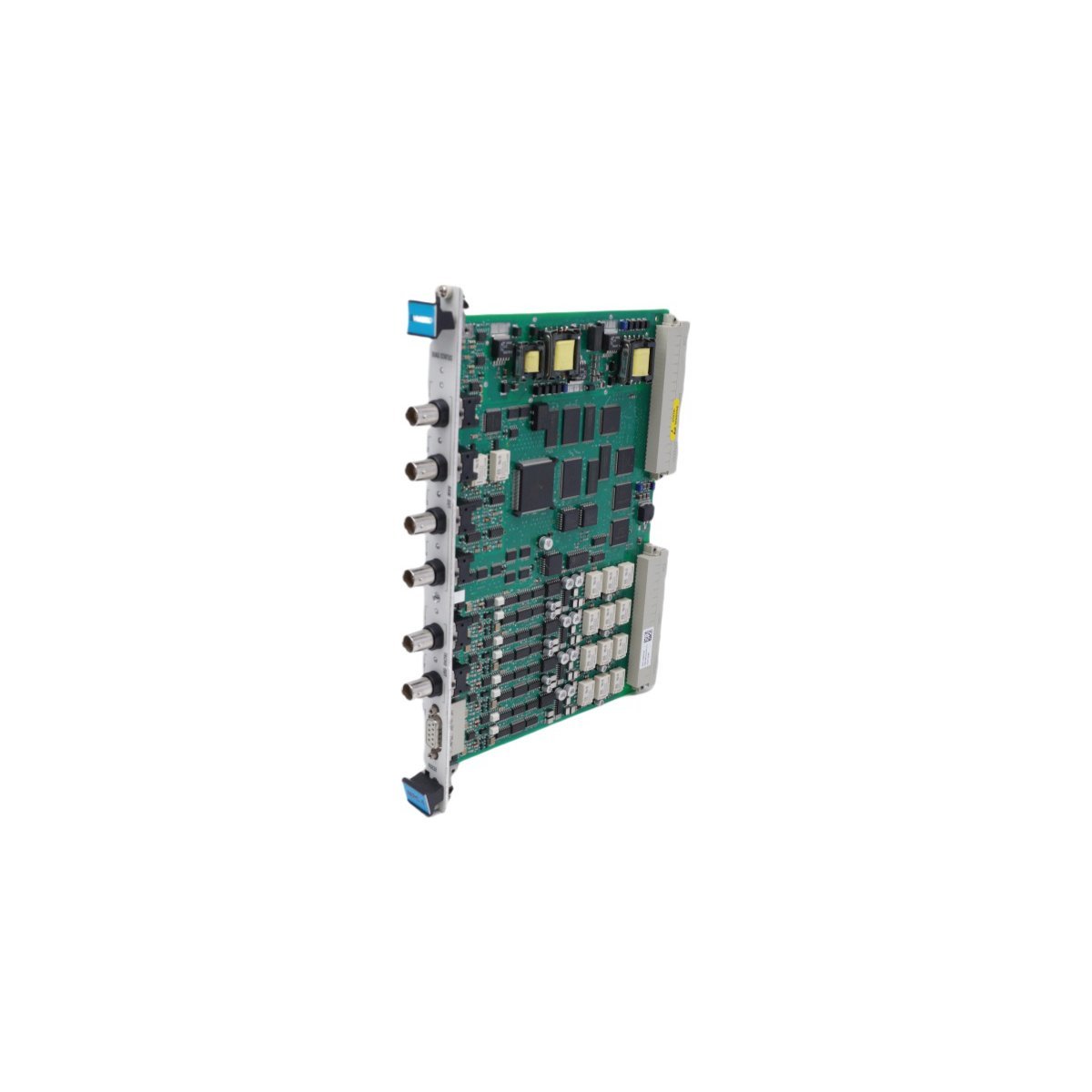

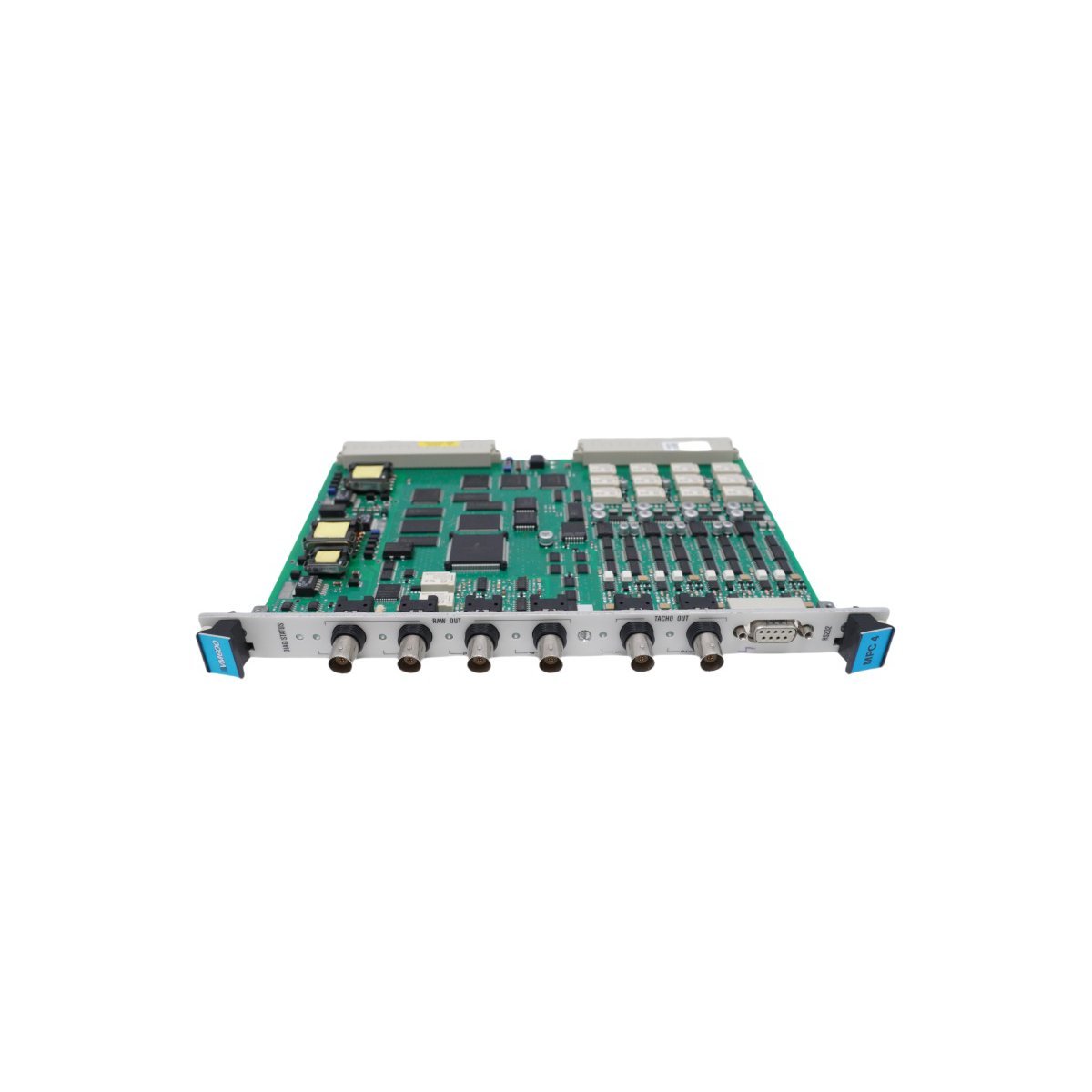

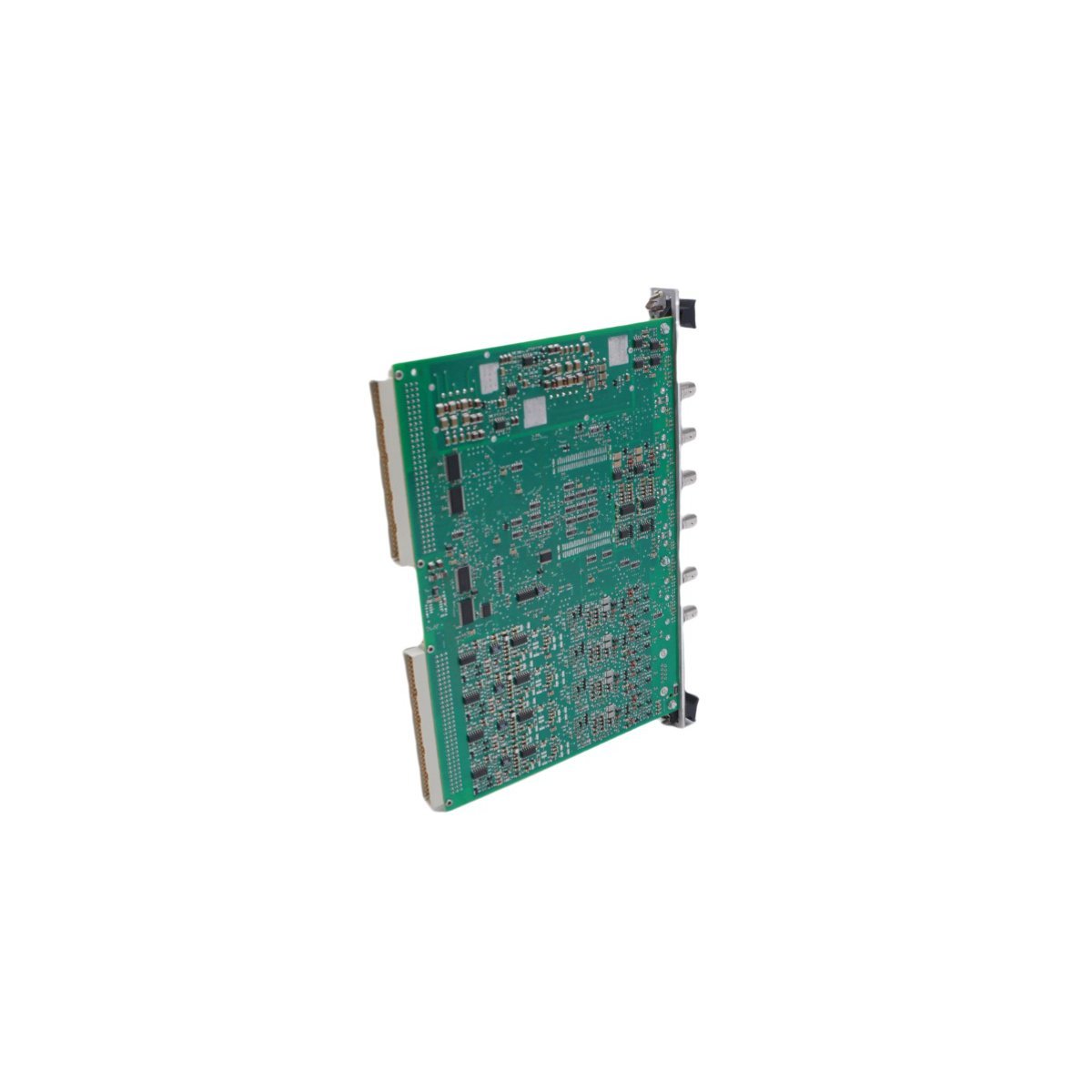

The Vibro-Meter VM600 MPC4 (200-510-070-113) is a high-performance machinery protection card that provides real-time monitoring of vibration, speed, and dynamic pressure.¹ It serves as the primary safety interface for rotating machinery, utilizing four dynamic and two speed channels to prevent catastrophic equipment failure.²

Advanced Dynamic Signal Surveillance

The Vibro-Meter VM600 MPC4 200-510-070-113 functions as the core processing unit for the VM600 rack-based protection system.³ This module monitors up to four dynamic signal inputs and two tachometer speed inputs simultaneously, providing a comprehensive view of machinery health. By supporting various sensor types—including accelerometers, velocity probes, and proximity sensors—the card effectively tracks parameters such as shaft vibration, casing expansion, thrust position, and eccentricity.⁴ Consequently, this multi-channel capability allows operators to protect complex turbines, compressors, and large pumps from excessive wear or sudden breakdown.

Sophisticated Signal Processing and Analysis

Beyond simple monitoring, the 200-510-070-113 MPC4 card utilizes onboard digital signal processing to extract precise diagnostic data.⁵ The module performs advanced mathematical operations, including signal integration, differentiation, and rectification to provide RMS, peak-to-peak, and true peak measurements.⁶ Furthermore, it incorporates order tracking and frequency filtering to isolate specific mechanical issues. Because the card handles all processing locally, it ensures an immediate response to alarm conditions, maintaining a direct link between raw sensor data and the system’s protective relay logic.

Integrated Alarm Management and Reliability

To ensure maximum plant safety, the VM600 MPC4 implements a rigorous alarm management framework. Operators can configure independent Alert and Danger setpoints that adapt based on the current machine speed or operational state. When a threshold is exceeded, the card communicates with the IOC4T card to trigger local relays or sends signals across the system bus to dedicated RLC16 relay modules. Moreover, the MPC4 prioritizes system integrity through continuous self-testing and a dedicated “OK System” that monitors the entire signal chain. These built-in diagnostics verify the health of the sensors, cables, and the card itself, ensuring that the protection system never fails to act when critical machinery is at risk.

Key Technical Characteristics

• Quad-Channel Monitoring: Captures four dynamic and two speed inputs for full equipment coverage.⁷
• Versatile Input Support: Processes acceleration, velocity, displacement, and dynamic pressure signals.⁸
• High-Resolution Analysis: Provides filtering, order tracking, and sensor gap analysis via digital processing.
• Adaptive Setpoints: Features programmable alarm levels that can scale according to external machine conditions.
• Real-Time Diagnostics: Employs a robust OK system and self-test routines to confirm measurement validity.
• Standardized Outputs: Supplies 4–20 mA or 0–10 V analog signals for seamless integration with external PLC or DCS systems.
