Description

Brief Product Description

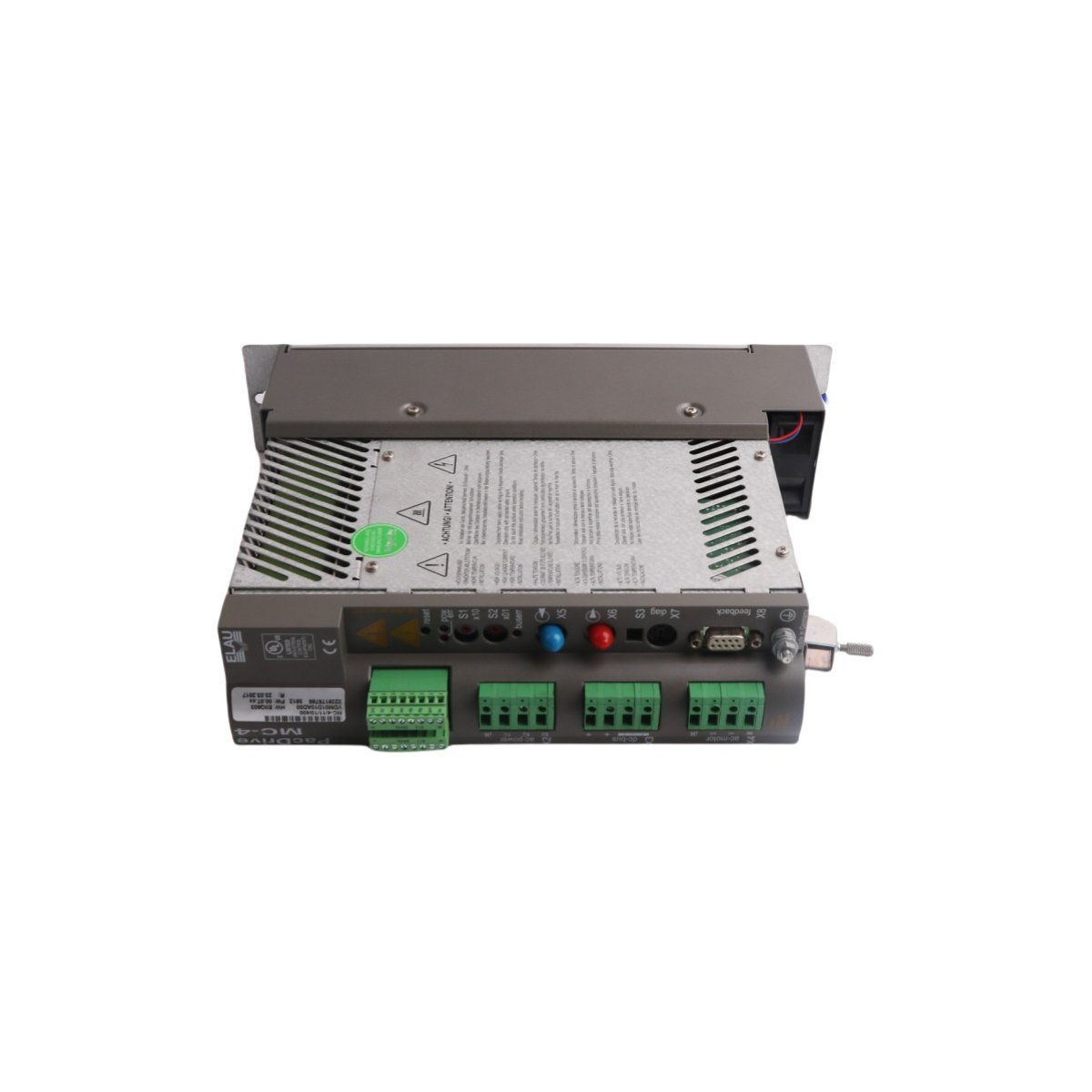

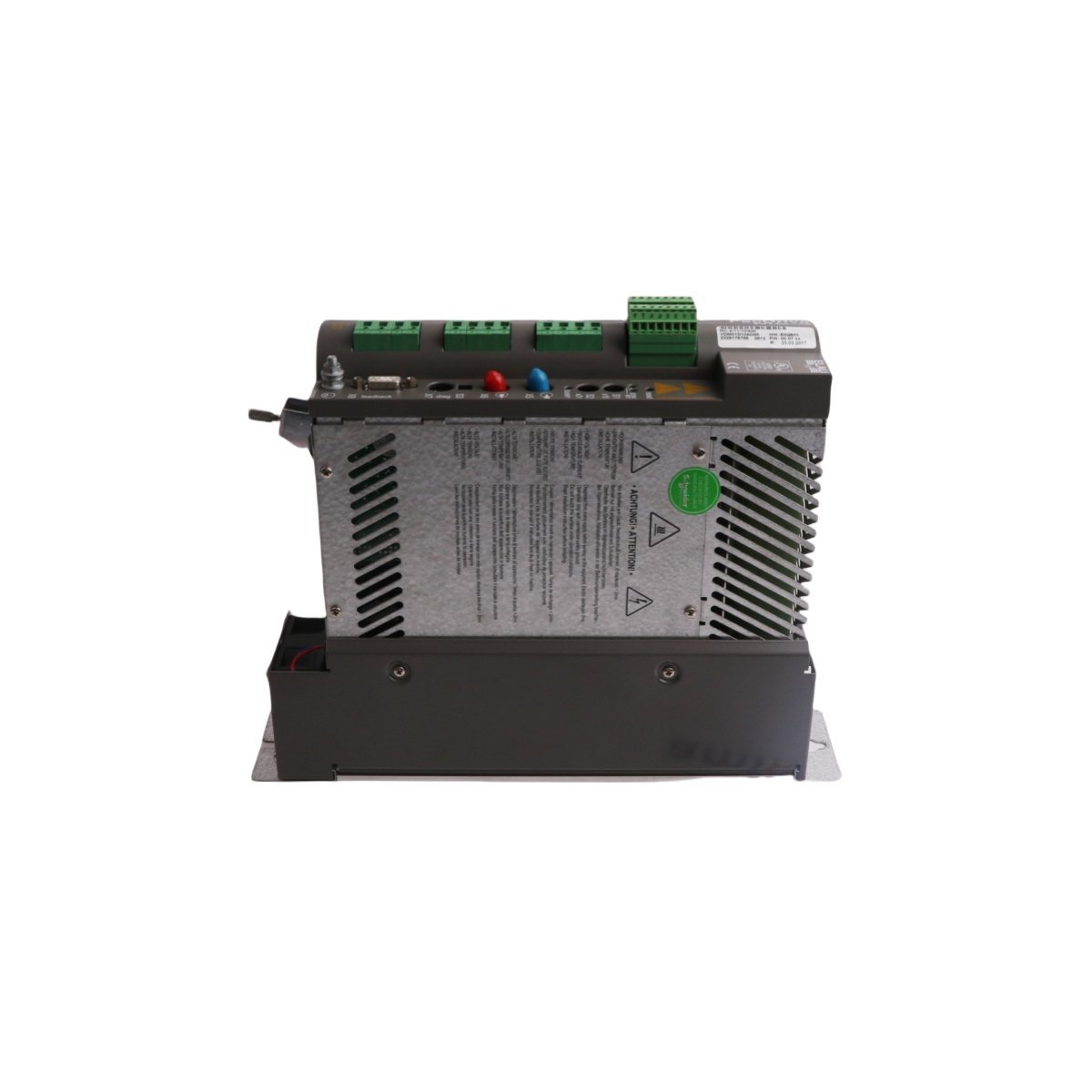

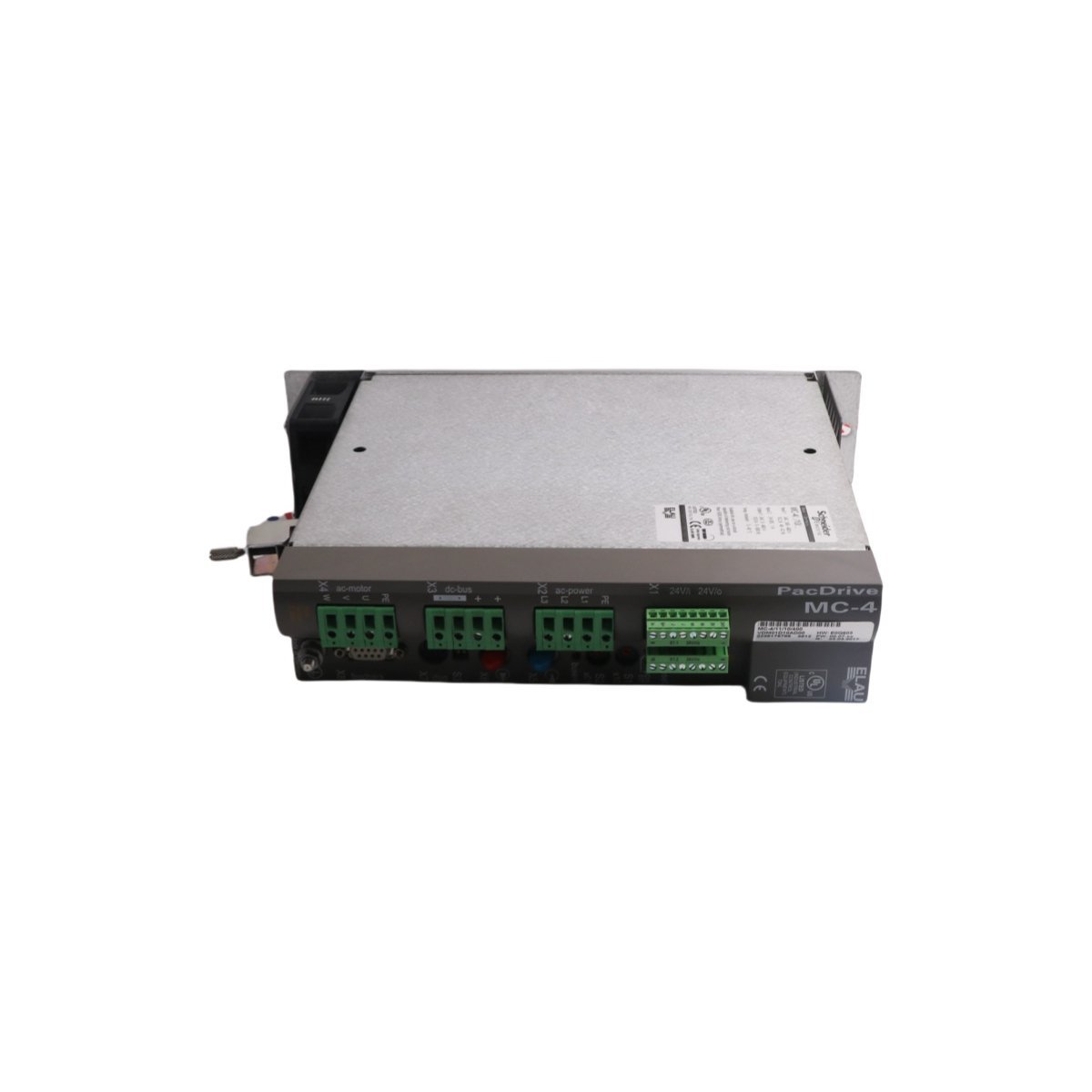

The Schneider Electric MC-4/11/10/400 is a high-performance AC PacDrive digital servo controller featuring hardware version E0P603 and software version 00.22.03. It provides high-precision motion control and SERCOS interface connectivity for sophisticated packaging and automation machinery.

Product Description

Integrated Motion Control and Communication

The Schneider Electric MC-4/11/10/400 operates as a central intelligence unit within the PacDrive automation architecture. This module executes high-speed motion commands and facilitates critical data exchange between the main controller and the servo motor system. By utilizing the integrated SERCOS interface, the drive maintains 4MBaud optical communication, which effectively eliminates electromagnetic interference during high-speed operations. This robust communication backbone ensures that synchronized multi-axis movements remain precise even in electrically noisy industrial environments.

Performance Optimization and Smart Features

This specific hardware version (E0P603) paired with firmware SW:00.22.03 introduces enhanced diagnostic capabilities and superior power management. The drive supports an impressive 250% overload capacity, allowing it to handle peak torque demands during rapid acceleration phases. Furthermore, the system incorporates automatic motor recognition through an electronic motor nameplate. This feature significantly reduces manual setup errors and commissioning time by automatically configuring the optimal control parameters for the connected servo motor.

Industrial Reliability and Safety Standards

Engineered for global deployment, the MC-4/11/10/400 supports a wide input voltage range from 85V to 264V AC, making it compatible with various regional power grids. Safety remains a priority in its design, as the module includes an “Inverter Enable” input to meet modern industrial safety requirements. Its compact form factor allows for efficient installation in both centralized control cabinets and decentralized machine layouts. Consequently, this drive serves as a reliable solution for high-throughput packaging, bottling, and material handling applications that require maximum uptime and repeatable accuracy.

Technical Specifications
