Description

Brief Product Description

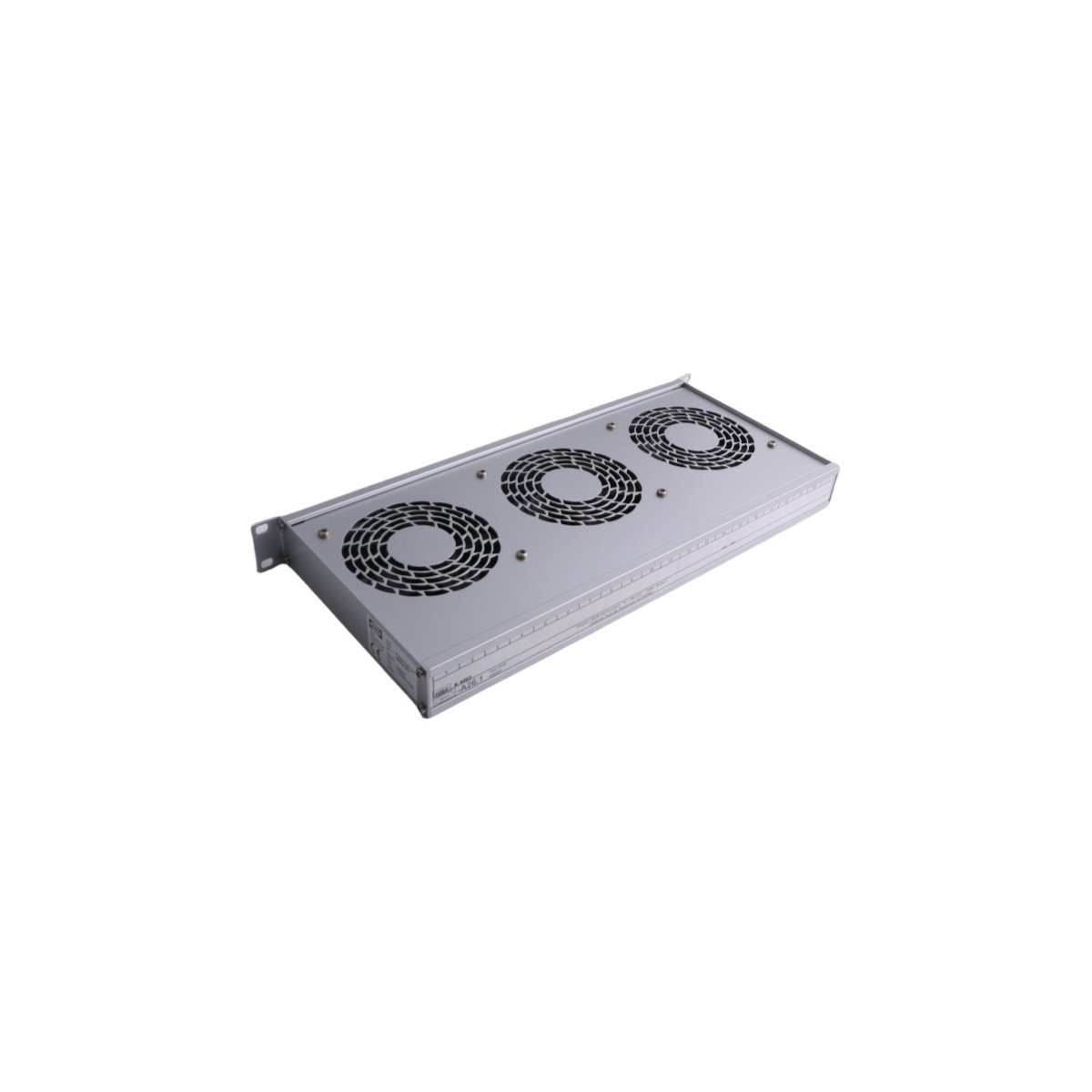

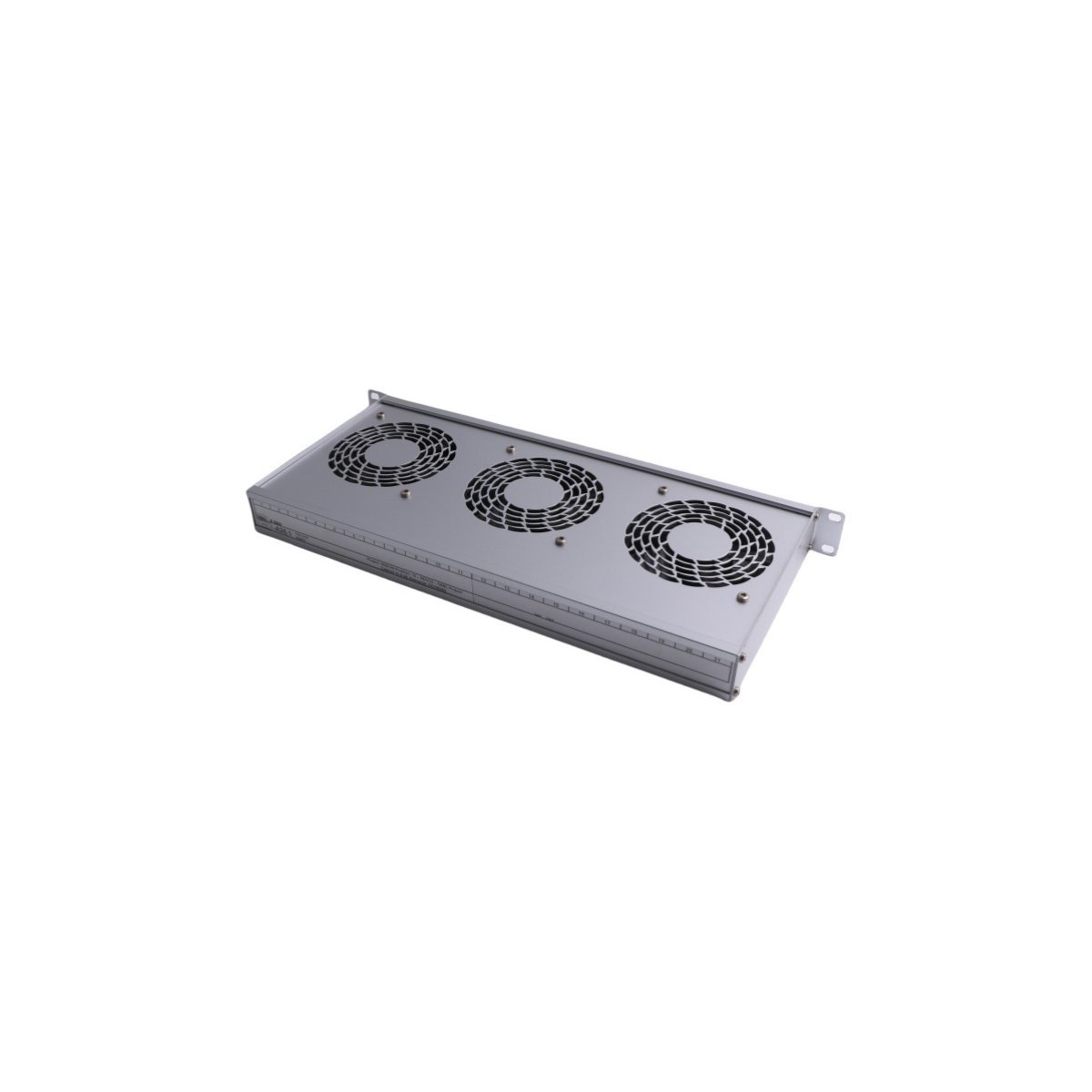

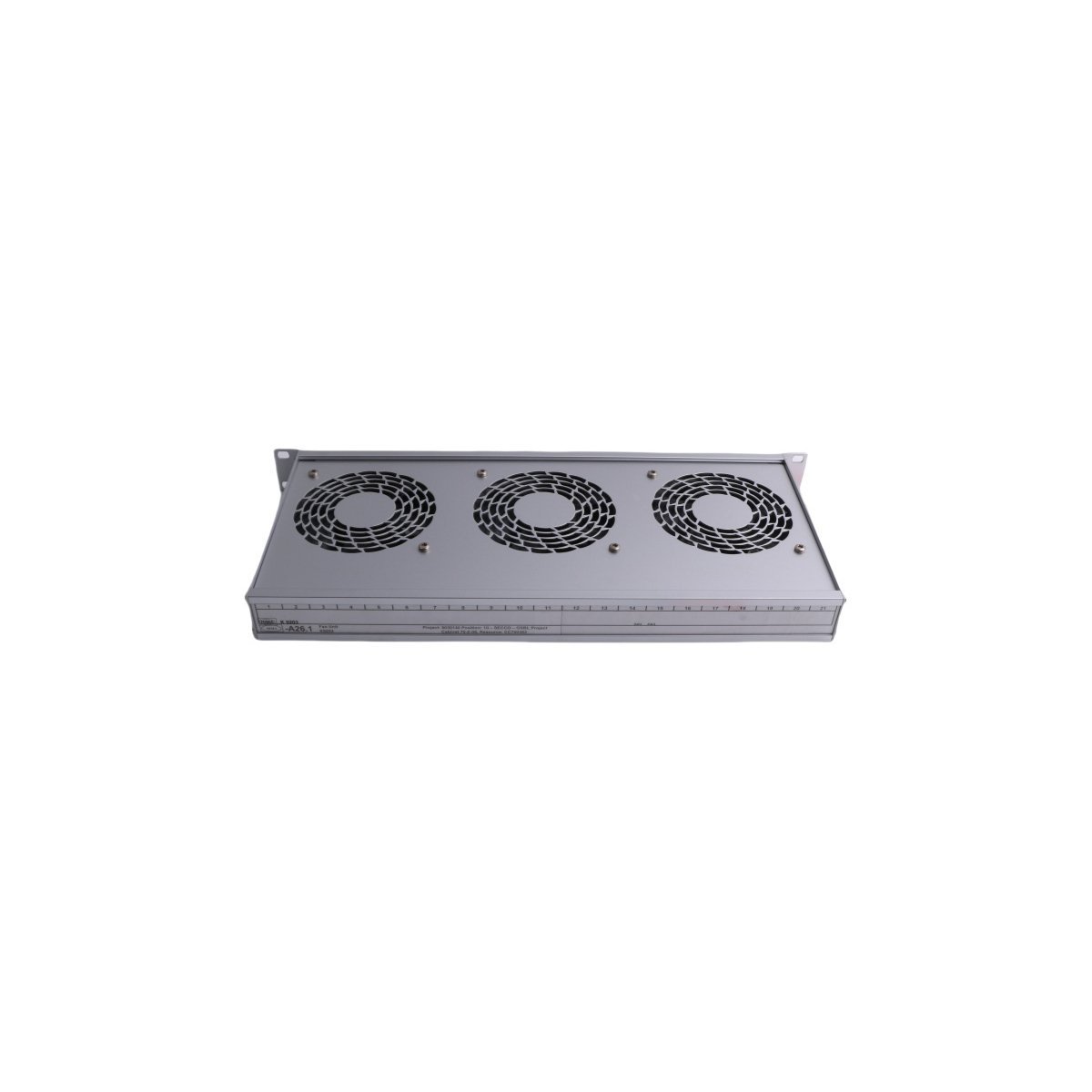

The HIMA K9203 is a high-performance T4 fan module engineered to provide forced-air cooling for HIQuad X safety system racks. It ensures active thermal management for sensitive electronic components, preventing heat-related degradation in mission-critical DCS environments.

Active Thermal Management for Safety Systems

The HIMA K9203 T4 Fan Module acts as the primary cooling solution for HIQuad X system enclosures. By facilitating consistent air circulation, this unit effectively dissipates the heat generated by dense processor and I/O module configurations. Maintaining a stable internal temperature proves vital for safety-instrumented systems, as excessive heat can lead to logic errors or premature hardware failure. Consequently, the K9203 plays a fundamental role in preserving the Safety Integrity Level (SIL) of the overall installation by ensuring that all components operate within their specified thermal parameters.

Industrial-Grade Durability and Reliability

HIMA engineered the K9203 circulation fan drawer to withstand the rigorous demands of industrial automation. The module utilizes high-quality bearings and robust housing materials, which allow it to operate continuously in high-vibration and dust-prone settings. Furthermore, because this module originates from Germany, it adheres to the strictest European manufacturing standards for longevity and performance.¹ This resilience ensures that the cooling loop remains active over long service intervals, significantly reducing the maintenance burden on plant personnel and extending the mean time between failures (MTBF) for the entire control rack.

Intelligent Integration and Monitoring

The K9203 module features a streamlined mechanical design that fits perfectly into standard system racks. Its modular architecture allows maintenance teams to perform rapid installations or replacements, thereby minimizing potential system downtime. Beyond simple air movement, the module supports integration with system diagnostics, allowing for real-time oversight of cooling efficiency. Operators can adjust fan speeds or monitor thermal statuses to optimize energy consumption without compromising hardware safety. This combination of physical toughness and smart functionality makes the K9203 an essential accessory for any high-stakes DCS or PLC deployment.

Key Technical Characteristics

• Forced-Air Circulation: High-volume airflow designed specifically for T4 rack architectures.²
• HIQuad X Compatibility: Seamlessly integrates with HIMA’s high-availability safety systems.
• Precision Speed Control: Allows for adjustable cooling intensity based on real-time thermal loads.
• Rugged Construction: Built to survive the corrosive and hot atmospheres typical of chemical and energy plants.
• Simplified Maintenance: Drawer-style design enables quick access for cleaning or component replacement.
• Safety Compliance: Meets international regulatory standards for industrial cooling equipment.

Technical Specifications
