Description

Brief Product Description

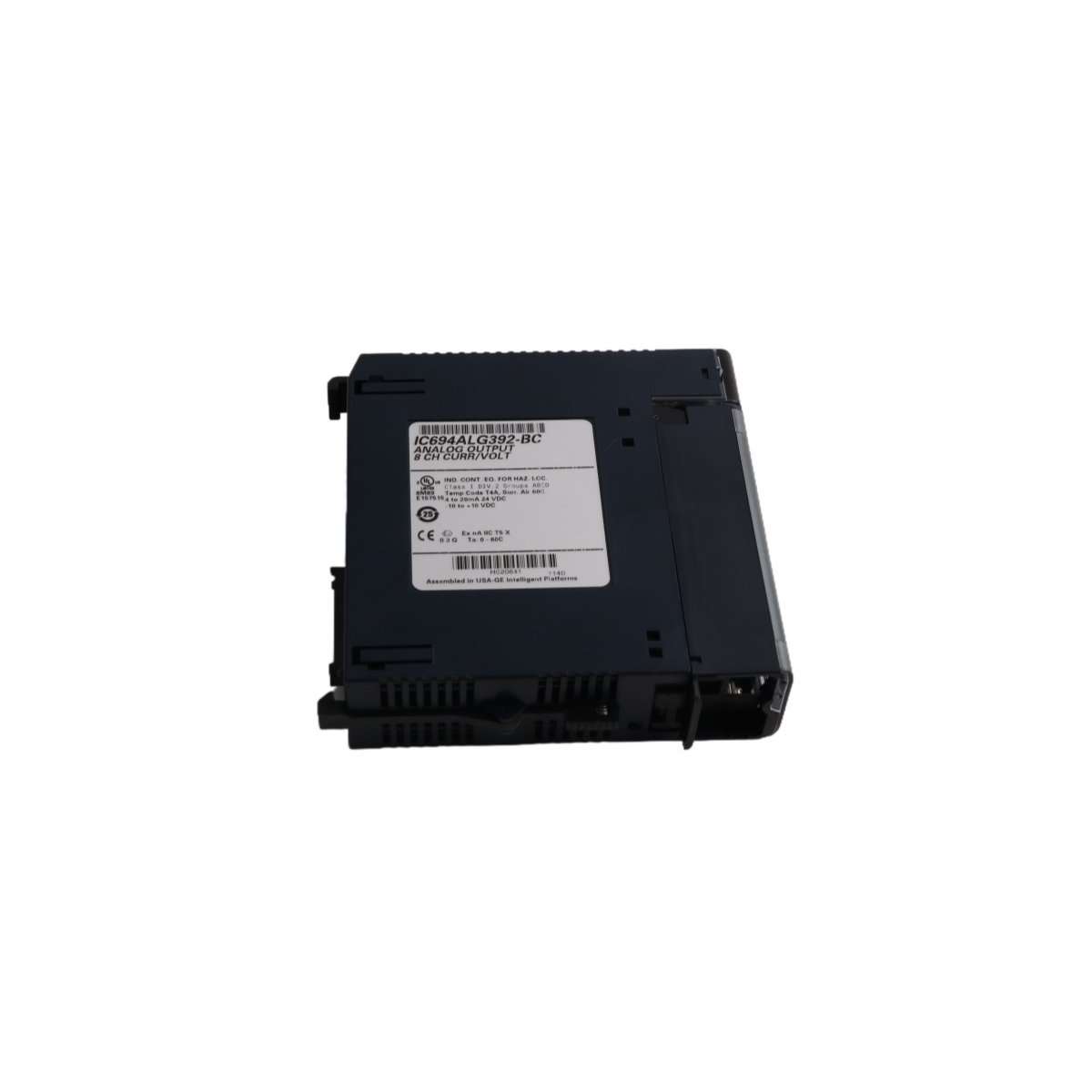

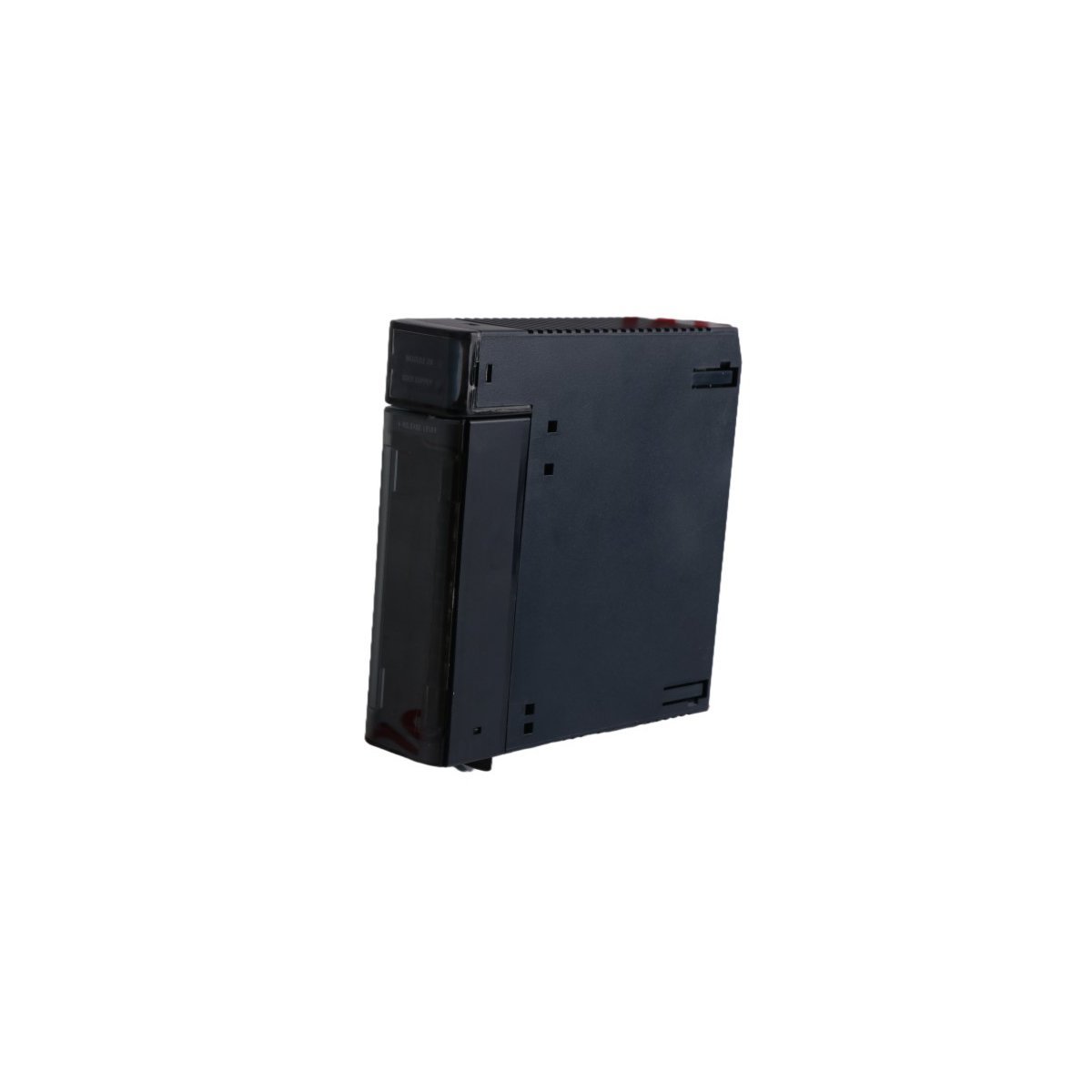

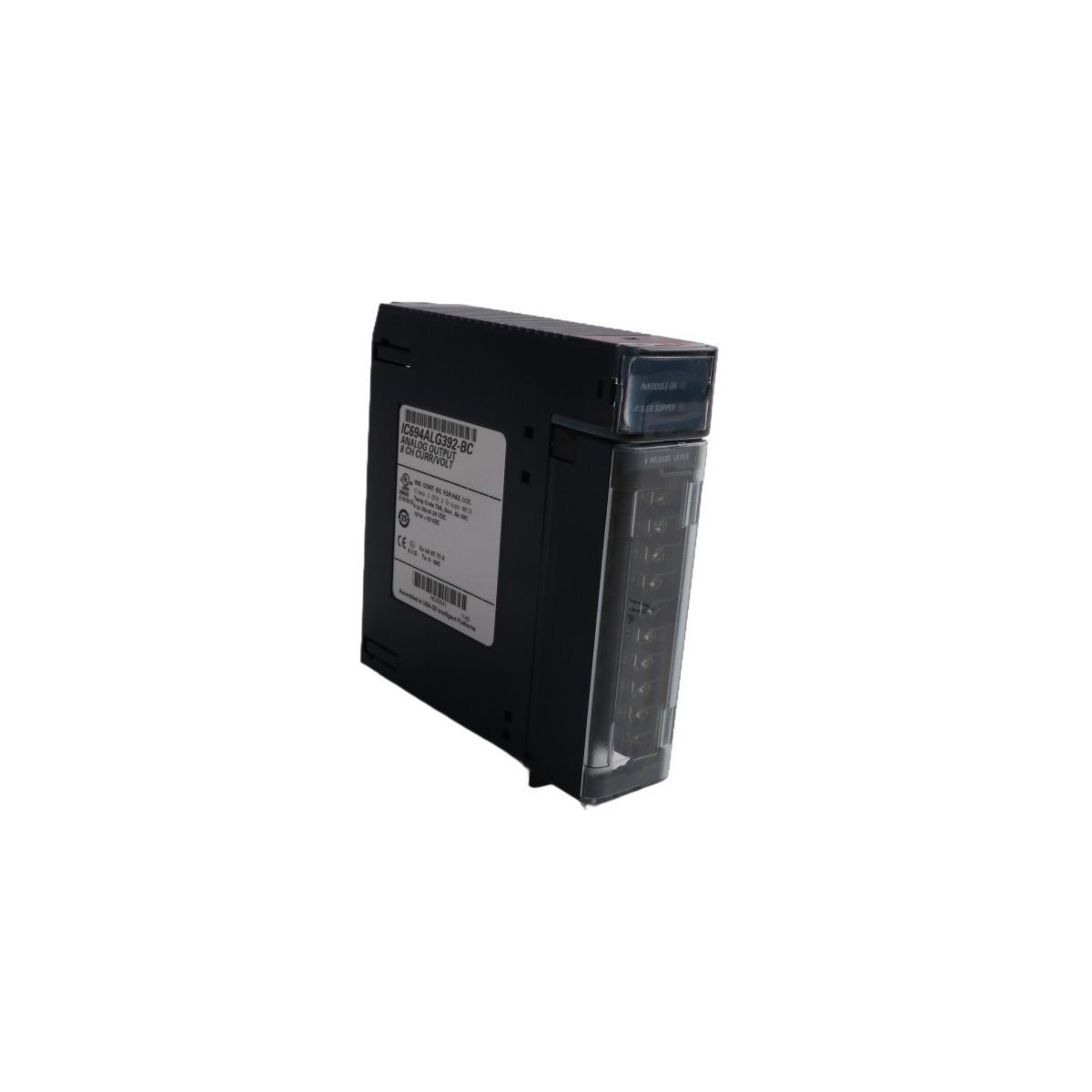

The General Electric IC694ALG392 is a high-resolution 8-channel analog output module designed for the PACSystems RX3i controller platform. It provides precise voltage and current signals to drive industrial actuators, valves, and motor drives with up to 16-bit accuracy.

Product Description

High-Resolution Signal Control

The GE IC694ALG392 provides eight independent channels of analog signal generation, specifically engineered for the PACSystems RX3i architecture. With a maximum resolution of 16 bits, the module ensures exceptionally fine control over field devices. Furthermore, the 8ms update rate across all channels allows the system to respond rapidly to changing process variables, making it an ideal choice for high-speed PID control loops and demanding automation tasks.

Intelligent Diagnostics and Safety

Reliability and system uptime drive the design of the IC694ALG392 module. The hardware features integrated open-wire detection when operating in current modes, which immediately alerts the CPU to field-side wiring failures. Beyond hardware monitoring, the module offers configurable default behaviors; users can program each channel to either hold the last known value or reset to zero during a CPU stop or power interruption. This level of customization prevents erratic machine behavior during system resets. Because the module communicates status data directly to the RX3i CPU, maintenance teams can identify and resolve faults via the programming software without manual testing of every circuit.

Versatile Integration and Power Management

The IC694ALG392 fits into any available universal backplane slot within an RX3i system, offering maximum flexibility for control cabinet layout. While the module draws a small amount of 5V DC logic power from the backplane (110mA), it requires an external 24V DC power supply (typically 20-30V DC) to drive the output loops, consuming approximately 315mA under full load. This dual-power architecture isolates sensitive logic circuits from the higher-energy field-side signals. Transitioning between manual loader and automatic control modes is seamless, allowing the module to interface effectively with data loggers, signal isolators, and various industrial instruments.
