Description

Brief Product Description

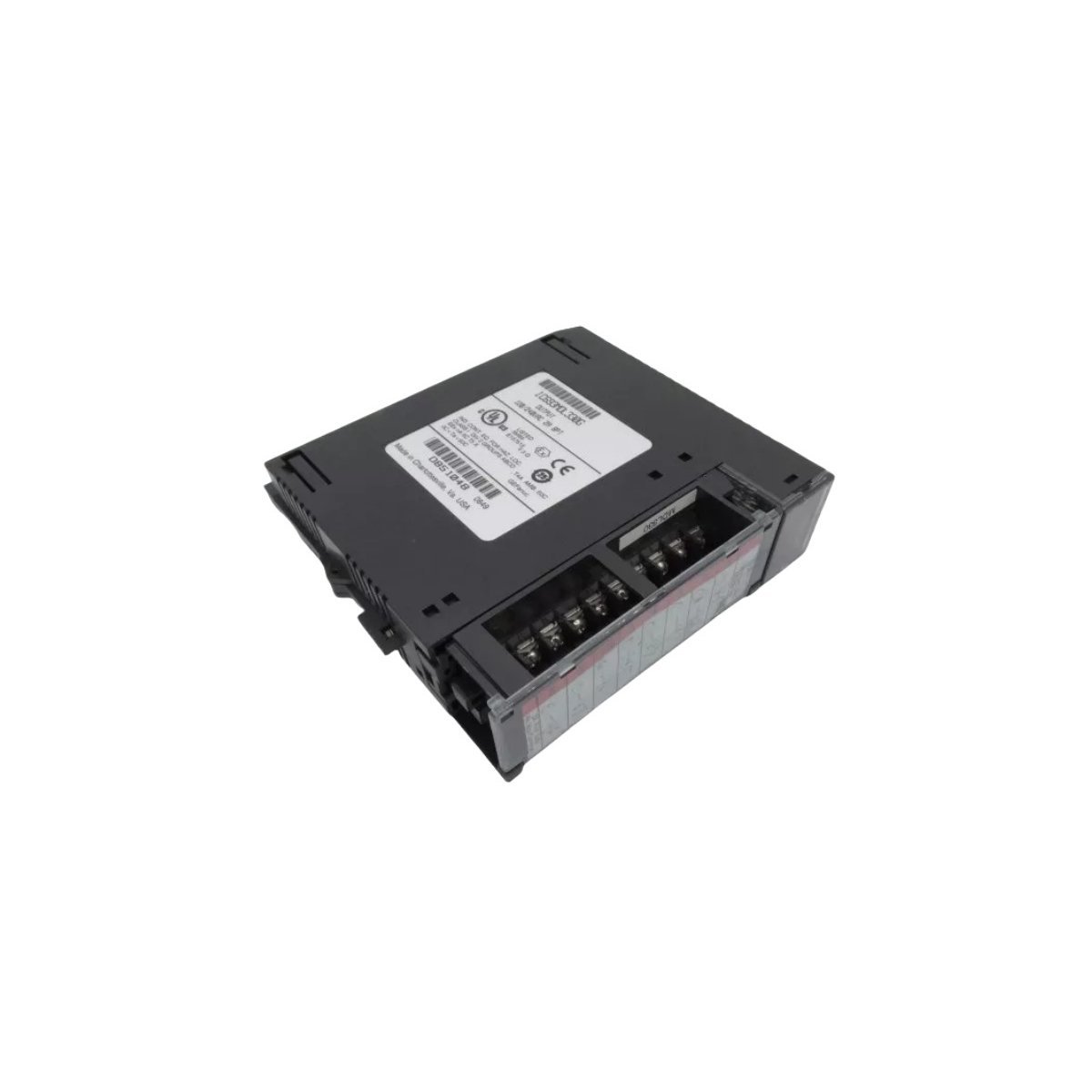

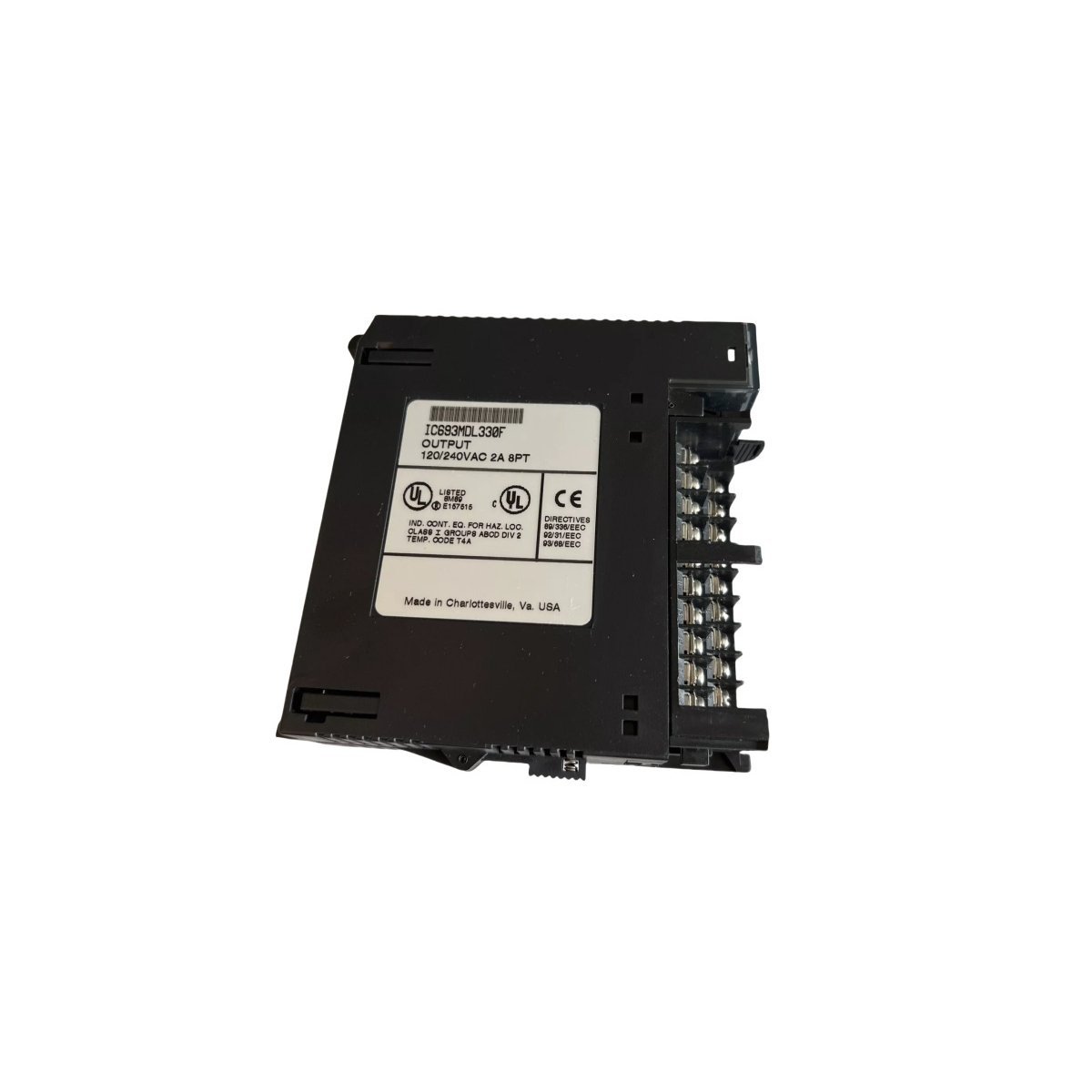

The GE Fanuc IC693MDL330 is an 8-point discrete output module designed for high-current AC applications within the Series 90-30 and PACSystems RX3i families. It provides 2 Amps per point across two isolated groups, making it ideal for controlling heavy inductive loads and incandescent lamps.

High-Current AC Load Management

The GE Fanuc IC693MDL330 serves as a robust switching interface for high-voltage AC field devices. This module specifically operates within a broad voltage range of 85 to 264 VAC, providing reliable control for industrial equipment. Each of the eight output points supports a substantial 2 Amp load, specifically designed to handle the high inrush currents typical of inductive machinery and incandescent lighting. To ensure superior protection, every output channel integrates an RC snubber circuit, which effectively suppresses electrical transients and voltage spikes that could otherwise damage the module or interfere with logic signals.

Group Isolation and Circuit Protection

Engineers designed the IC693MDL330 with a focus on electrical safety and installation flexibility. The module organizes its eight outputs into two independent groups of four, with each group electrically isolated from the other. This configuration allows a single module to control devices powered by different AC phases or separate power sources simultaneously. Furthermore, each group features a dedicated 5 Amp fuse to prevent overcurrent conditions from damaging the internal circuitry. To maintain switching stability, the module requires a minimum load current of 100 mA, ensuring that the solid-state components transition cleanly between active and inactive states.

Intelligent Visual Diagnostics

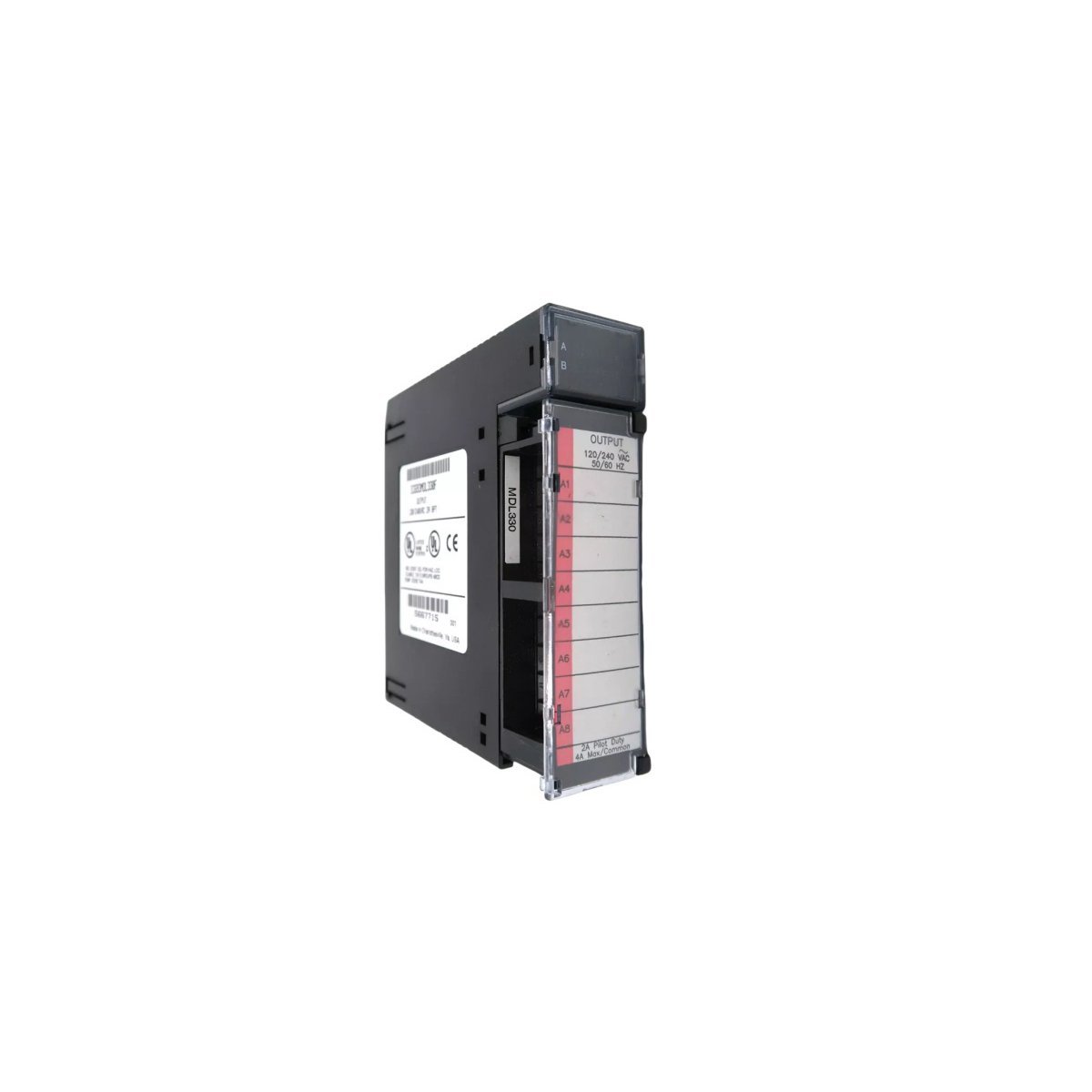

Efficient maintenance is supported by a comprehensive array of LED indicators located on the front panel of the IC693MDL330. Two horizontal rows of green LEDs (labeled A1 through A8) provide real-time status updates, illuminating when a specific output is energized. In addition to these logic status indicators, the module features a prominent red “F” LED. This diagnostic light activates immediately if an internal fuse blows, allowing technicians to identify and resolve hardware faults without extensive manual testing. Consequently, these visual cues significantly reduce troubleshooting time and enhance overall system uptime in demanding PLC environments.

Key Technical Characteristics

• Dual Isolated Groups: Features two sets of four outputs, allowing for multi-phase AC control within a single slot.
• High Inrush Tolerance: Withstands peak currents up to 20 Amps per cycle, facilitating the startup of large inductive loads.
• Integrated Transient Suppression: Uses RC snubbers on all channels to shield the system from power line noise.
• Fuse Protection: Includes 5 Amp fuses for each group with a dedicated “Blown Fuse” red LED indicator.
• Versatile Voltage Support: Functions across 120VAC or 240VAC nominal ratings at frequencies of 50/60 Hz.
• Clear Status Monitoring: Individual green “ON/OFF” LEDs for all eight points ensure easy field verification.
